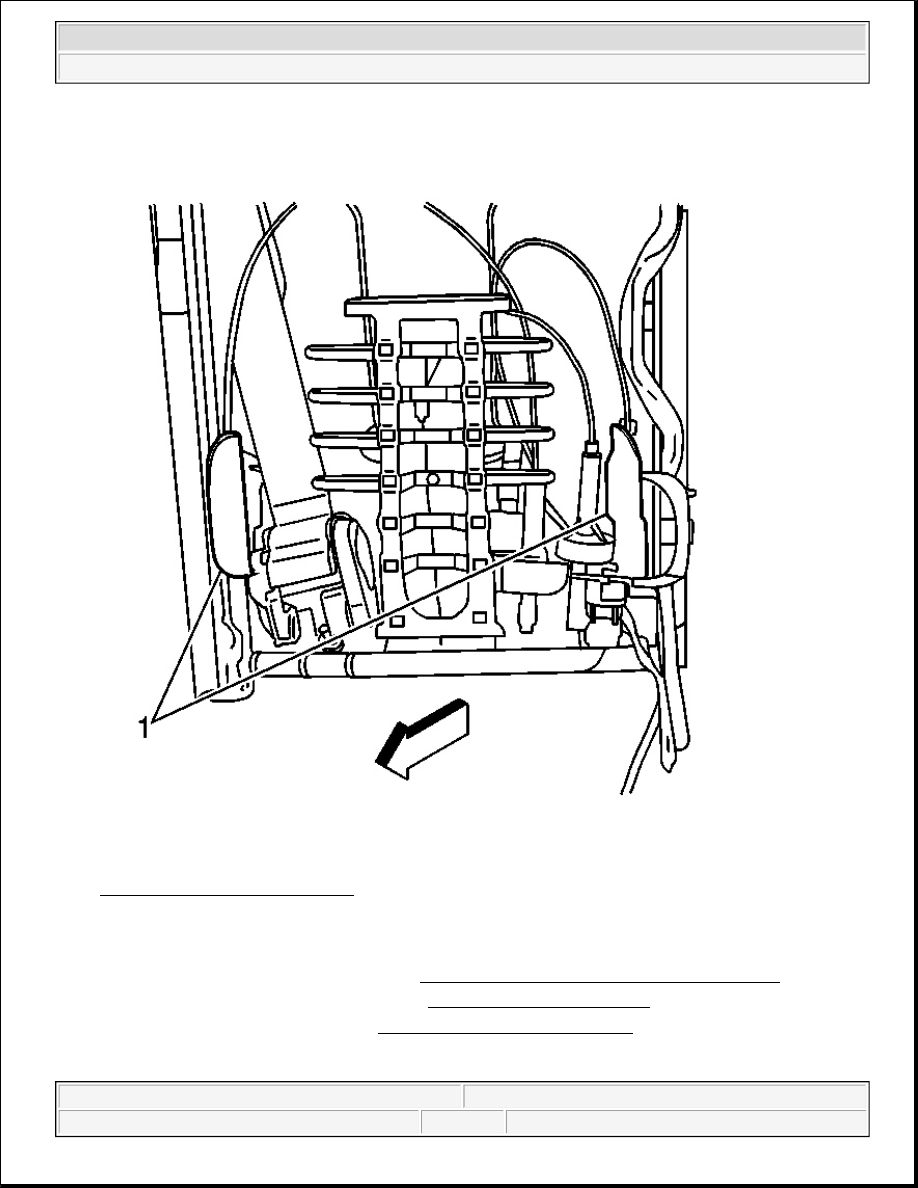

Fig. 57: Rivets & Bolster Paddles
Courtesy of GENERAL MOTORS CORP.

5. Install the rivets to secure the bolster paddles (1).

6. Install the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .

7. Install the head restraint and guides. Refer to Head Restraint Replacement .

8. Install the seat in the vehicle. Refer to Seat Replacement - Front Bucket .

LUMBAR SWITCH REPLACEMENT



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Removal Procedure

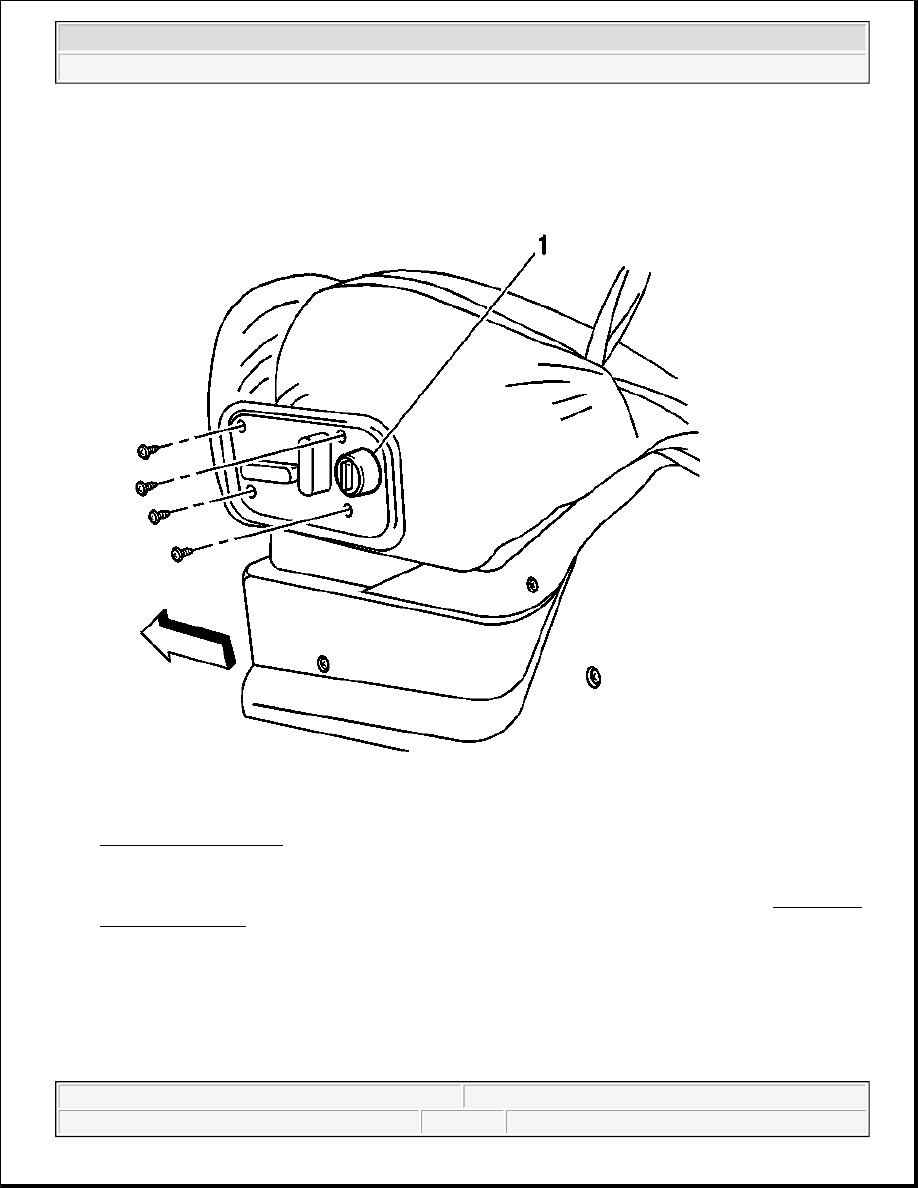

Fig. 58: Lumbar Switch
Courtesy of GENERAL MOTORS CORP.

1. Remove the power seat switch bezel containing the lumbar switch (1) from the seat. Refer to Seat Switch

Bezel Replacement .

2. Remove the lumbar switch screws from the power seat switch bezel.

3. Remove the lumbar switch.

Installation Procedure

1. Install the lumbar switch to the power seat switch bezel.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



2. Install the lumbar switch screws.

Tighten: Tighten the screws to 2 N.m (18 lb in).

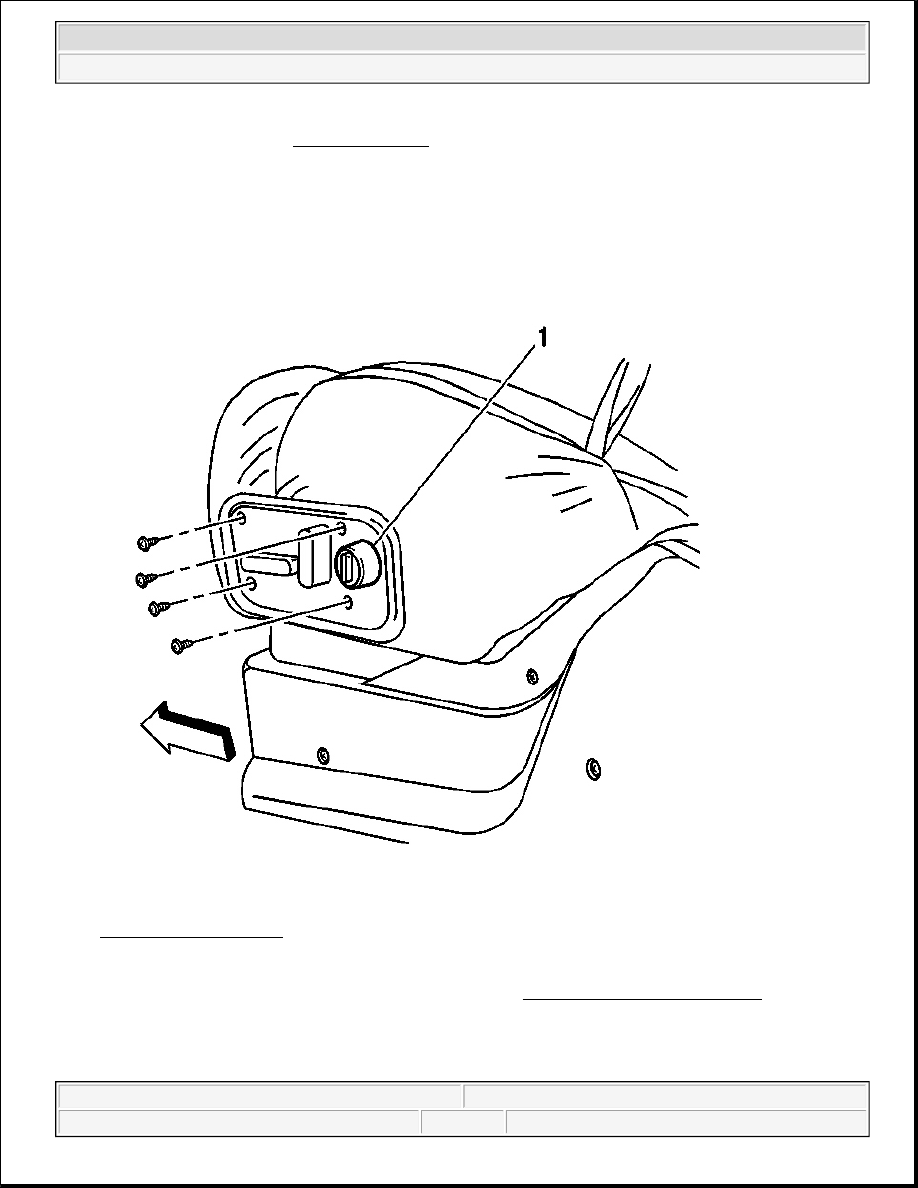

Fig. 59: Lumbar Switch
Courtesy of GENERAL MOTORS CORP.

3. Install the power seat switch bezel (1) to the seat. Refer to Seat Switch Bezel Replacement .

SEAT ADJUSTER REPLACEMENT - FRONT

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



1. Remove the front seat from the vehicle. Refer to Seat Replacement - Front Bucket .

2. Remove the seat trim panel. Refer to Trim Panel Replacement - Front Seat .

3. Remove the seat cushion frame from the seat adjuster. Refer to Seat Cushion Frame Replacement -

Front .

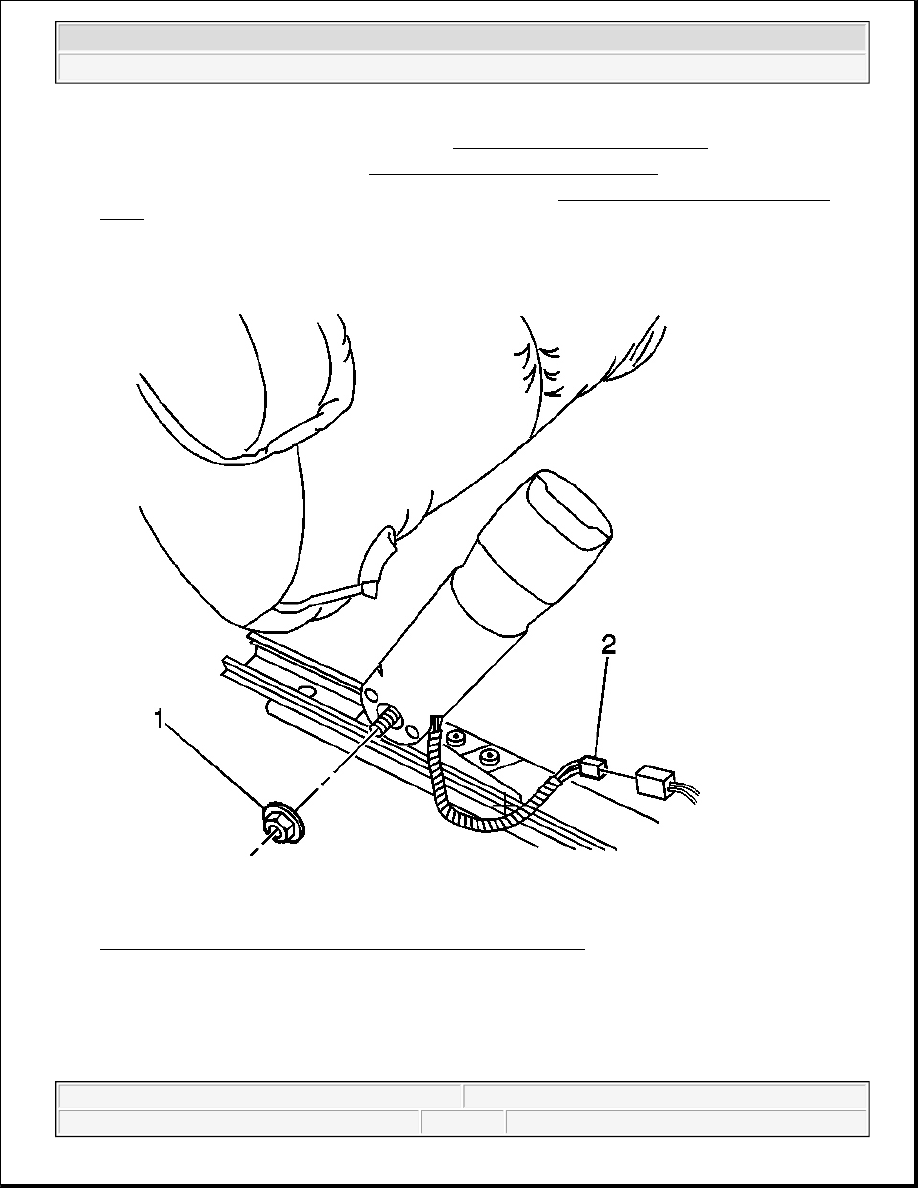

Fig. 60: Inboard Seat Belt Buckle, Nut & Electrical Connection
Courtesy of GENERAL MOTORS CORP.

4. Remove the inboard seat belt buckle and nut (1).

Disconnect the electrical connection (2).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2
