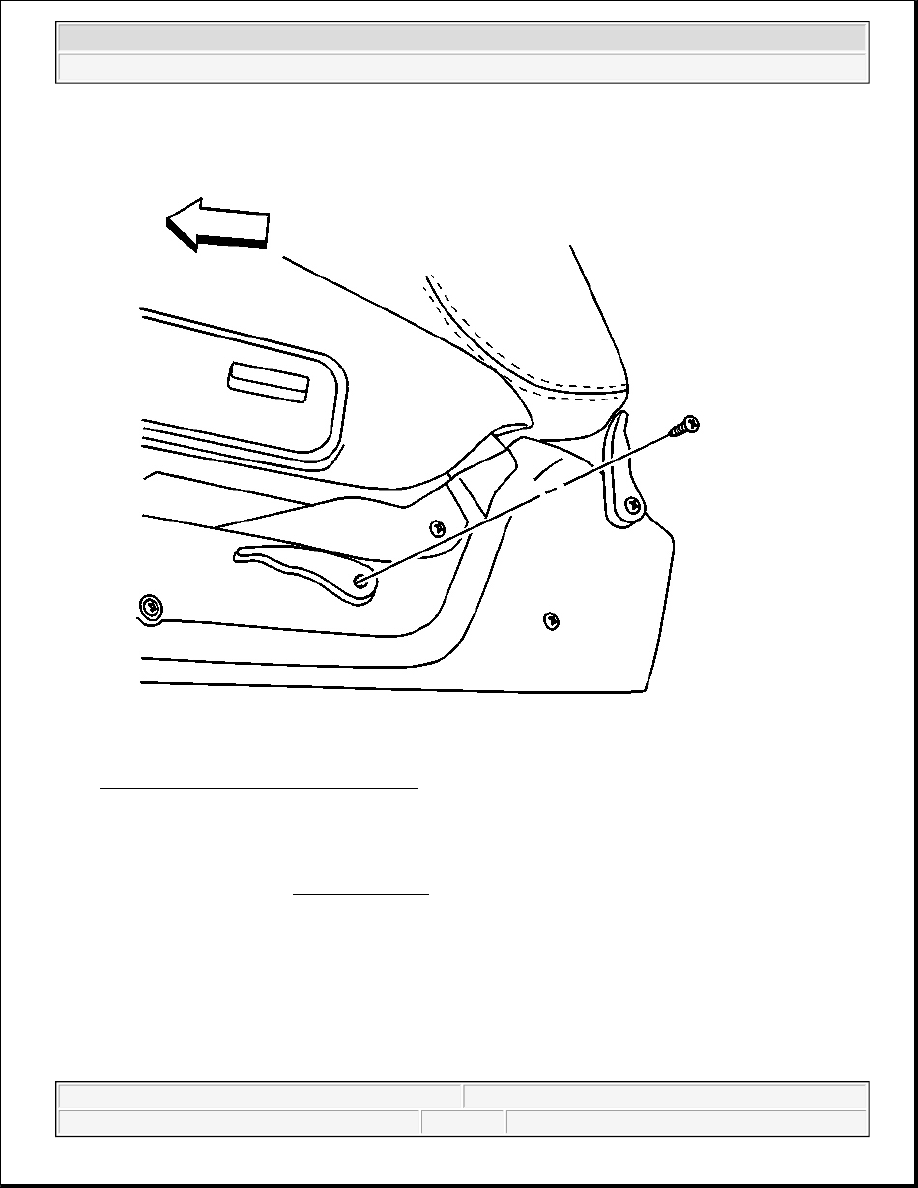

Fig. 53: Front Seat Back Recliner Handle
Courtesy of GENERAL MOTORS CORP.

1. Position the recliner handle on the side shield.

2. Install the screw retaining the recliner handle to the trim panel.

Tighten: Tighten the screws to 2 N.m (18 lb in).

LUMBAR REPLACEMENT - FRONT SEAT

Tools Required

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



J 34940 Rivet Gun

Removal Procedure

1. Remove the front seat from the vehicle. Refer to Seat Replacement - Front Bucket .

2. Remove the head restraint and guides. Refer to Head Restraint Replacement .

3. Remove the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .

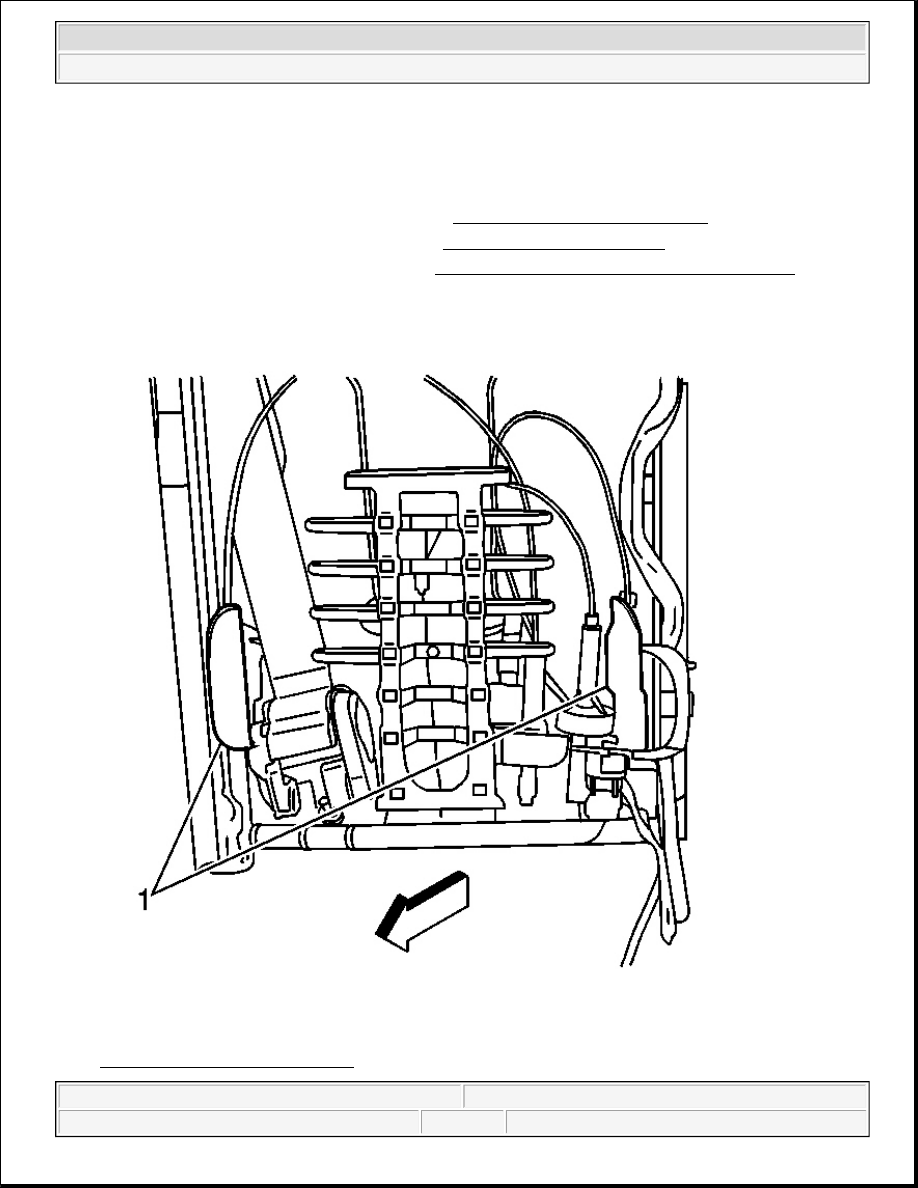

Fig. 54: Rivets & Bolster Paddles



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Courtesy of GENERAL MOTORS CORP.

4. Drill out the rivet holes on the bolster paddles (1).

Fig. 55: Front Seat Lumbar
Courtesy of GENERAL MOTORS CORP.

5. Detach the lumbar clip from the top of the seat frame.

6. Remove the lumbar wire from the bottom of the seat frame.

7. Disconnect the electrical connectors to the motors.

8. Remove the power lumbar/bolster assembly from the seat.

Installation Procedure

1. Position the power lumbar/bolster assembly on the seat.

2. Connect the electrical connectors to the motors.

3. Fasten the lumbar wire at the bottom of the frame.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



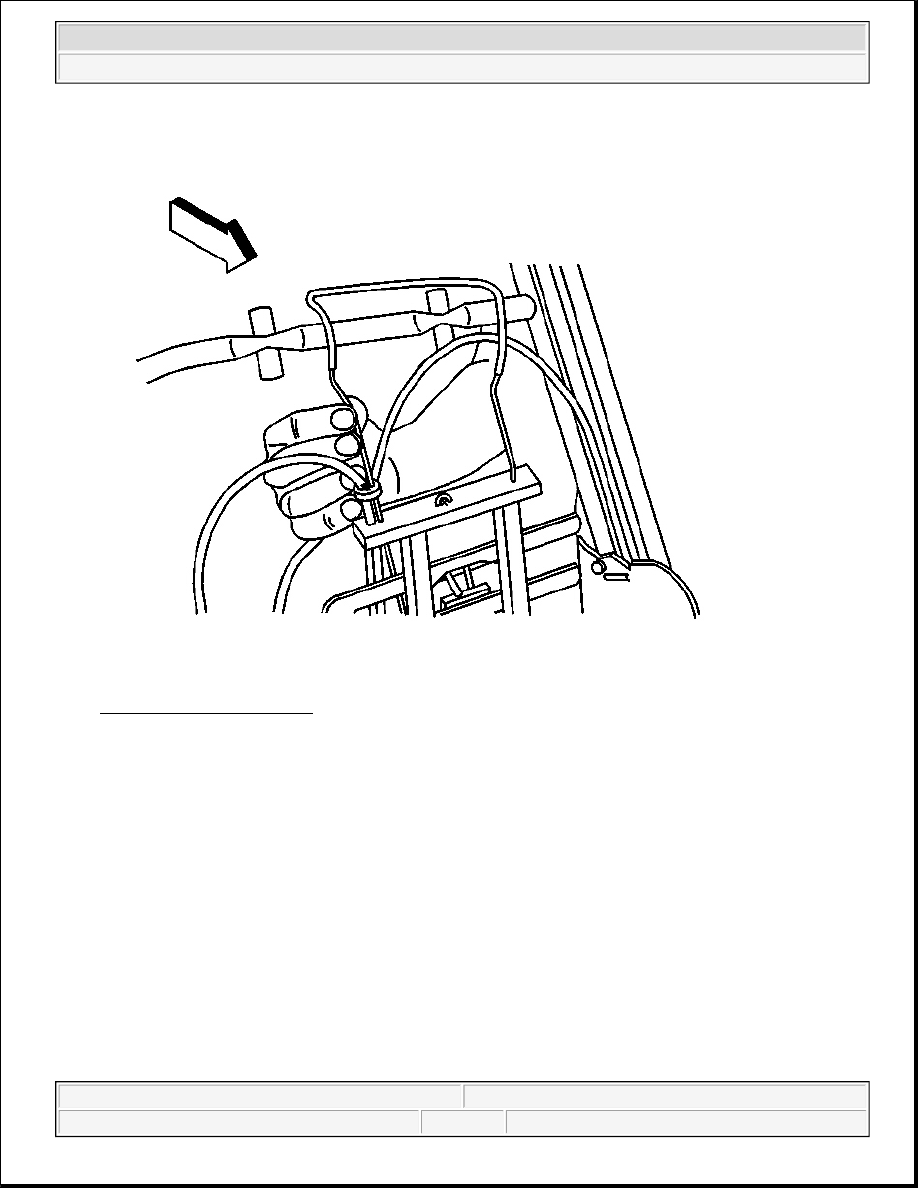

Fig. 56: Front Seat Lumbar
Courtesy of GENERAL MOTORS CORP.

4. Attach the lumbar clip onto the top of the seat frame.
