5. Remove the outboard pivot bolt.

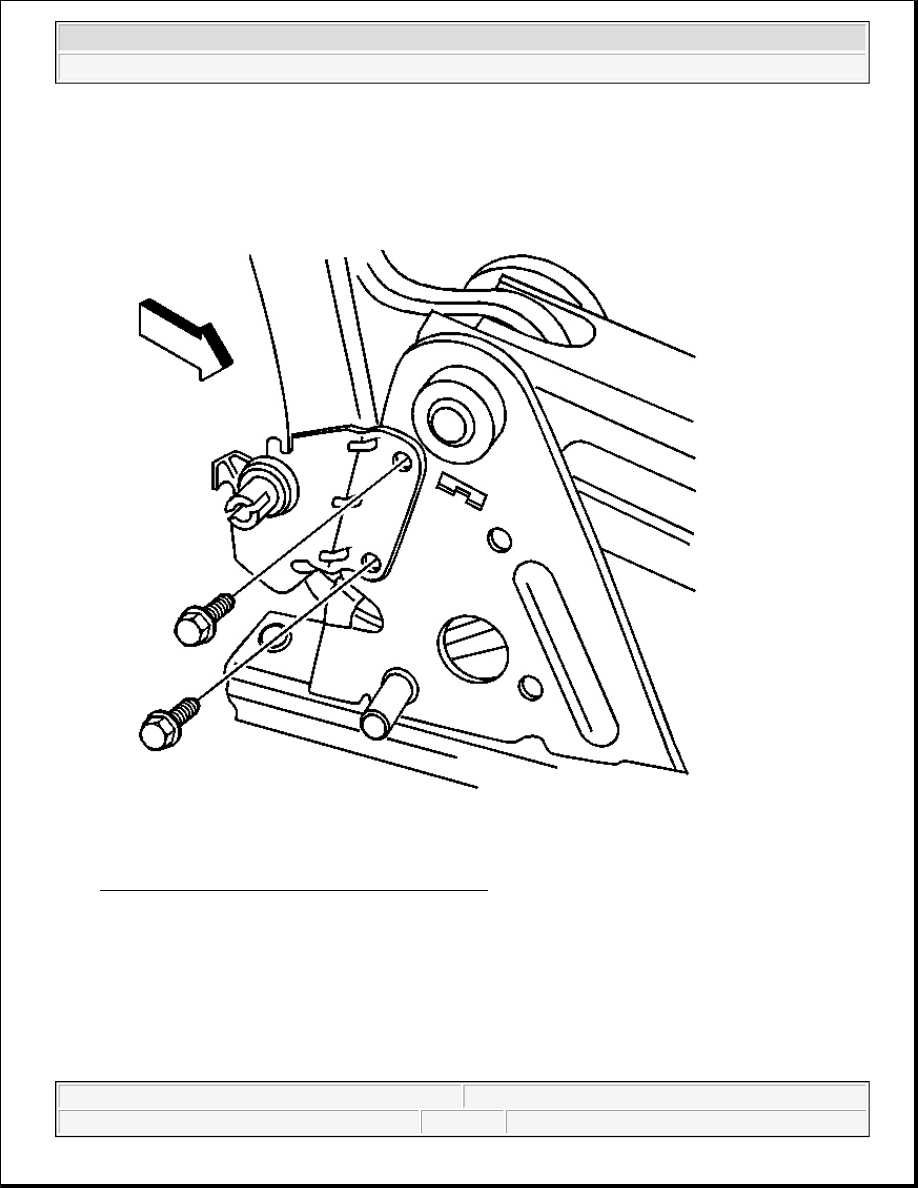

Fig. 45: Front Seat Back Folding Mechanism Bolts
Courtesy of GENERAL MOTORS CORP.

6. Remove the bolts holding the seat back folding mechanism.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2

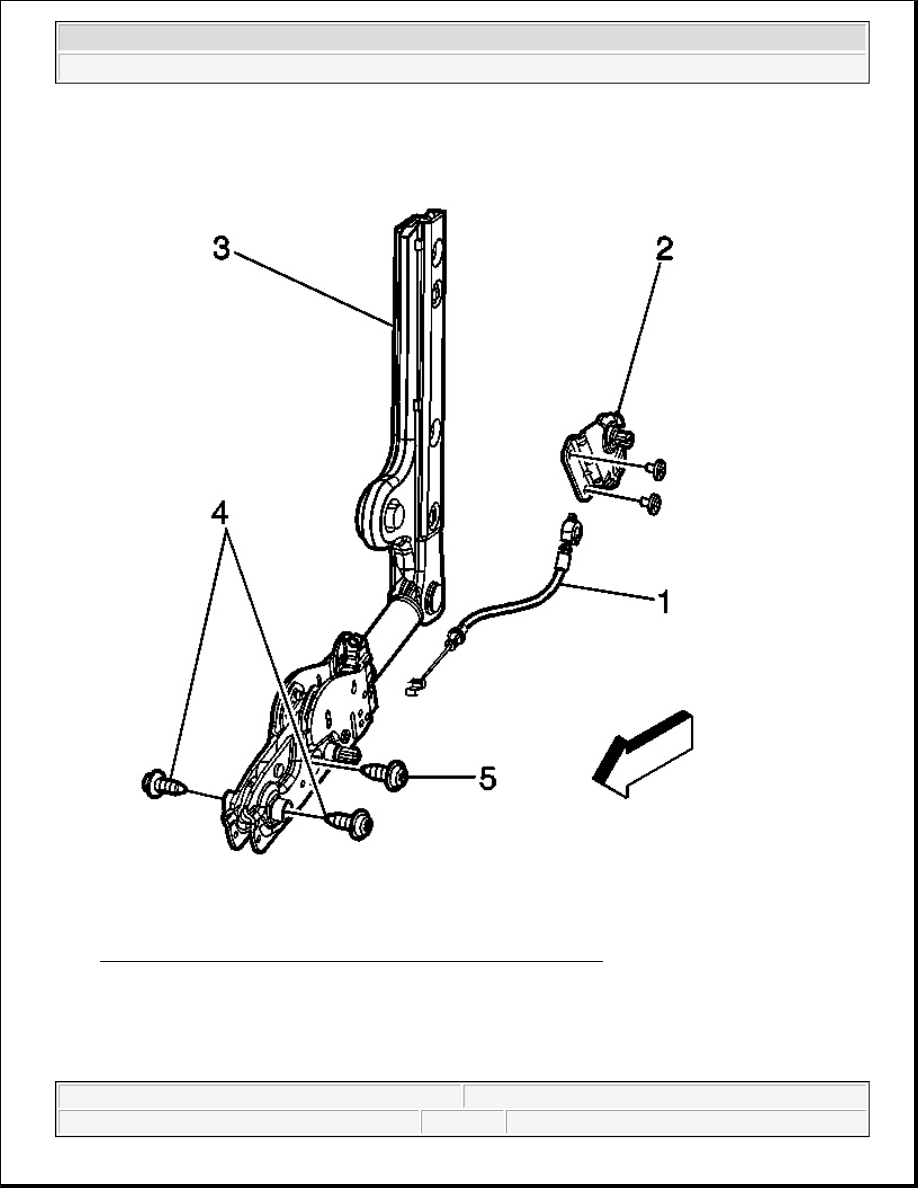

Fig. 46: Front Seat Back Hinge/Recliner Mechanism Components
Courtesy of GENERAL MOTORS CORP.

7. Unsnap the recliner cable (1) from the folding mechanism (3).

8. Remove the front recliner attachment bolts (4).

9. Remove the recliner screw (5).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2

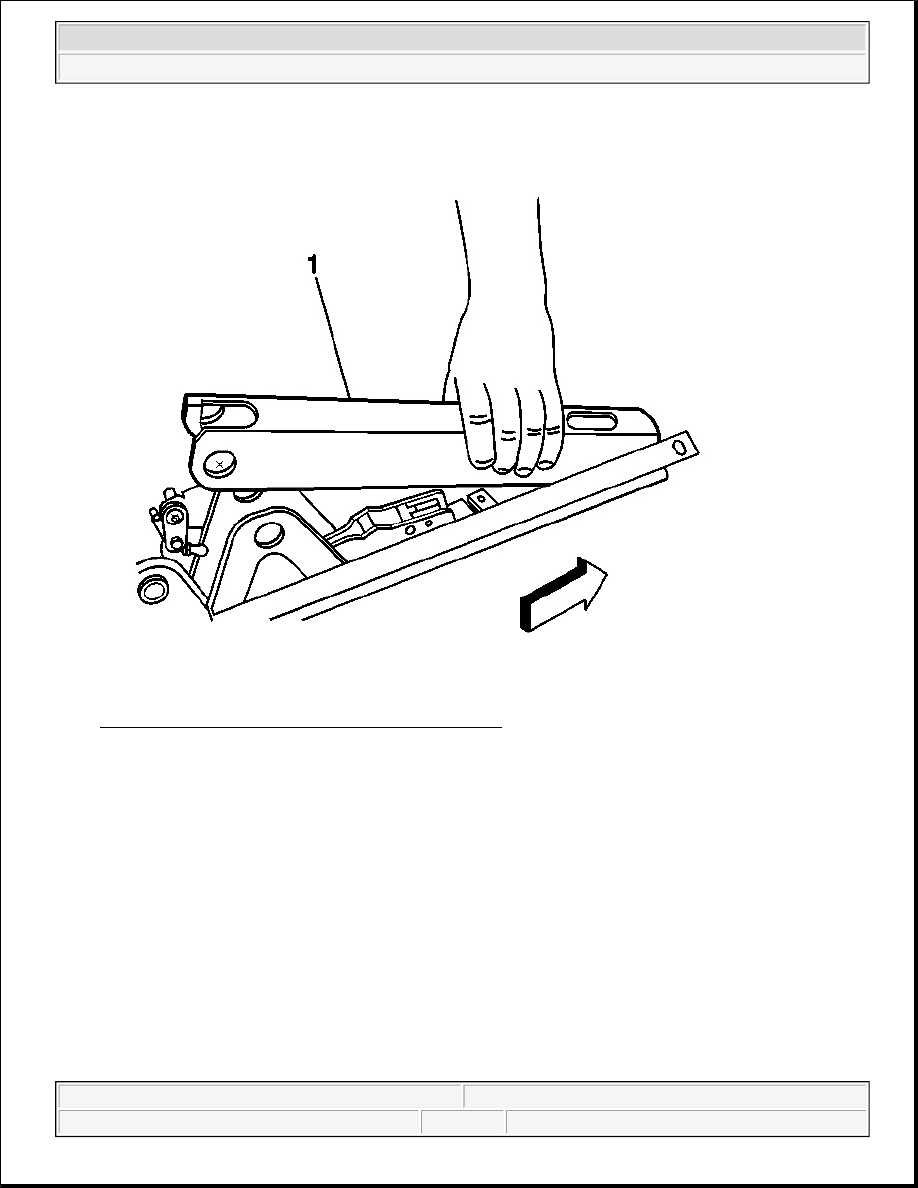

Fig. 47: Front Seat Back Hinge/Recliner Mechanism
Courtesy of GENERAL MOTORS CORP.

10. Remove the U-channel (1).

11. Remove the drive cable, if equipped with a power recliner.

12. Disconnect the recliner cable from the recliner mechanism.

13. Remove the recliner from the seat frame.

Installation Procedure

1. Attach the recliner cable to the recliner mechanism.

2. Install the drive cable, if equipped with a power recliner.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Fig. 48: Front Seat Back Hinge/Recliner Mechanism
Courtesy of GENERAL MOTORS CORP.

3. Install the U-channel (1).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2
