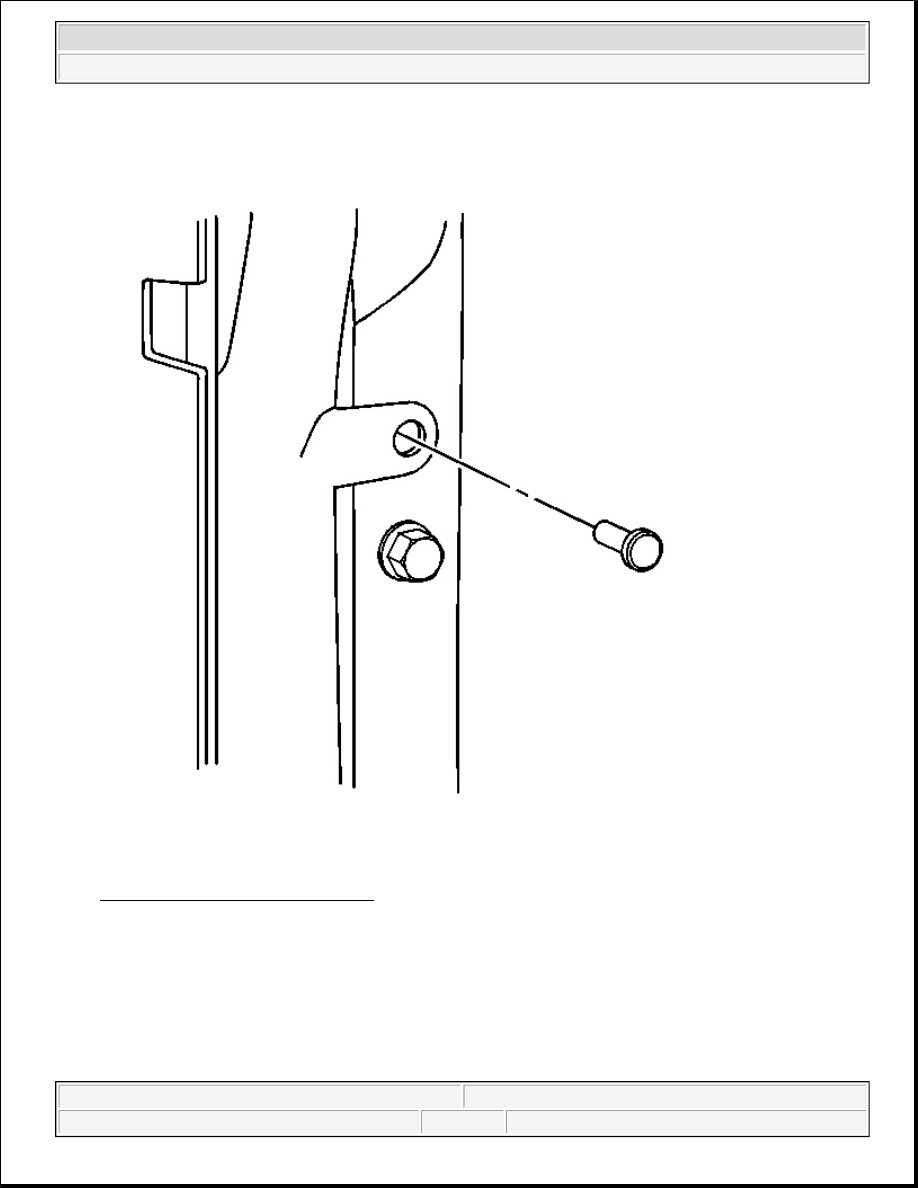

Fig. 37: Seat Belt Tower Cover Bolt
Courtesy of GENERAL MOTORS CORP.

4. Install the rear cardboard panel. Engage the panel fasteners.

5. Install the seat back cover partially onto the top of the frame.

6. Feed the seat belt and the seat belt bezel through the tower opening.

7. Install the arm rest clip.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



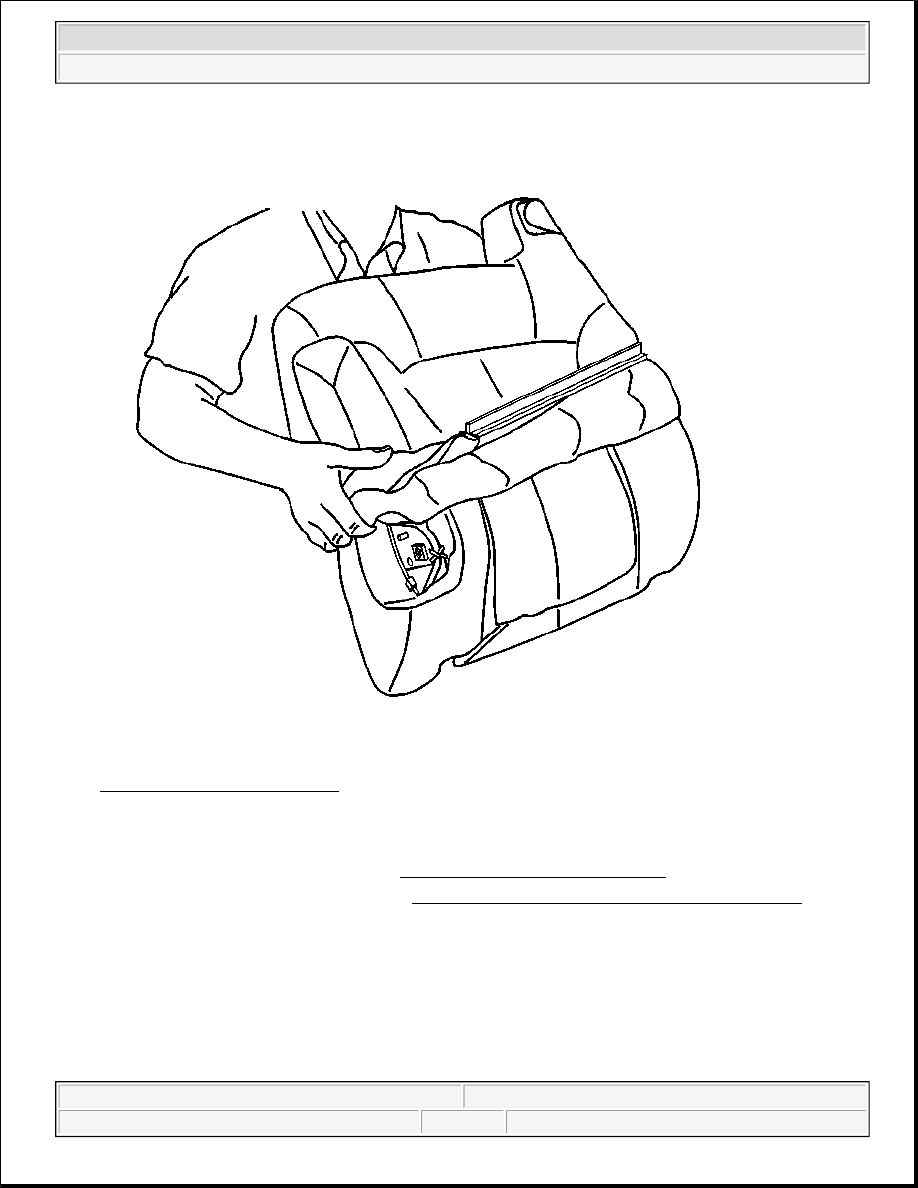

Fig. 38: Front Seat Back Cover
Courtesy of GENERAL MOTORS CORP.

8. Pull the rest of the cover down using a side-to-side motion.

9. Install the armrests, if equipped. Refer to Armrest Replacement - Front Seat .

10. Install the head restraint retainers. Refer to Head Restraint Retainer Replacement - Front Seat .

11. Fit the seat cover around the air bag cover.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



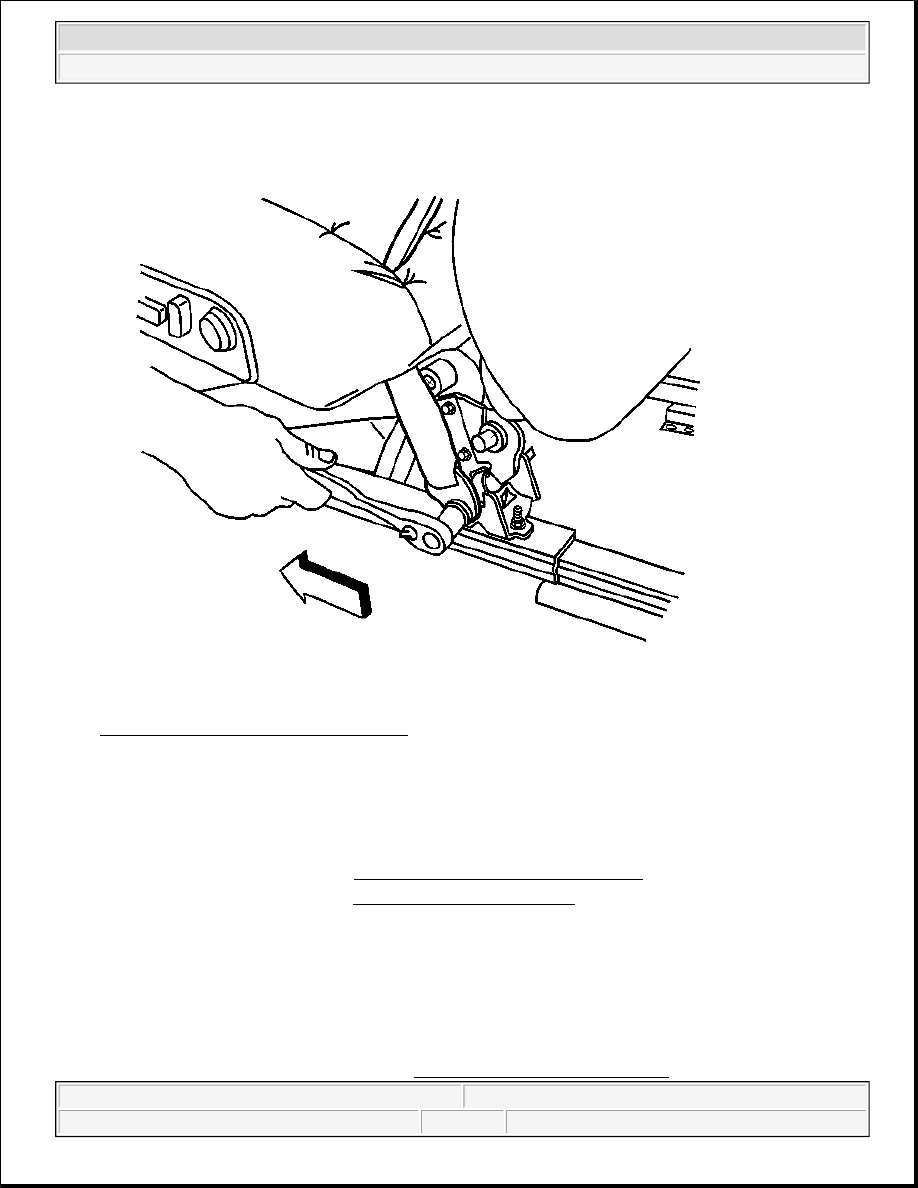

Fig. 39: Outboard Seat Belt Anchor Nut
Courtesy of GENERAL MOTORS CORP.

12. Pull the seat belt down through the seat cushion and install the outboard seat belt anchor nut.

Tighten: Tighten the nut to 53 N.m (39 lb ft).

13. Install the seat trim panel. Refer to Trim Panel Replacement - Front Seat .

14. Install the head restraints. Refer to Head Restraint Replacement .

15. Push on the seat cover. Ensure that the cover is retained by the velcro in the seat cushion.

16. Connect the J-strip at the bottom of the seat.

SEAT BACK FRAME REPLACEMENT - FRONT

Removal Procedure

1. Remove the seat from the vehicle. Refer to Seat Replacement - Front Bucket .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



2. Remove the head restraint and guides. Refer to Head Restraint Replacement .

3. Remove the seat trim panel. Refer to Trim Panel Replacement - Front Seat .

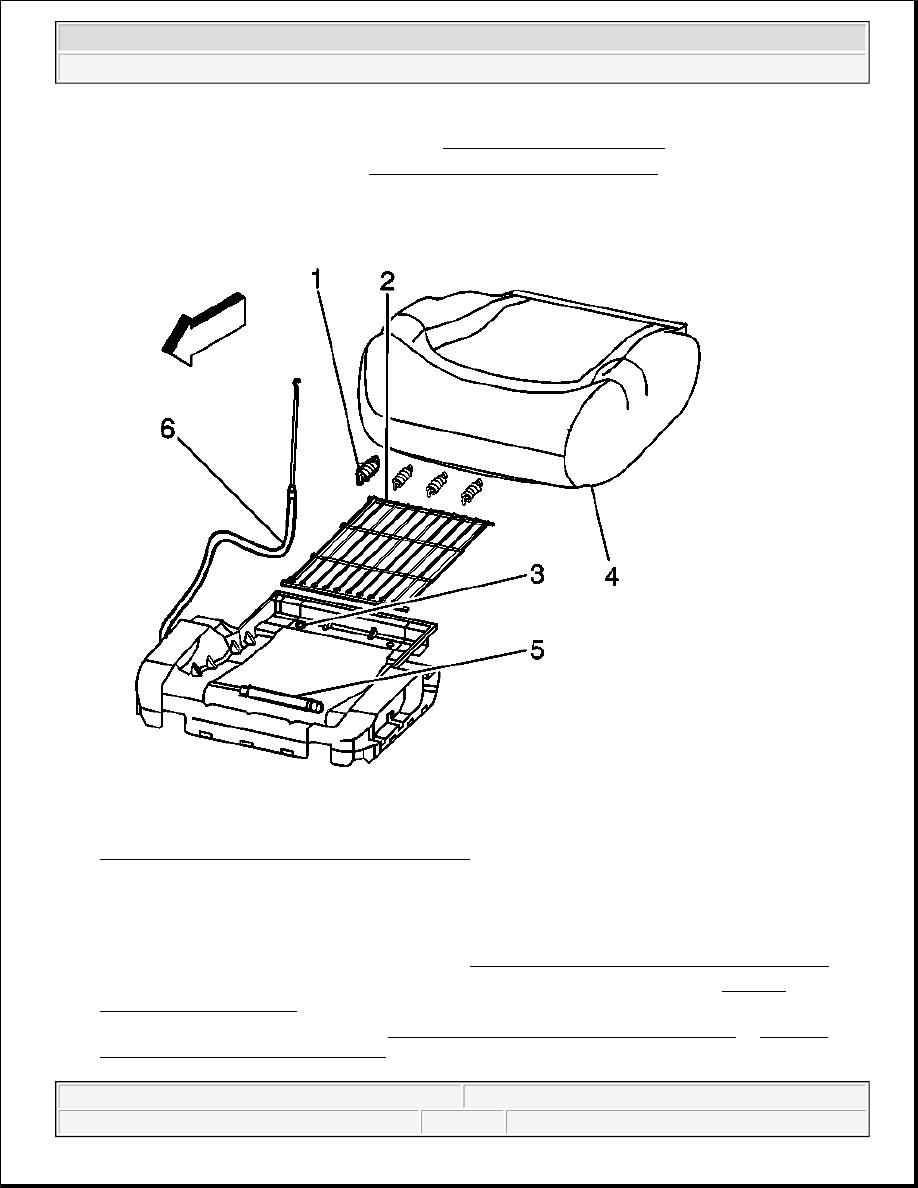

Fig. 40: Front Seat Cushion Frame Components
Courtesy of GENERAL MOTORS CORP.

4. Disconnect the lumbar cable (6) underneath the seat cushion. Disconnect the lumbar wire harness if

equipped with power lumbar.

5. Remove the seat back trim cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .

6. Remove the lumbar assembly or power lumbar/bolster assembly if equipped. Refer to Lumbar

Replacement - Front Seat .

7. Remove the seat belt retractor. Refer to Seat Belt Retractor Replacement - Left Front or Seat Belt

Retractor Replacement - Right Front in Seat Belts.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2
