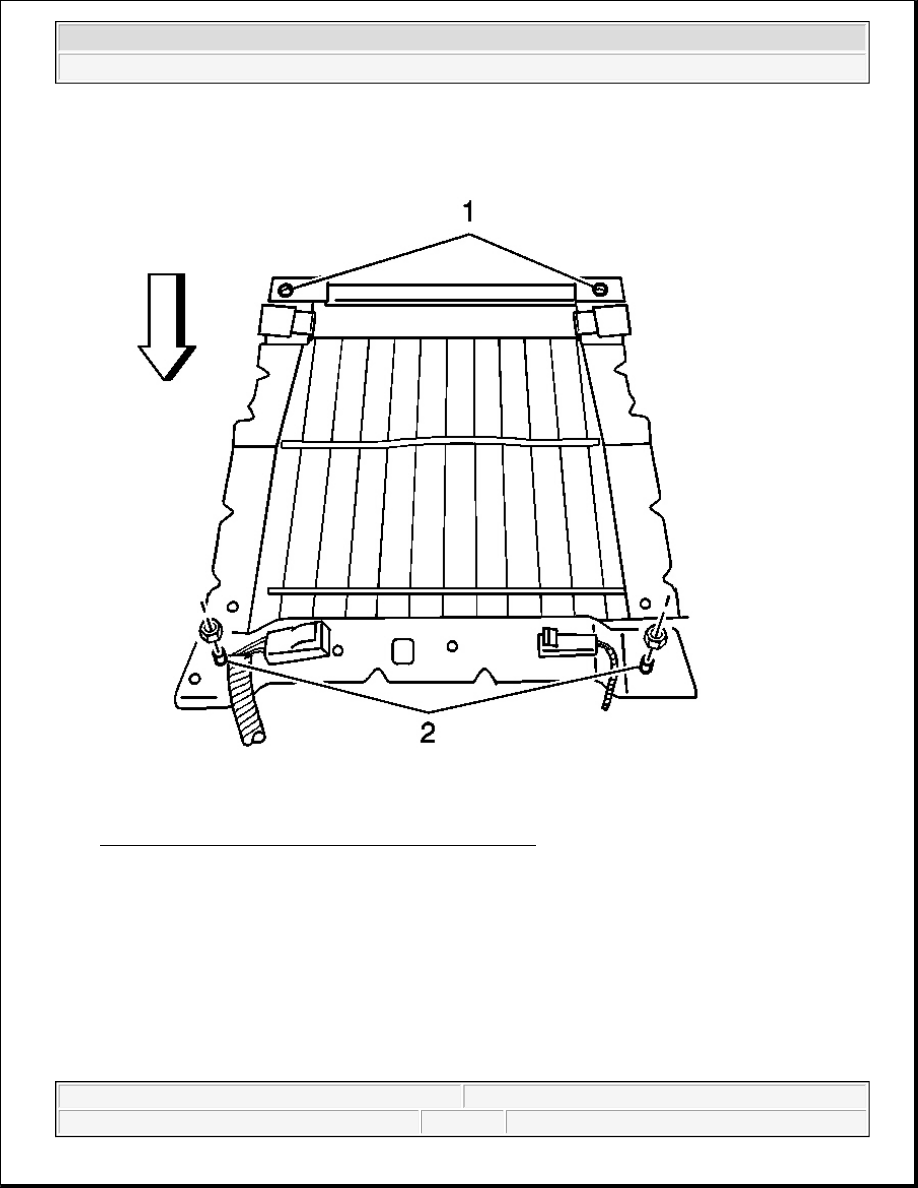

Fig. 29: Seat Cushion Front Nuts & Rear Plastic Holders
Courtesy of GENERAL MOTORS CORP.

6. Place the cushion on the rear plastic holders (1) on the underside of the seat cushion, and push rearward.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Fig. 30: Front Seat Cushion Frame Components
Courtesy of GENERAL MOTORS CORP.

7. Connect the lumbar cable to the underside of the seat cushion (6). Connect the lumbar wire harness if

equipped with power lumbar.

8. Connect the electrical connectors.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Fig. 31: Seat Cushion Front Nuts & Rear Plastic Holders
Courtesy of GENERAL MOTORS CORP.

9. Install the front nuts (2) onto the studs on the underside of the cushion.

Tighten: Tighten the nuts to 21 N.m (15 lb ft).

SEAT BACK COVER AND PAD REPLACEMENT - FRONT

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



1. Remove the head restraint. Refer to Head Restraint Replacement .

2. Remove the seat trim panel. Refer to Trim Panel Replacement - Front Seat .

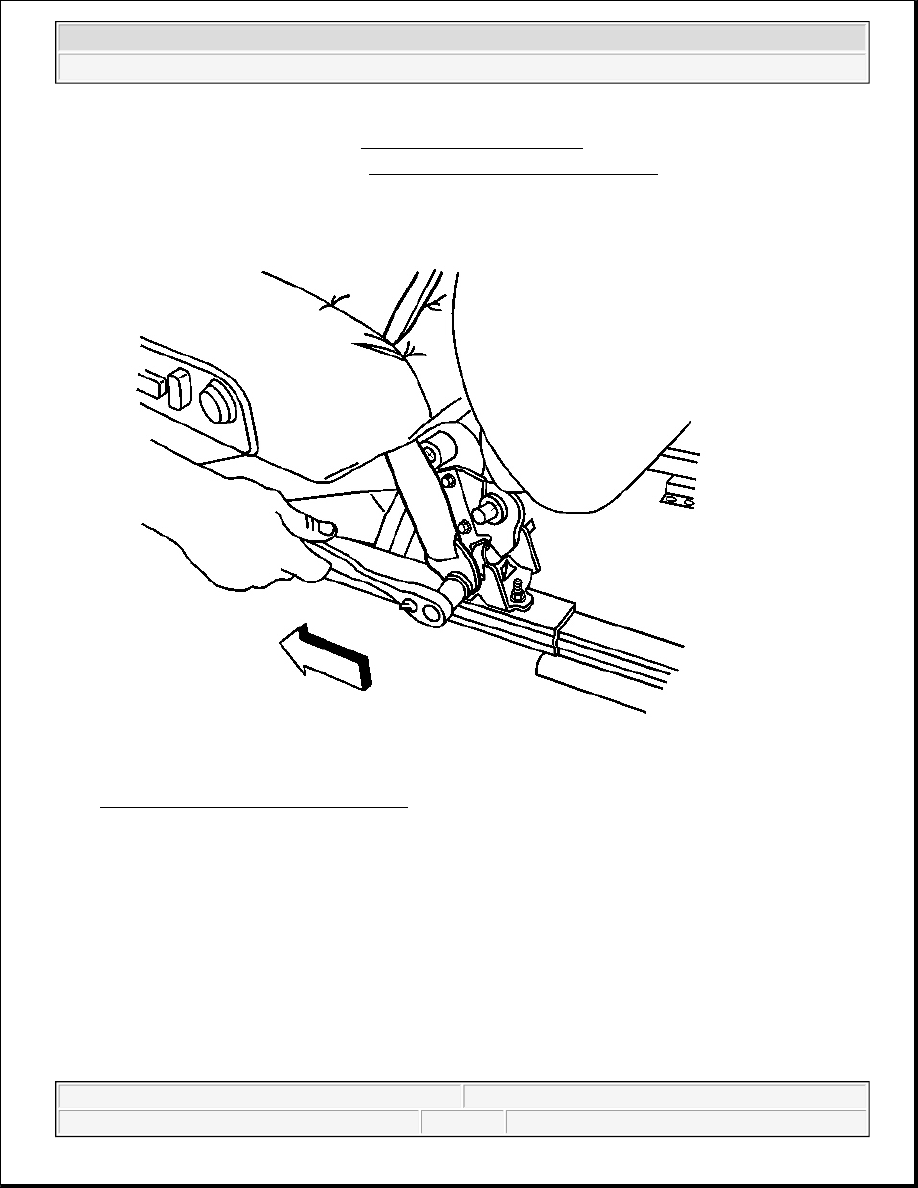

Fig. 32: Outboard Seat Belt Anchor Nut
Courtesy of GENERAL MOTORS CORP.

3. Remove the outboard seat belt anchor nut. Pull the seat belt through the seat cushion.

4. Disengage the J-strip retainer on the bottom of the seat back cover.

5. Disconnect the heater seat element connector, if equipped.
