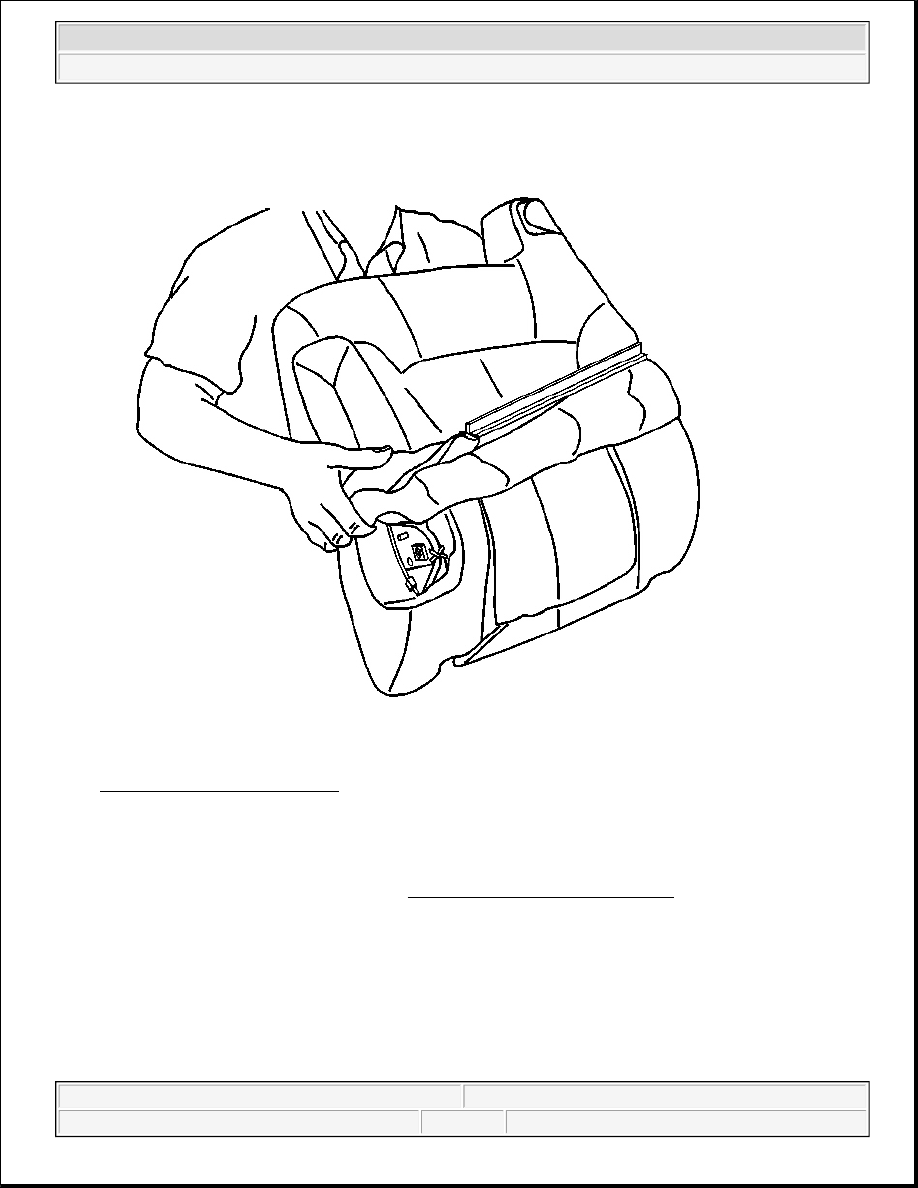

Fig. 33: Front Seat Back Cover
Courtesy of GENERAL MOTORS CORP.

6. Using a side motion, carefully lift the seat back cover partially off the foam pad in order to access the arm

rest clip.

7. Remove the armrest, if equipped. Refer to Armrest Replacement - Front Seat .

8. Using a flat bladed tool lift the seat cover over the air bag cover.

9. Remove the seat cover to the top of the seat.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



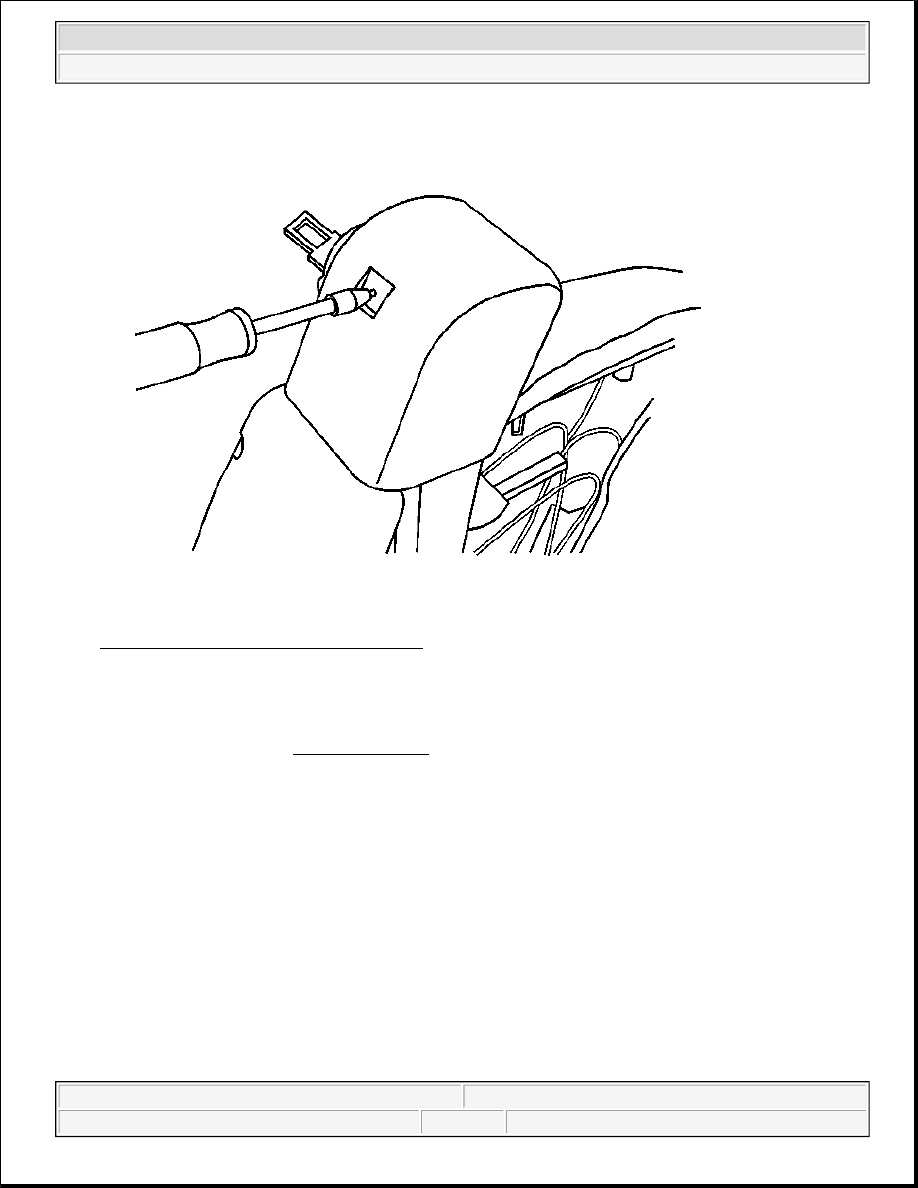

Fig. 34: Seat Belt Tower Cover Bolt
Courtesy of GENERAL MOTORS CORP.

10. Disengage the panel fasteners in order to remove the rear cardboard panel.

11. Unclip the head restraint retainers. Refer to Head Restraint Retainer Replacement - Front Seat .

12. Remove the bolts which retain the seat belt tower cover.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2

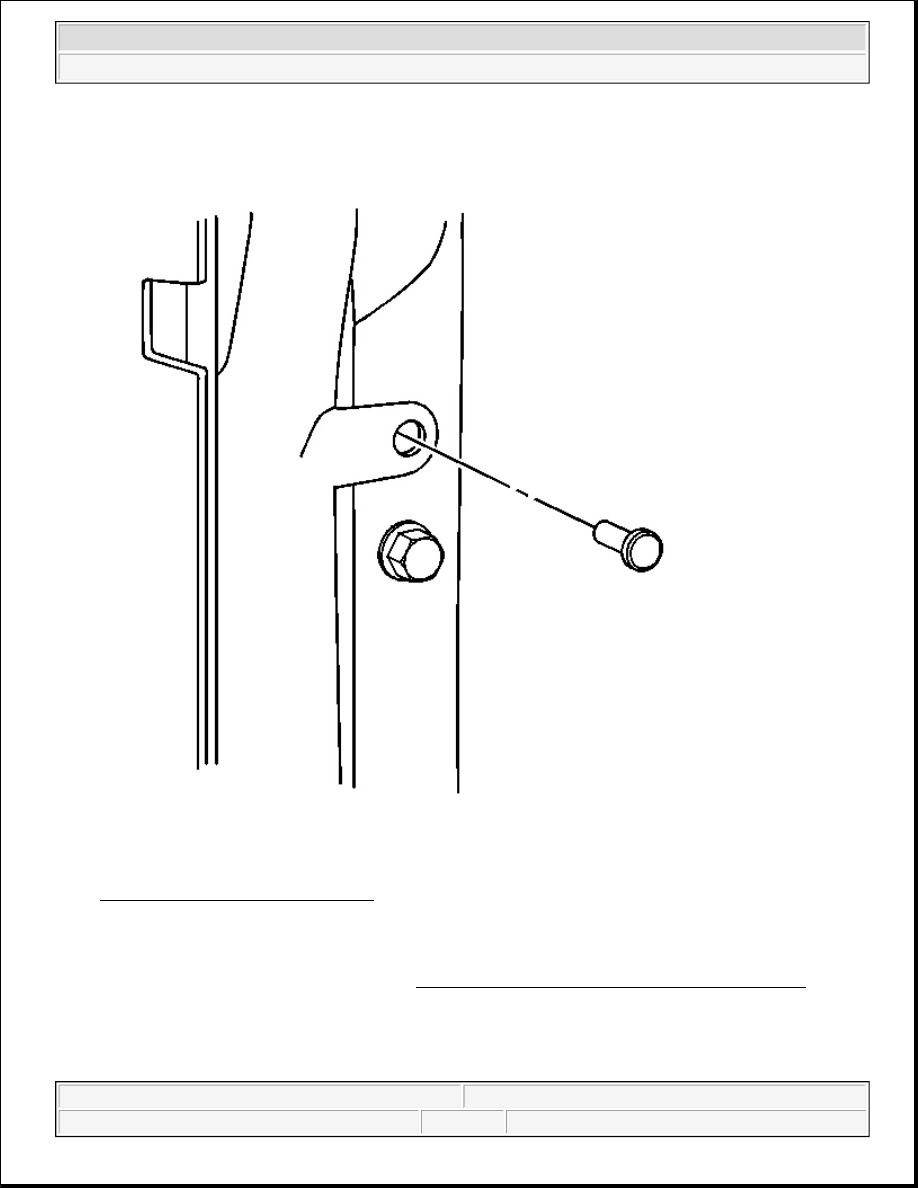

Fig. 35: Retractor Tower Retaining Screw
Courtesy of GENERAL MOTORS CORP.

13. Remove the seat belt tower cover.

14. Pull the seat belt and the seat belt bezel through the opening in the seat cover.

15. Lift the remainder of the seat back cover off the foam pad.

16. Carefully remove the foam pad from the frame.

Installation Procedure

1. Attach the foam pad to the frame.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Fig. 36: Retractor Tower Retaining Screw
Courtesy of GENERAL MOTORS CORP.

2. Install the seat belt tower.

3. Install the bolts which retain the seat belt tower cover.

Tighten: Tighten the bolts to 1.9 N.m (17 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2
