Fig. 25: Seat Cushion Frame & Seat Cushion Trim Pad
Courtesy of GENERAL MOTORS CORP.

8. Using a side motion, carefully separate the seat cushion trim cover from the seat cushion pad.

9. Remove the pad from the seat cushion frame.

Installation Procedure

1. Install the seat cushion pad to the seat cushion frame.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



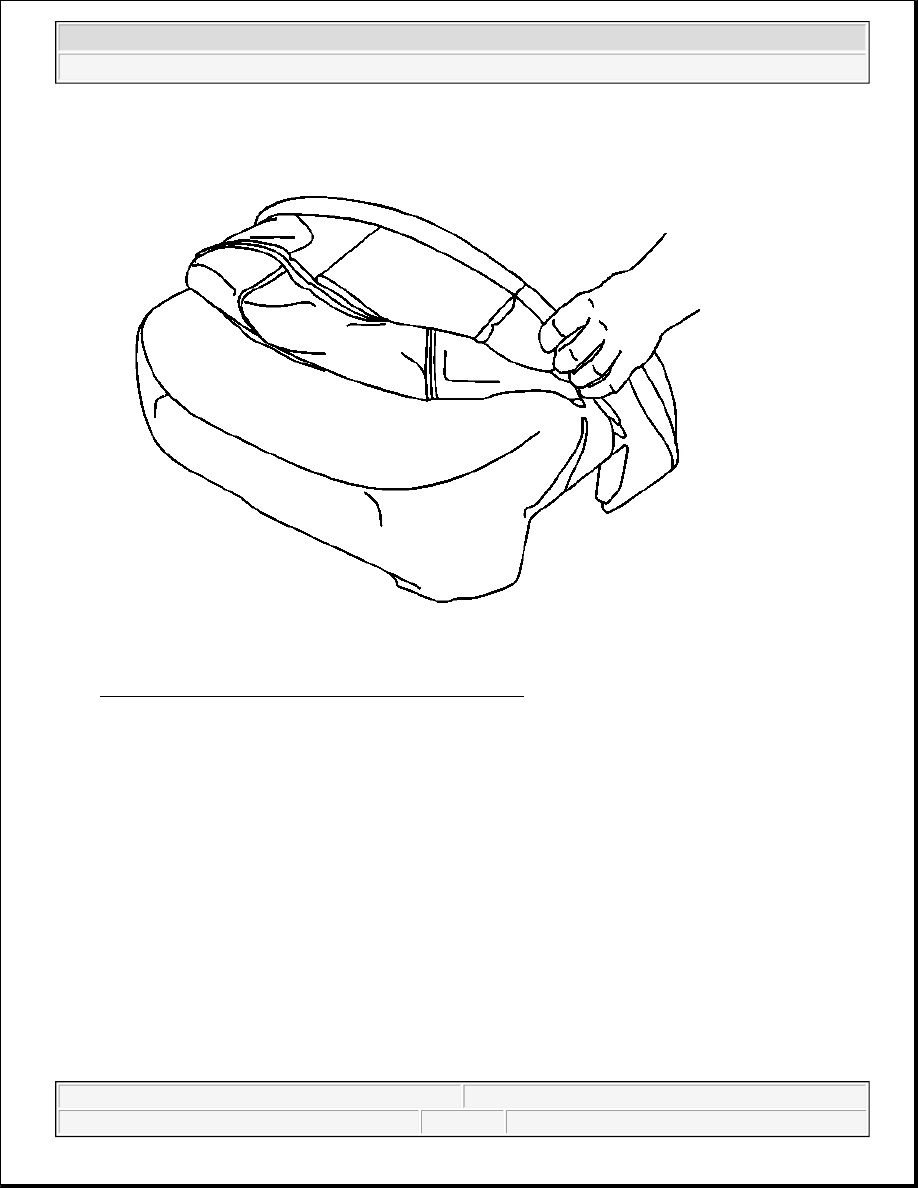

Fig. 26: Seat Cushion Frame & Seat Cushion Trim Pad
Courtesy of GENERAL MOTORS CORP.

2. Using a side motion, carefully pull the seat cushion cover onto the frame pad.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



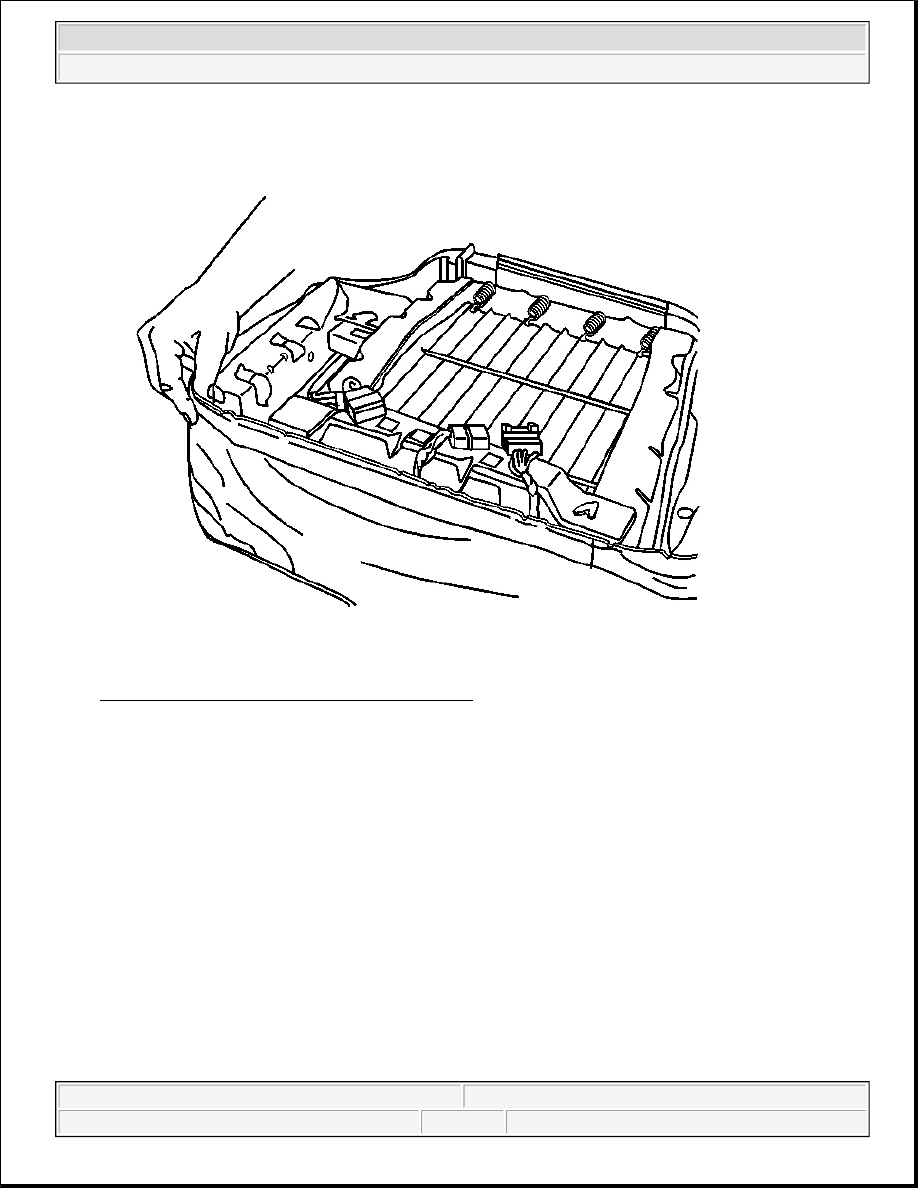

Fig. 27: Seat Trim Cover & Seat Cushion Frame
Courtesy of GENERAL MOTORS CORP.

3. Attach the seat trim cover to the seat cushion frame.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



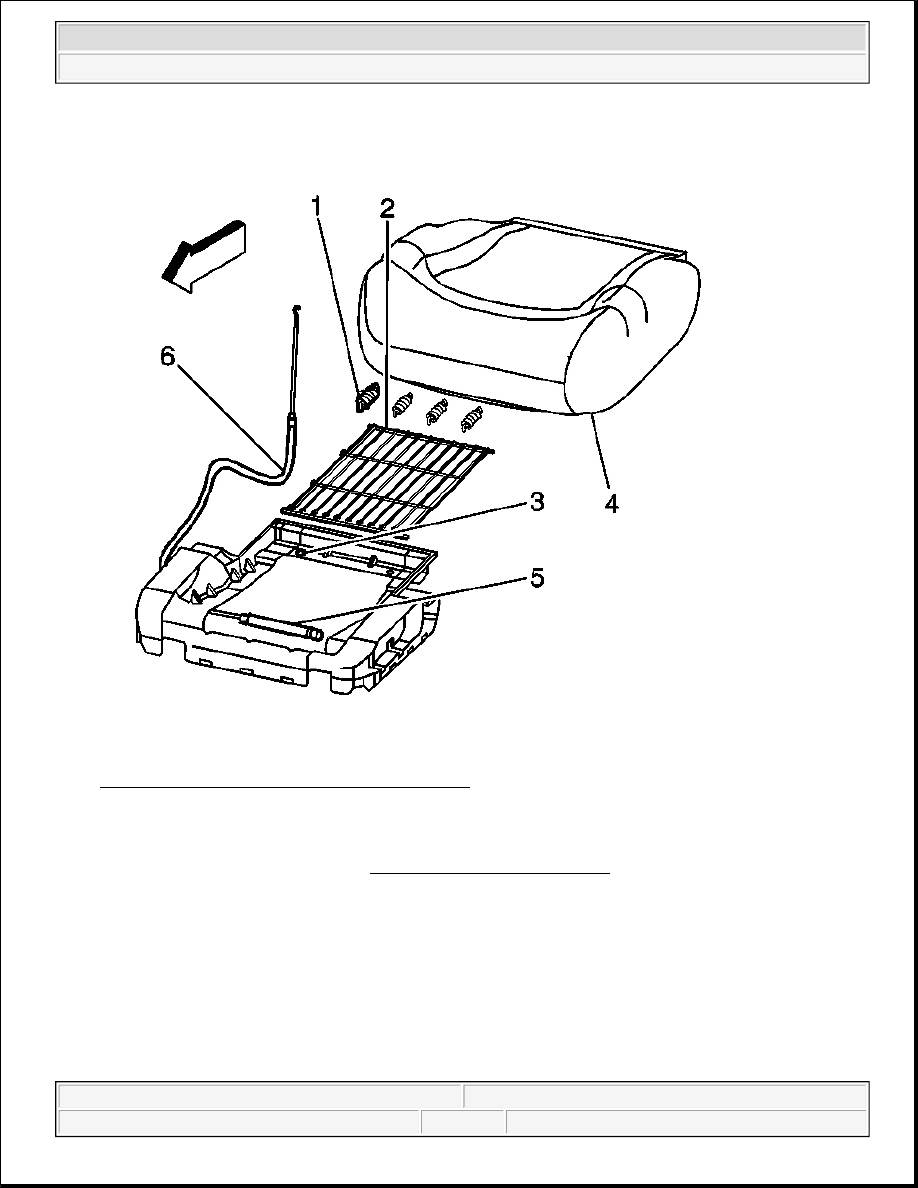

Fig. 28: Front Seat Cushion Frame Components
Courtesy of GENERAL MOTORS CORP.

4. Install the lumbar actuator (5).

5. Install the seat switch bezel. Refer to Seat Switch Bezel Replacement .
