Hummer H2. Manual - part 583

Fig. 21: Front Seat Cushion Frame Components
Courtesy of GENERAL MOTORS CORP.

2. Unsnap the lumbar cable (6), disconnect the lumbar wire harness if equipped with power lumbar.

3. Disconnect the electrical connectors.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



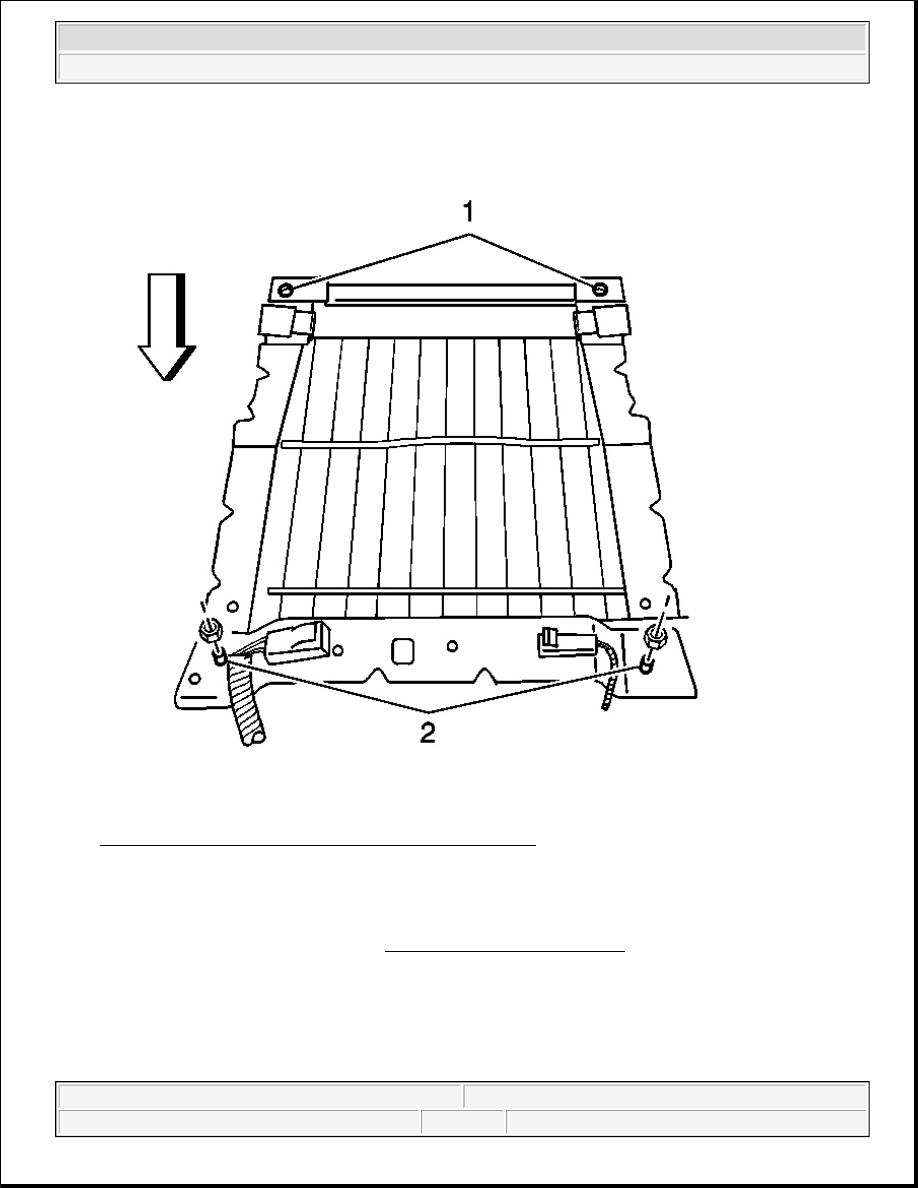

Fig. 22: Seat Cushion Front Nuts & Rear Plastic Holders
Courtesy of GENERAL MOTORS CORP.

4. Lift the seat cushion up off the rear plastic holders (1) on the underside of the seat cushion, and pull

forward.

5. Remove the seat switch bezel. Refer to Seat Switch Bezel Replacement .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2

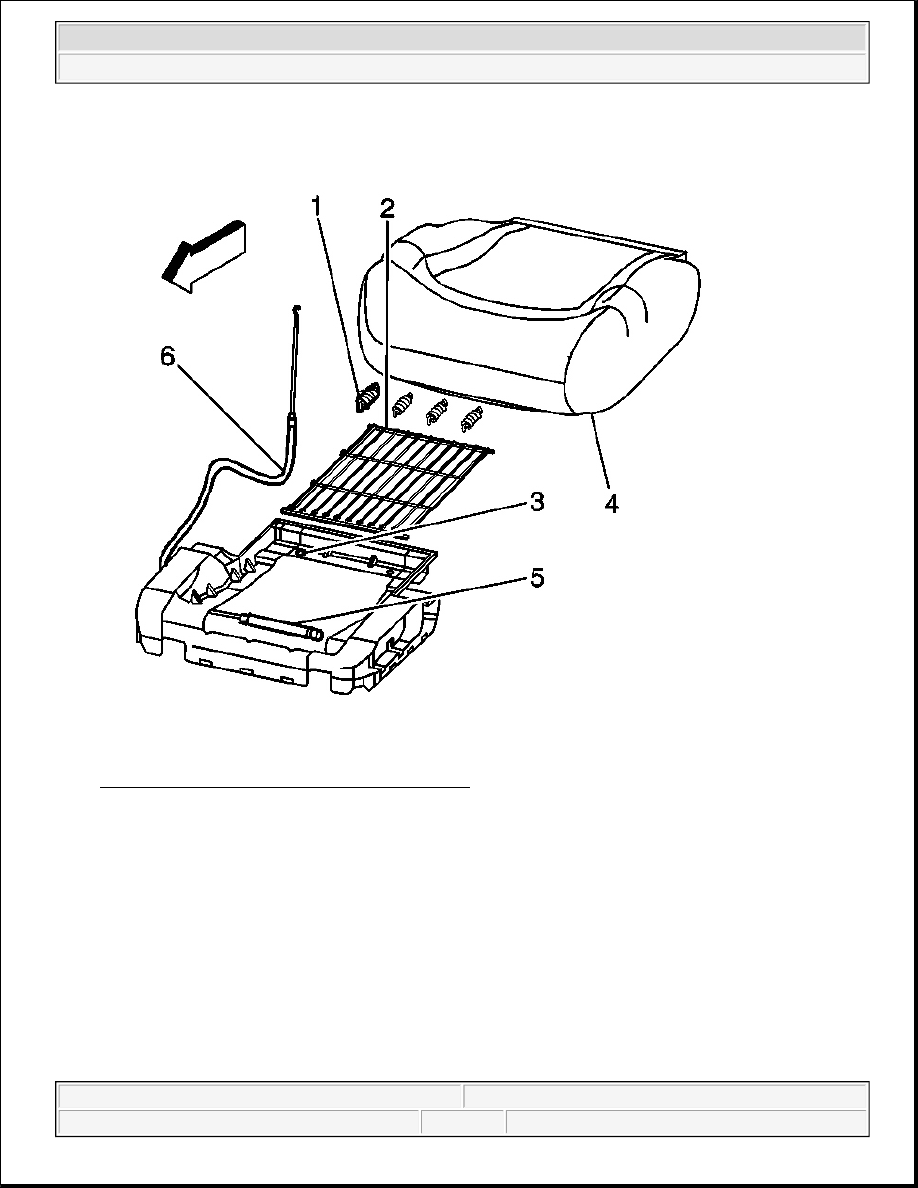

Fig. 23: Front Seat Cushion Frame Components
Courtesy of GENERAL MOTORS CORP.

6. Remove the lumbar actuator (5).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2

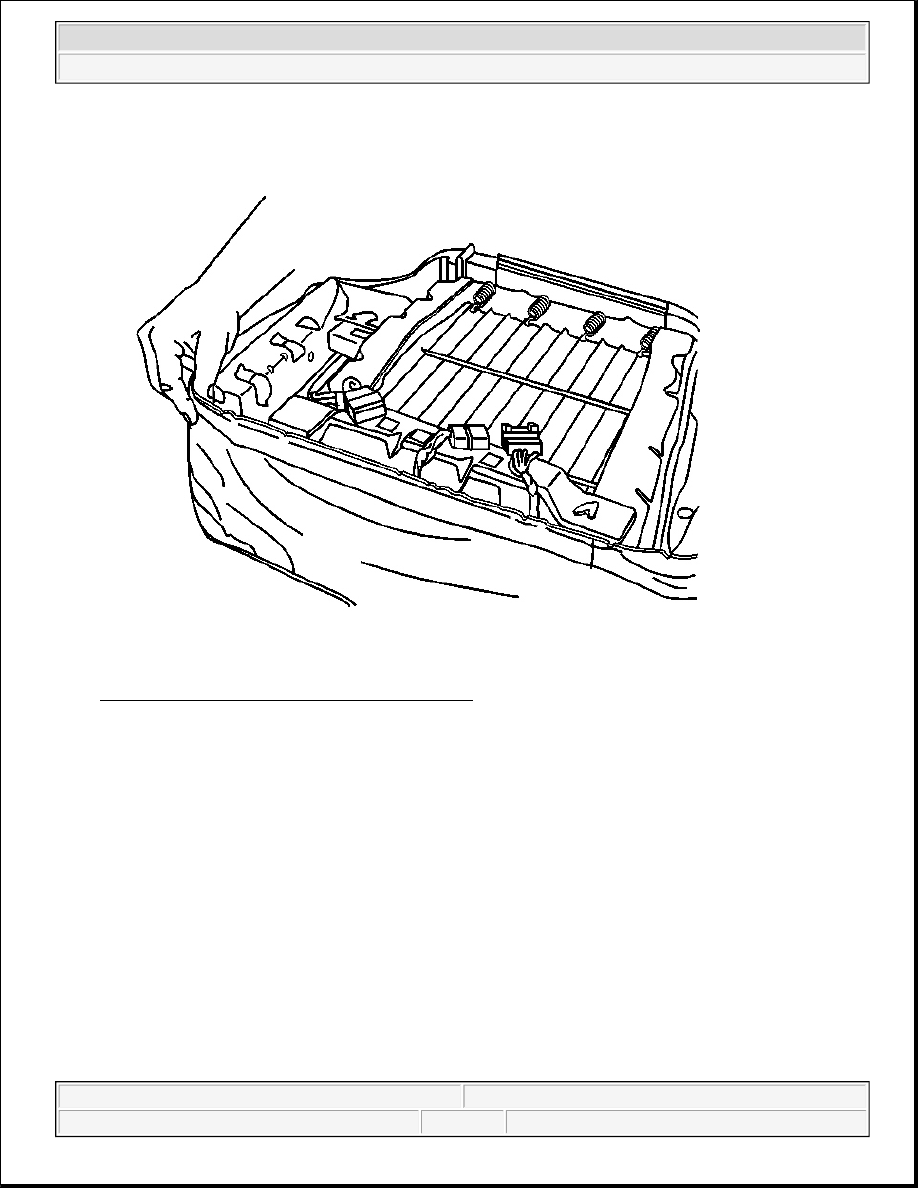

Fig. 24: Seat Trim Cover & Seat Cushion Frame
Courtesy of GENERAL MOTORS CORP.

7. Unclip the seat trim cover from the seat cushion frame.
