Is the resistance within the specified values?

Go to Step 10

18

10

Test the resistance through the seat cushion heater
element from the heated seat control module
harness connector.
Is the resistance less than the specified value?

5 ohm

Go to Step 23

Go to Step

18

11

Repair the ignition voltage supply circuit to the
heated seat control module for an open or short to
ground. Refer to Wiring Repairs and to
Connector Repairs in Wiring Systems.
Is the repair complete?

-

Go to Step 25

-

12

Repair the battery voltage supply circuit to the
heated seat control module for an open or short to
ground. Refer to Wiring Repairs and to
Connector Repairs in Wiring Systems.
Is the repair complete?

-

Go to Step 25

-

13

Repair the heated seat control module ground
circuit for an open or high resistance. Refer to
Wiring Repairs and to Connector Repairs in
Wiring Systems.
Is the repair complete?

-

Go to Step 25

-

14

1. Disconnect the heated seat switch connector.

2. Test the heated seat switch signal circuit for

an open or short to ground. Refer to Circuit
Testing and to Wiring Repairs in Wiring
Systems.

Did you find and correct the condition?

-

Go to Step 25

Go to Step

15

15

Test the heated seat switch ground circuit for an
open or high resistance. Refer to Circuit Testing in
Wiring Systems.
Did you find and correct the condition?

-

Go to Step 25

Go to Step

19

16

1. Disconnect the heated seat switch connector.

2. Test the heated seat switch high indicator

control circuit for an open or short to ground.
Refer to Circuit Testing and to Wiring
Repairs in Wiring Systems.

Did you find and correct the condition?

-

Go to Step 25

Go to Step

19

17

1. Disconnect the heated seat switch connector.

2. Test the heated seat switch low indicator

control circuit for an open or short to ground.
Refer to Circuit Testing and to Wiring
Repairs in Wiring Systems.

-

Go to Step



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



SEAT - HARD TO MOVE FORWARD AND REARWARD

Seat - Hard to Move Forward and Rearward

Did you find and correct the condition?

Go to Step 25

19

18

1. Disconnect the seat cushion heater element

connector.

2. Test the seat cushion heater element and

thermistor circuits from the heated seat
control module connector to the seat cushion
heater element connector for an open or short
to ground. Refer to Circuit Testing and to
Wiring Repairs in Wiring Systems.

Did you find and correct the condition?

-

Go to Step 25

Go to Step

21

19

Inspect for poor connections at the heated seat
switch. Refer to Testing for Intermittent
Conditions and Poor Connections and to
Connector Repairs in Wiring Systems.
Did you find and correct the condition?

-

Go to Step 25

Go to Step

20

20

Replace the heated seat switch. Refer to Heated
Seat Switch Replacement - Rear .
Is the repair complete?

-

Go to Step 25

-

21

Inspect for poor connections at the seat cushion
heater element connector. Refer to Testing for
Intermittent Conditions and Poor Connections
and to Connector Repairs in Wiring Systems.
Did you find and correct the condition?

-

Go to Step 25

Go to Step

22

22

Replace the seat cushion heater element. Refer to
Seat Cushion Heater Replacement - Rear .
Is the repair complete?

-

Go to Step 25

-

23

Inspect for poor connections at the heated seat
control module. Refer to Testing for Intermittent
Conditions and Poor Connections and to
Connector Repairs in Wiring Systems.
Did you find and correct the condition?

-

Go to Step 25

Go to Step

24

24

Replace the heated seat control module.
Is the repair complete?

-

Go to Step 25

-

25

Operate the system in order to verify the repair.
Did you correct the condition?

-

System OK

Go to Step 3

Problem

Action

The adjusters are not properly lubricated.

Lubricate the channels with Lubricate, or the
equivalent.

The adjusters are binding because the channels are bent
or damaged.

Replace the seat adjuster.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



REPAIR INSTRUCTIONS

SEAT REPLACEMENT - FRONT BUCKET

Removal Procedure

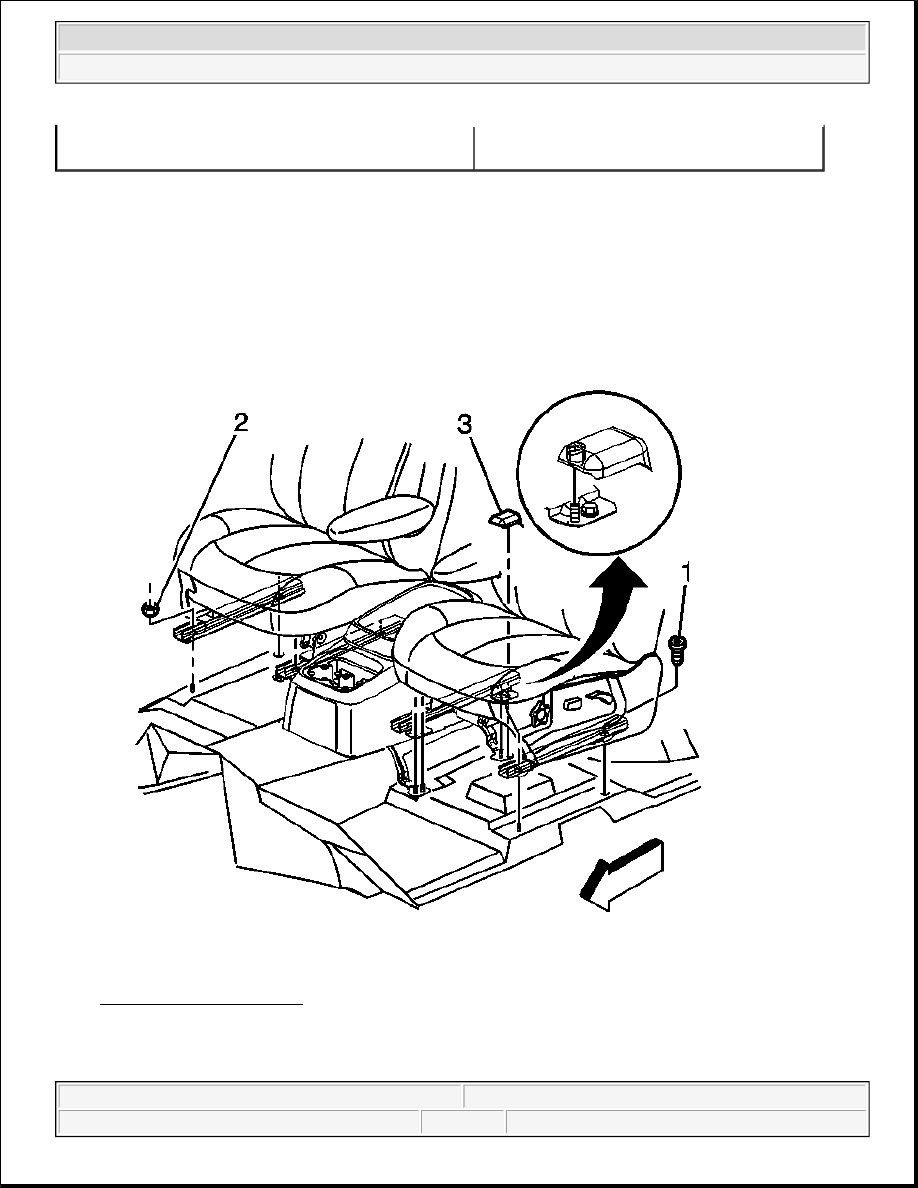

Fig. 16: Front Bucket Seat
Courtesy of GENERAL MOTORS CORP.

1. Move the seat to the full rearward position. Remove the front seat nut cover (3).

The adjusters are not in parallel alignment with each
other.

Replace the seat adjuster.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



2. Remove the seat retaining front nuts (1).

3. Move the seat to the full forward position in order to remove the seat retaining rear bolts (2).

4. Disconnect the electrical harness.

5. Remove the seat from the vehicle.

Installation Procedure

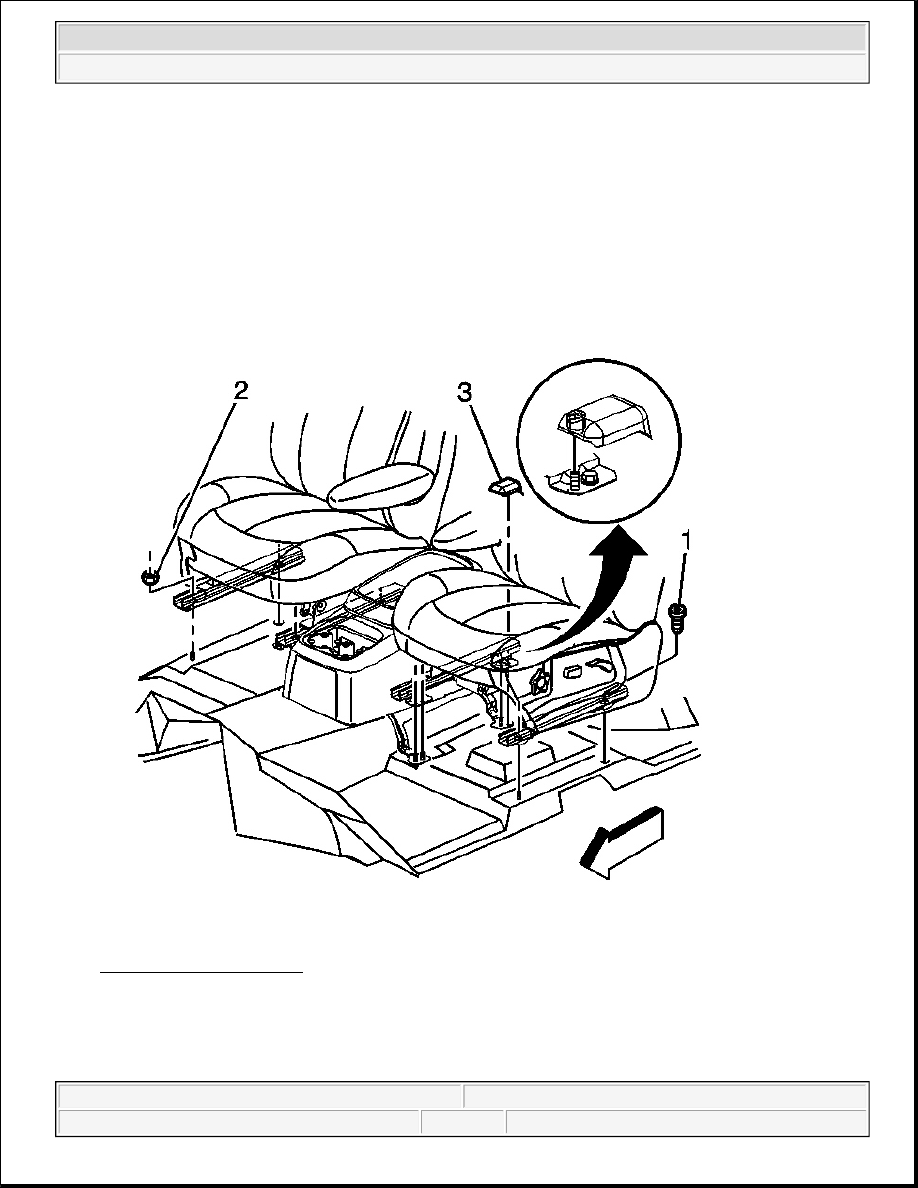

Fig. 17: Front Bucket Seat
Courtesy of GENERAL MOTORS CORP.

1. Position the seat in the vehicle.

2. Connect the electrical harness.
