3. With the seat in the full forward position. Install the seat retaining rear bolts (1).

Tighten: Tighten the retaining rear bolts to 55 N.m (41 lb ft).

4. Install the front seat retaining bolt cover (3).

5. Move the seat to the full rearward position, and install the seat retaining front nuts (2).

Tighten: Tighten the nuts to 55 N.m (41 lb ft).

SEAT CUSHION FRAME REPLACEMENT - FRONT

Removal Procedure

1. Remove the seat trim panel. Refer to Trim Panel Replacement - Front Seat .

2. Remove the seat cushion trim cover and pad. Refer to Seat Cushion Trim Cover and Pad

Replacement .

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



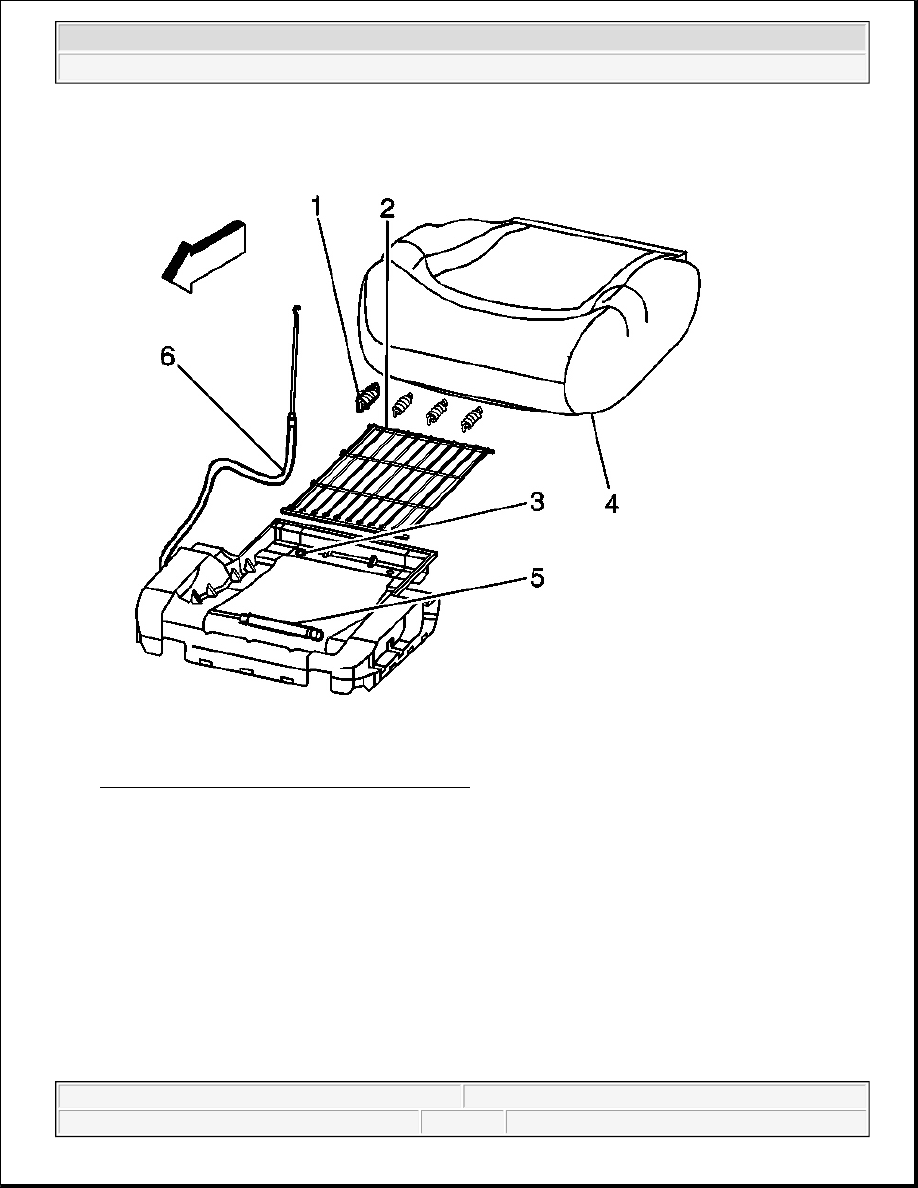

Fig. 18: Front Seat Cushion Frame Components
Courtesy of GENERAL MOTORS CORP.

3. Remove the following components from the seat cushion frame:

z

The frame springs (1)

z

The frame suspension (2)

z

The plastic retainers (3)

4. Remove the seat cushion frame from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



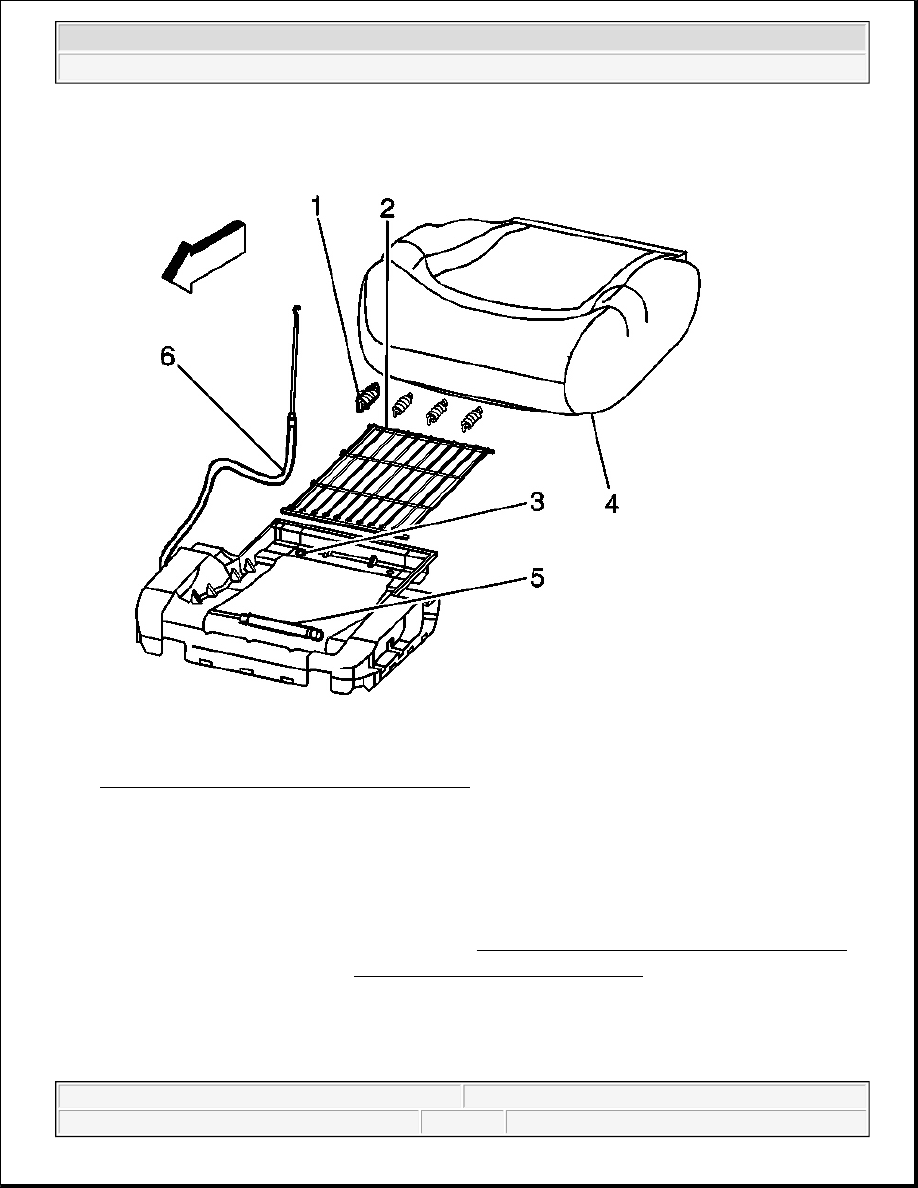

Fig. 19: Front Seat Cushion Frame Components
Courtesy of GENERAL MOTORS CORP.

1. Install the following components to the seat cushion frame:

z

The plastic retainers (3)

z

The frame suspension (2)

z

The frame springs (1)

2. Install the seat cushion trim cover and pad. Refer to Seat Cushion Trim Cover and Pad Replacement .

3. Install the seat trim panel. Refer to Trim Panel Replacement - Front Seat .

SEAT CUSHION TRIM COVER AND PAD REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2

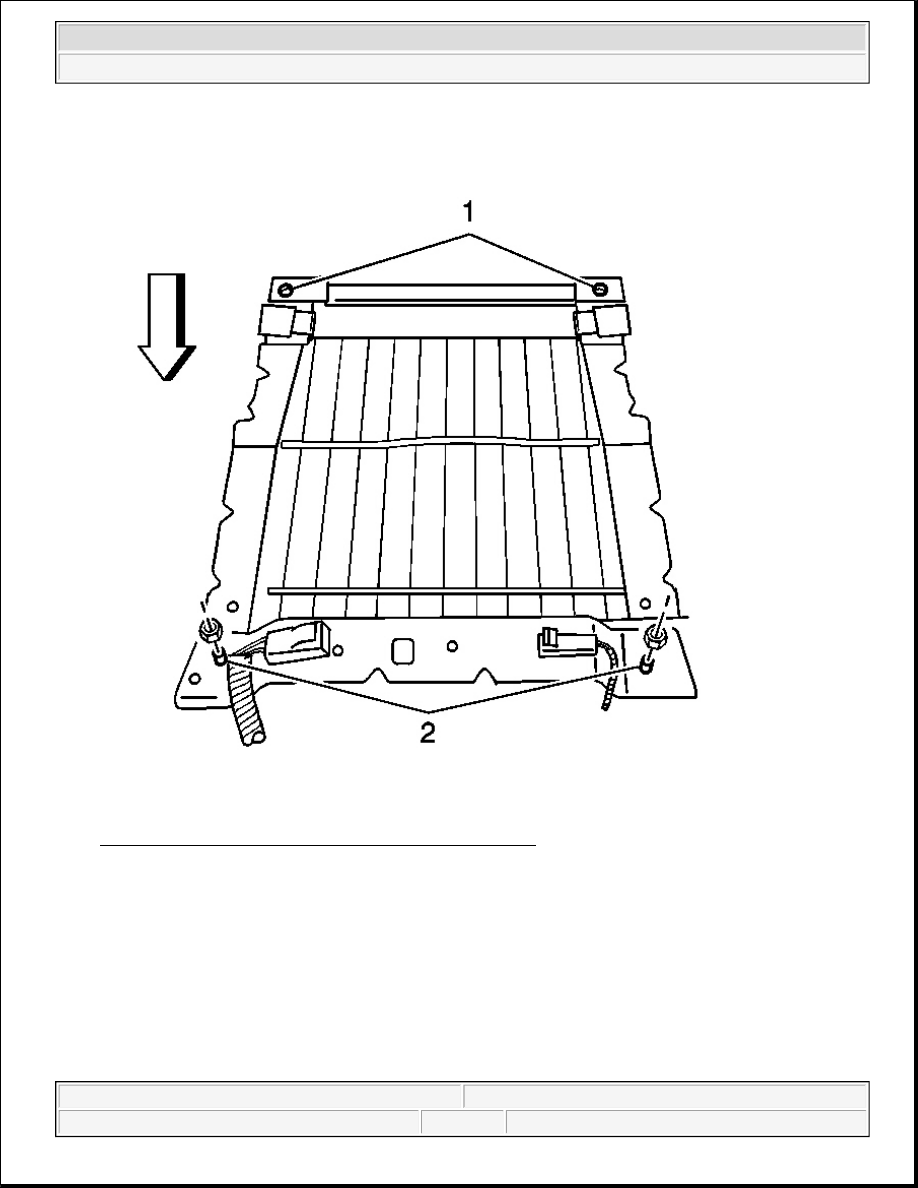

Fig. 20: Seat Cushion Front Nuts & Rear Plastic Holders
Courtesy of GENERAL MOTORS CORP.

1. Remove the front nuts (2) on the underside of the seat cushion.
