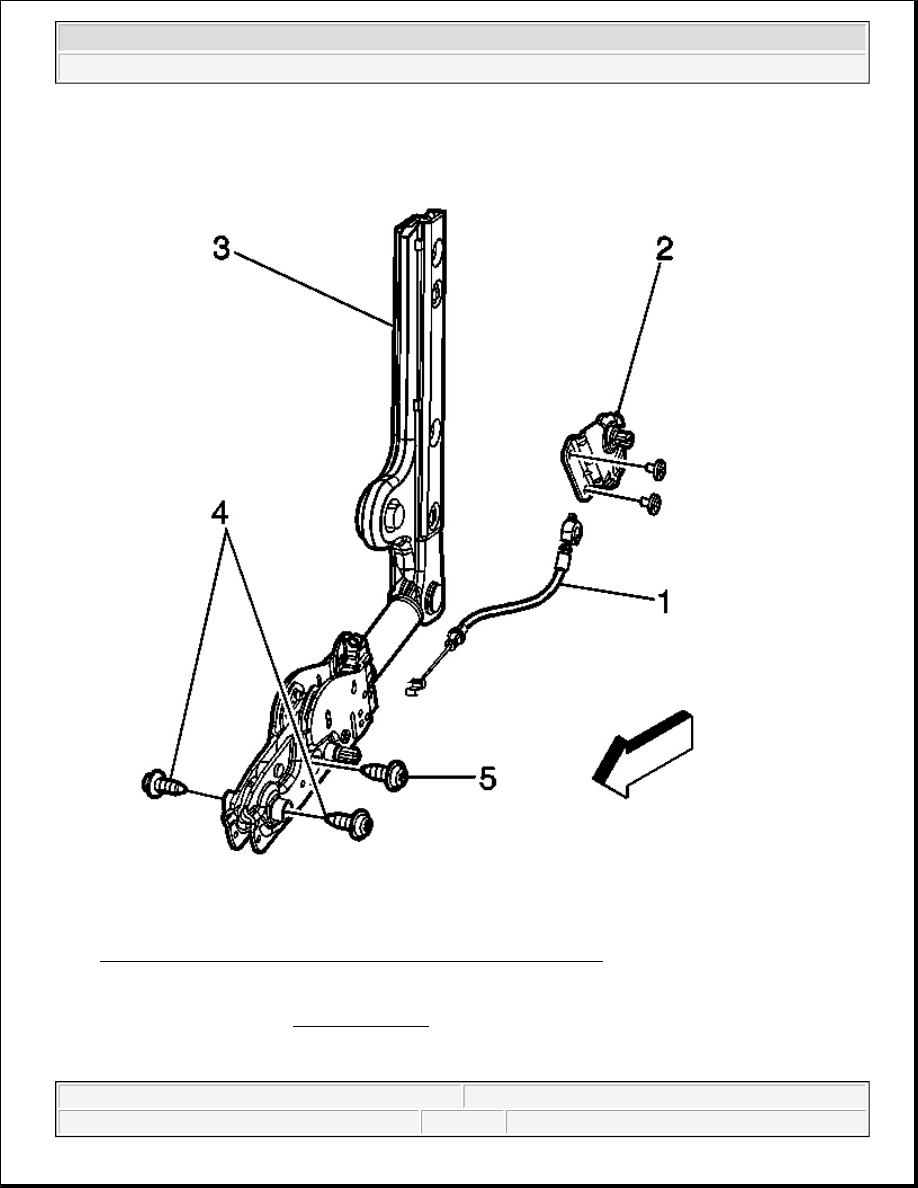

Fig. 49: Front Seat Back Hinge/Recliner Mechanism Components
Courtesy of GENERAL MOTORS CORP.

4. Install the recliner screw (5).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Tighten: Tighten the screw to 10 N.m (89 lb in).

5. Install the front recliner attachment bolts (4).

Tighten: Tighten the bolts to 53 N.m (39 lb ft).

6. Attach the recliner cable (1) to the folding mechanism (3).

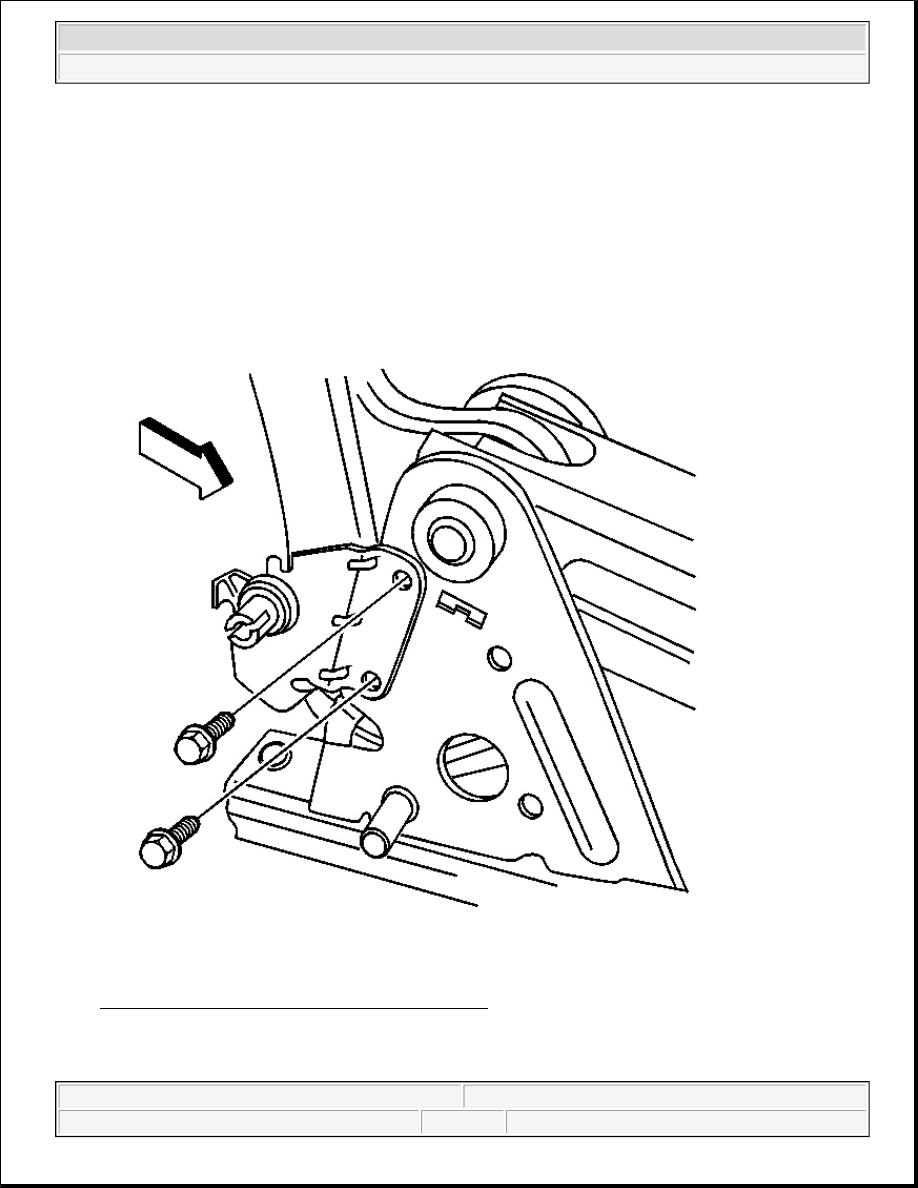

Fig. 50: Front Seat Back Folding Mechanism Bolts
Courtesy of GENERAL MOTORS CORP.

7. Attach the bolts holding the seat back folding mechanism.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Tighten: Tighten the bolts to 21 N.m (15 lb ft).

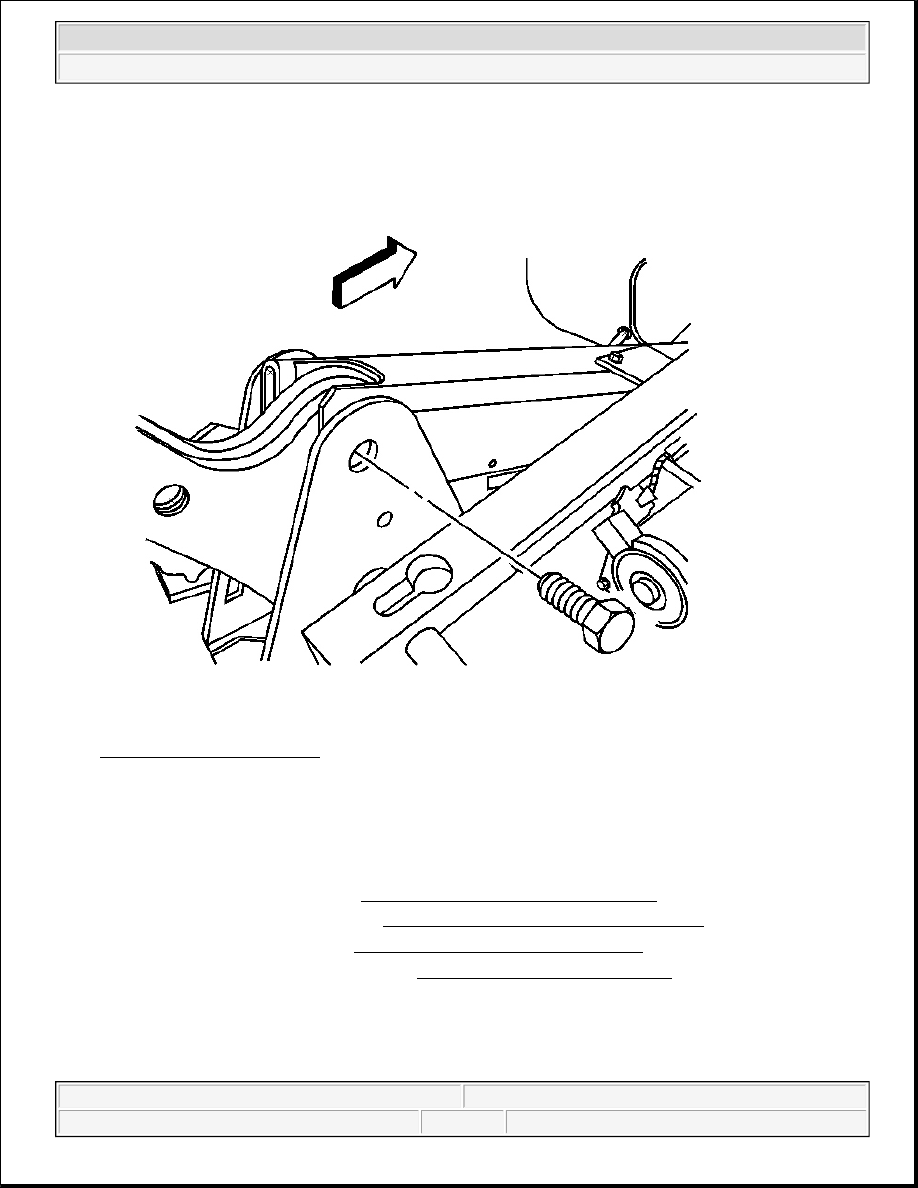

Fig. 51: Outboard Pivot Bolt
Courtesy of GENERAL MOTORS CORP.

8. Install the outboard pivot bolt.

Tighten: Tighten the bolt to 35 N.m (26 lb ft).

9. Install the seat back frame. Refer to Seat Back Frame Replacement - Front .

10. Install the seat cushion frame. Refer to Seat Cushion Frame Replacement - Front .

11. Install the seat trim panel. Refer to Trim Panel Replacement - Front Seat .

12. Install the front seat in the vehicle. Refer to Seat Replacement - Front Bucket .

SEAT BACK RECLINER HANDLE REPLACEMENT - FRONT

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



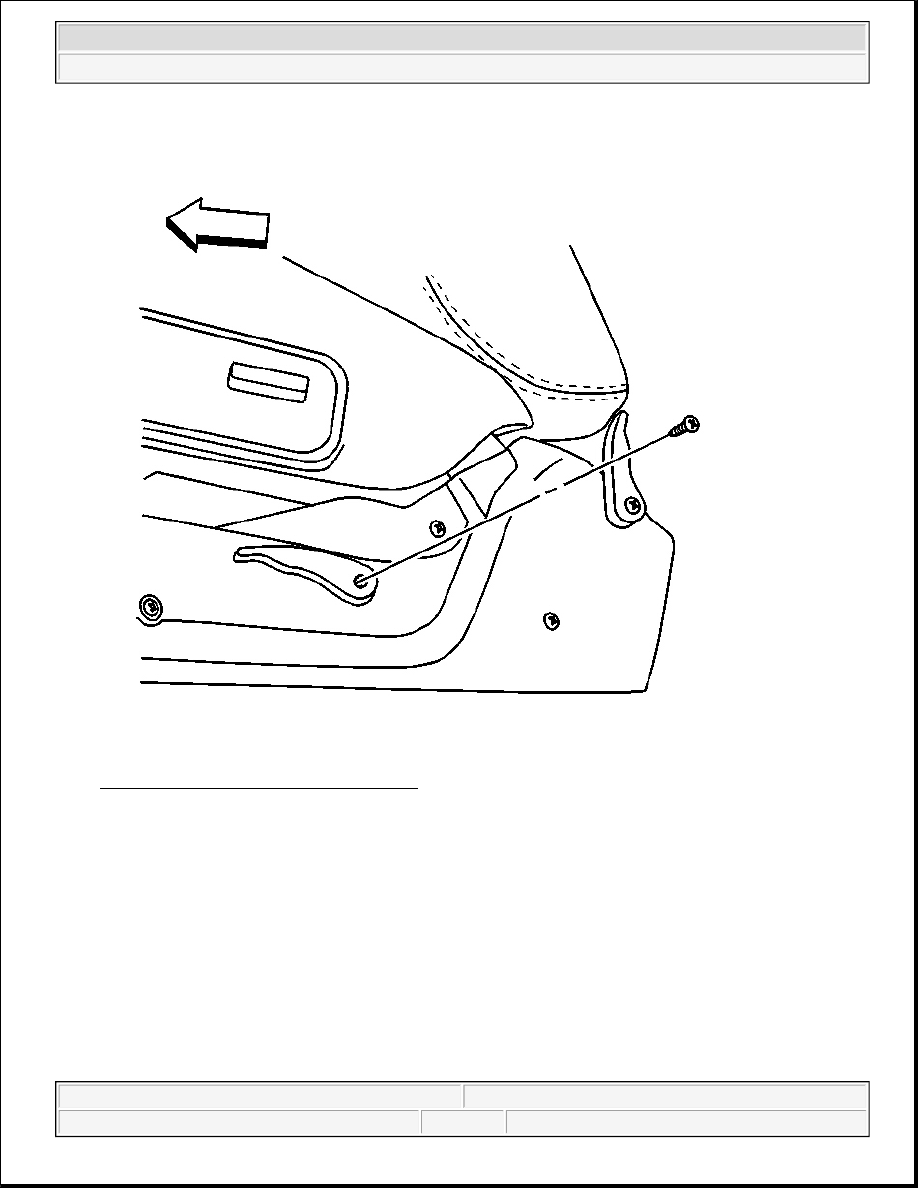

Fig. 52: Front Seat Back Recliner Handle
Courtesy of GENERAL MOTORS CORP.

1. Remove the screw retaining the recliner handle to the trim panel.

2. Remove the recliner handle.

Installation Procedure
