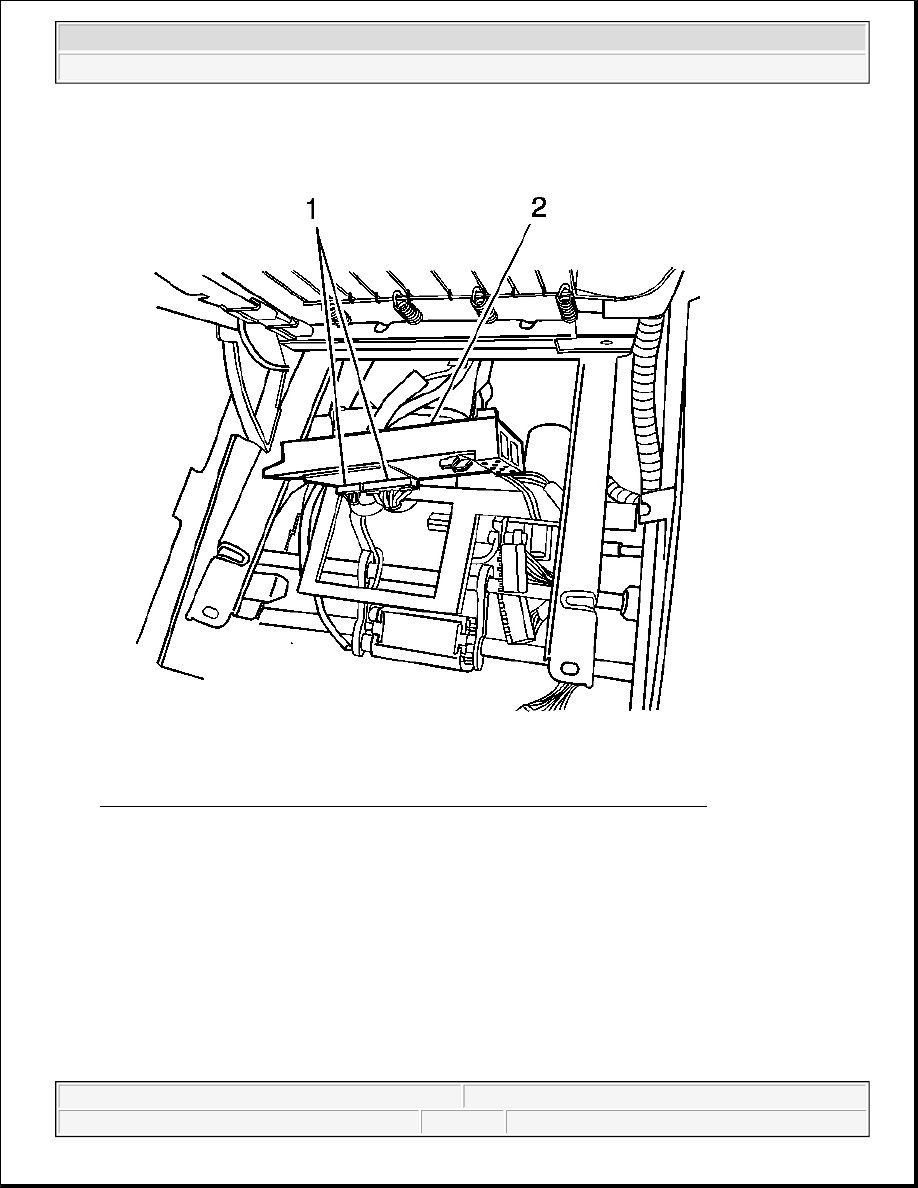

Fig. 72: Lower Electrical Harness Connectors & Memory Seat Control Module
Courtesy of GENERAL MOTORS CORP.

1. Position the module into the vehicle.

2. Connect the lower electrical harness connectors (2).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



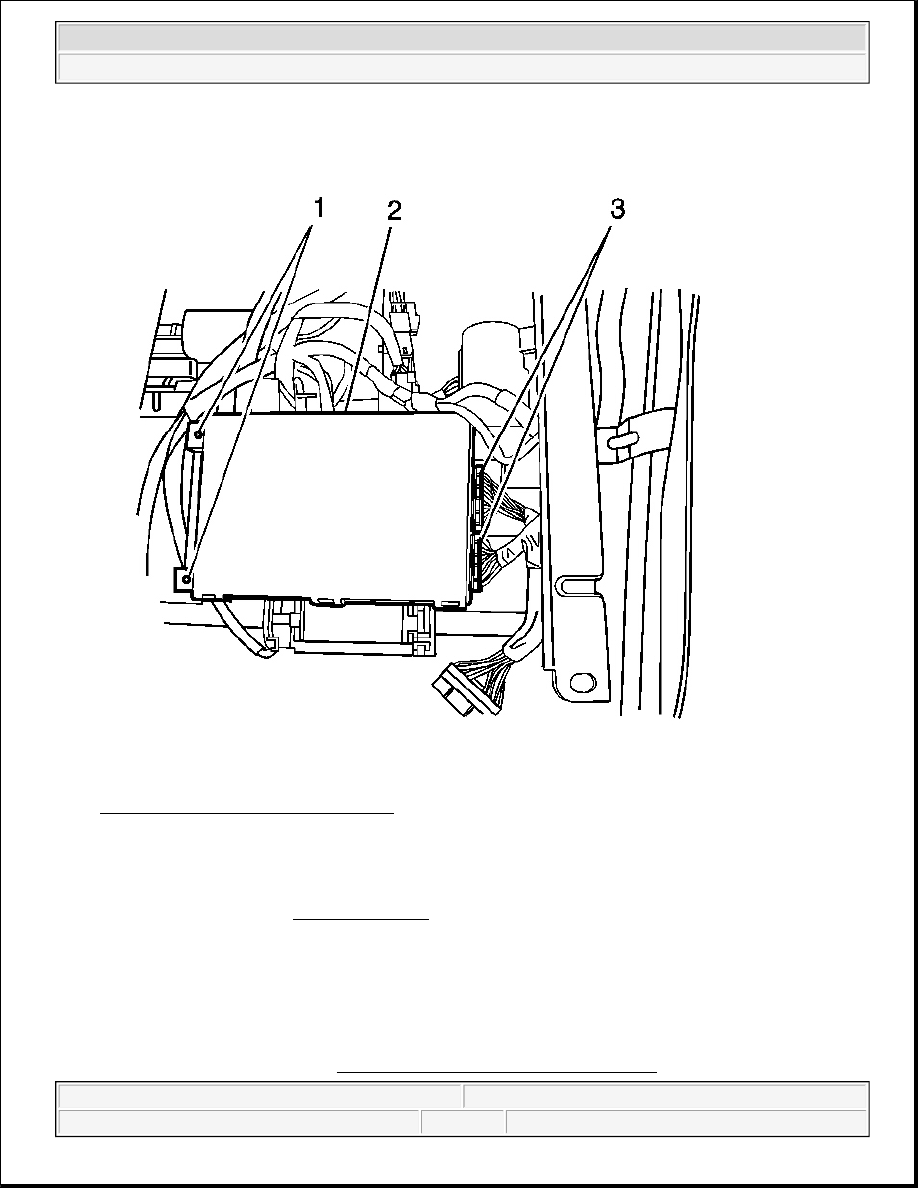

Fig. 73: Memory Seat Control Module
Courtesy of GENERAL MOTORS CORP.

3. Slide the module (2) to the left to engage the lower retainers.

4. Install the module retaining screws (3).

Tighten: Tighten the screws to 3 N.m (26 lb in).

5. Connect the upper electrical harness connectors (3).

6. Install the seat cushion. Refer to Seat Cushion Frame Replacement - Front .

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



7. If a new memory seat module was installed, calibrate the seat. Refer to Memory Seat Calibration

Procedure .

MEMORY SEAT CALIBRATION PROCEDURE

The memory seat module uses position sensor inputs to establish soft stop locations for the adjuster motors
several millimeters ahead of the physical limits of the adjuster assembly. After replacing a memory seat module
or adjuster components, it may be necessary to reset the adjuster motor soft stop locations. When the repair
procedure has been completed, operate the seat adjuster switch in every direction until the seat adjuster reaches
its mechanical hard stop by repeatedly pressing and releasing the switch as necessary.

HEATED SEAT SWITCH REPLACEMENT - FRONT

Removal Procedure

1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door in Doors.

2. Disconnect the electrical connector.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



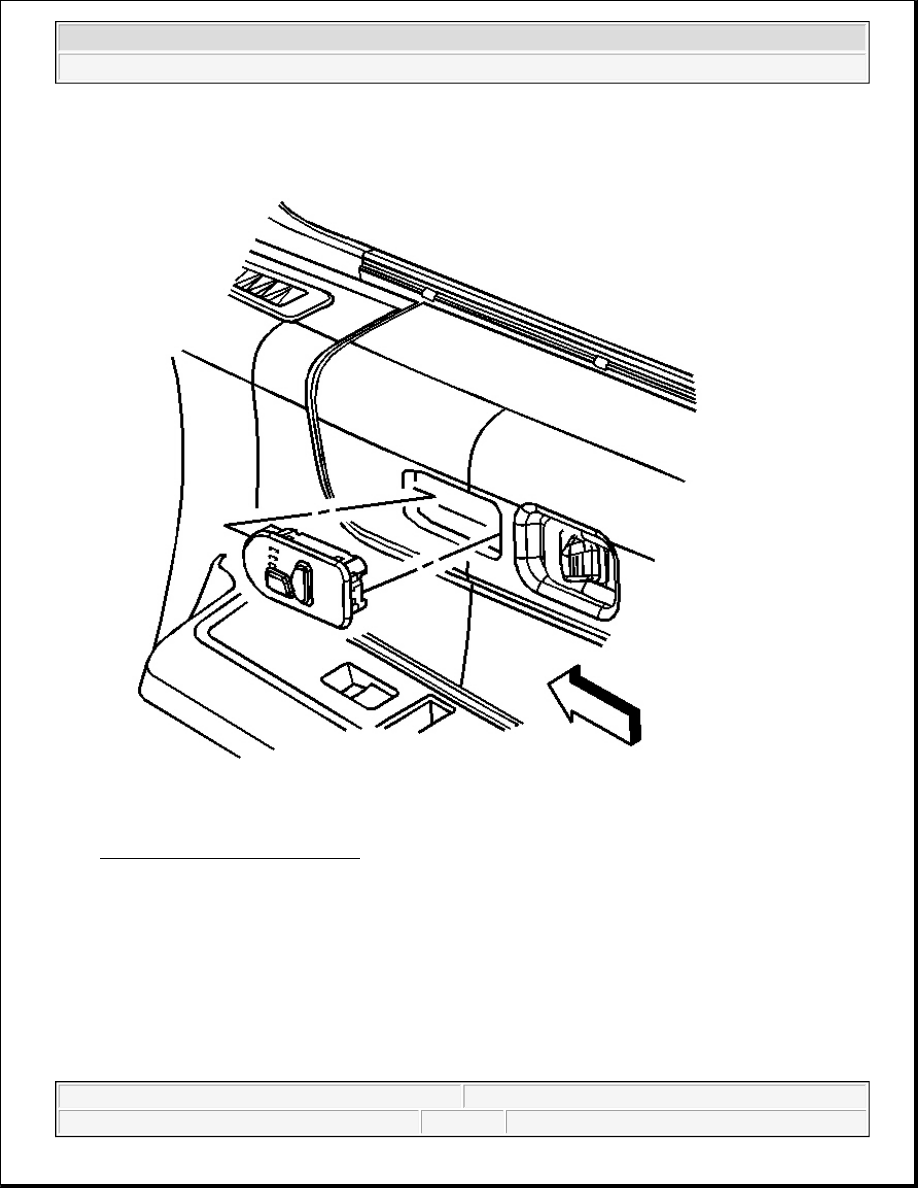

Fig. 74: Front Heated Seat Switch
Courtesy of GENERAL MOTORS CORP.

3. Release the retaining clips for the front seat heater switch in order to remove the switch.

4. Remove the front seat heater switch.

Installation Procedure
