10. Remove the arm rest by pulling outwards.

Installation Procedure

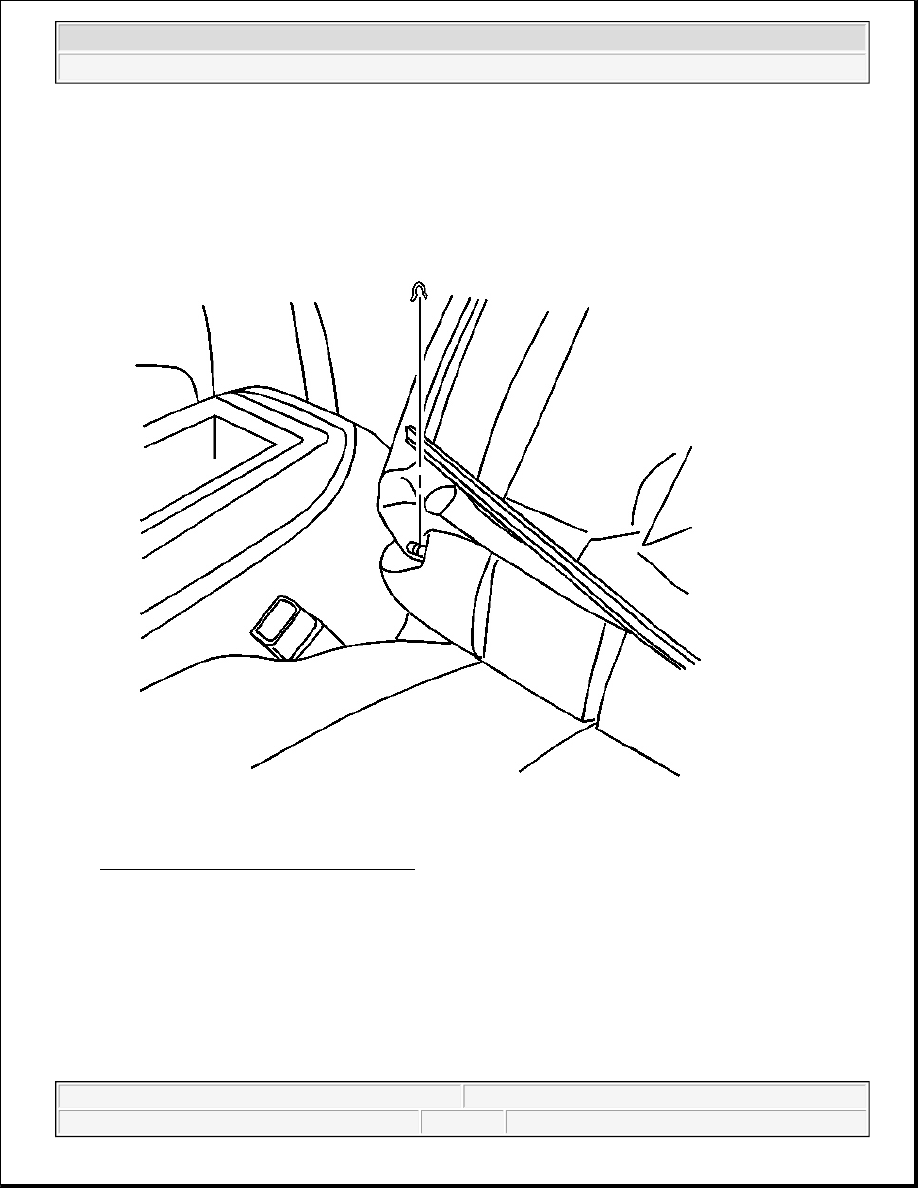

Fig. 83: Front Seat Armrest Components
Courtesy of GENERAL MOTORS CORP.

1. Install the clip in the slot of the seat frame.

2. Install the rubber band on the clip to retain it in place.

3. Fold down the seat cover.

4. Install the arm rest by pressing in until it is fully seated.

5. Connect the heating element wire connector.

6. Set the front seat back in the forward position.

7. Pull down on the seat cover in order to install the 2 push pins retaining the seat back to the card board.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



8. Connect the J-clip at the bottom of the seat.

9. Push on the seat back cover to ensure the cover is held in place by the velcro.

TRIM PANEL REPLACEMENT - FRONT SEAT

Removal Procedure

1. Ensure the seat is in the full upward position.

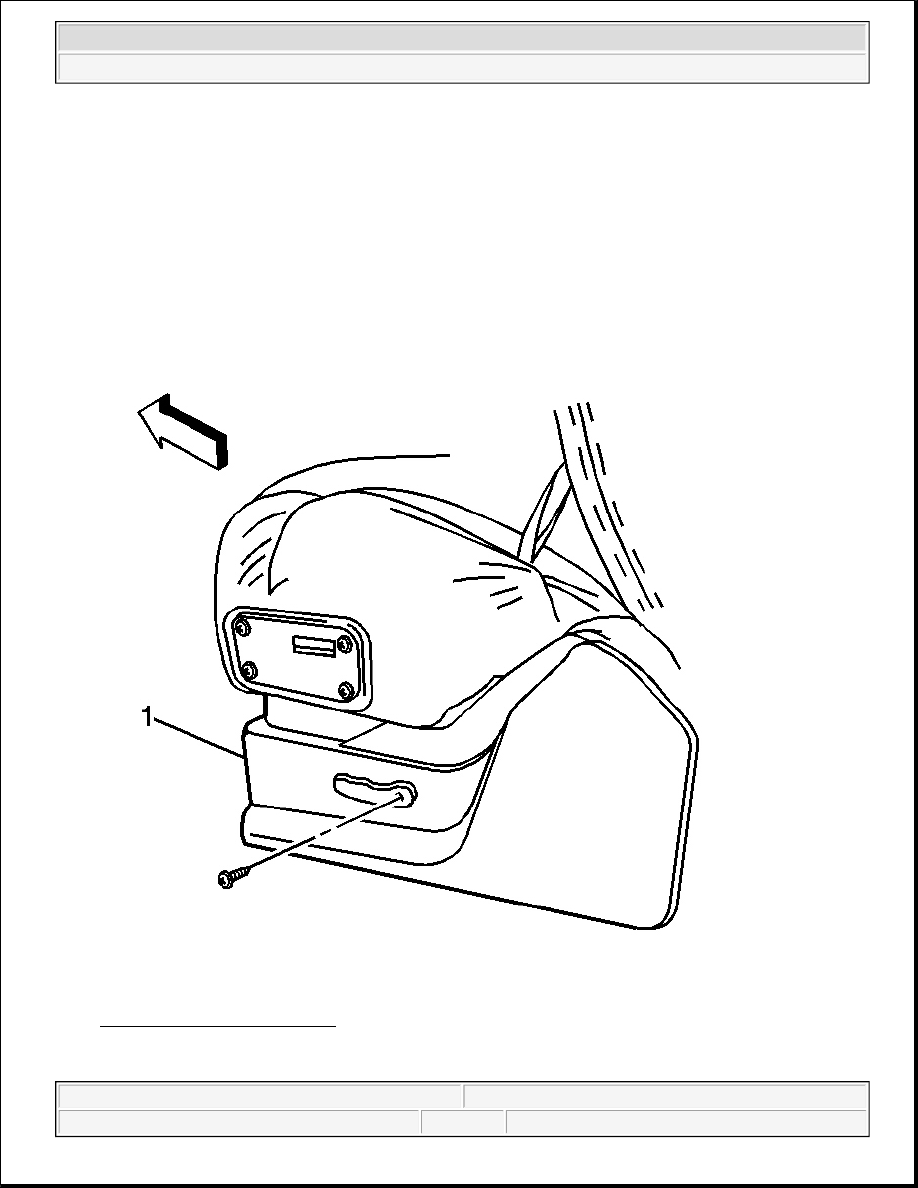

Fig. 84: Front Seat Trim Panel
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



2. Remove the trim panel (1) by pulling outward in order to disengage the retaining clip.

3. Remove the screws retaining the seat back release handle and the seat recliner handle and remove the

handles, if equipped.

4. Remove the trim panel from the seat.

Installation Procedure

1. Position the trim panel on the seat.

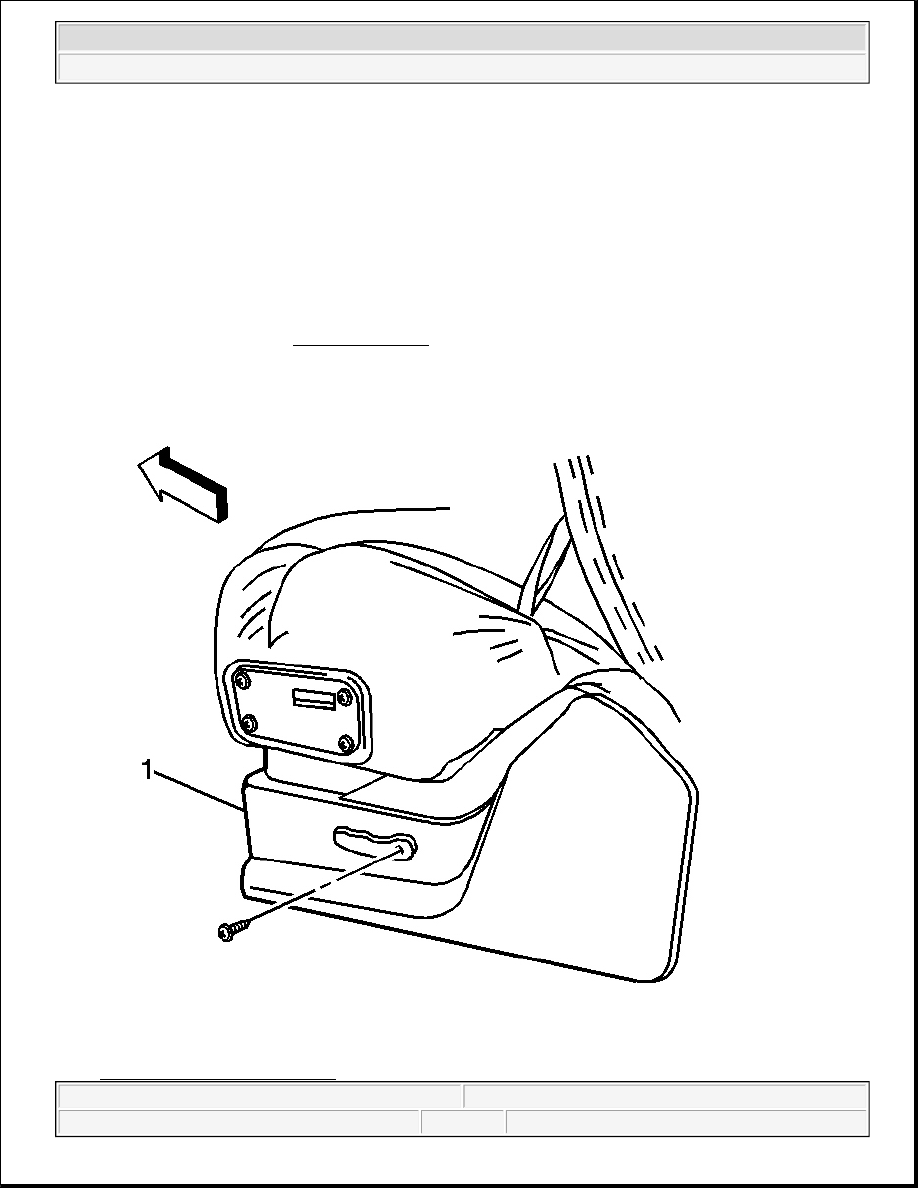

Fig. 85: Front Seat Trim Panel

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Courtesy of GENERAL MOTORS CORP.

2. Instal the trim panel (1) to the seat by pushing in until the retaining clips are locked in place.

3. Install the screws retaining the seat back release handle and the seat recliner handle to the seat, if

removed.

Tighten: Tighten the screws to 2 N.m (18 lb in).

SEAT REPLACEMENT - REAR NO. 1

Removal Procedure

1. Fold the seat cushions forward to access the seat retaining bolts.

2. Disconnect the electrical connectors, if equipped.

3. Remove the seat retaining bolts.

4. Fold the seat cushions back to the closed position.
