Hummer H2. Manual - part 602

Fig. 91: Rear Seat Cushion Cover, Frame & Foam Pad
Courtesy of GENERAL MOTORS CORP.

1. Install the seat cushion cover to the foam pad.

2. Install the center screw retaining the latch cover.

Tighten: Tighten the screw to 2 N.m (18 lb in).

3. Engage the hook, and the loop-strips that are retaining the seat cushion cover (3) to the foam pad (4).

4. Install the seat buckles, if removed.

5. Connect the rear heater connector, if equipped.

6. Install the hog rings, and/or the J-clips in order to retain the seat cushion cover to the seat cushion frame

(8).

7. Install the seat cushion plastic cover to the seat cushion frame.

8. Install the rear passenger seat risers.

9. Install the rear passenger seat to the vehicle. Refer to Seat Replacement - Rear No. 1 or Seat

Replacement - Rear No. 2 .

SEAT BACK COVER AND PAD REPLACEMENT - REAR

Removal Procedure

1. Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear No. 1 or Seat Replacement -

Rear No. 2 .

2. Remove the seat back folding cover, if necessary. Refer to Seat Back Cover Replacement - Rear

Folding .

3. Remove the armrest from the seat back, if equipped. Refer to Armrest Replacement - Rear Seat .

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



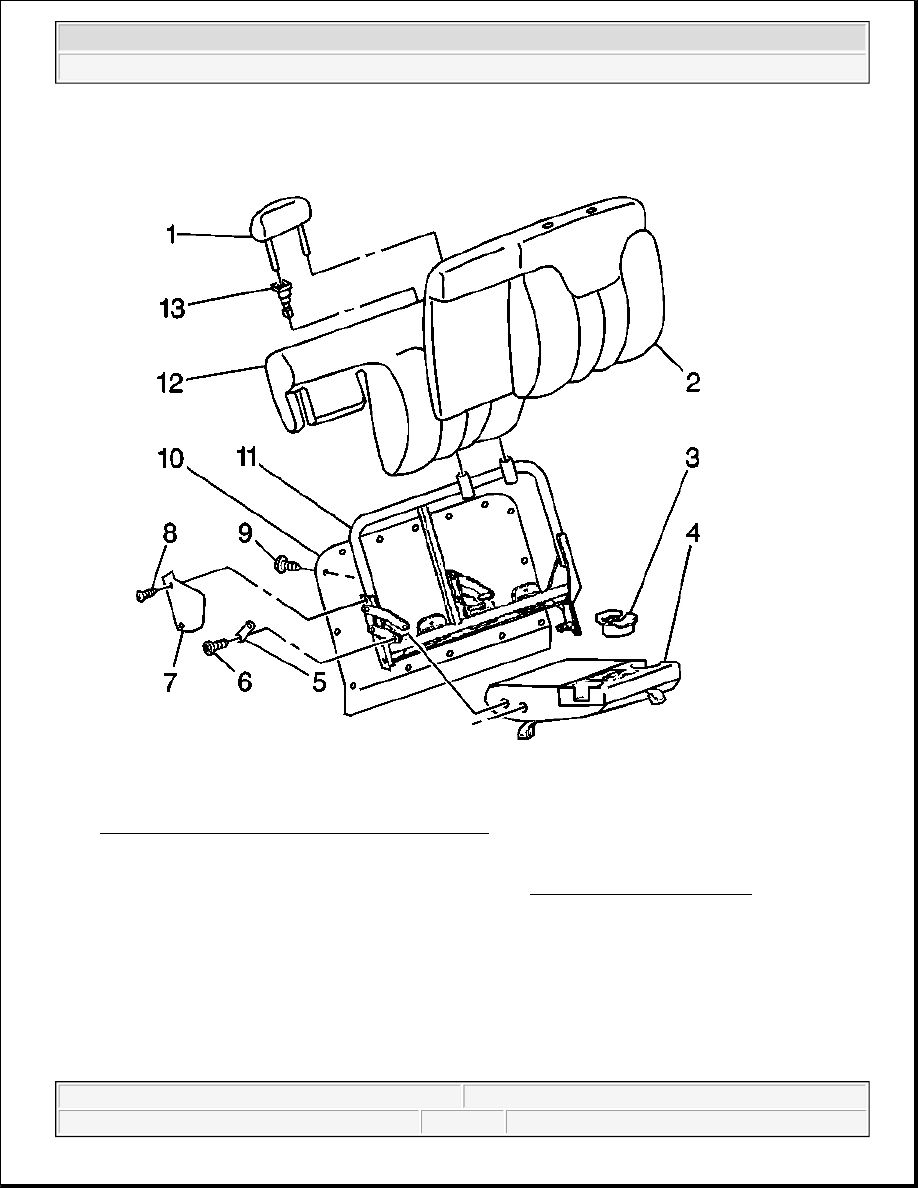

Fig. 92: Rear Seat Back Cover & Pad Components
Courtesy of GENERAL MOTORS CORP.

4. Remove the head restraints (1) from the seat back. Refer to Head Restraint Replacement .

5. Remove the seat back plastic cover (10) from the seat back frame, if equipped.

6. Release the J-clips from the seat back cover.

7. Release the hook, and the loop strips retaining the seat back cover (2) to the foam pad (12).

8. In order to ease removal, place a piece of cardboard between the seat back cover and the foam pad.

9. Working from side to side, carefully lift the seat back cover from the foam pad.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



1. Working from side to side, carefully install the seat back cover over the foam pad.

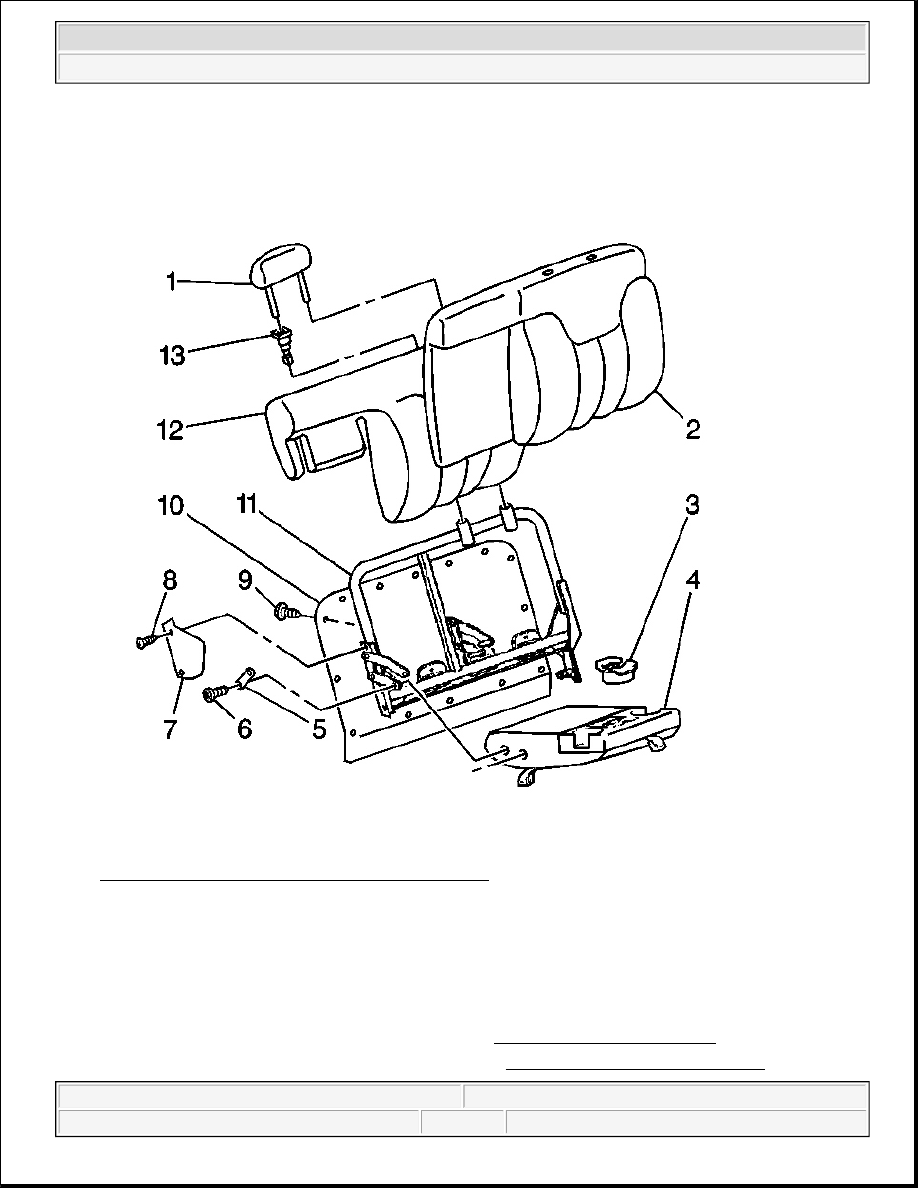

Fig. 93: Rear Seat Back Cover & Pad Components
Courtesy of GENERAL MOTORS CORP.

2. Remove the cardboard from between the seat back cover and the foam pad.

3. Engage the hook, and the loop strips that retain the seat back cover (2).

4. Engage the J-clips that retain the seat back cover.

5. Install the seat back plastic cover (10) to the seat back frame, if equipped.

6. Install the head restraints (1) to the seat back. Refer to Head Restraint Replacement .

7. Install the armrest to the seat back, if removed. Refer to Armrest Replacement - Rear Seat .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



8. Install the seat back folding cover, if removed. Refer to Seat Back Cover Replacement - Rear Folding .

9. Install the rear seat to the vehicle. Refer to Seat Replacement - Rear No. 1 or Seat Replacement - Rear

No. 2 .

SEAT BACK FRAME REPLACEMENT - REAR

Removal Procedure

Fig. 94: Rear Seat Back Frame
Courtesy of GENERAL MOTORS CORP.

1. Remove the seat from the vehicle. Refer to Seat Replacement - Rear No. 1 or Seat Replacement - Rear

No. 2 .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2
