7. Remove the seat back latch assembly from the seat frame.

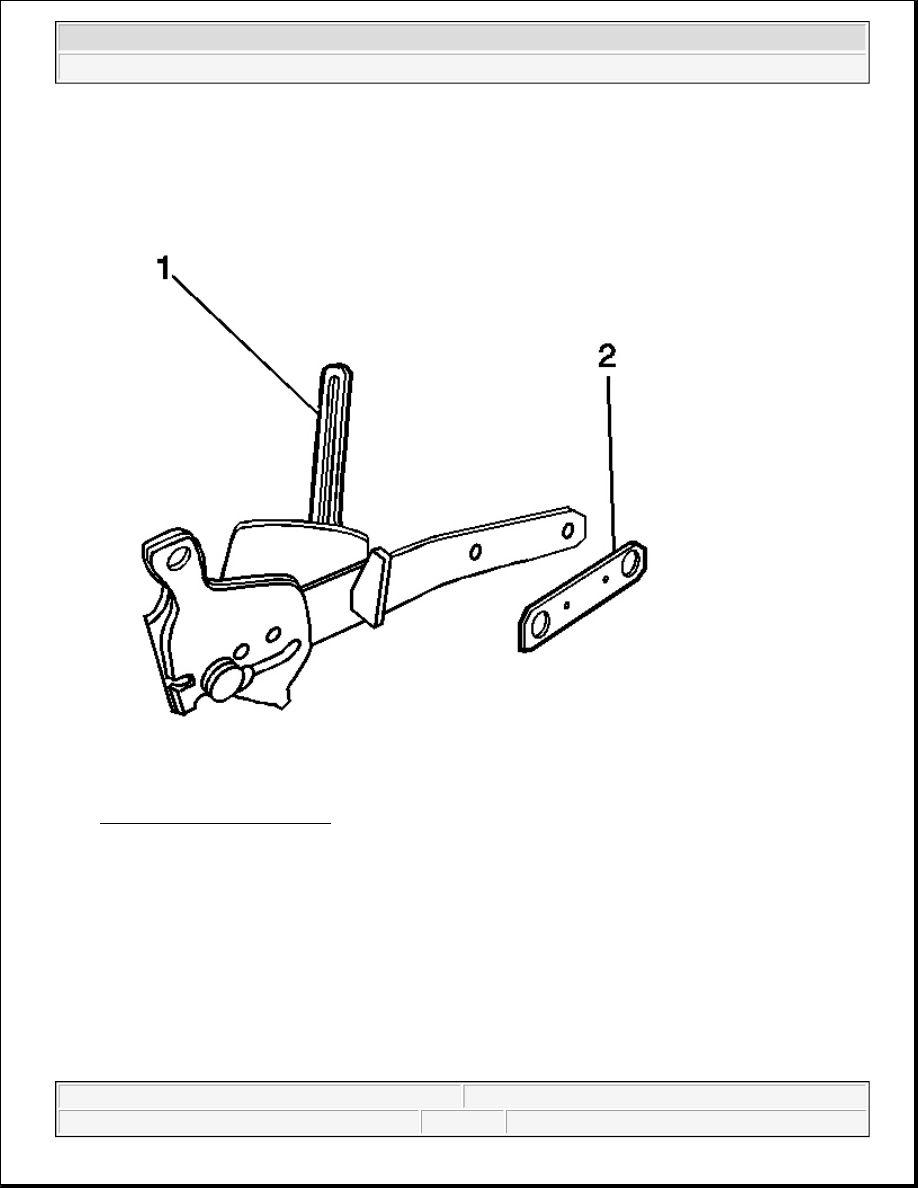

Fig. 99: Rear Seat Back Latch
Courtesy of GENERAL MOTORS CORP.

8. Remove the spacer (2) from the latch assembly, if equipped.

9. Remove the seat belt guide (1) from the latch assembly, if equipped.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2

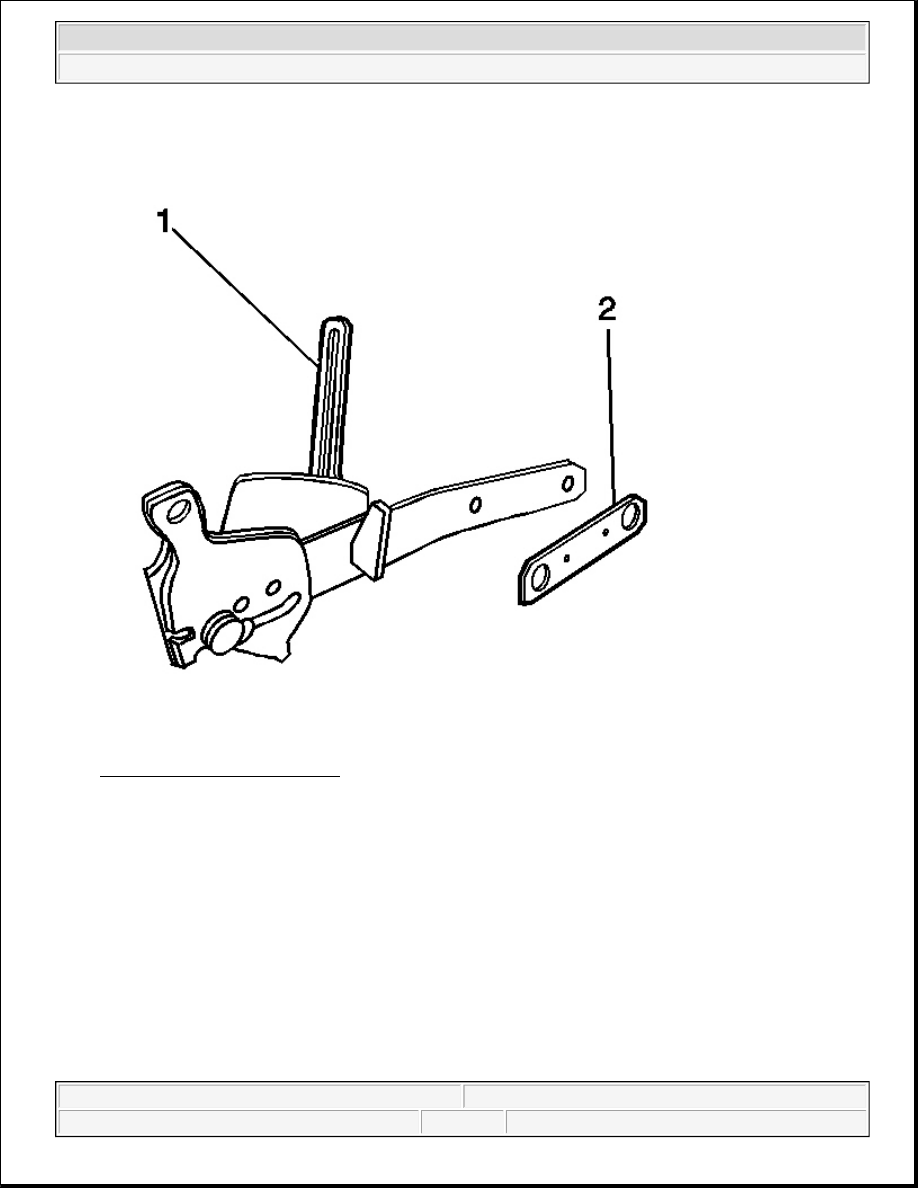

Fig. 100: Rear Seat Back Latch
Courtesy of GENERAL MOTORS CORP.

1. Install the seat belt guide (1) to the latch assembly, if removed.

2. Install the spacer (2) to the latch assembly, if removed.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2

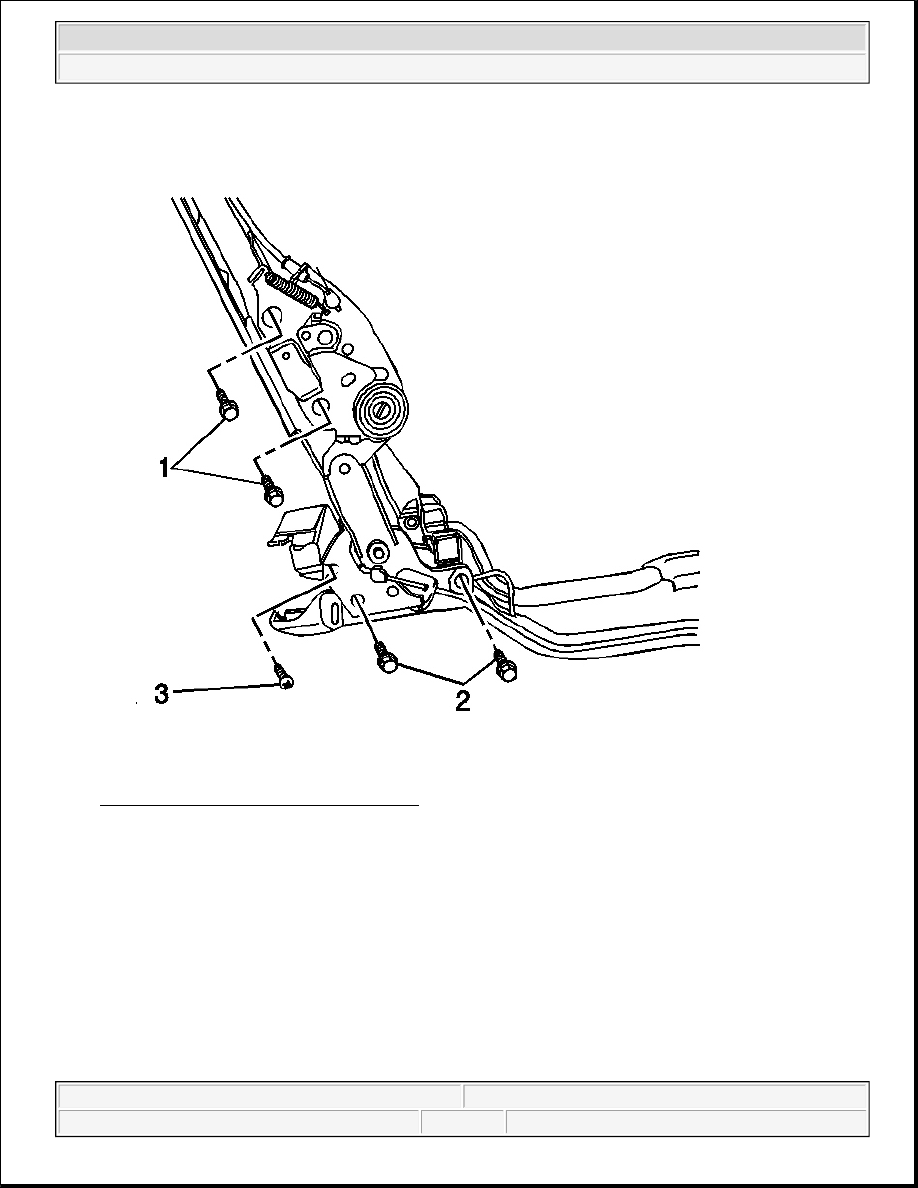

Fig. 101: Rear Seat Back Latch Assembly
Courtesy of GENERAL MOTORS CORP.

3. Install the seat back latch assembly to the seat frame.

4. Attach the recliner cables to the folding mechanism.

5. Install the bolts (1,2) that retain the latch assembly to the seat frame.

Tighten: Tighten the bolts to 45 N.m (33 lb ft).

6. Install the screw (3) that retains the latch assembly to the seat frame.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Tighten: Tighten the screw to 25 N.m (18 lb ft).

7. Install the seat back cover. Refer to Seat Back Cover and Pad Replacement - Rear .

8. Install the armrest, if equipped. Refer to Armrest Replacement - Rear Seat .

9. Install the rear seat to the vehicle. Refer to Seat Replacement - Rear No. 1 .

HEATED SEAT SWITCH REPLACEMENT - REAR

Removal Procedure

1. Remove the center console end panel. Refer to Center Console End Panel Replacement in Instrument

Panel, Gauges, and Console.
