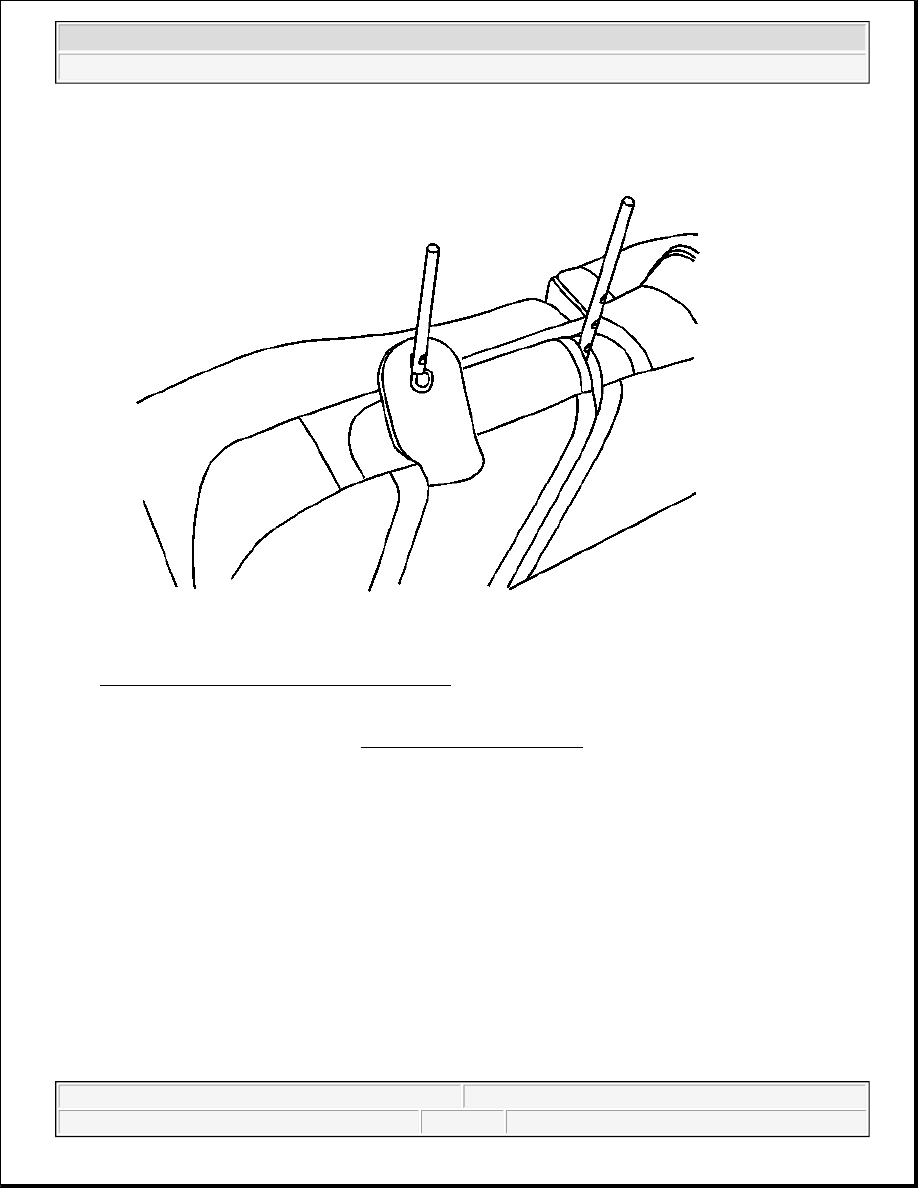

Fig. 106: Rear Head Restraint Support Cover
Courtesy of GENERAL MOTORS CORP.

1. Remove the head restraint. Refer to Head Restraint Replacement .

2. Reach through the slot in the seat back cover and remove the head restraint support cover.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Fig. 107: Rear Head Restraint Support Cover
Courtesy of GENERAL MOTORS CORP.

1. Position the head restraint support cover over the head restraint rod.

2. Insert the head restraint support cover through the slot in the seat back cover.

3. Install the head restraint. Refer to Head Restraint Replacement .

SEAT REPLACEMENT - REAR NO. 2

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2

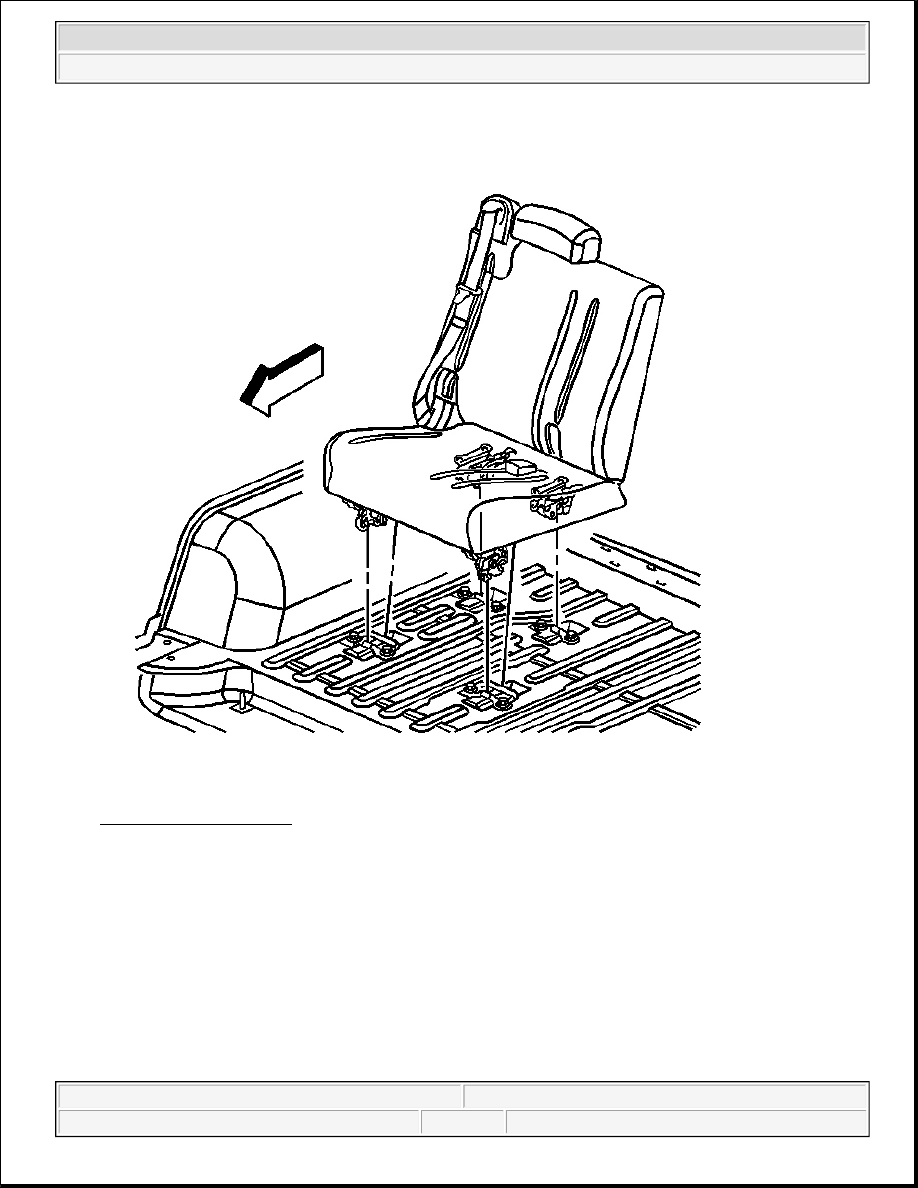

Fig. 108: Rear No. 2 Seat
Courtesy of GENERAL MOTORS CORP.

1. Pull up on the handle at the rear of the seat.

2. Lift the seat up and out of the floor rails.

3. Remove the seat from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Fig. 109: Rear No. 2 Seat
Courtesy of GENERAL MOTORS CORP.

1. Install the seat into the vehicle.

2. Align the seat attaching points with the slots in the floor rail.

3. Roll the seat back and down in order to secure the seat into place.

DESCRIPTION AND OPERATION

POWER SEATS SYSTEM DESCRIPTION AND OPERATION

Power Seat System Operation
