Seat Horizontal Position Sensor Terminal Identification - Driver

Connector Part Information

z

104257-2

z

3-Way F AMP (BK)

Pin

Wire Color

Circuit No.

Function

A

RD

5287

Voltage Reference

B

D-BU

557

Front Vertical Seat Motor Position Sensor Signal

C

BK

5288

Low Reference



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Seat Rear Vertical Position Sensor Terminal Identification - Driver

Connector Part Information

z

104257-2

z

3-Way F AMP (BK)

Pin

Wire Color

Circuit No.

Function

A

RD

5287

Voltage Reference

B

D-BU

569

Horizontal Seat Motor Position Sensor Signal

C

BK

5288

Low Reference



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Seat Recline Position Sensor Terminal Identification - Driver

Connector Part Information

z

104257-2

z

3-Way F AMP (BK)

Pin

Wire Color

Circuit No.

Function

A

RD

5287

Voltage Reference

B

D-BU

568

Rear Vertical Seat Motor Position Sensor Signal

C

BK

5288

Low Reference

Connector Part Information

z

12059583



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



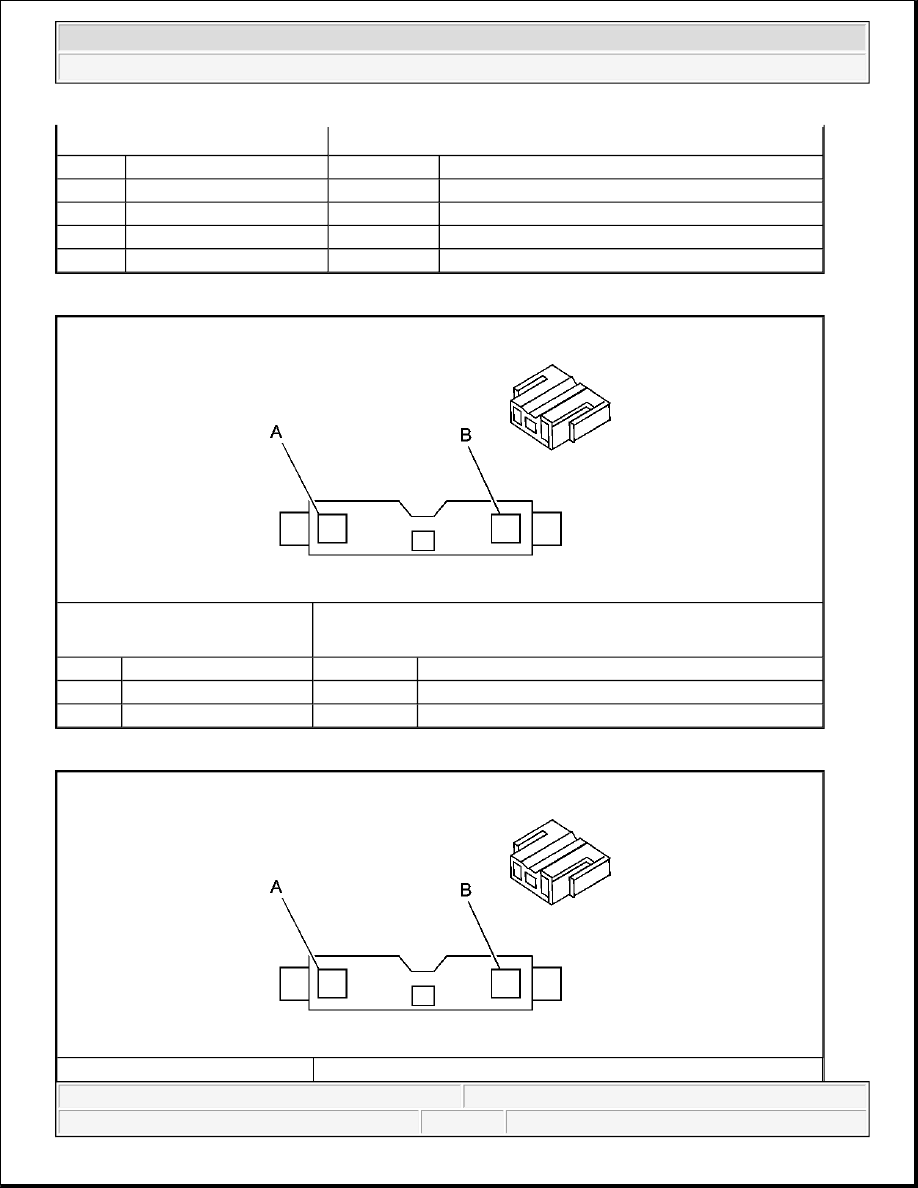

Seat Bolster Motor Terminal Identification - Front Passenger

Seat Front Vertical Motor Terminal Identification - Driver

z

3-Way F Metri-Pack 280 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

-

-

Blocked Cavity

B

BK

570C

Low Reference

C

BK/WH

570

Driver Seat Recline Position Sensor Signal

D

WH/BK

570B

Voltage Reference

Connector Part Information

z

12052109

z

2-Way F Metri-Pack 280 Series (BU)

Pin

Wire Color

Circuit No.

Function

A

OG

2462

Passenger Seat Bolster Motor Forward Control

B

PK

2427

Passenger Seat Bolster Motor Rearward Control
