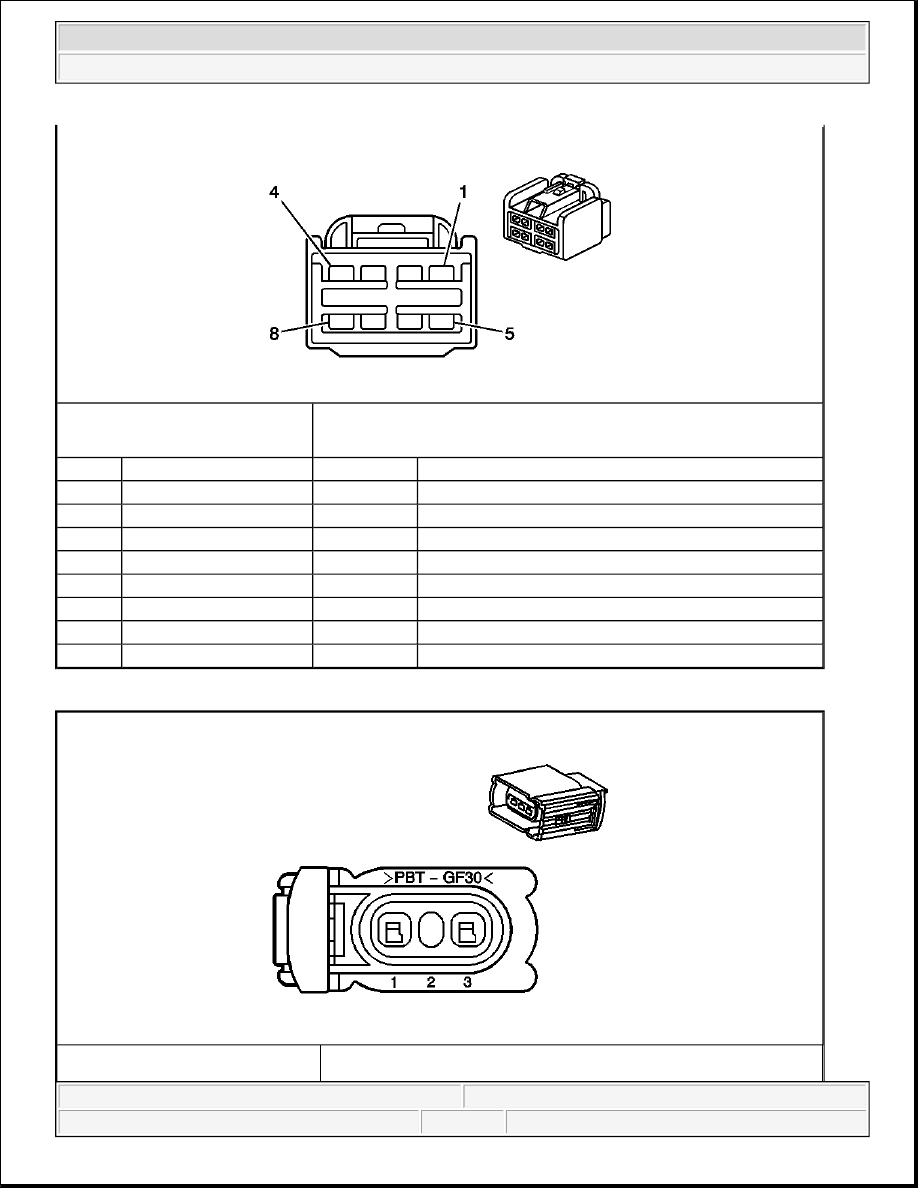

Memory Seat Module Terminal Identification - Driver - C2

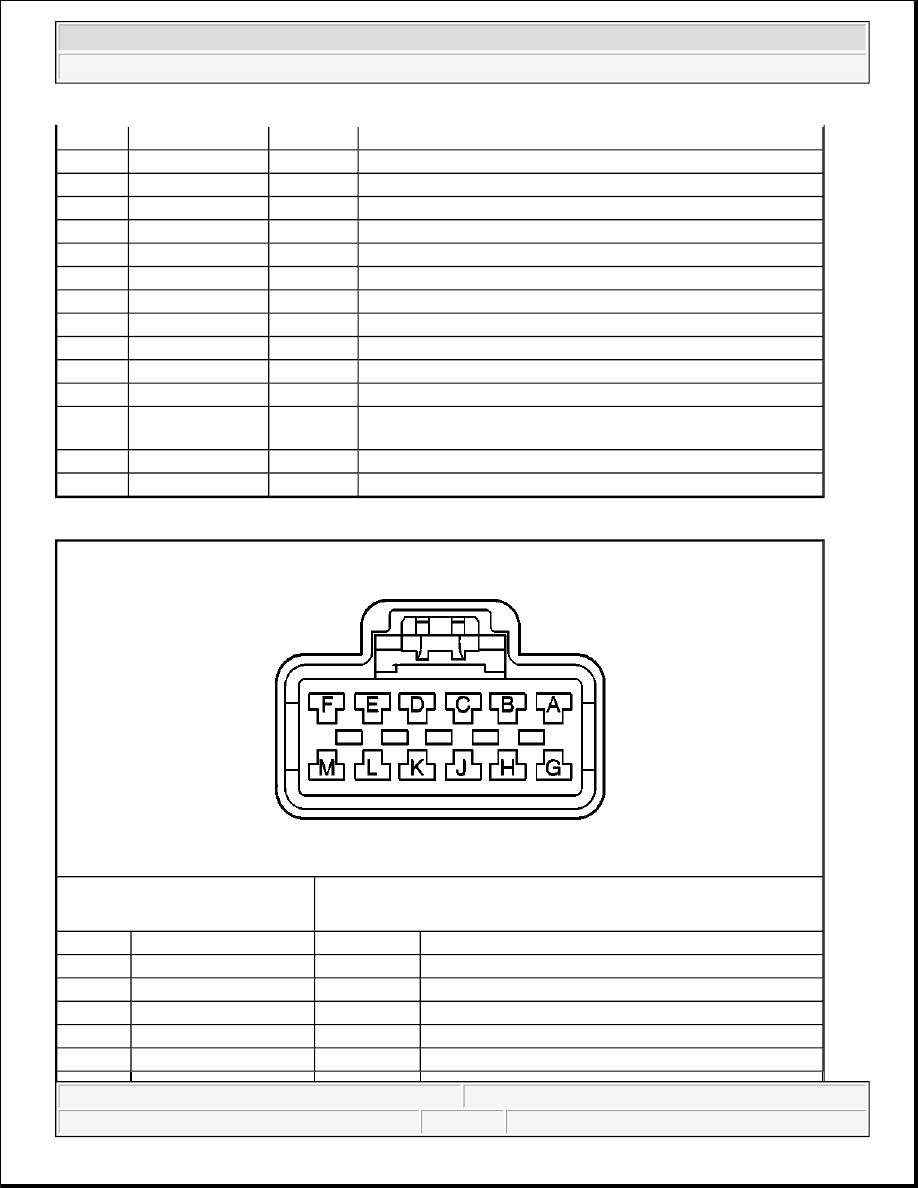

Connector Part Information

z

7283-5560-40

z

8-Way F Yazaki 2.8 mm Unsealed (L-GY)

Pin

Wire Color

Circuit No.

Function

1

L-GN

276

Driver Seat Recline Motor Forward Control

2

L-BU

277

Driver Seat Recline Motor Rearward Control

3

TN

285

Driver Seat Horizontal Motor Forward Control

4

L-GN

284

Driver Seat Horizontal Motor Rearward Control

5

L-BU

283

Driver Seat Rear Vertical Motor Down Control

6

YE

282

Driver Seat Rear Vertical Motor Up Control

7

D-BU

287

Driver Seat Front Vertical Motor Down Control

8

D-GN

286

Driver Seat Front Vertical Motor Up Control

Connector Part Information

z

7283-5625-40



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



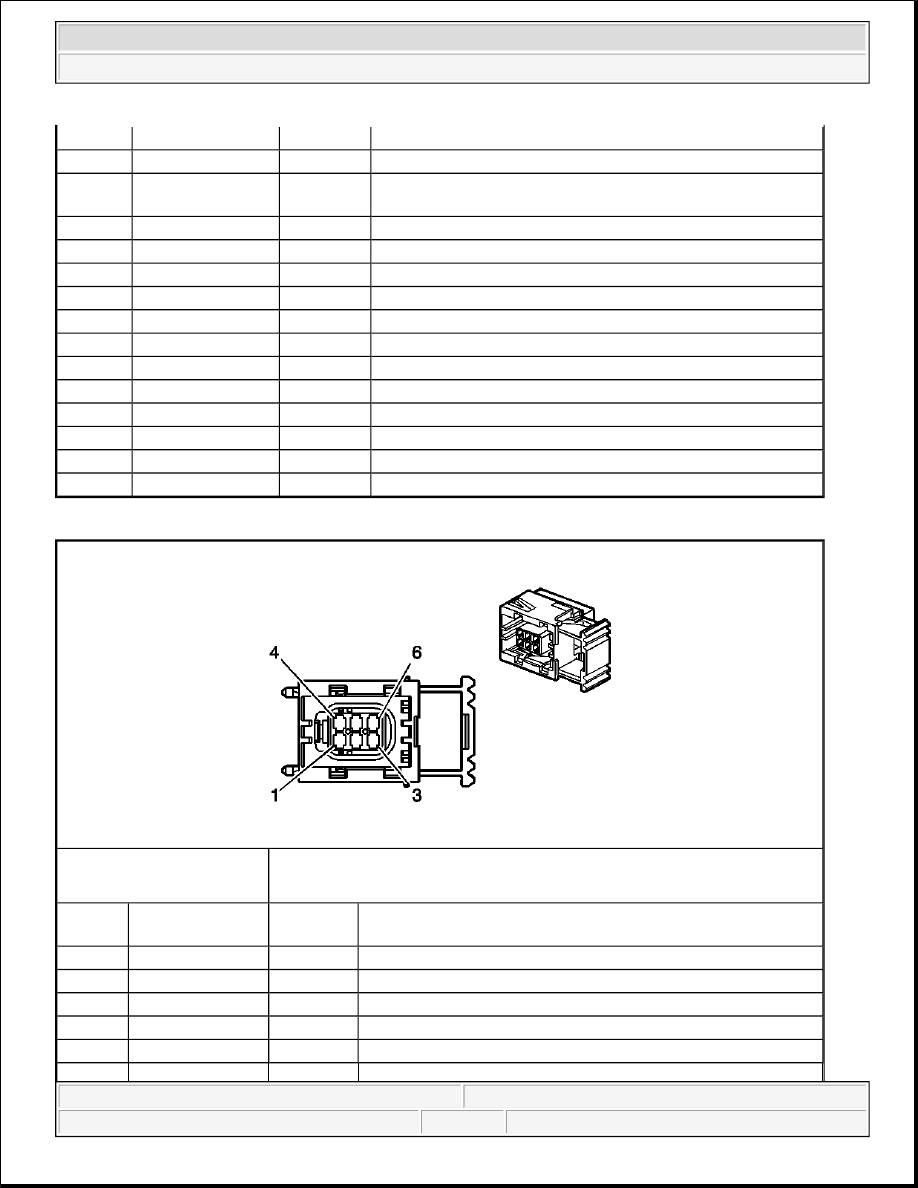

Memory Seat Module Terminal Identification - Driver - C3

z

13-Way F Yazaki Hybrid Unsealed (L-GY)

Pin

Wire Color

Circuit No.

Function

1

OG

1440

Battery Positive Voltage

2-3

-

-

Not Used

4

D-BU

611

Driver Seat Lumbar Motor Forward Control

5

PK

610

Driver Seat Lumbar Motor Rearward Control

6

-

-

Not Used

7

BK

1150

Ground

8

-

-

Not Used

9

YE

1257

Driver Seat Torso Bolster In Control

10

PU

1258

Driver Seat Torso Bolster Out Control

11-13

-

-

Not Used

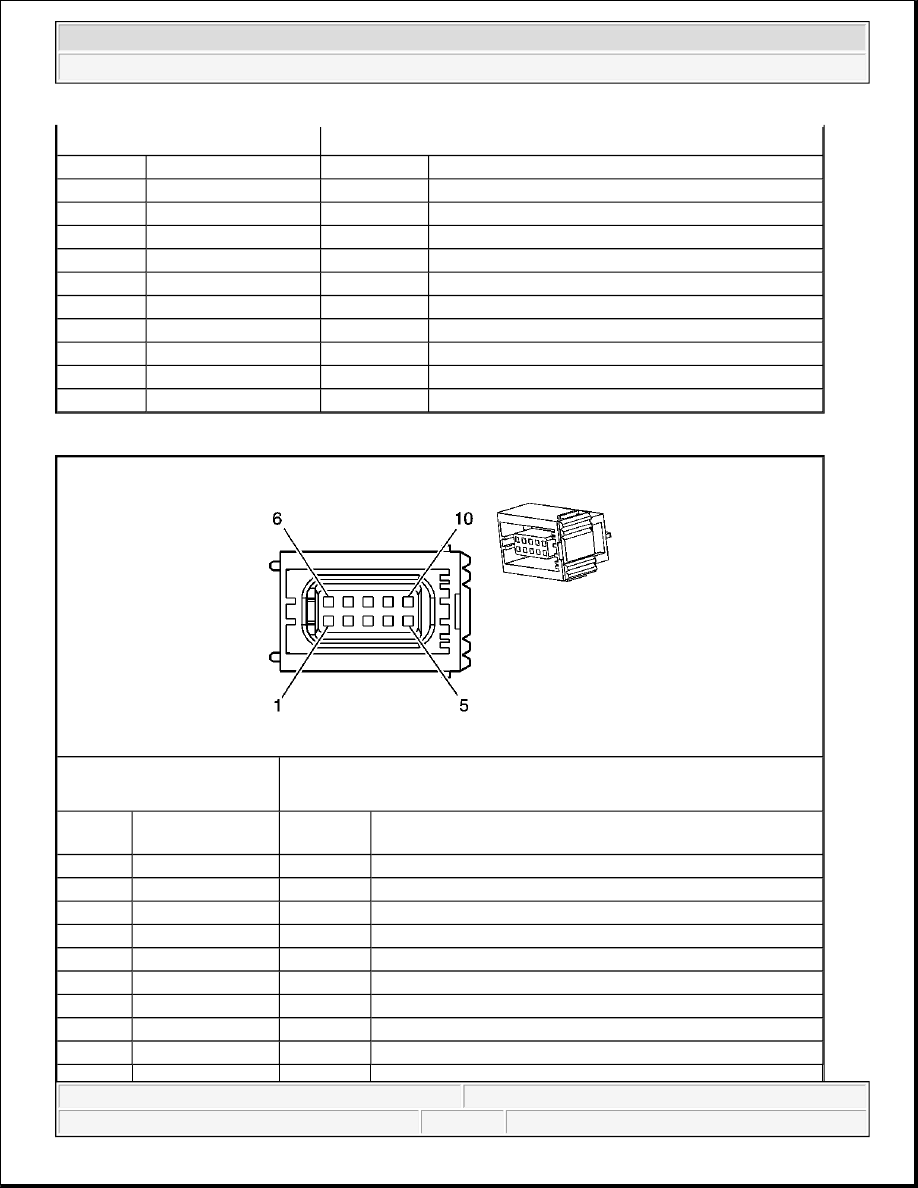

Connector Part

Information

z

174516-2

z

26-Way F AMP Hybrid (BK)

Pin

Wire Color

Circuit

No.

Function

1

RD/WH

2077

Heated Seat Cushion Element Supply Voltage-w/KA7

2-3

-

-

Not Used

4

TN

2408

Driver Seat Lumbar Motor Rearward Control

5

GY/RD

5702

Driver Seat Torso Bolster Out Switch Signal

6

D-GN/WH

1270

Power Seat Recline Rearward Switch Signal

7

-

-

Not Used

8

L-GN

1523

Power Seat Horizontal Rearward Switch Signal

9

L-BU

1521

Power Seat Rear Vertical Down Switch Signal

10

D-BU

1520

Power Seat Front Vertical Down Switch Signal



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Memory Seat Module Terminal Identification - Driver - C4

11

-

-

Not Used

12

WH

5287

Voltage Reference

13

WH

570B

Driver Seat Recline Motor Position Sensor Voltage
Reference

14

BN

2432

Driver Heated Seat Back Element Supply Voltage - w/KA7

15-16

-

-

Not Used

17

YE

2407

Driver Seat Lumbar Motor Forward Switch Signal

18

WH/RD

5701

Driver Seat Torso Bolster In Switch Signal

19

GY/BK

1269

Power Seat Recline Forward Switch Signal

20

-

-

Not Used

21

TN/BK

1522

Power Seat Horizontal Forward Switch Signal

22

YE/BK

1519

Power Seat Rear Vertical Up Switch Signal

23

D-GN

1518

Power Seat Front Vertical Up Switch Signal

24

OG

1540

Switch Voltage Supply

25

BN/WH

5288

Low Reference

26

BK

570A

Low Reference

Connector Part

Information

z

174515-6

z

22-Way F AMP Hybrid (GY)

Pin

Wire Color

Circuit

No.

Function

1

L-BU

2433

Passenger Heated Seat Back Element Control-w/KA7

2

PK/BK

2480

Heated Seat Cushion Element Control-w/KA7

3

BN/WH

557

Front Vertical Seat Motor Position Sensor Signal

4

D-GN

569

Horizontal Seat Motor Position Sensor Signal

5

YE/BK

1063

Driver Seat Lumbar Horizontal Position Sensor Signal



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Seat Adjuster Terminal Identification Switch - Driver

6

PU

5700

Driver Seat Torso Bolster Position Sensor Signal

7

-

-

Not Used

8

D-BU

2425

Driver Heated Seat Back Temperature Sensor Signal-w/KA7

9

BN/WH

1048

SCM (Seat) Class 2 Serial Data

10

-

-

Not Used

11

D-BU

2479

Passenger Heated Seat Element Supply Voltage-w/KA7

12

PU

2424

Driver Heated Seat Back Element Control-w/KA7

13

L-GN

2078

Heated Seat Cushion Element Control-w/KA7

14

TN

568

Rear Vertical Seat Motor Position Sensor Signal

15

-

-

Not Used

16

WH/BK

570

Driver Seat Recline Motor Position Sensor Signal

17-18

-

-

Not Used

19

D-BU/WH

2434

Passenger Heated Seat Cushion Temperature Sensor Signal-
w/KA7

20-21

-

-

Not Used

22

D-BU

2479

Passenger Heated Seat Element Supply Voltage-w/KA7

Connector Part Information

z

15326110

z

12-Way F GT 280 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

D-GN/WH

1270

Power Seat Recline Rearward Switch Signal

B

GY/BK

1269

Power Seat Recline Forward Switch Signal

C

-

-

Not Used

D

L-GN

1523

Power Seat Horizontal Rearward Switch Signal

E

TN

1522

Power Seat Horizontal Forward Switch Signal
