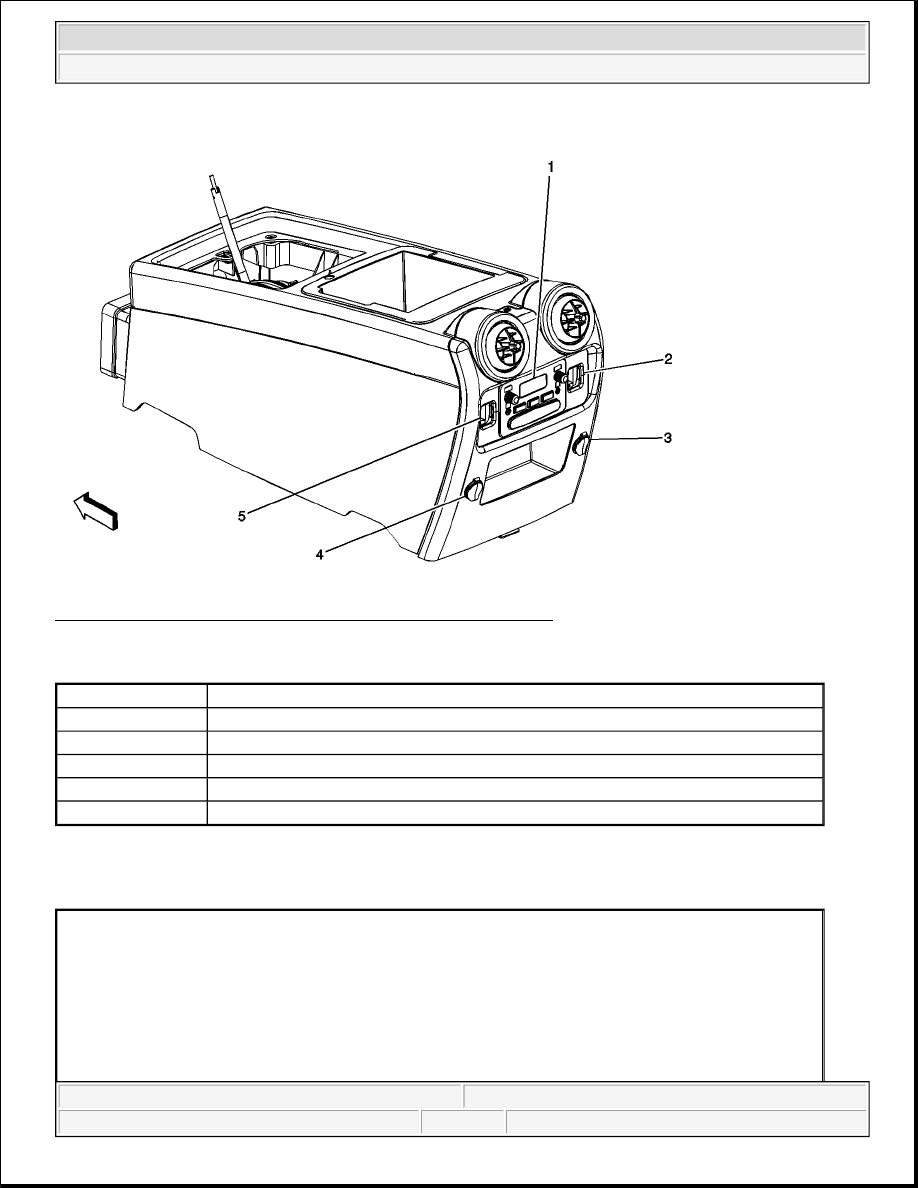

Fig. 15: Heated Seat Switch - LR/RR (w/KA7) Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 15

POWER SEAT SYSTEMS CONNECTOR END VIEWS

Driver Door Module (DDM) Terminal Identification - C5 (Memory/Heated Seat Switch w/KA7)

Callout

Component Name

1

RSA Controller

2

Heated Seat Switch - RR (w/KA7)

3

Accessory Power Outlet - RR

4

Accessory Power Outlet - LR

5

Heated Seat Switch - LR (w/KA7)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



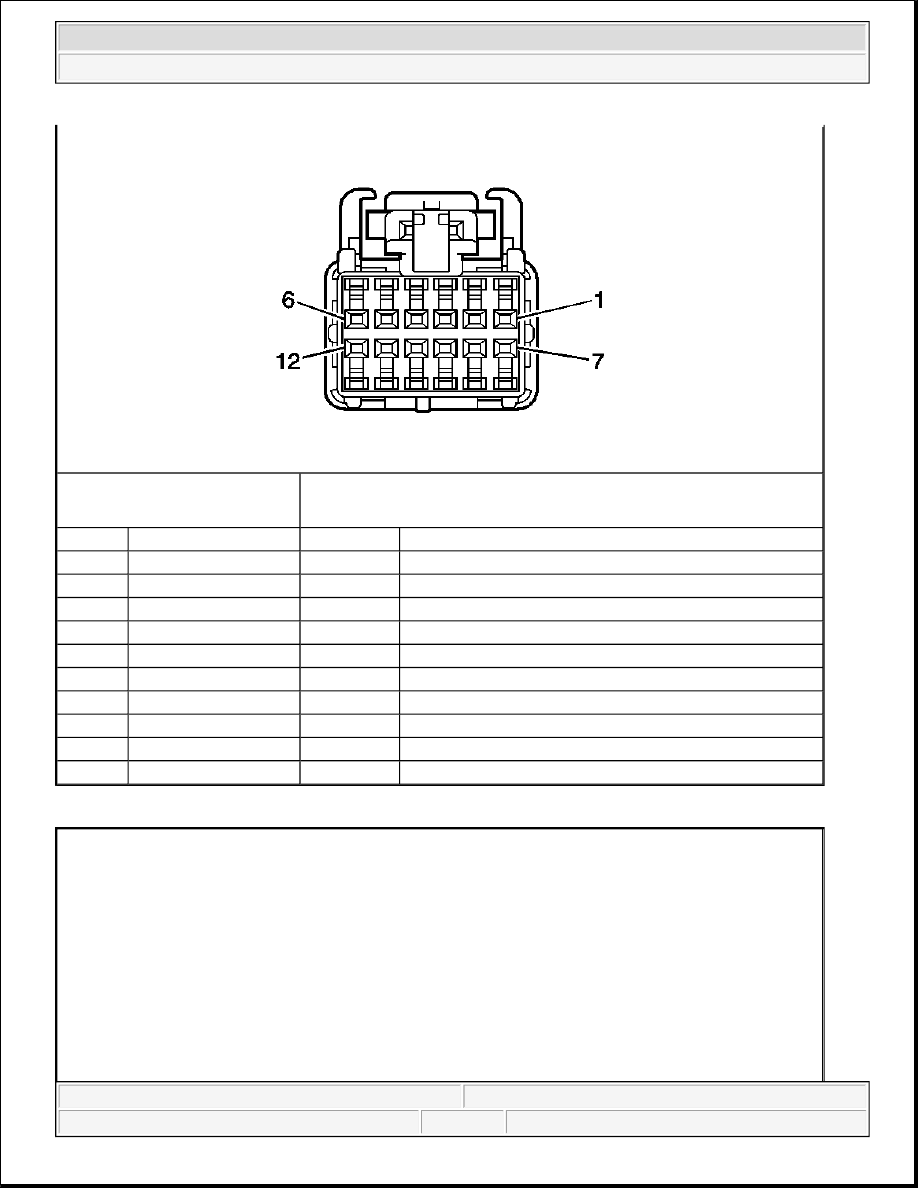

Front Passenger Door Module (FPDM) Terminal Identification - C5 (Heated Seat Switch w/KA7)

Connector Part Information

z

6383393-4

z

12-Way F AMP 0.64 mm Unsealed (GN)

Pin

Wire Color

Circuit No.

Function

1

WH/BK

-

Medium Heat Indicator Control w/KA7

2

YE

-

Low Heat Indicator Control w/KA7

3

GY

-

Back Only Select w/KA7

4

L-BU

-

Memory/Heated Seat Backlight w/KA7

5

PK

-

Memory 2 Switch Signal w/KA7

6

-

-

Not Used

7

D-GN

-

High Heat Indicator Control w/KA7

8

BK

-

Back Only Indicator w/KA7

9

D-BU

-

Back and Cushion Select w/KA7

10

RD

-

Memory 1 Switch Signal

11

BN

-

Memory/Heated Switch Supply Voltage w/KA7

12

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



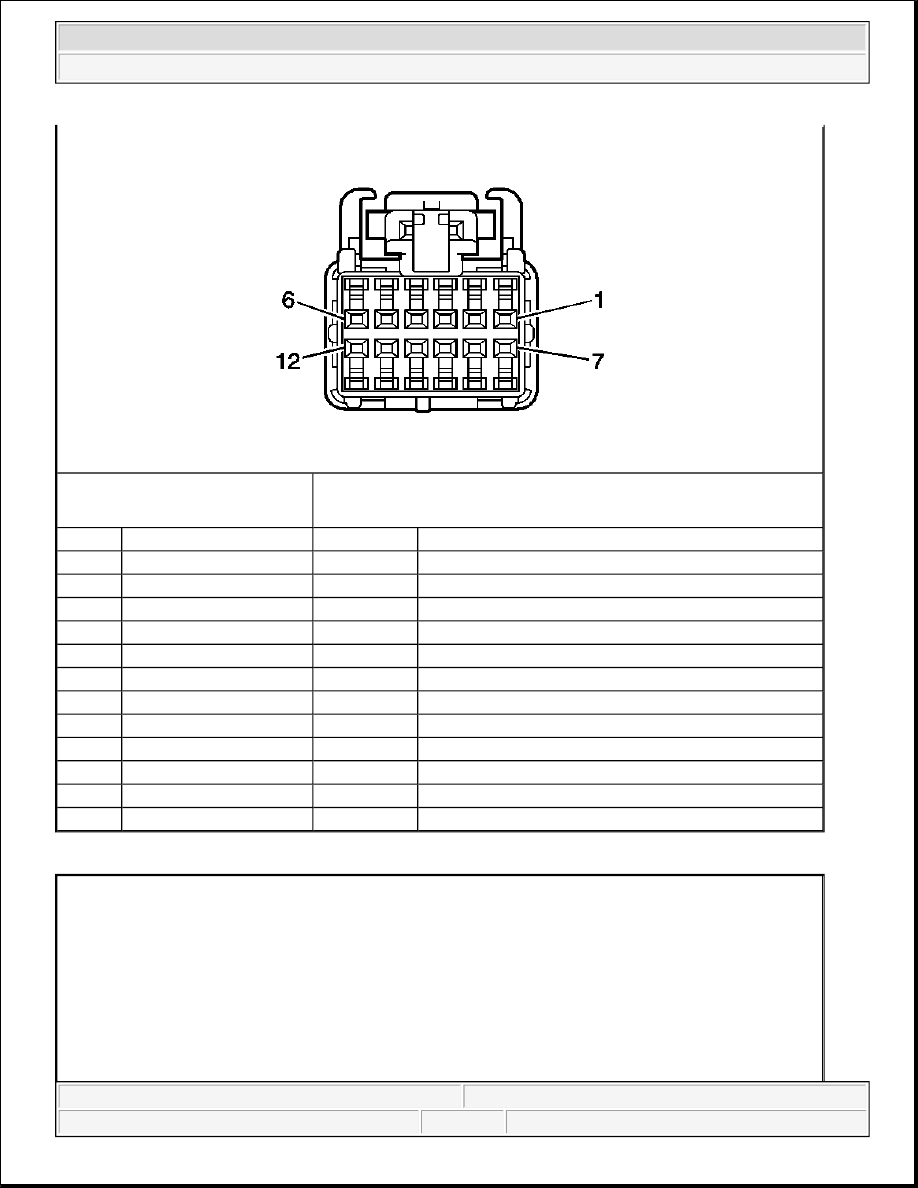

Heated Seat Control Module Terminal Identification - LR (w/KA7)

Connector Part Information

z

6383393-4

z

12-Way F AMP 0.64 mm Unsealed (GN)

Pin

Wire Color

Circuit No.

Function

1

YE

-

Low Heat Indicator Control w/KA7

2

D-GN

-

High Heat Indicator Control w/KA7

3

D-BU

-

Back Only Select w/KA7

4

GY

-

Back and Cushion Select w/KA7

5

-

-

Not Used

6

BN

-

Memory/Heated Seat Switch Supply Voltage w/KA7

7

BK

-

Back Only Indicator Control w/KA7

8

WH/BK

-

Medium Heat Indicator Control w/KA7

9-11

-

-

Not Used

12

L-BU

-

Heated Seat Switch Backlight w/KA7



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



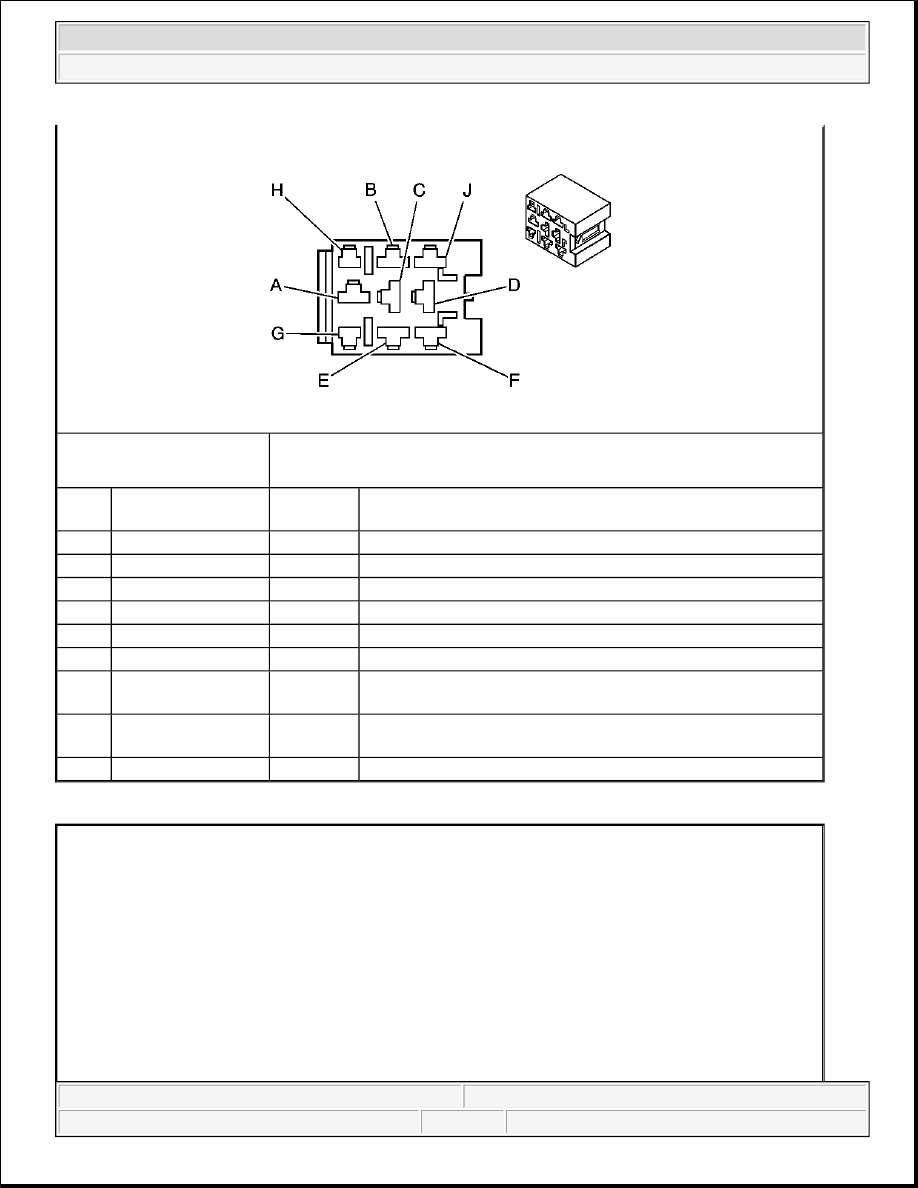

Heated Seat Control Module Terminal Identification - RR (w/KA7)

Connector Part

Information

z

15339007

z

9-Way F Metri-Pack 280,630 Series (BN)

Pin

Wire Color

Circuit

No.

Function

A

RD/WH

2075

Heated Seat Cushion Element Control w/KA7

B

BN

1637

Left Rear Heated Seat Switch Signal w/KA7

C

BN

541

Ignition 3 Voltage w/KA7

D

OG

4540

Battery Positive Voltage w/KA7

E

YE

2079

Heated Seat Cushion Temperature Sensor Signal w/KA7

F

BK

1150

Ground w/KA7

G

BK/WH

1638

Left Rear Heated Seat High Temperature Indicator Control
w/KA7

H

PK

1631

Left Rear Heated Seat Low Temperature Indicator Control
w/KA7

J

BK

2080

Low Reference w/KA7
