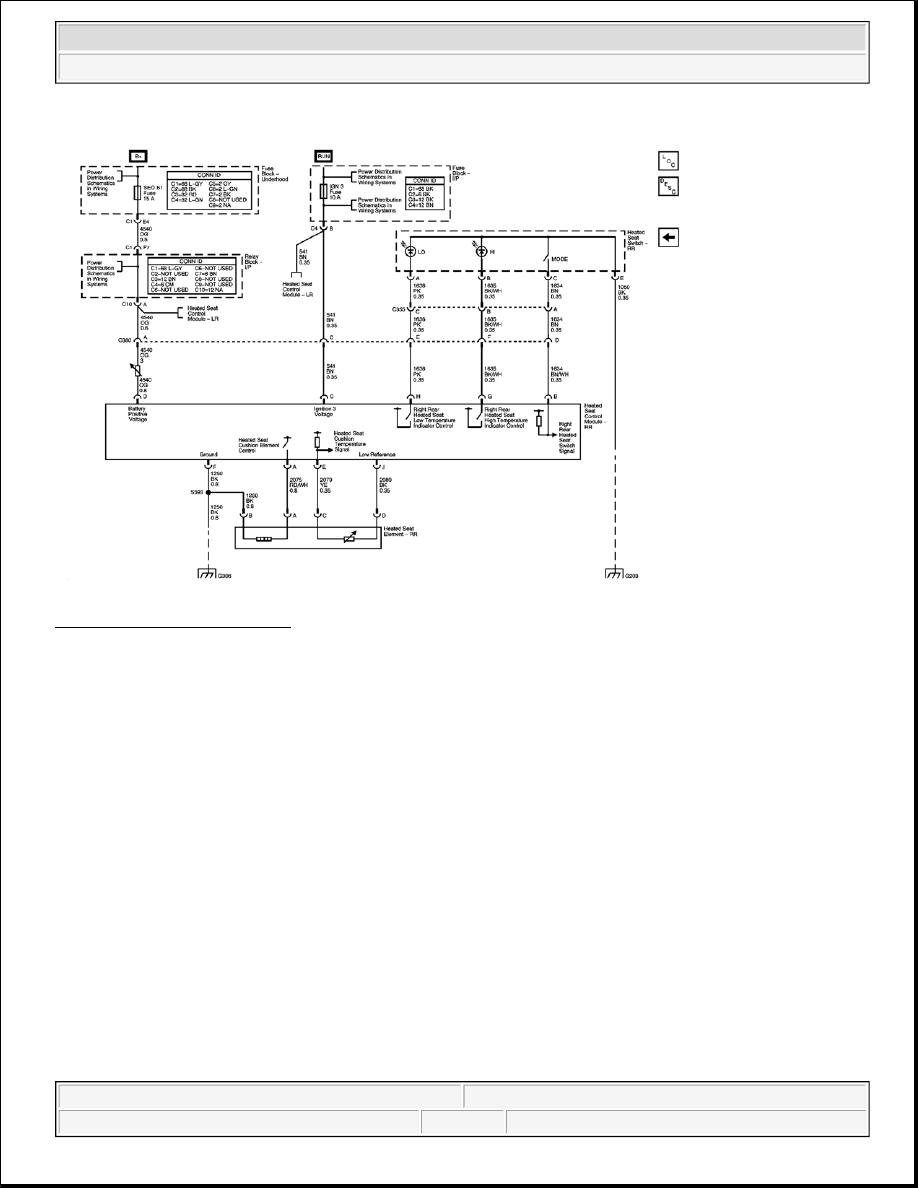

Fig. 7: Right Rear Heated Seat
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

POWER SEAT SYSTEMS COMPONENT VIEWS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



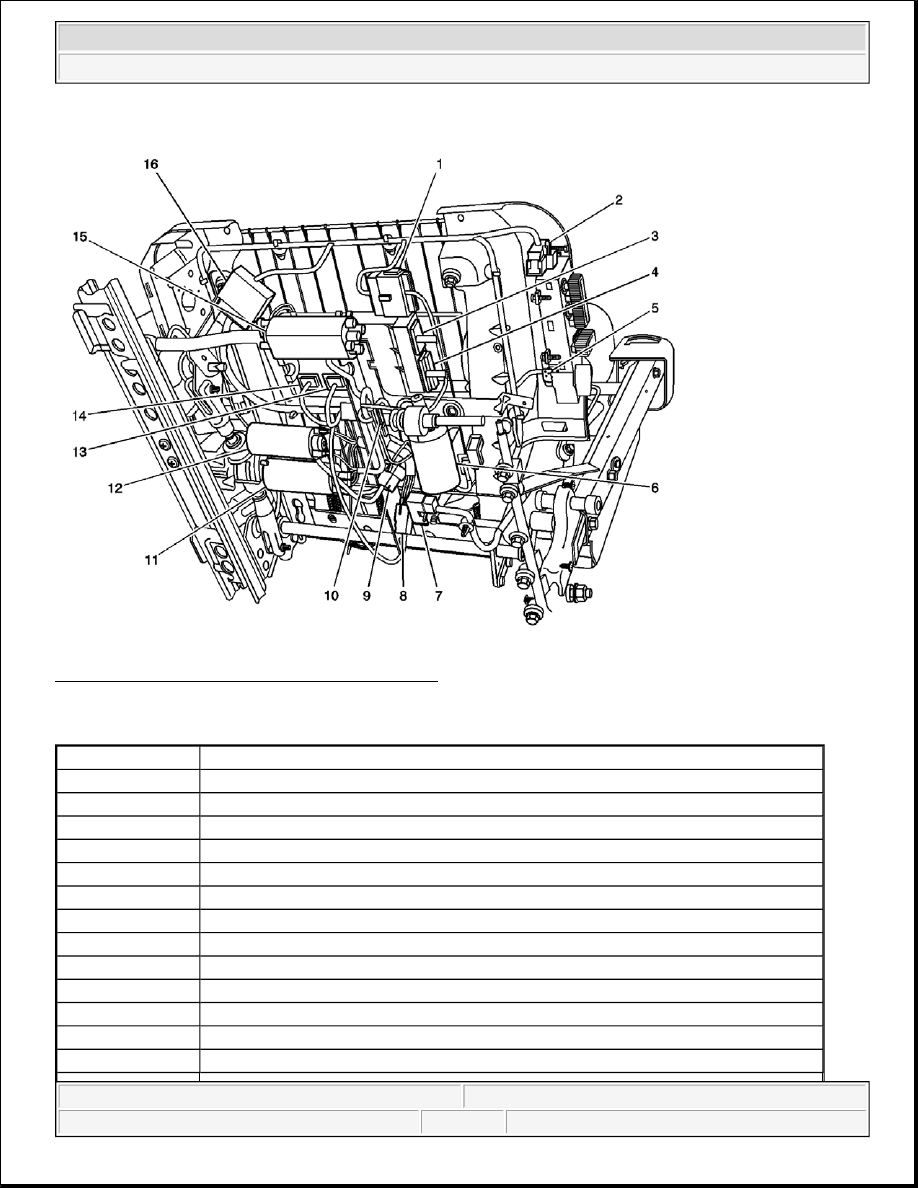

Fig. 8: Driver Seat Sub-System Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 8

Callout

Component Name

1

C327

2

Seat Adjuster Switch - Driver

3

Memory Seat Module - C4

4

Memory Seat Module - C3

5

Seat Bolster/Lumbar Switch - Driver

6

Seat Recline Motor - Driver

7

C325

8

C329

9

C330

10

C328

11

Seat Rear Vertical Motor-Driver

12

Seat Front Vertical Motor-Driver

13

Memory Seat Module-C2



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



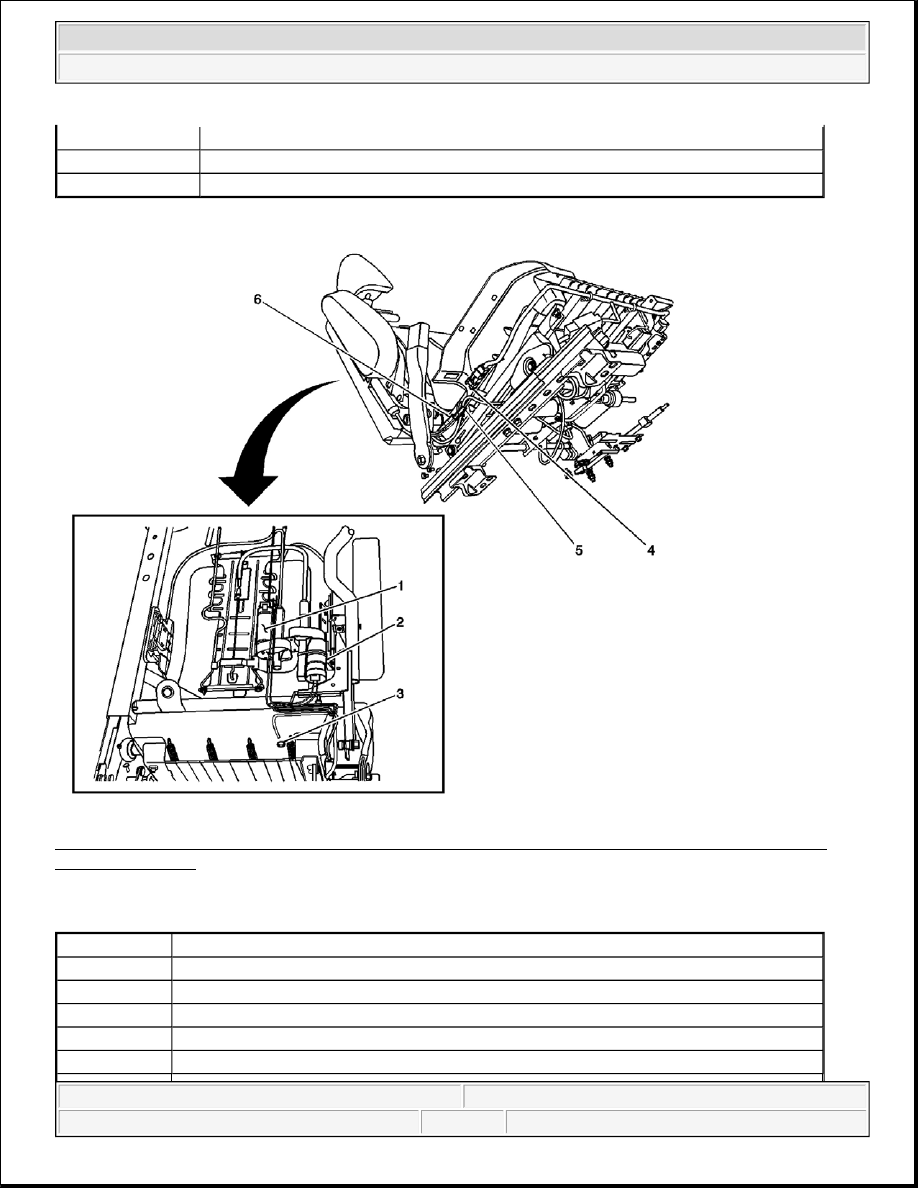

Fig. 9: Seat Belt Switch - Driver, Heated Seat Element Connector, Bolster/Lumbar Motors and C333
Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 9

14

Memory Seat Module-C1

15

Seat Horizontal Motor-Driver

16

C326

Callout

Component Name

1

Seat Bolster Motor-Driver

2

Seat Lumbar Motor-Driver

3

Heated Seat Element-Driver Cushion

4

C333

5

Seat Belt Switch Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



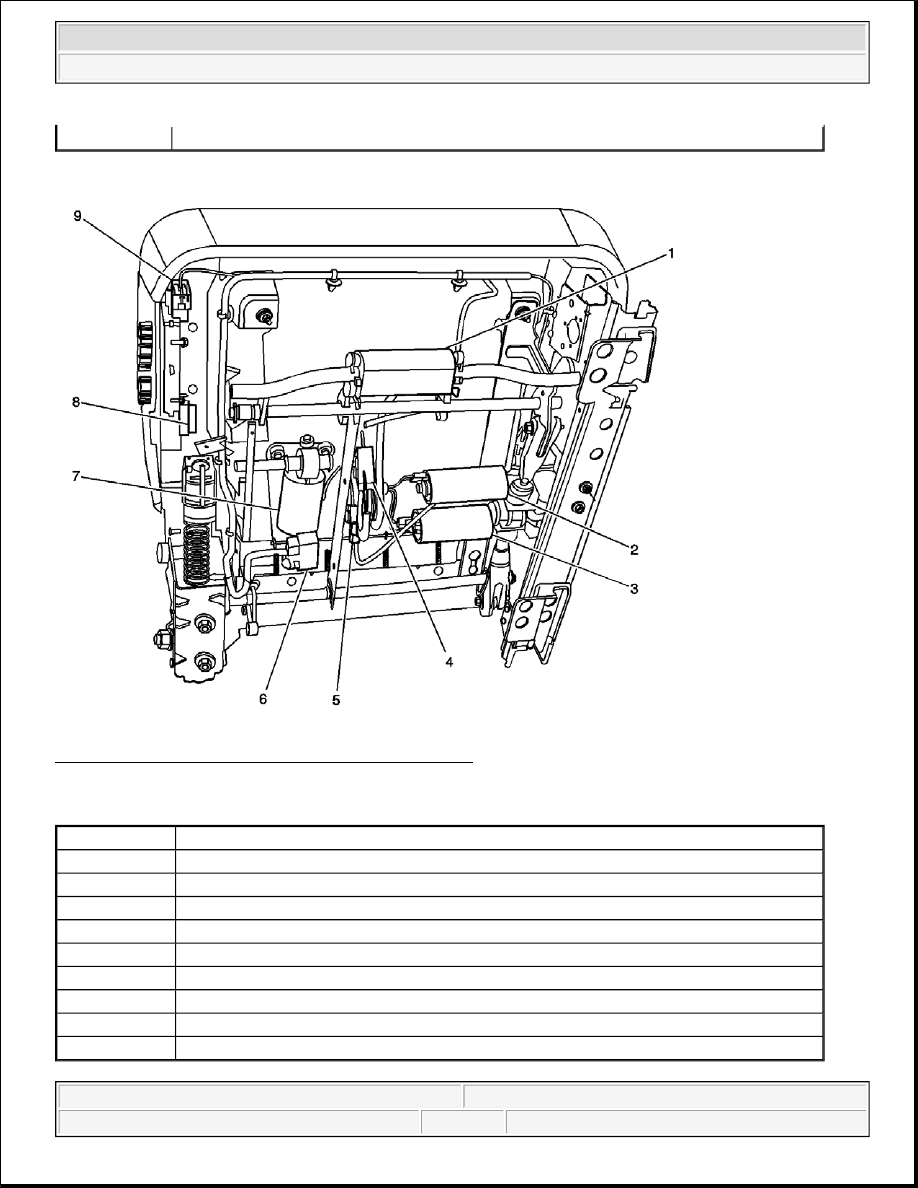

Fig. 10: Passenger Seat Sub-System Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 10

6

Heated Seat Element-Driver Cushion Connector

Callout

Component Name

1

Seat Horizontal Motor - Front Passenger

2

Seat Front Vertical Motor - Front Passenger

3

Seat Rear Vertical Motor - Front Passenger

4

C376

5

C377

6

C375

7

Seat Recline Motor - Front Passenger

8

Seat Bolster/Lumbar Switch - Front Passenger

9

Seat Adjuster Switch - Front Passenger
