SPECIAL TOOLS

Special Tools

Illustration

Tool Number/Description

J 38778

Door Trim Pad Clip Remover



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2004 ACCESSORIES & EQUIPMENT

Seats - Hummer H2

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

SCHEMATIC AND ROUTING DIAGRAMS

Application

Specification

Metric

English

Armrest Bolts

9 N.m

80 lb in

Armrest Trim Cover Screws

2 N.m

18 lb ft

Cushion Front Nuts

21 N.m

15 lb ft

Cushion Side Bolts

35 N.m

26 lb ft

Folding Head Restraint Assembly Bolts

7 N.m

61 lb in

Front Recliner Attachment Bolts

53 N.m

39 lb ft

Front Seat Belt Buckle Nut

53 N.m

39 lb ft

Hinge Assembly Bolts

7 N.m

61 lb in

Inboard Pivot Bolt

35 N.m

26 lb ft

Latch Cover Screws

2 N.m

18 lb in

Lumbar Switch Screws

2 N.m

18 lb in

Memory Module Screws

3 N.m

26 lb in

Outboard Pivot Bolt

35 N.m

26 lb ft

Outboard Seat Belt Anchor Nut

53 N.m

39 lb ft

Power Seat Switch Bezel Screws

2 N.m

18 lb in

Power Seat Switch Screws

2 N.m

18 lb in

Rear Heated Seat Switch Screw

1.6 N.m

14 lb in

Rear Seat Back Latch Bolt

45 N.m

33 lb ft

Rear Seat Back Latch Screw

25 N.m

18 lb ft

Recliner Arm Attachment Bolts

53 N.m

39 lb ft

Recliner/Release Handle Screws

2 N.m

18 lb in

Recliner Screw

10 N.m

89 lb in

Seat Back Folding Mechanism Bolts

21 N.m

15 lb ft

Seat Back Side Bolts

35 N.m

26 lb ft

Seat Belt Tower Cover Screw

1.9 N.m

17 lb in

Seat Front Retaining Nuts

55 N.m

41 lb ft

Seat Rear Retaining Bolts

55 N.m

41 lb ft

Trim Panel Screws

2 N.m

18 lb in



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2





2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



DRIVER SEAT SCHEMATICS

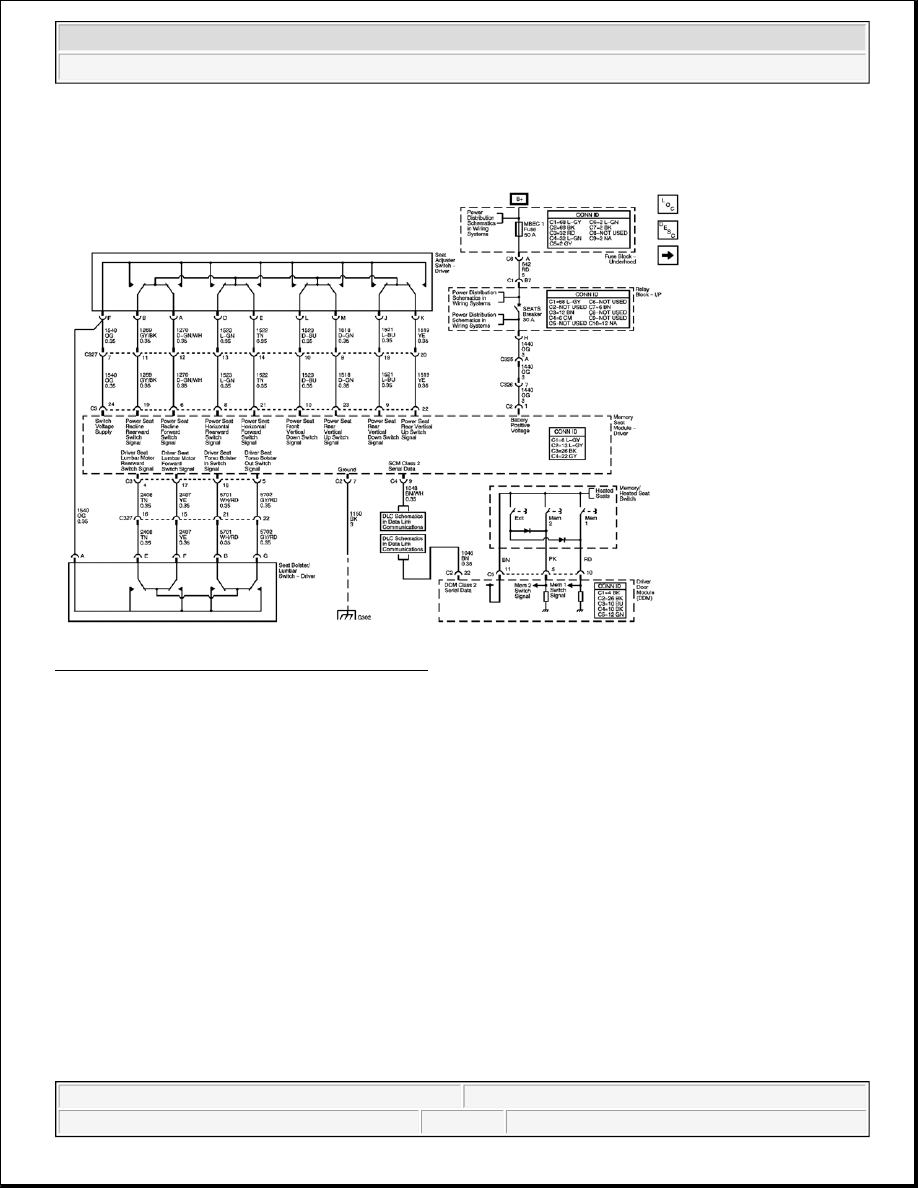

Fig. 1: Driver Memory Seat and Memory Switch
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



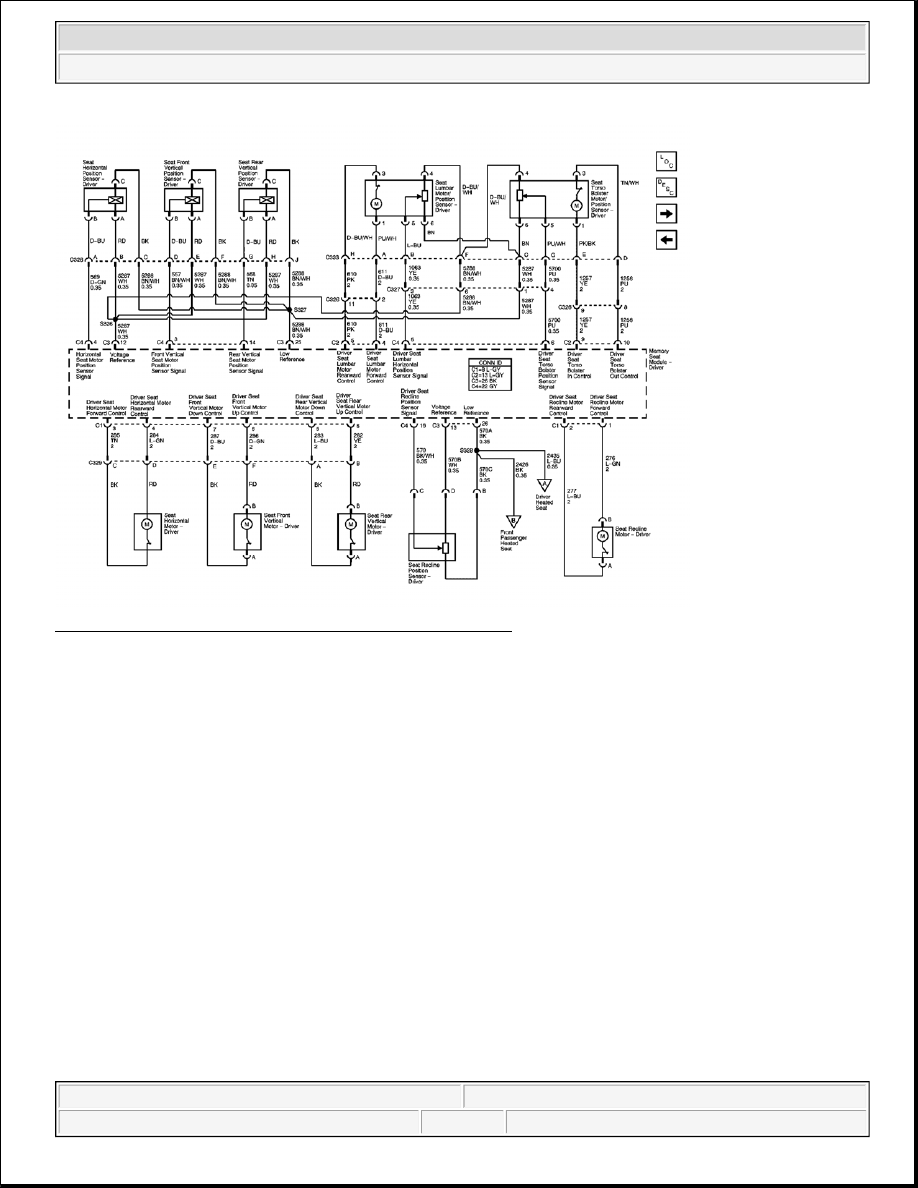

Fig. 2: Driver Memory Lumbar, Torso Bolster, and Recline
Courtesy of GENERAL MOTORS CORP.
