Hummer H2. Manual - part 560

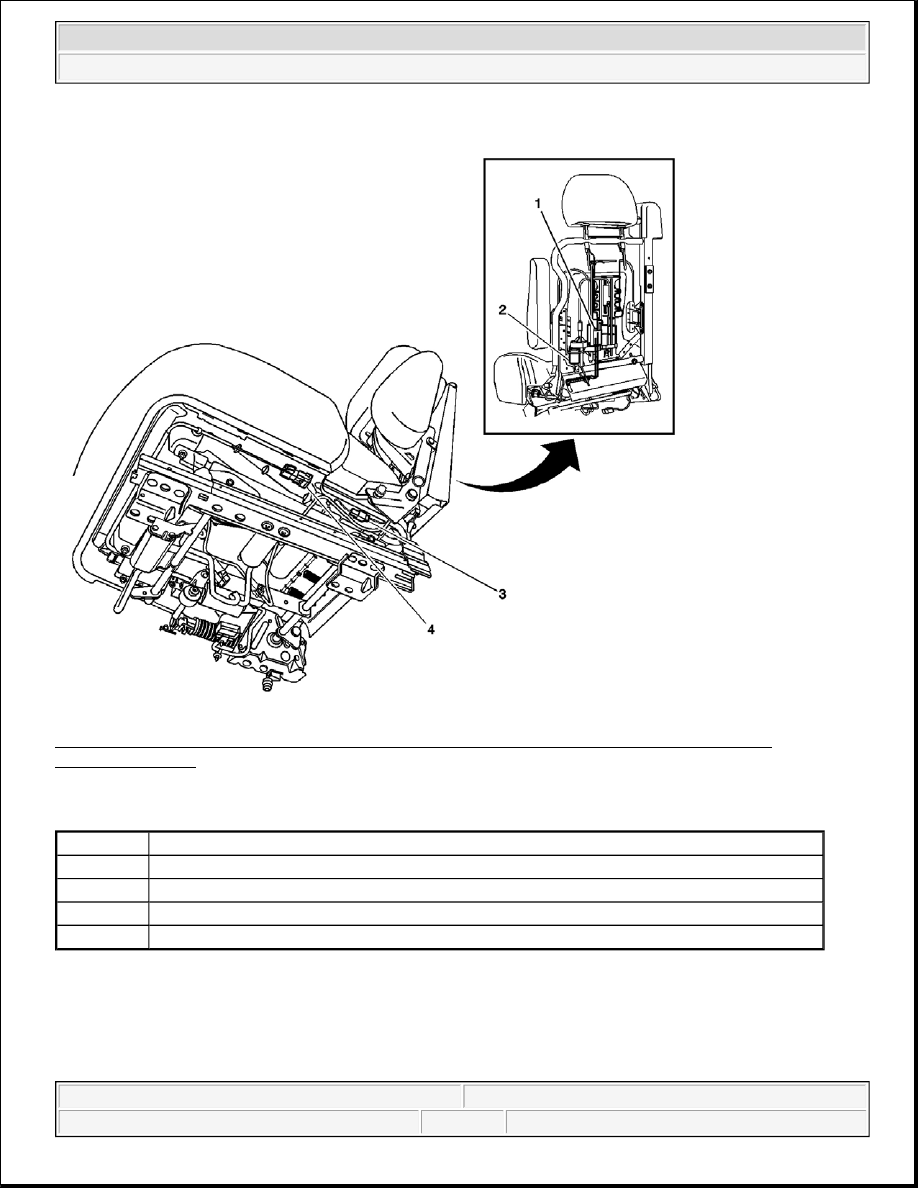

Fig. 11: Heated Seat Element-Passenger Cushion, Bolster/Lumbar Motors and C378 (w/KA7)
Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 11

Callout

Component Name

1

Seat Bolster Motor - Passenger

2

Seat Lumbar Motor - Passenger

3

Heated Seat Element - Passenger Cushion Connector (w/KA7)

4

C378



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



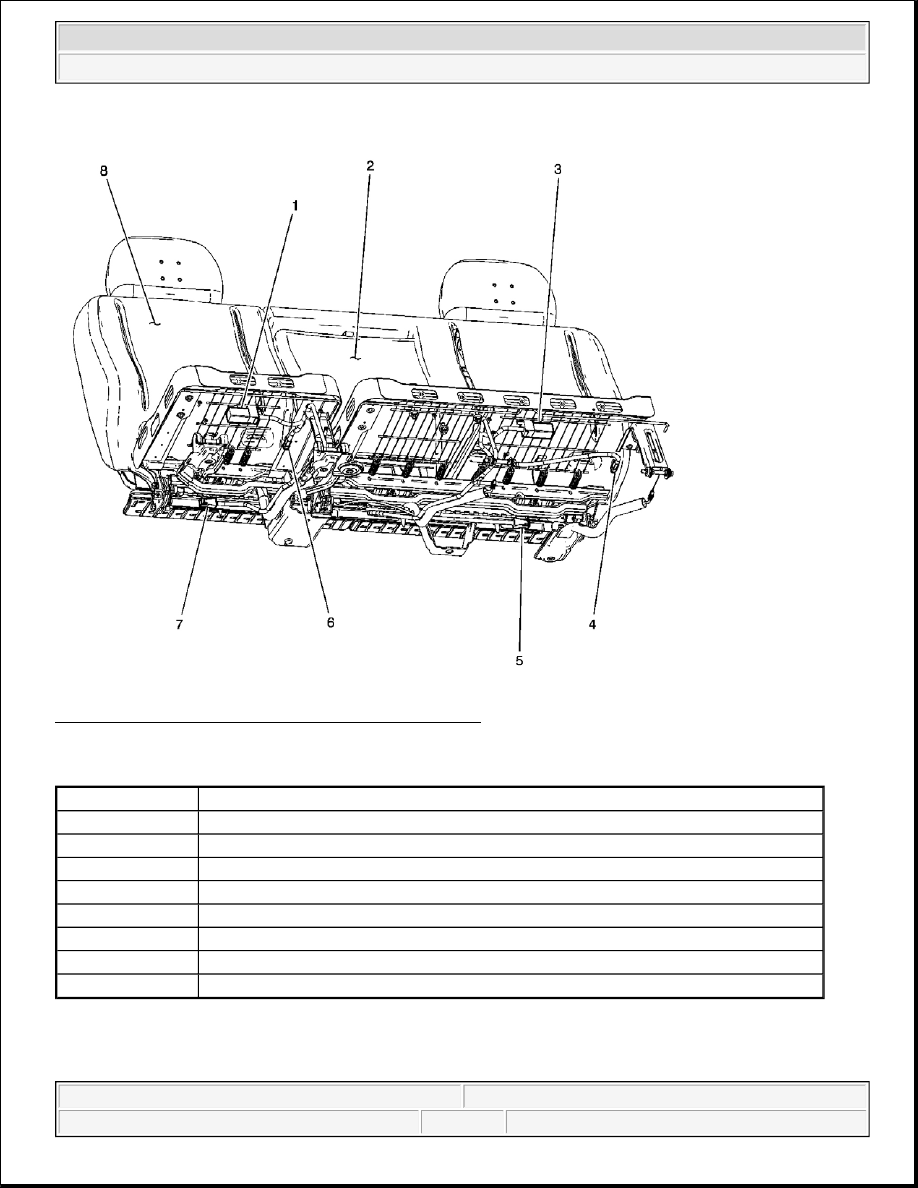

Fig. 12: 2nd Row Heated Seat (KA7) Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 12

Callout

Component Name

1

Heated Seat Control Module - RR

2

2nd Row Seat - LR

3

Heated Seat Control Module - LR

4

Heated Seat Element Connector - LR

5

C320

6

Heated Seat Element Connector - RR

7

C380

8

2nd Row Seat - RR



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



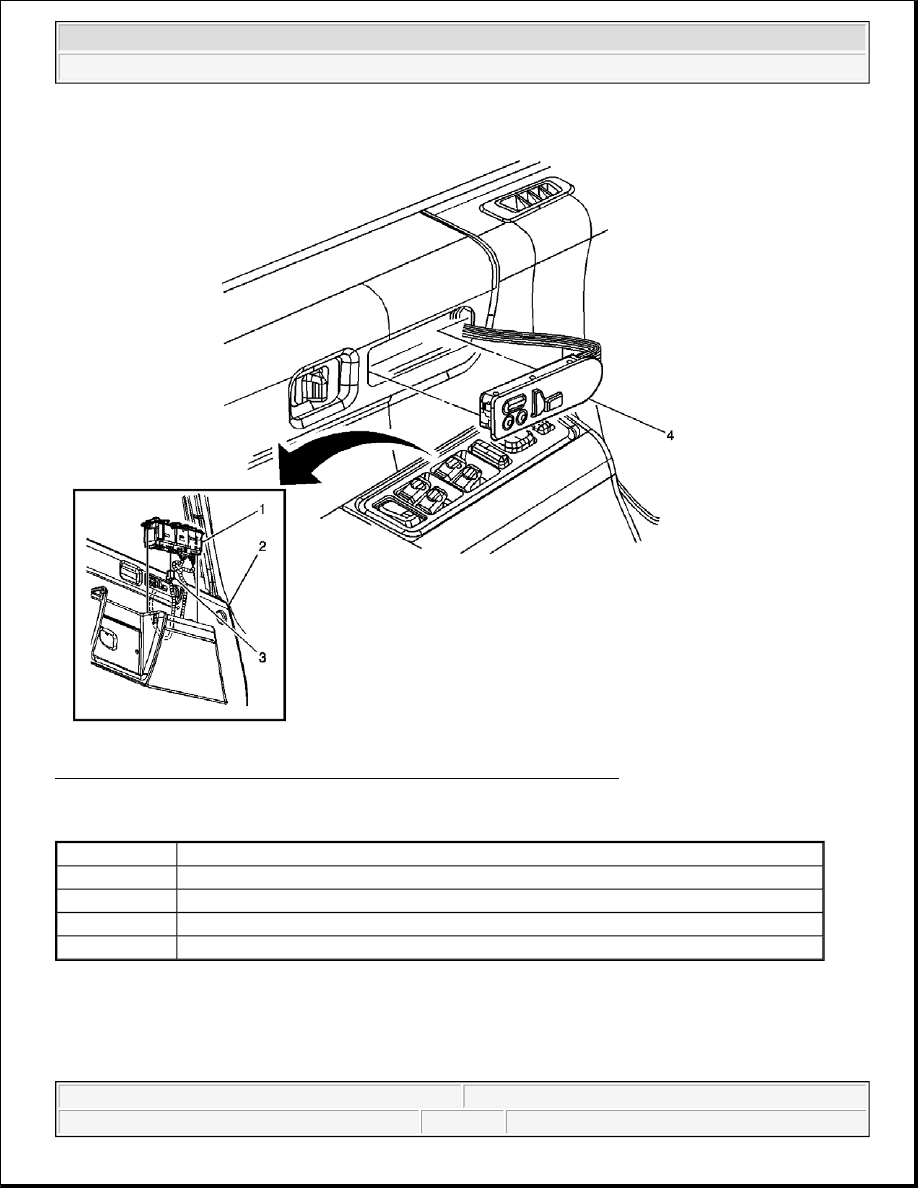

Fig. 13: Memory/Heated Seat Switch - Driver (w/KA7) Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 13

Callout

Component Name

1

Driver Door Module (DDM)

2

Driver Inner Door Panel

3

DDM - C5 (Green)

4

Memory/Heated Seat Switch-Driver (w/KA7)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Fig. 14: Heated Seat Switch - Passenger (w/KA7) Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 14

Callout

Component Name

1

Window Switch - Passenger

2

Door Lock Switch - Passenger

3

Heated Seat Switch - Passenger

4

Passenger Door

5

Speaker - RF Door



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2
