Hummer H2. Manual - part 562

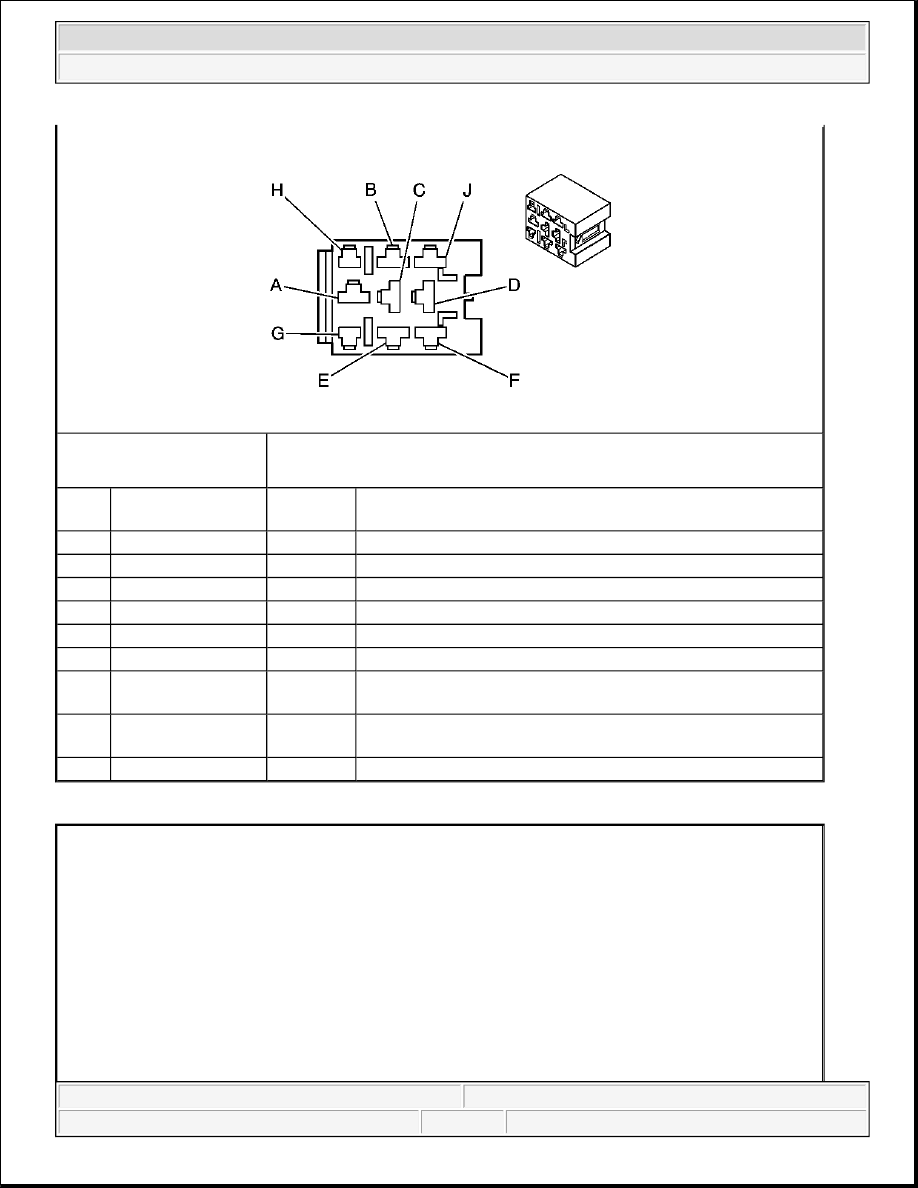

Heated Seat Element Terminal Identification - Driver Cushion (w/KA7)

Connector Part

Information

z

15339007

z

9-Way F Metri-Pack 280,630 Series (BN)

Pin

Wire Color

Circuit

No.

Function

A

RD/WH

2075

Heated Seat Cushion Element Control w/KA7

B

BN/WH

1634

Right Rear Heated Seat Switch Signal w/KA7

C

BN

541

Ignition 3 Voltage w/KA7

D

OG

4540

Battery Positive Voltage w/KA7

E

YE

2079

Heated Seat Cushion Temperature Sensor Signal w/KA7

F

BK

1250

Ground w/KA7

G

BK/WH

1635

Right Rear Heated Seat High Temperature Indicator Control
w/KA7

H

PK

1636

Right Rear Heated Seat Low Temperature Indicator Control
w/KA7

J

BK

2080

Low Reference w/KA7



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



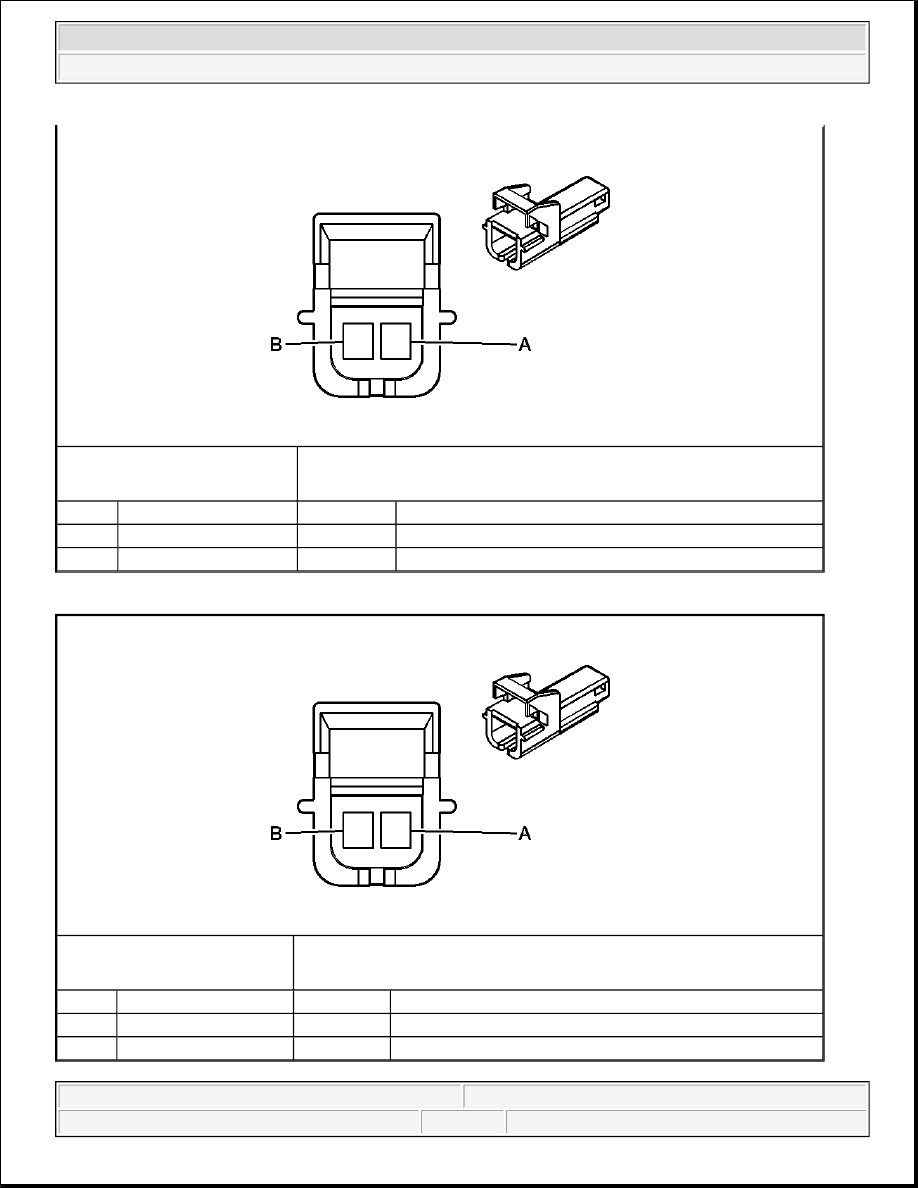

Heated Seat Element Terminal Identification - Passenger Cushion (w/KA7)

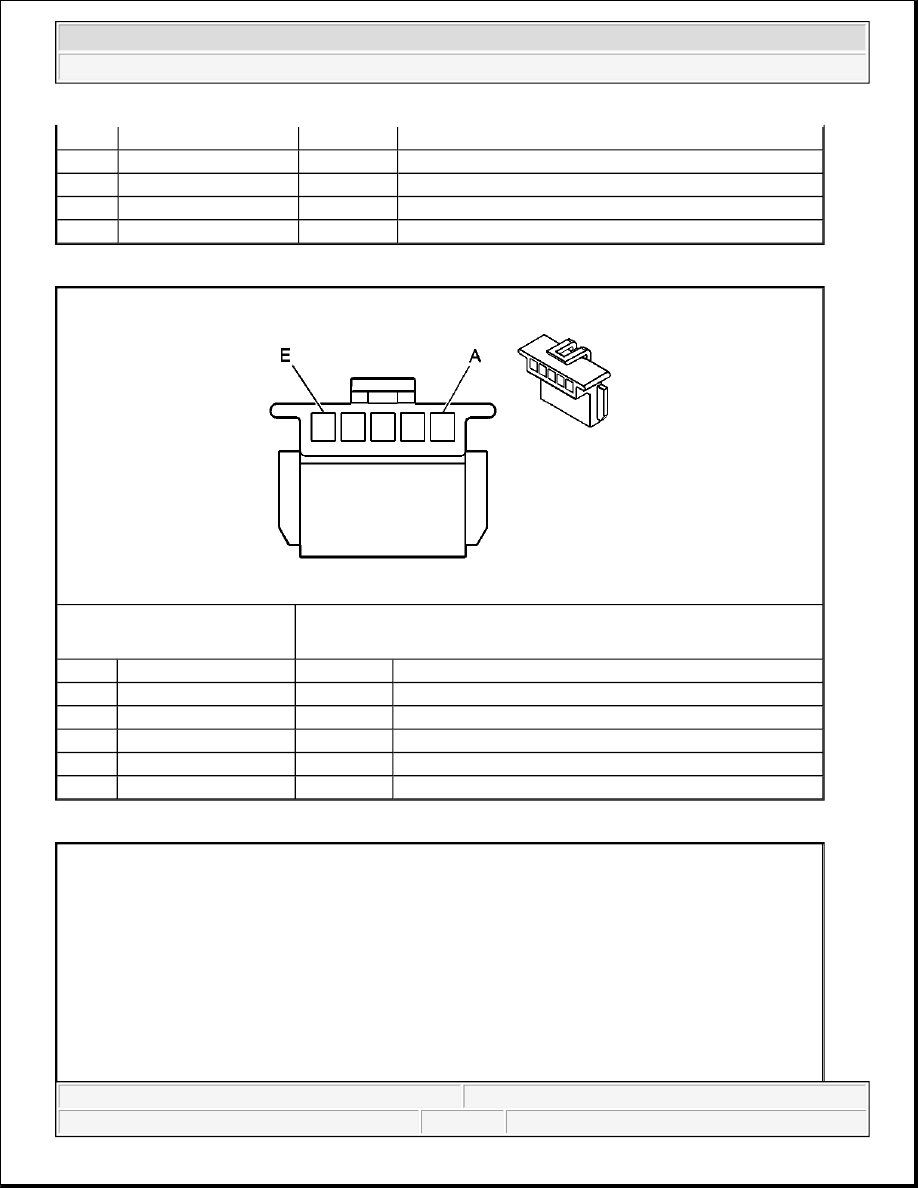

Connector Part Information

z

12064778

z

2-Way M Metri-Pack 150 Series (L-GN)

Pin

Wire Color

Circuit No.

Function

A

BN

2077

Heated Seat Cushion Element Supply Voltage w/KA7

B

BK

2078

Heated Seat Cushion Element Control w/KA7

Connector Part Information

z

12064778

z

2-Way M Metri-Pack 150 Series (L-GN)

Pin

Wire Color

Circuit No.

Function

A

BN

2479

Passenger Heated Seat Element Supply Voltage w/KA7

B

BK

2480

Heated Seat Cushion Element Control w/KA7



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Heated Seat Element Terminal Identification - LR/RR (w/KA7)

Heated Seat Terminal Identification Switch - LR w/KA7

Connector Part Information

z

12047786

z

4-Way F Metri-Pack 150 Series (M-GY)

Pin

Wire Color

Circuit No.

Function

A

RD/WH

2075

Heated Seat Cushion Element Control-w/KA7

B

BK

1150

Ground-w/KA7

C

YE

2079

Heated Seat Cushion Temperature Signal-w/KA7

D

BK

2080

Low Reference-w/KA7

Connector Part Information

z

12124997

z

5-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



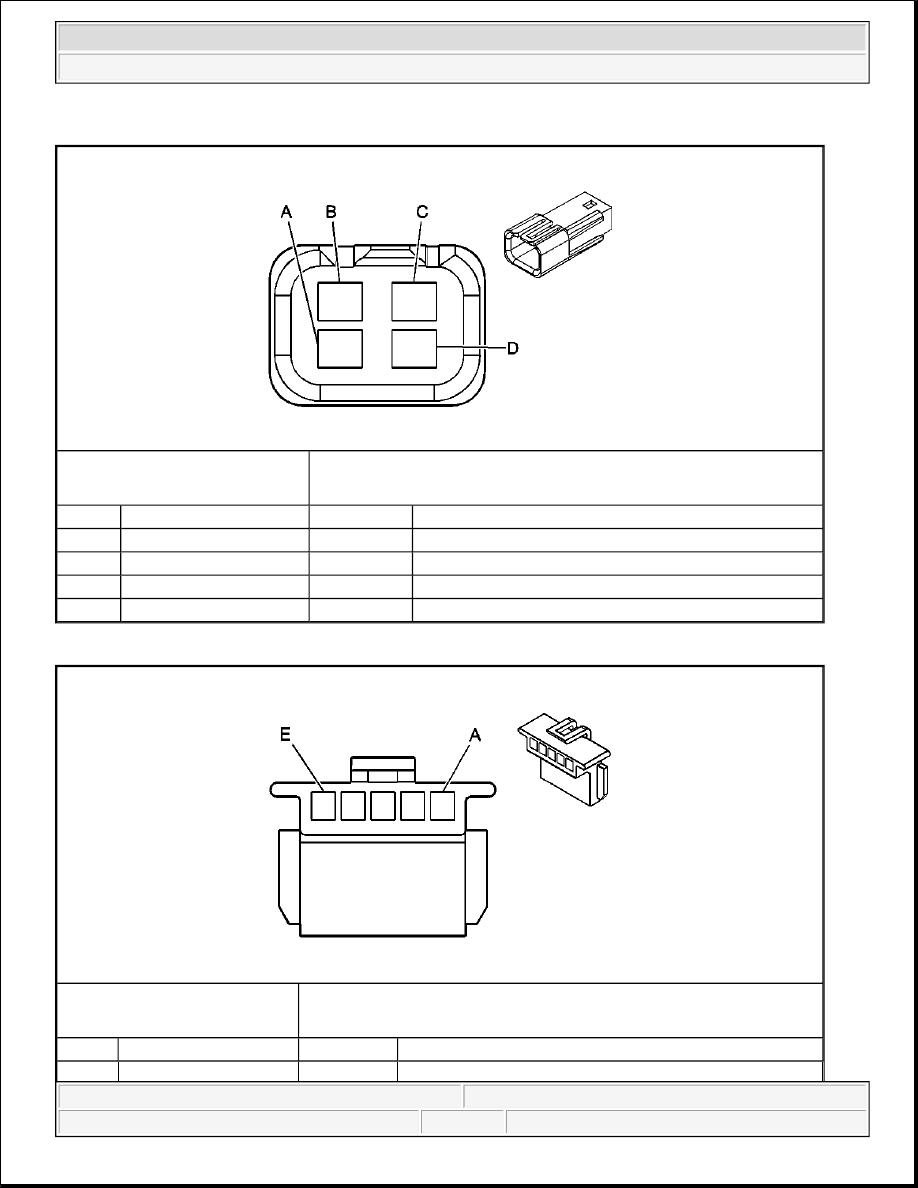

Heated Seat Terminal Identification Switch - RR w/KA7

Memory Seat Module Terminal Identification - Driver - C1

A

PK

1631

Left Rear Heated Seat Low Indicator Control w/KA7

B

BK/WH

1638

Left Rear Heated Seat High Indicator Control w/KA7

C

BN

1637

Left Rear Heated Seat Switch Signal w/KA7

D

BN/WH

230

Instrument Panel Lamps Dimming Control

E

BK

1050

Ground

Connector Part Information

z

12124997

z

5-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

PK

1636

Right Rear Heated Seat Low Indicator Control w/KA7

B

BK/WH

1635

Right Rear Heated Seat High Indicator Control w/KA7

C

BN

1634

Right Rear Heated Seat Switch Signal w/KA7

D

BN/WH

230

Instrument Panel Lamps Dimming Control

E

BK

1050

Ground
