Hummer H2. Manual - part 564

Seat Adjuster Terminal Identification Switch - Front Passenger

Seat Bolster/Lumbar Terminal Identification Switch - Driver

F

OG

1540

Switch Voltage Supply-Memory Seat Module

OG

1540

Switch Voltage Supply-Lumbar Switch

G-H

-

-

Not Used

J

L-BU

1521

Power Seat Rear Vertical Down Switch Signal

K

YE/BK

1519

Power Seat Rear Vertical Up Switch Signal

L

D-BU

1520

Power Seat Front Vertical Down Switch Signal

M

D-GN

1518

Power Seat Front Vertical Up Switch Signal

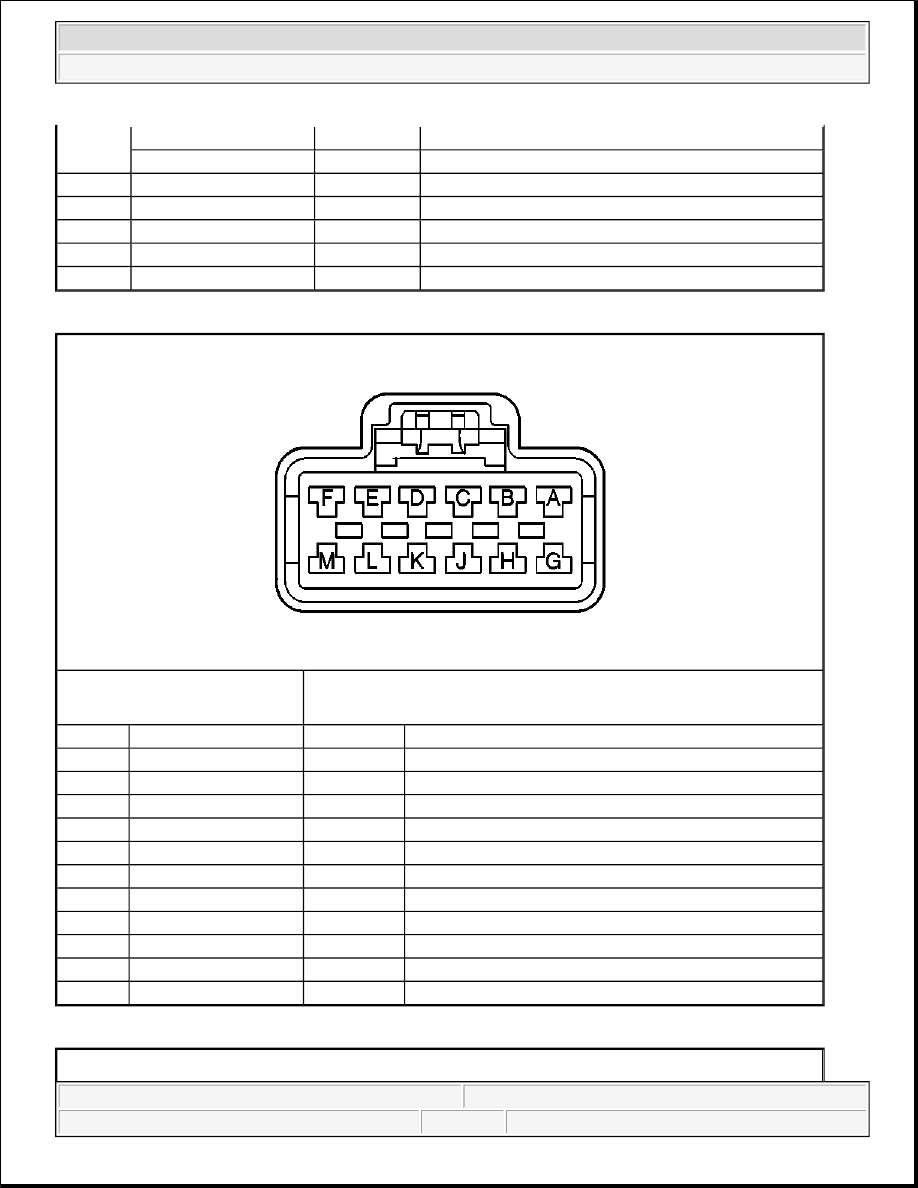

Connector Part Information

z

15326110

z

12-Way F GT 280 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

OG

1440

Battery Positive Voltage

B

L-GN

290

Passenger Seat Horizontal Motor Rearward Control

C

TN

296

Passenger Seat Horizontal Motor Forward Control

D

BK

1250

Ground

E

D-BU

77

Passenger Seat Recline Motor Rearward

F

D-GN

76

Passenger Seat Recline Motor Forward

G

D-BU

298

Passenger Seat Front Vertical Motor Down Control

H

D-GN

297

Passenger Seat Front Vertical Motor Up Control

J

L-BU

289

Passenger Seat Rear Vertical Motor Down Control

K

YE

288

Passenger Seat Rear Vertical Motor Up Control

L-M

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



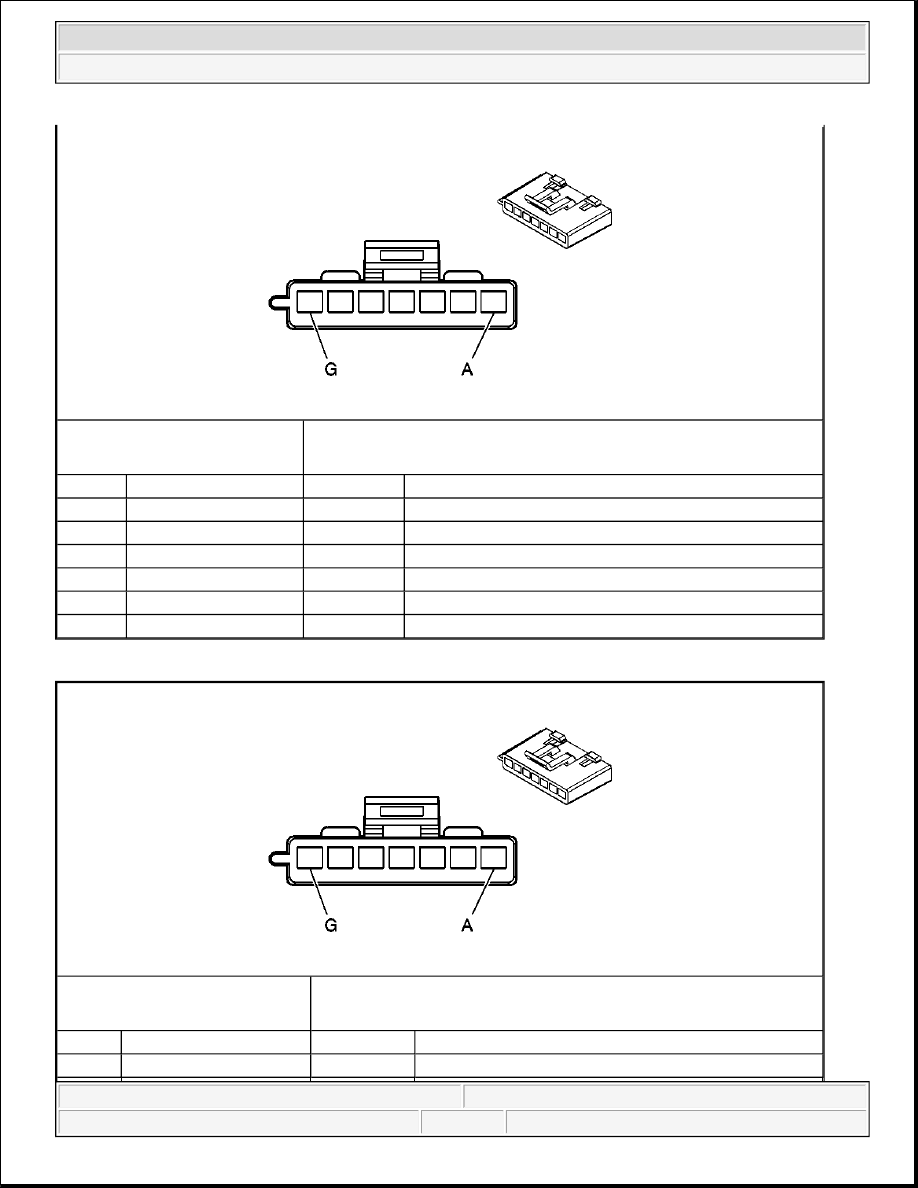

Seat Bolster/Lumbar Terminal Identification Switch - Front Passenger

Connector Part Information

z

12052854

z

7-Way F GT 280 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

OG

1540

Battery Positive Voltage

B

WH/RD

5701

Driver Seat Torso Bolster In Switch Signal

C-D

-

-

Not Used

E

TN

2408

Driver Seat Lumbar Motor Rearward Switch Signal

F

YE

2407

Driver Seat Lumbar Motor Forward Switch Signal

G

GY/RD

5702

Driver Seat Torso Bolster Out Switch Signal

Connector Part Information

z

12052854

z

7-Way F Metri-Pack 280 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

OG

1440

Battery Positive Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



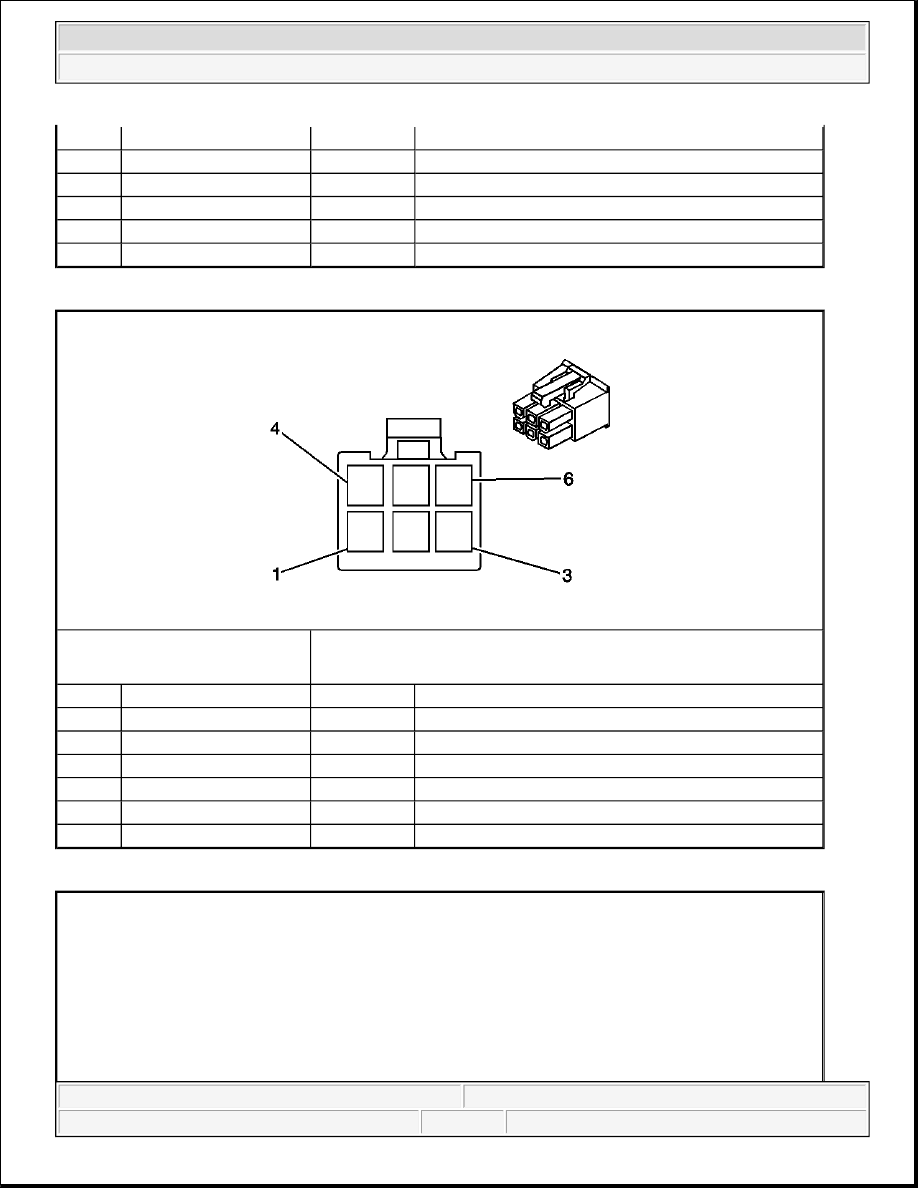

Seat Bolster Motor/Position Sensor Terminal Identification - Driver

Seat Lumbar Motor/Position Sensor Terminal Identification - Driver

B

D-BU

2462

Passenger Seat Bolster Motor Forward Control

C

BK

1250

Ground

D

-

-

Not Used

E

D-BU

211

Passenger Seat Lumbar Motor Forward Control

F

WH

210

Passenger Seat Lumbar Motor Rearward Control

G

L-BU

2427

Passenger Seat Bolster Motor Rearward Control

Connector Part Information

z

15-97-5061

z

6-Way F MOLEX (BK)

Pin

Wire Color

Circuit No.

Function

1

PK/BK

1257

Driver Seat Torso Bolster In Control

2

-

-

Not Used

3

TN/WH

1258

Driver Seat Torso Bolster Out Control

4

D-BU/WH

5288

Low Reference

5

PU/WH

5700

Driver Seat Torso Bolster Position Sensor Signal

6

BN

5287

Voltage Reference



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



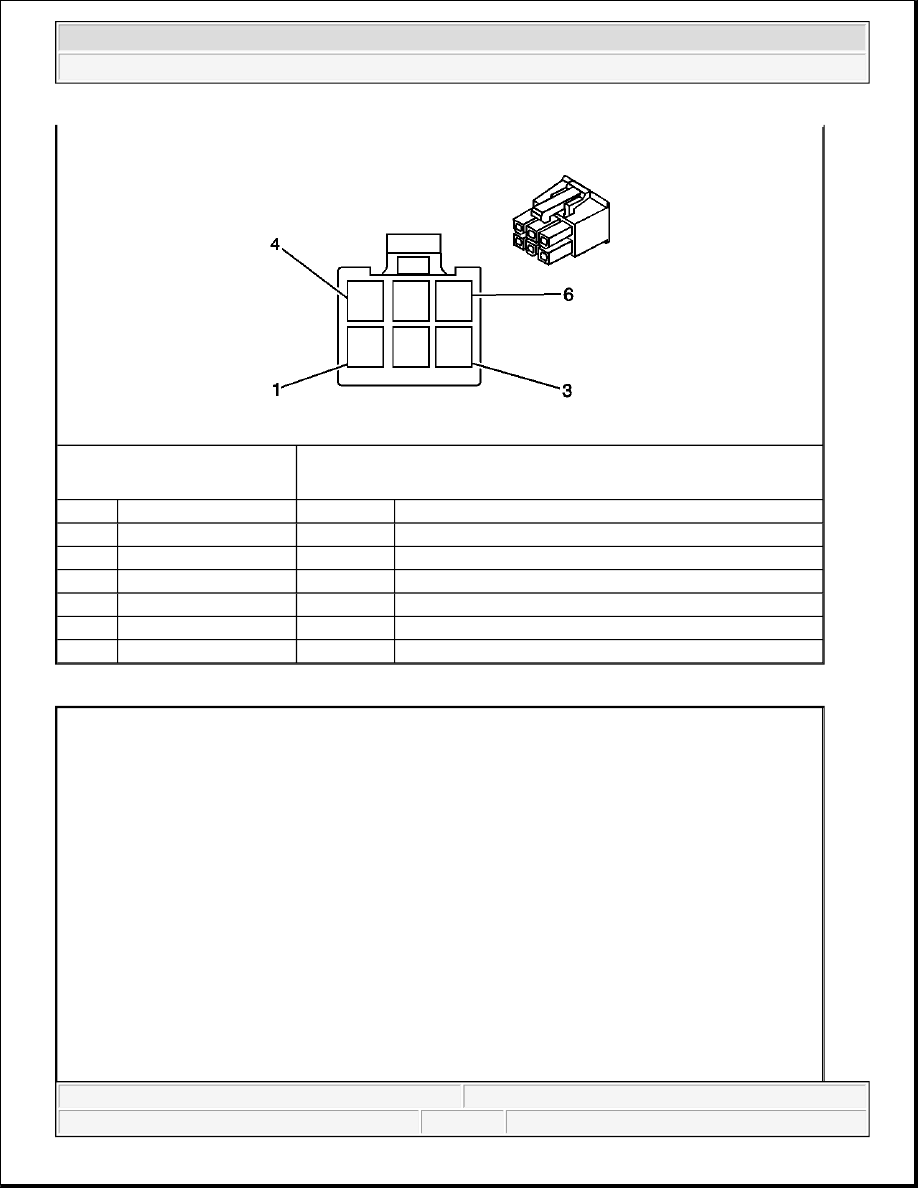

Seat Front Vertical Position Sensor Terminal Identification - Driver

Connector Part Information

z

15-97-5061

z

6-Way F MOLEX (BK)

Pin

Wire Color

Circuit No.

Function

1

PU/WH

611

Driver Seat Lumbar Motor Forward Control

2

-

-

Not Used

3

D-BU/WH

610

Driver Seat Lumbar Motor Rearward Control

4

D-BU/WH

5288

Low Reference

5

L-BU

1063

Driver Seat Lumbar Horizontal Position Sensor Signal

6

BN

5287

Voltage Reference



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2
