Hummer H2. Manual - part 566

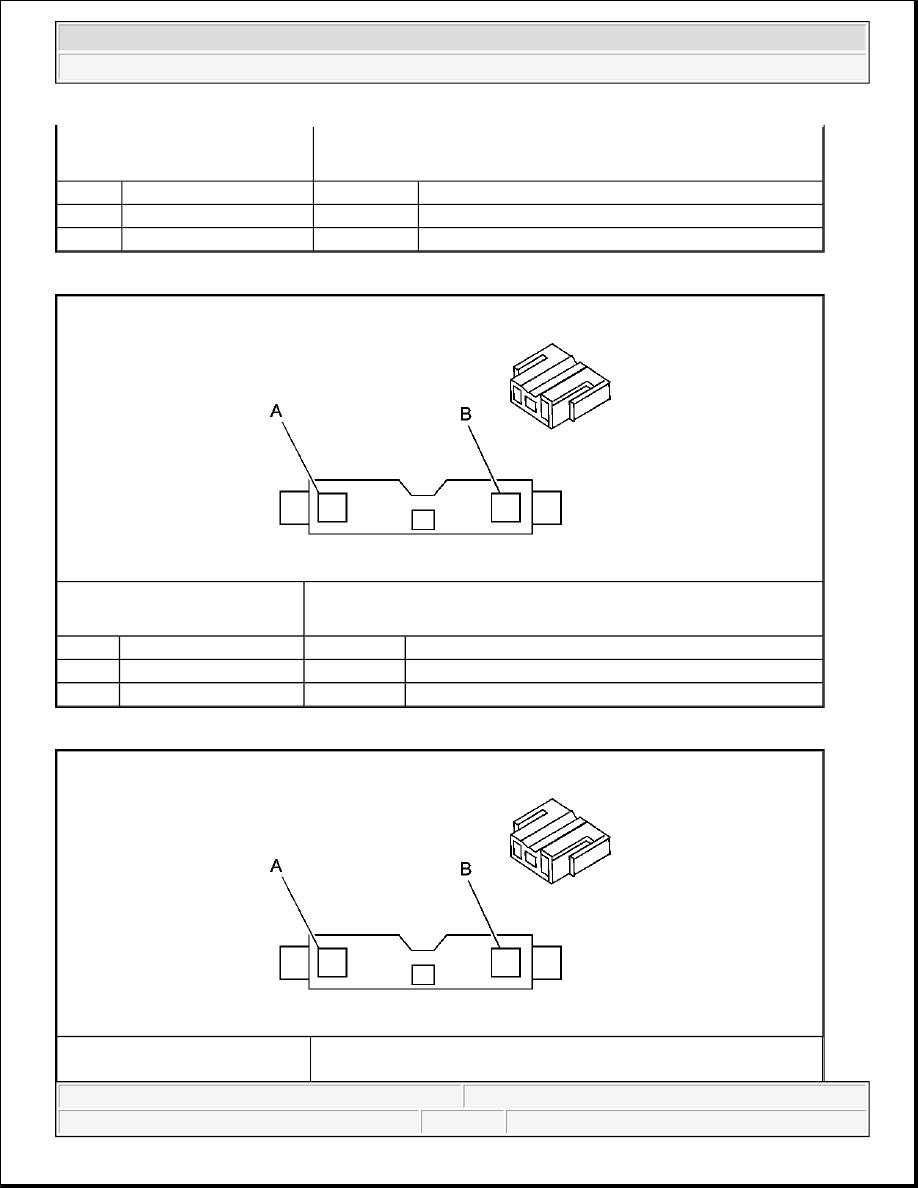

Seat Front Vertical Motor Terminal Identification - Front Passenger

Seat Lumbar Motor Terminal Identification - Front Passenger

Connector Part Information

z

12020556

z

2-Way F Metri-Pack 480 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BK

287

Driver Seat Front Vertical Motor Down Control

B

RD

286

Driver Seat Front Vertical Motor Up Control

Connector Part Information

z

12020556

z

2-Way F Metri-Pack 480 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BK

298

Passenger Seat Front Vertical Motor Down Control

B

RD

297

Passenger Seat Front Vertical Motor Up Control

Connector Part Information

z

12052109



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



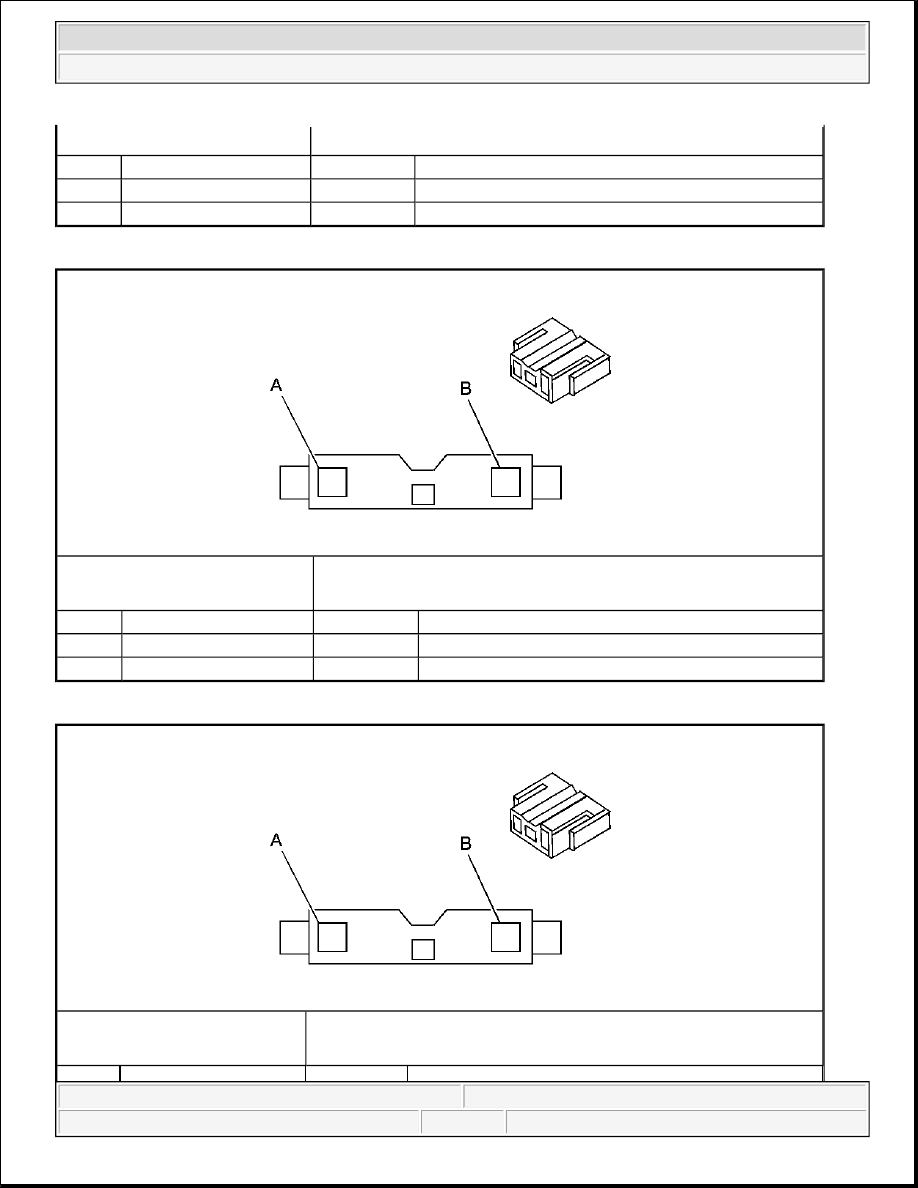

Seat Rear Vertical Motor Terminal Identification - Driver

Seat Rear Vertical Motor Terminal Identification - Front Passenger

z

2-Way F Metri-Pack 280 Series (BU)

Pin

Wire Color

Circuit No.

Function

A

D-BU

211

Passenger Seat Lumbar Motor Forward Control

B

WH

210

Passenger Seat Lumbar Motor Rearward Control

Connector Part Information

z

12020556

z

2-Way F Metri-Pack 480 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BK

283

Driver Seat Front Vertical Motor Down Control

B

RD

297

Driver Seat Front Vertical Motor Up Control

Connector Part Information

z

12020556

z

2-Way F Metri-Pack 480 Series (BK)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



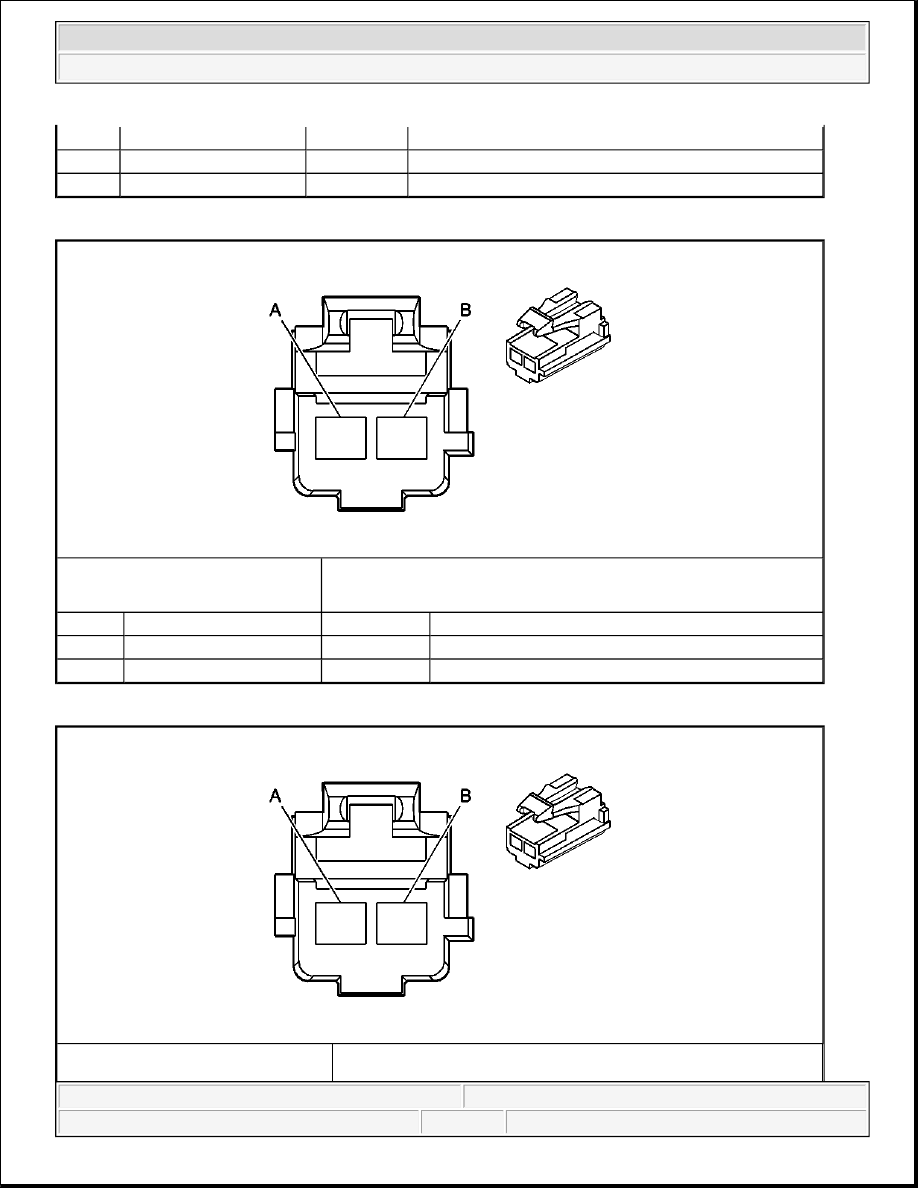

Seat Recline Motor Terminal Identification - Driver

Seat Recline Motor Terminal Identification - Front Passenger

Pin

Wire Color

Circuit No.

Function

A

BK

289

Passenger Seat Rear Vertical Motor Down Control

B

RD

288

Passenger Seat Rear Vertical Motor Up Control

Connector Part Information

z

12129082

z

2-Way F Metri-Pack 480 Series (M-GY)

Pin

Wire Color

Circuit No.

Function

A

L-BU

277

Driver Seat Recline Motor Rearward Control

B

L-GN

276

Driver Seat Recline Motor Forward Control

Connector Part Information

z

12129082



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



DIAGNOSTIC INFORMATION AND PROCEDURES

DIAGNOSTIC STARTING POINT - SEATS

Begin memory and heated seat system diagnosis with Diagnostic System Check - Power Seat Systems .

The Diagnostic System Check will provide the following information.

z

Identification of the control modules that command the system.

z

The ability of the control modules to communicate with a serial data circuit.

z

Identification of stored diagnostic trouble codes and their status.

The use of the Diagnostic System Check will identify the correct the correct procedure for diagnosing the
system and where the procedure is located.

DIAGNOSTIC SYSTEM CHECK - POWER SEAT SYSTEMS

Test Description

The numbers below refer to the step numbers on the diagnostic table.

2: The lack of communication may be caused by a partial or a total malfunction of the class 2 serial data
circuit. The specified procedure will determine the particular condition.

4: If no DTCs are present refer to the symptom list in Symptoms in order to determine the correct
diagnostic procedure to use.

5: The presence of DTCs which begin with "U" indicate some other module is not communicating. The
specified procedure will collect all the available information before tests are performed.

Diagnostic System Check - Power Seat Systems

z

2-Way F Metri-Pack 480 Series (M-GY)

Pin

Wire Color

Circuit No.

Function

A

D-BU

77

Passenger Seat Recline Motor Rearward

B

D-GN

76

Passenger Seat Recline Motor Forward

Step

Action

Yes

No

1

Install a scan tool.
Does the scan tool power up?

Go to Step 2

Go to Scan Tool Does Not

Power Up in Data Link

Communications

1. Turn ON the ignition, with the

engine OFF.

2. Attempt to establish

communication with the
following control modules:
