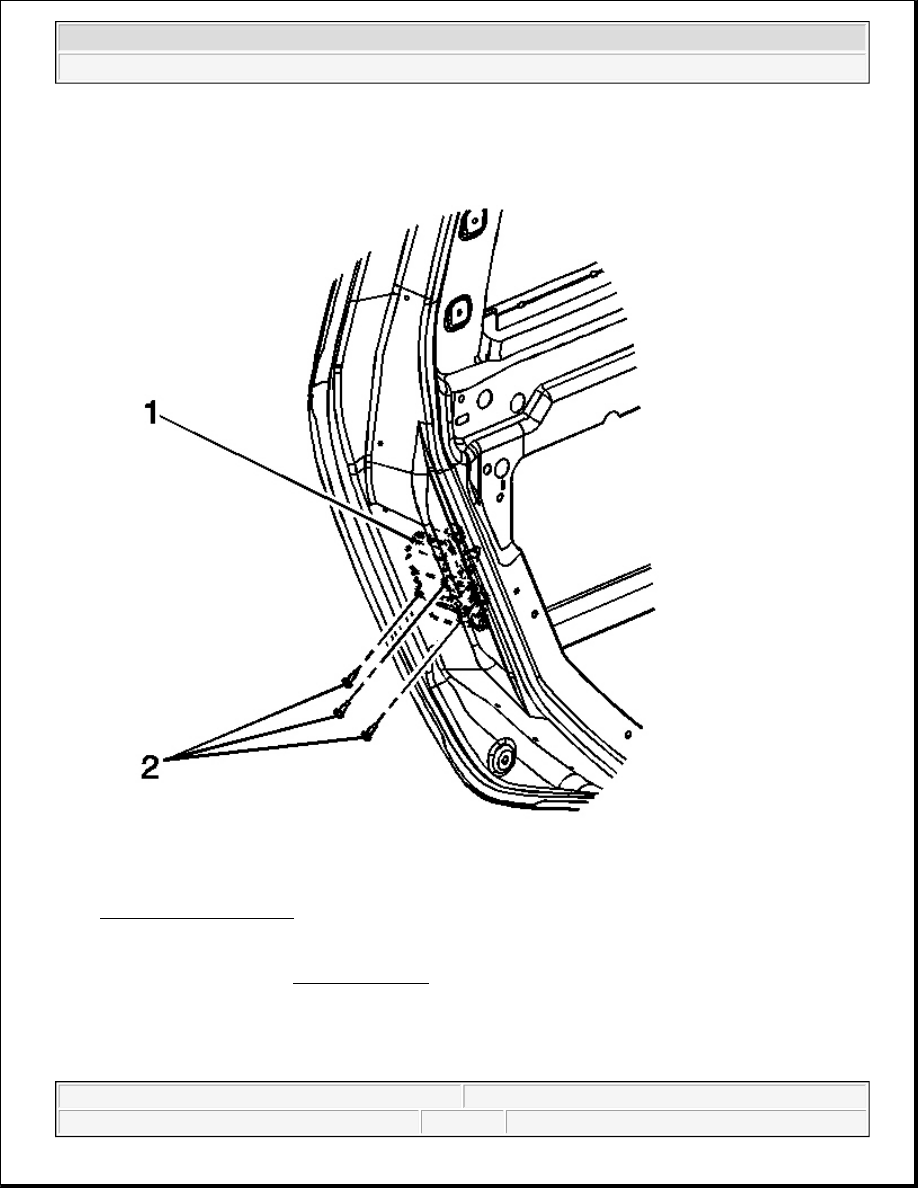

Fig. 85: Rear Door Latch
Courtesy of GENERAL MOTORS CORP.

1. Place the latch (1) into position in the door, and install the 3 fasteners (2) that retain the latch to the door.

Tighten: Tighten the fasteners to 9 N.m (7 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



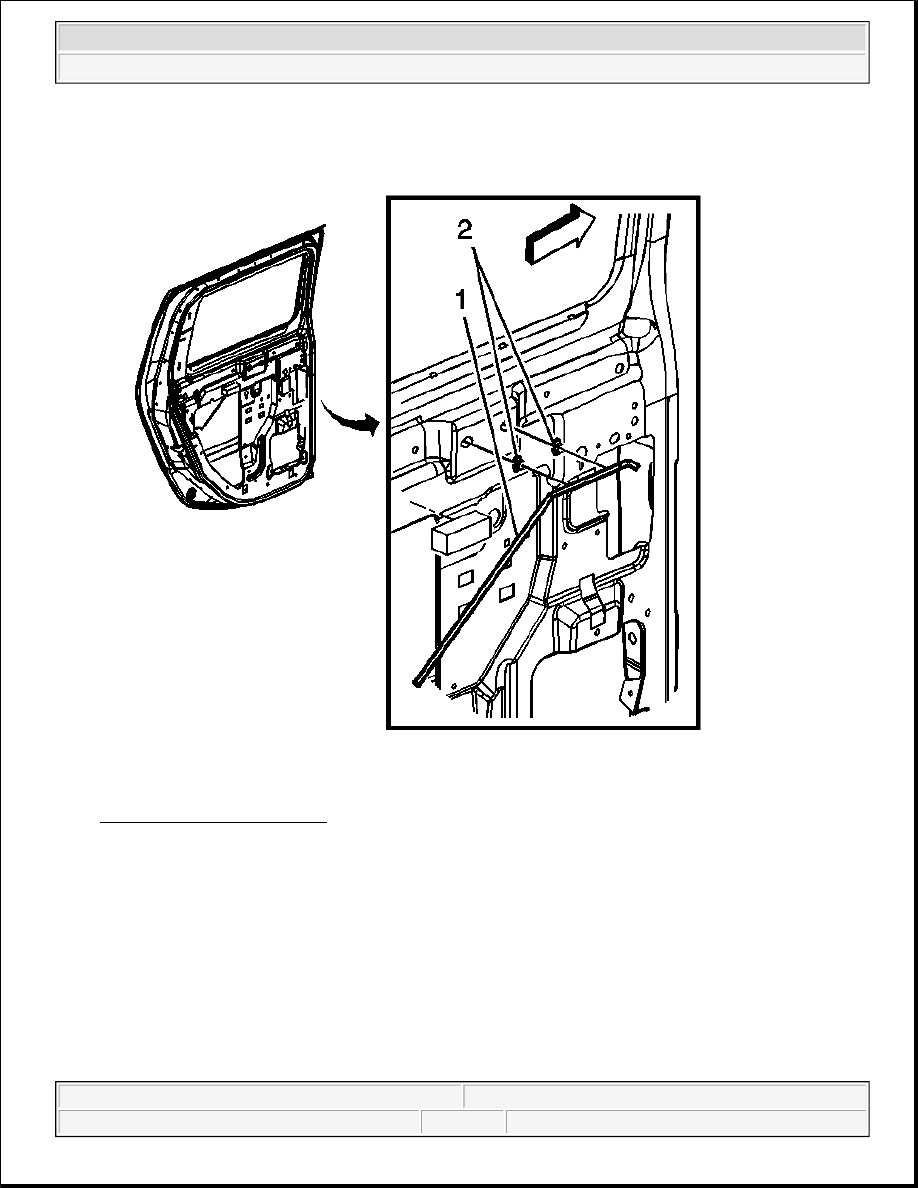

Fig. 86: Manual Locking Rod
Courtesy of GENERAL MOTORS CORP.

2. Install the manual locking rod (1) to the door by securing the rod in the retainers (2).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



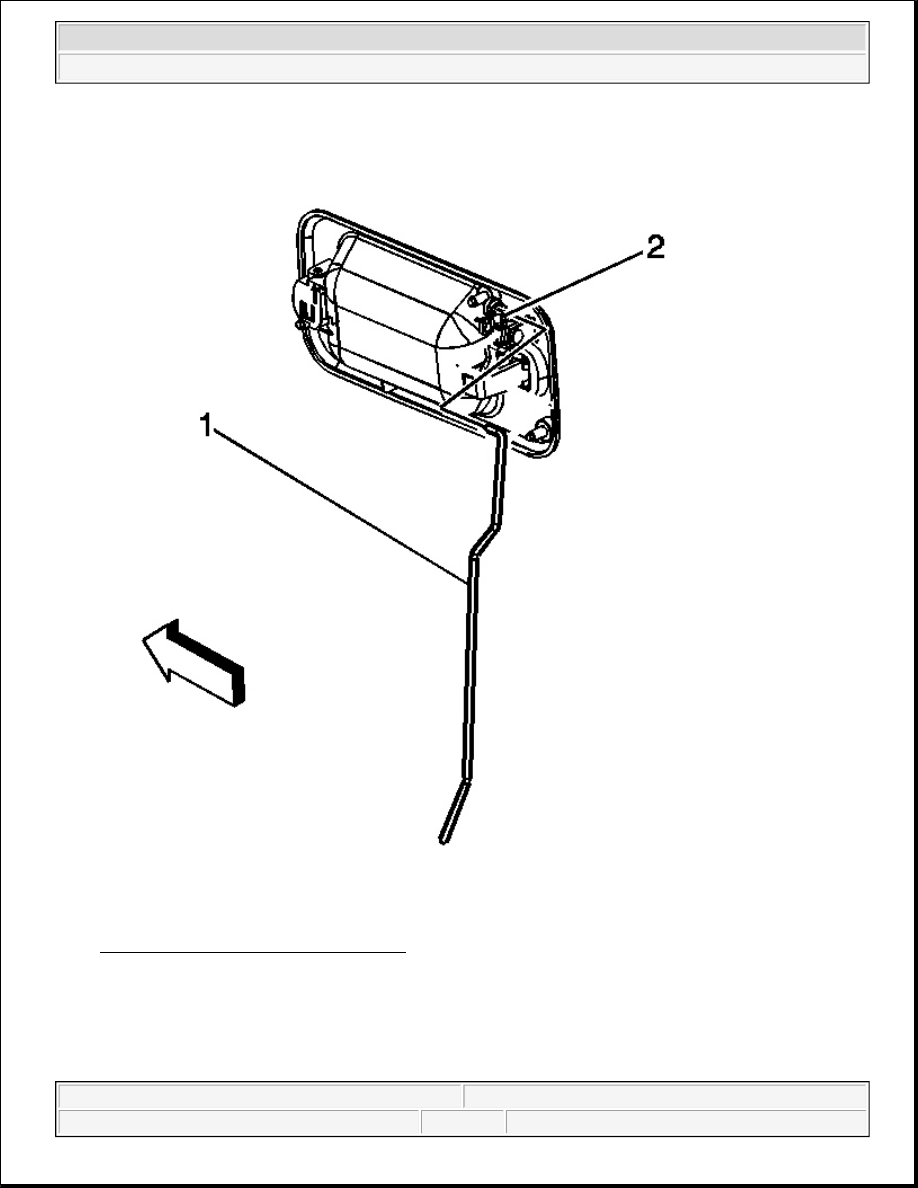

Fig. 87: Rear Outside Door Handle Rod
Courtesy of GENERAL MOTORS CORP.

3. Connect the outside door handle rod (1) by securing the rod in the retaining clip on the door latch.

4. Connect the lock actuator electrical connector.

5. Operate the door handle functions to ensure proper operation.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



6. Install the window run channel. Refer to Window Run Channel Replacement - Rear Door .

7. Install the water deflector. Refer to Water Deflector Replacement - Rear Door .

8. Install the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

STRIKER REPLACEMENT - DOOR

Removal Procedure

1. Mark the striker position with a grease pencil prior to removal, to retain proper alignment.

2. Open the door.
