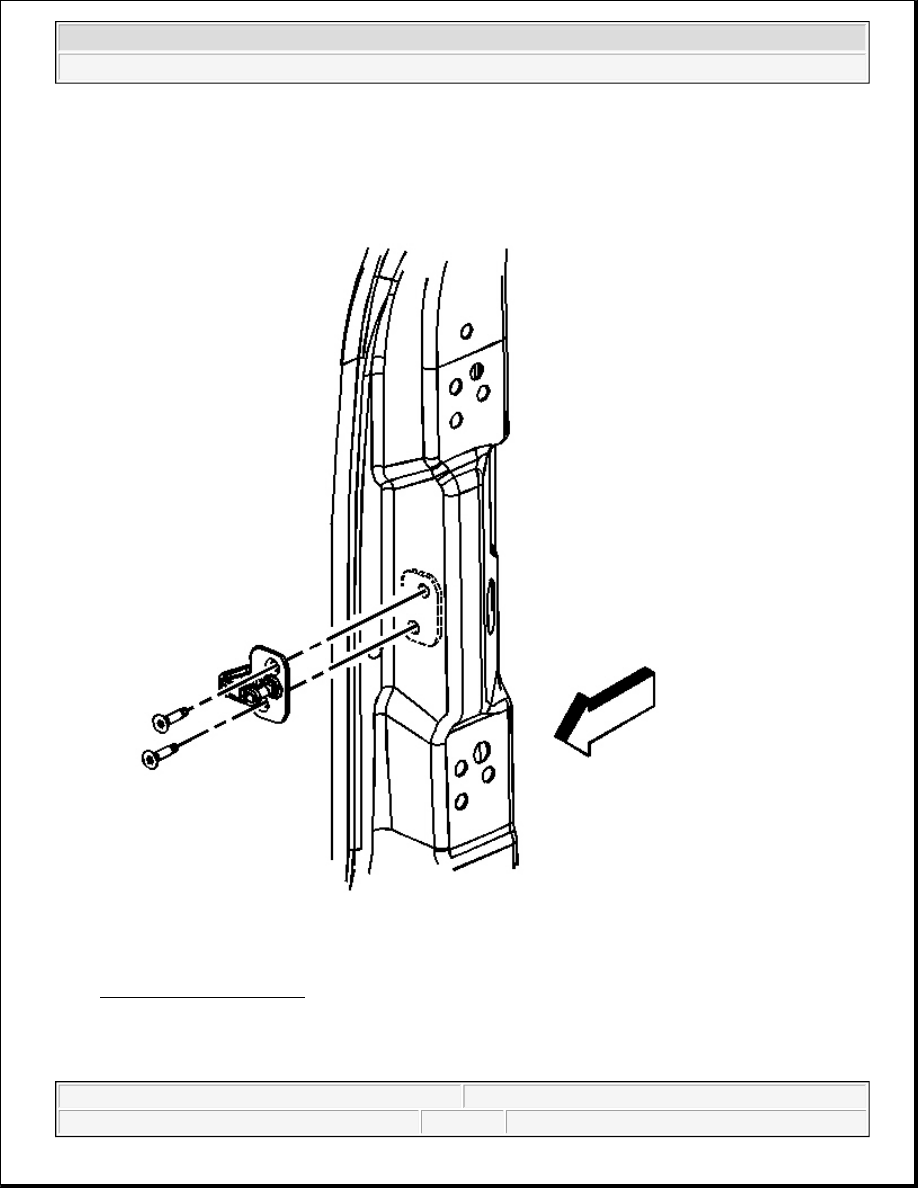

Fig. 88: Door Lock Striker
Courtesy of GENERAL MOTORS CORP.

3. Remove the fasteners retaining the striker to the door frame.

4. Remove the striker.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Installation Procedure

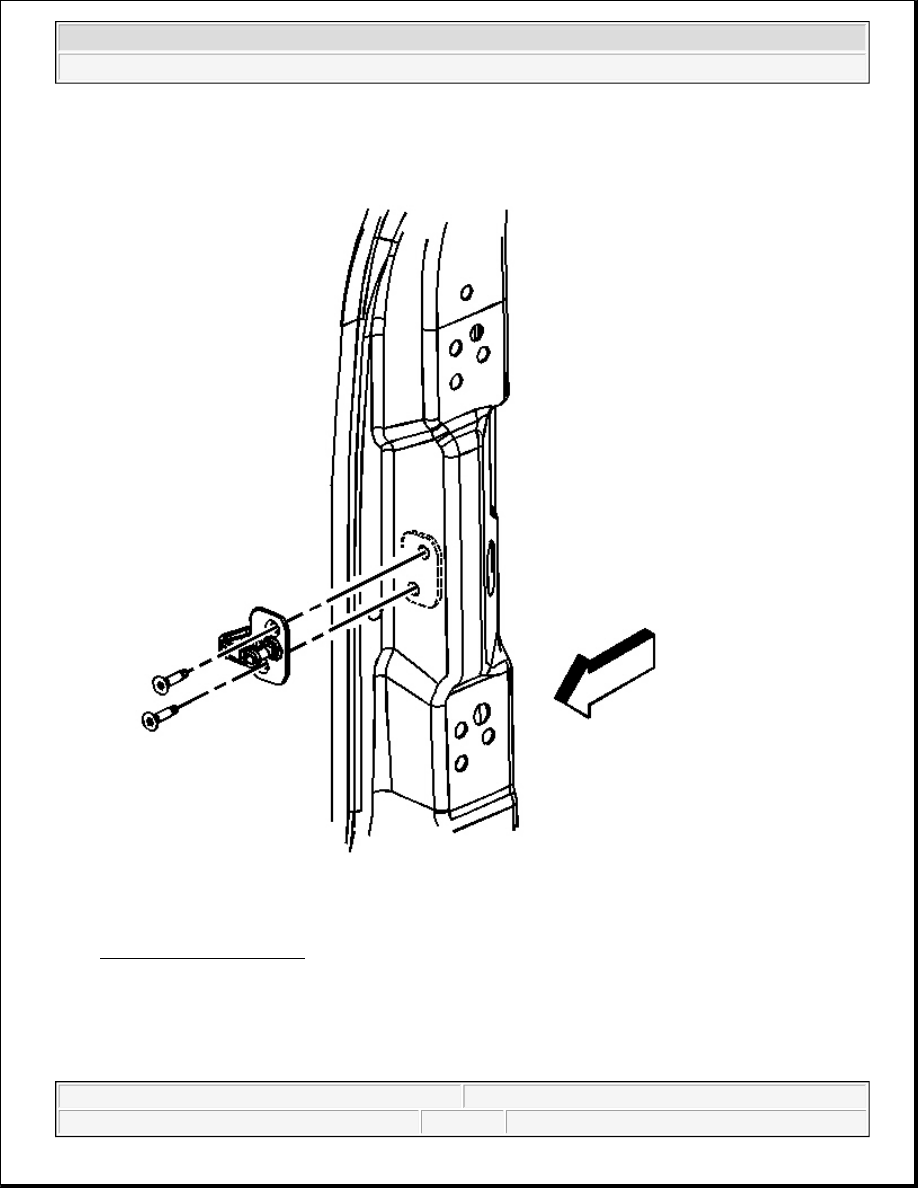

Fig. 89: Door Lock Striker
Courtesy of GENERAL MOTORS CORP.

1. Align the striker with the alignment marks made with the grease pencil.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Install the fasteners retaining the striker to the door frame.

Tighten: Tighten the fasteners to 27 N.m (20 lb ft).

3. Operate the door to check for proper operation and alignment.

LOCK STRIKER ADJUSTMENT - DOOR

To determine if striker adjustment is required, proceed as follows:

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 90: Door Lock Striker
Courtesy of GENERAL MOTORS CORP.

1. Make certain the door is properly aligned within the door opening before proceeding with the striker

adjustment.

2. Close the door onto the striker and note if the door drags on the striker causing the door to move upward
