7. Install the window run channel. Refer to Window Run Channel Replacement - Front Door .

8. Install water deflector. Refer to Water Deflector Replacement - Front Door .

9. Install door trim panel. Refer to Trim Panel Replacement - Side Front Door .

LATCH REPLACEMENT - REAR DOOR

Removal Procedure

1. Open the door.

2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

3. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .

4. Disconnect the lock actuator electrical connector.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



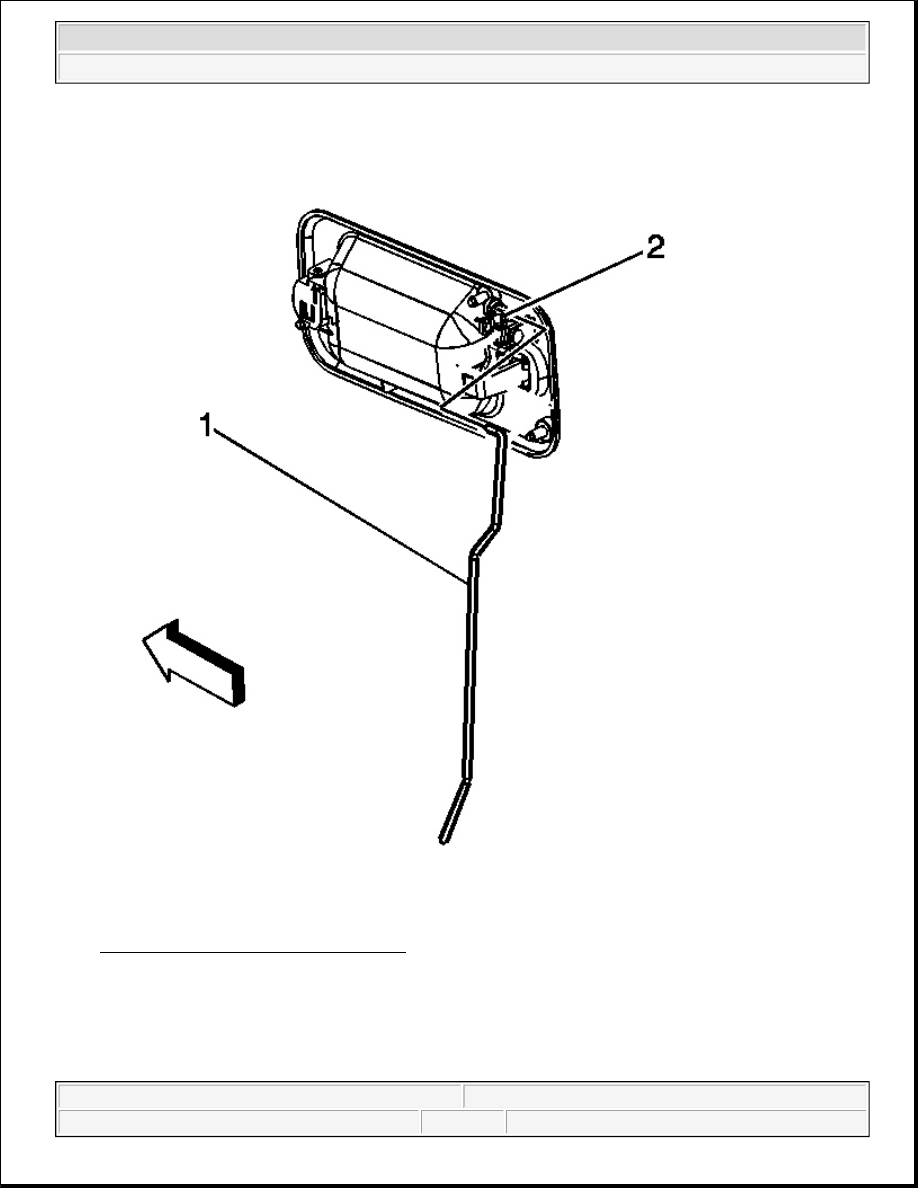

Fig. 82: Rear Outside Door Handle Rod
Courtesy of GENERAL MOTORS CORP.

5. Disconnect the outside door handle rod (1) by releasing the retaining clip on the door latch.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 83: Manual Locking Rod
Courtesy of GENERAL MOTORS CORP.

6. Remove the manual locking rod (1) from the door by releasing the rod from the retainers (2).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



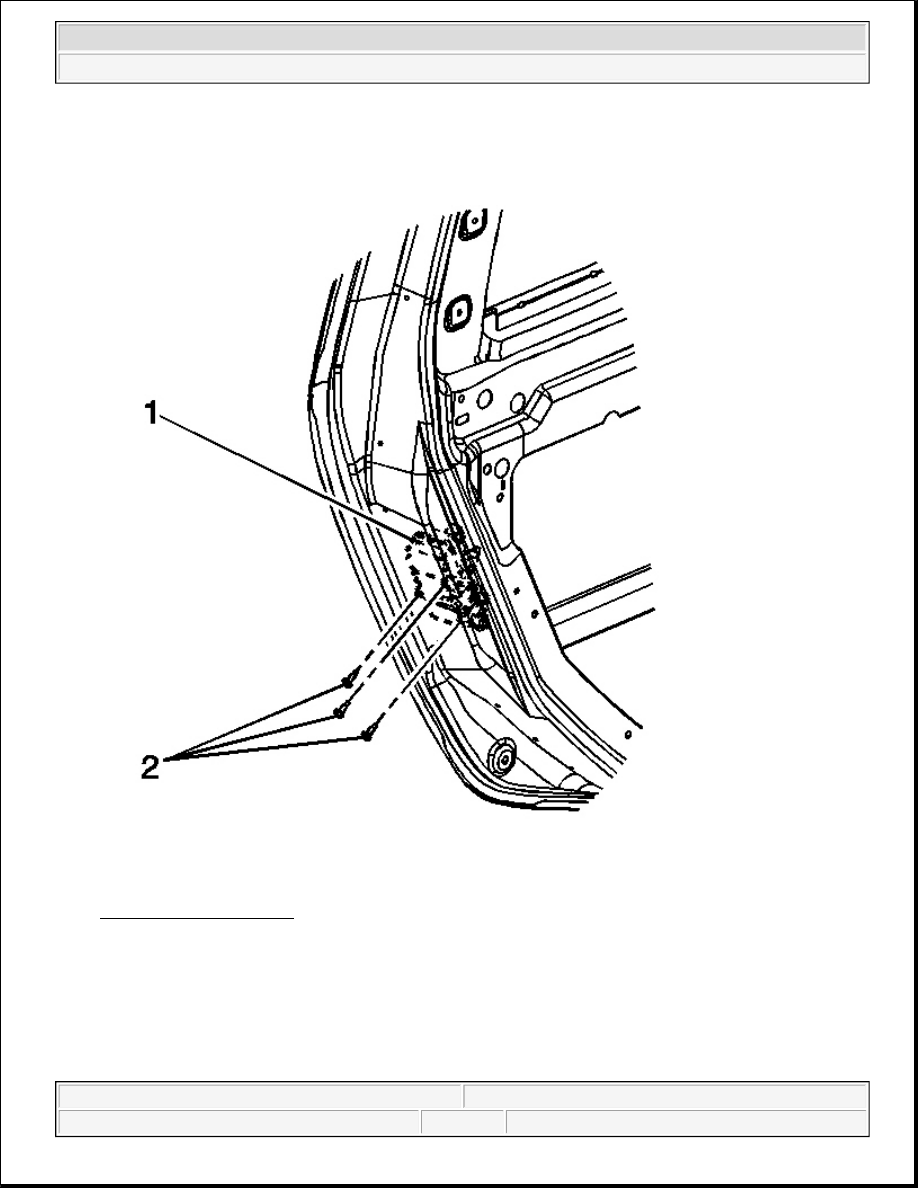

Fig. 84: Rear Door Latch
Courtesy of GENERAL MOTORS CORP.

7. Remove the fasteners (2) retaining the door latch (1) to the door.

8. Remove the door latch.

Installation Procedure
