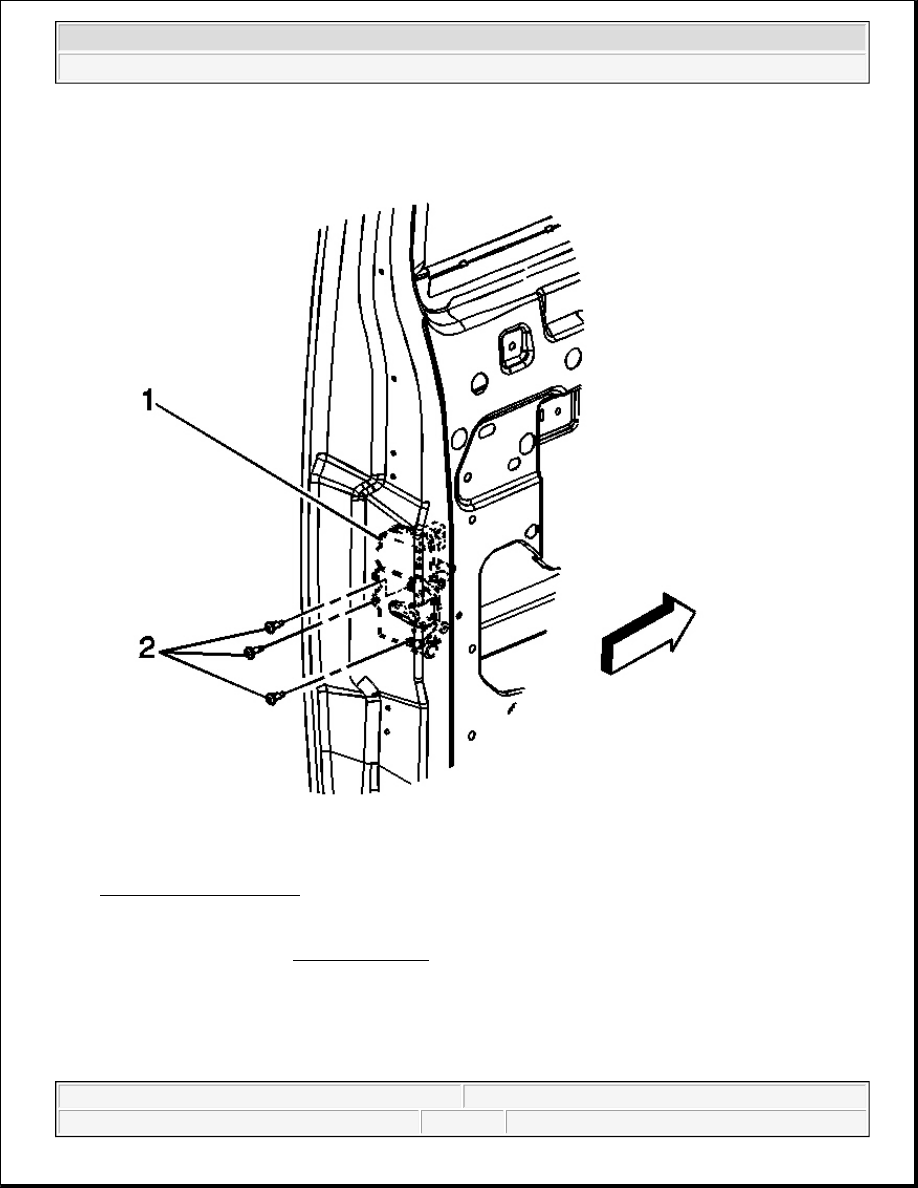

Fig. 78: Front Door Latch
Courtesy of GENERAL MOTORS CORP.

1. Place the latch (1) into position in the door, and install the 3 fasteners (2) that retain the latch to the door.

Tighten: Tighten the fasteners to 9 N.m (7 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 79: Manual Locking Rod
Courtesy of GENERAL MOTORS CORP.

2. Install the manual locking rod (1) to the door by securing the rod in the retainers.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 80: Lock Cylinder Rod
Courtesy of GENERAL MOTORS CORP.

3. Connect the lock cylinder rod by securing rod in the retaining clip (1).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



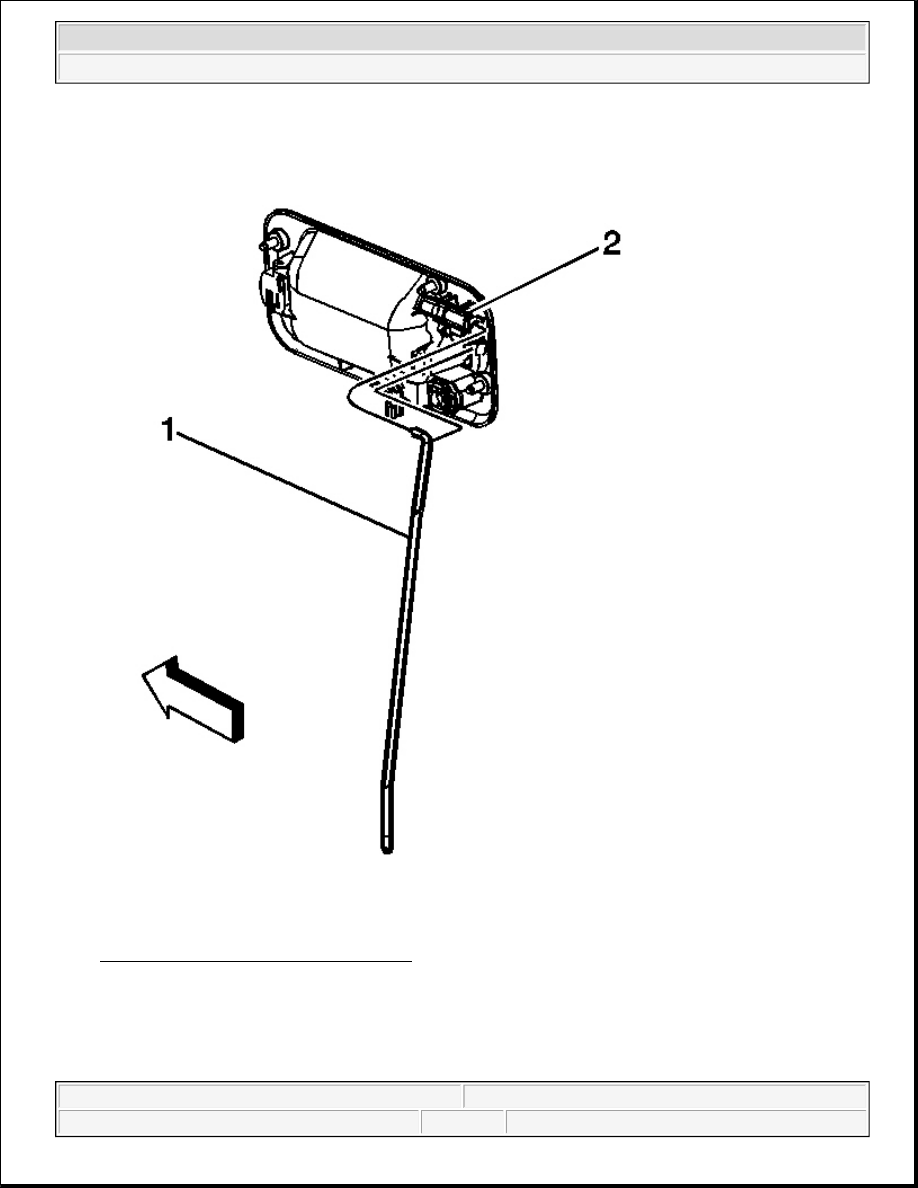

Fig. 81: Front Outside Door Handle Rod
Courtesy of GENERAL MOTORS CORP.

4. Connect the outside door handle rod (1) by securing the rod in the retaining clip on the door latch.

5. Connect the lock actuator electrical connector.

6. Operate door handle functions to ensure proper operation.
