Hummer H2. Manual - part 533

Courtesy of GENERAL MOTORS CORP.

1. Ensure that the lock cylinder gasket (3) is in place before lock cylinder installation.

2. Install the lock cylinder (2) into the door handle.

3. Install the lock cylinder retainer (2), ensuring that the retainer is fully seated.

4. Install the outside door handle. Refer to Door Handle Replacement - Front Outside .

BINDING LOCK CYLINDERS

In many cases, applying the proper lubrication can correct the following conditions:

z

Binding or sticking door lock cylinders

z

Difficulty in inserting and removing the keys

For lubricating the above components, use lubricant GM P/N 12346241 or equivalent

Do not use penetrating lubricants such as GM P/N 1052949 or WD-40(R). Penetrating lubricants wash out the
original lubrication. Penetrating lubricants eventually evaporate, leaving little or no lubricating material.
However, when using penetrating lubricants in order to thaw or in order to loosen the lock cylinder components,
refer to steps 2-4 in the procedure below for the proper methods of lubrication.

Repair lock cylinders frozen in cold weather by using the following procedure:

1. While carefully avoiding damage to the painted surfaces, apply heat to the cylinder with a heat gun.

2. Using a paper clip or a similar item, hold the door shutter open.

Force air into the cylinders using compressed air through a blow gun attachment.

3. While holding the shutter door open, inject small amounts of a recommended lubricant into the cylinder.

4. Work the key into the cylinder repeatedly.

Wipe away any excess lubrication from the key.

LATCH REPLACEMENT - FRONT DOOR

Removal Procedure

1. Open the door.

2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .

4. Remove the window run channel. Refer to Window Run Channel Replacement - Front Door .

5. Disconnect the lock actuator electrical connector.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

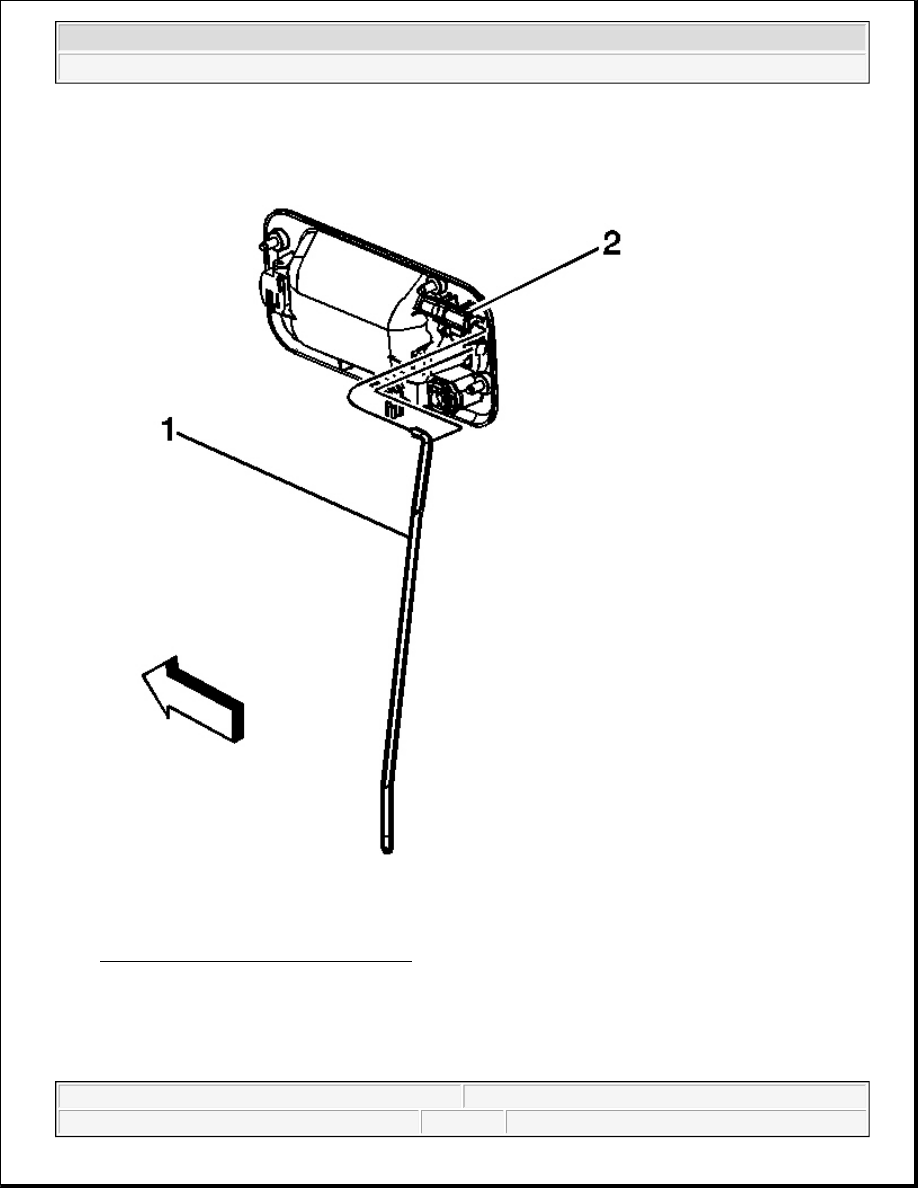

Fig. 75: Front Outside Door Handle Rod
Courtesy of GENERAL MOTORS CORP.

6. Disconnect the outside door handle rod (1) by releasing the retaining clip on the door latch.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

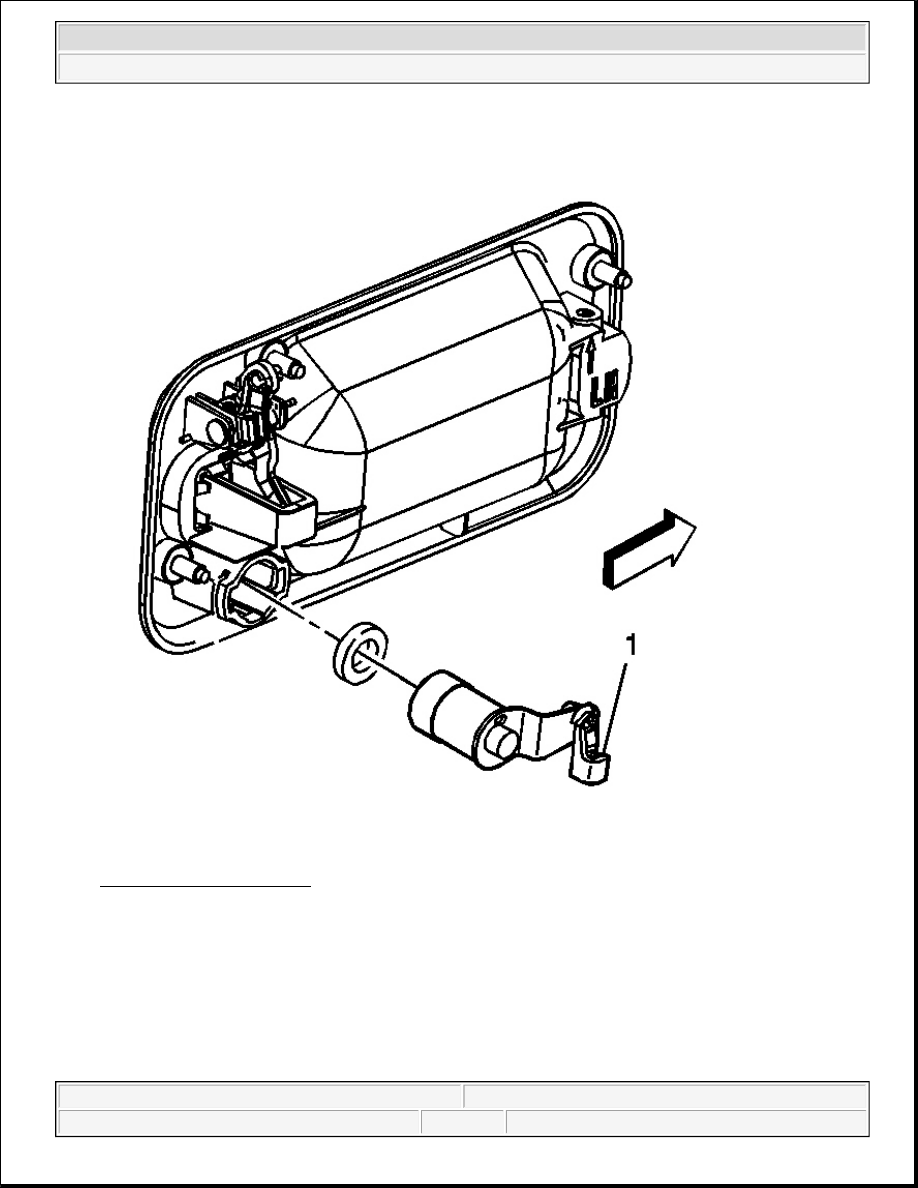

Fig. 76: Lock Cylinder Rod
Courtesy of GENERAL MOTORS CORP.

7. Disconnect the lock cylinder rod by releasing the retaining clip (1).

8. Remove the manual locking rod from the door by releasing the rod from the retainers.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

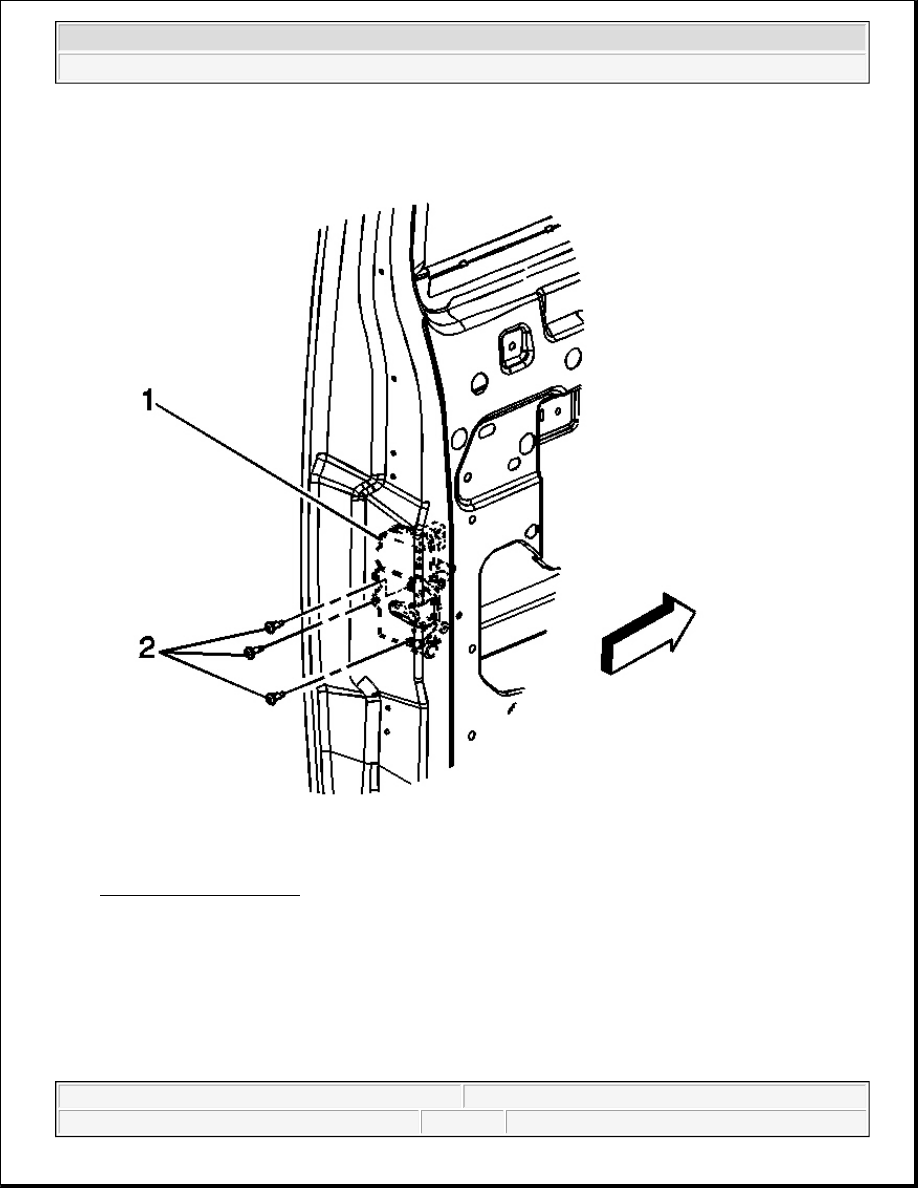

Fig. 77: Front Door Latch
Courtesy of GENERAL MOTORS CORP.

9. Remove the fasteners (2) retaining the door latch (1) to the door.

10. Remove the door latch (1).

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
