1. Starting at the center of the pinch-weld flange, install the weatherstrip (2) to the flange (1) and work up

the top and bottom towards the ends of the weatherstrip, being careful not to stretch the weatherstrip
during installation.

2. Close the doors.

WEATHERSTRIP REPLACEMENT - REAR DOOR

Removal Procedure

1. Open the doors.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

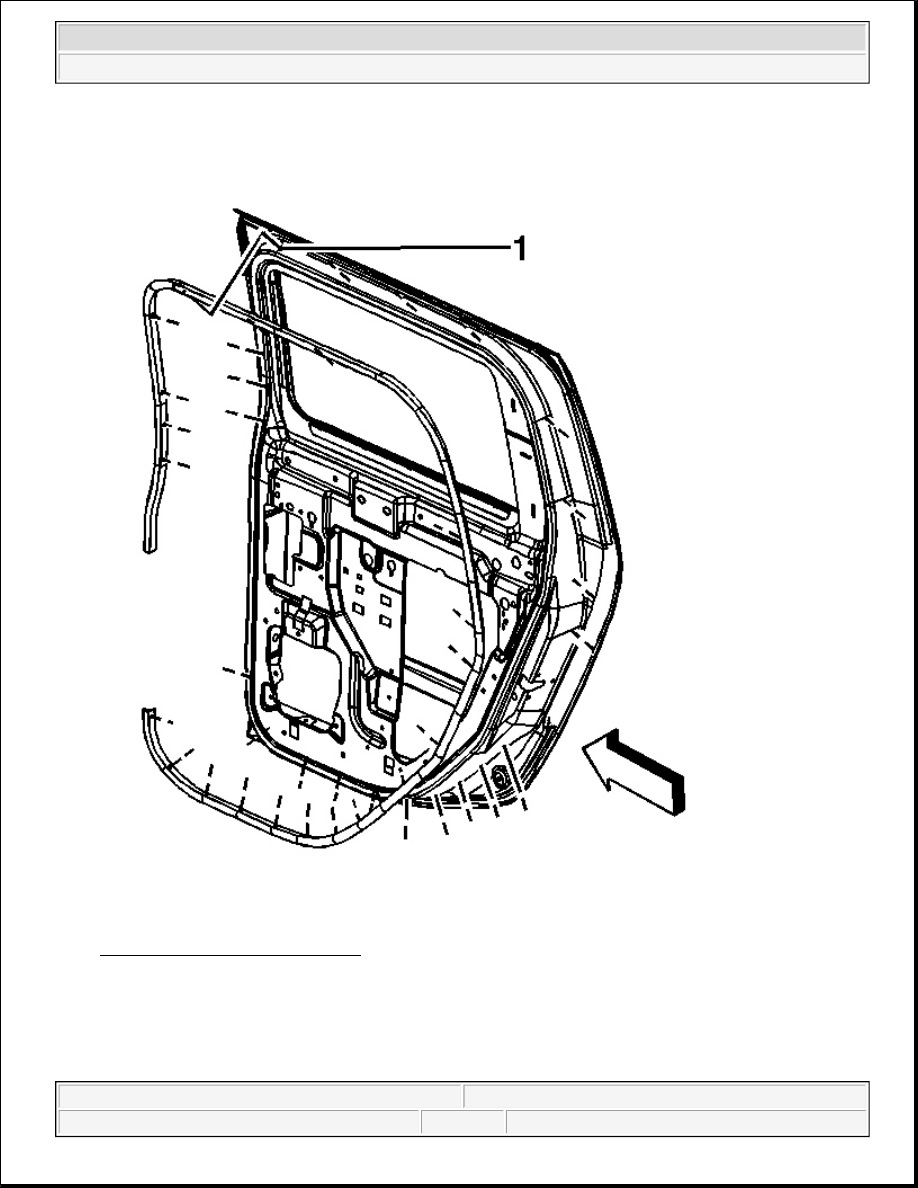

Fig. 135: Rear Door Weatherstrip
Courtesy of GENERAL MOTORS CORP.

2. Using a flat-bladed tool, remove the weatherstrip by releasing the 22 retainers located on the weatherstrip

from the locating holes (1) on the door.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 136: Rear Door Weatherstrip
Courtesy of GENERAL MOTORS CORP.

1. Install weatherstrip by securing the 22 retainers into their correct locating holes (1) on the door.

2. Close the doors.

WEATHERSTRIP REPLACEMENT - FRONT DOOR OPENING



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Removal Procedure

1. Open the door.

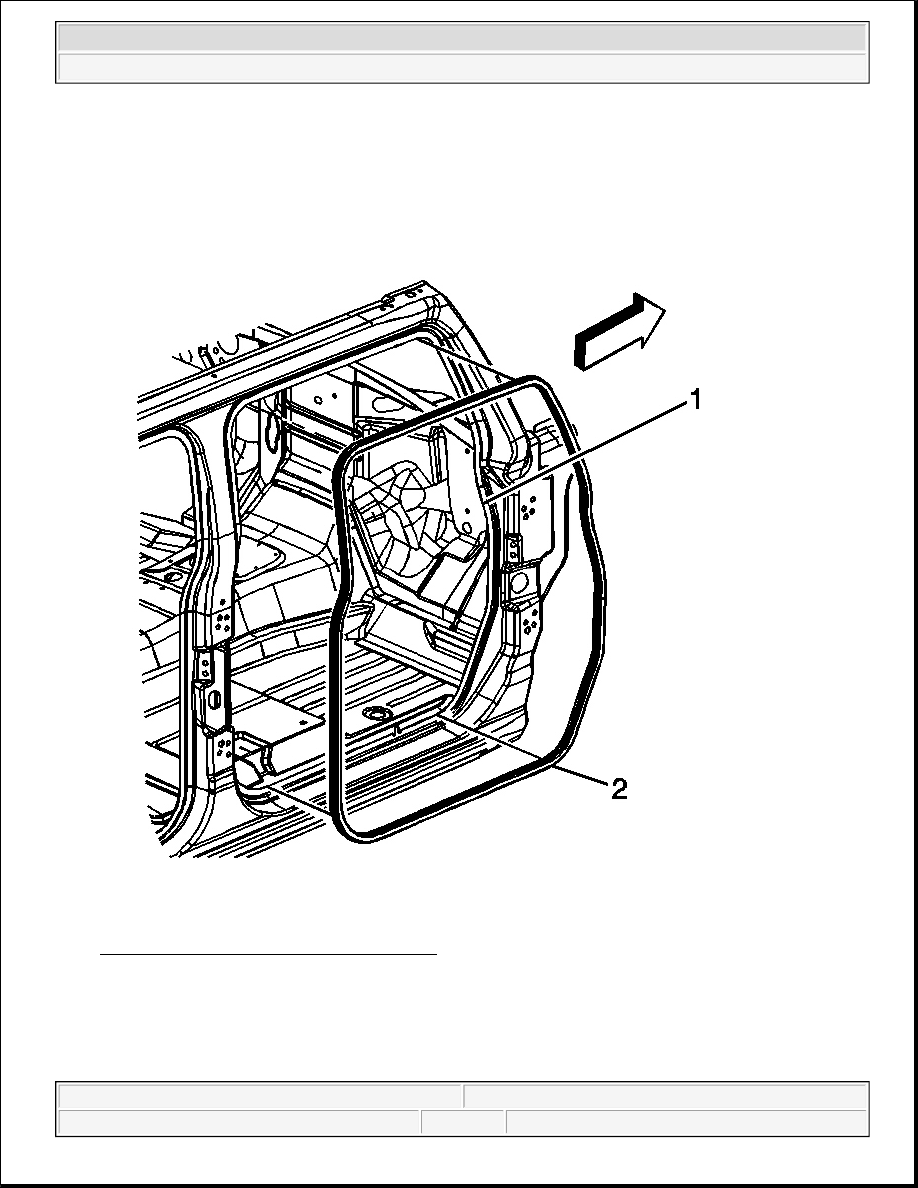

Fig. 137: Front Door Opening Weatherstrip
Courtesy of GENERAL MOTORS CORP.

2. Remove the weatherstrip (2) by pulling the weatherstrip off of the door opening pinch-weld flange (1).

Installation Procedure
