2. Install weatherstrip by pressing the weatherstrip down on the flange in the door frame (1), ensuring that it

is fully seated.

WEATHERSTRIP REPLACEMENT - FRONT DOOR UPPER AUXILIARY

Removal Procedure

1. Open both front and rear side doors.

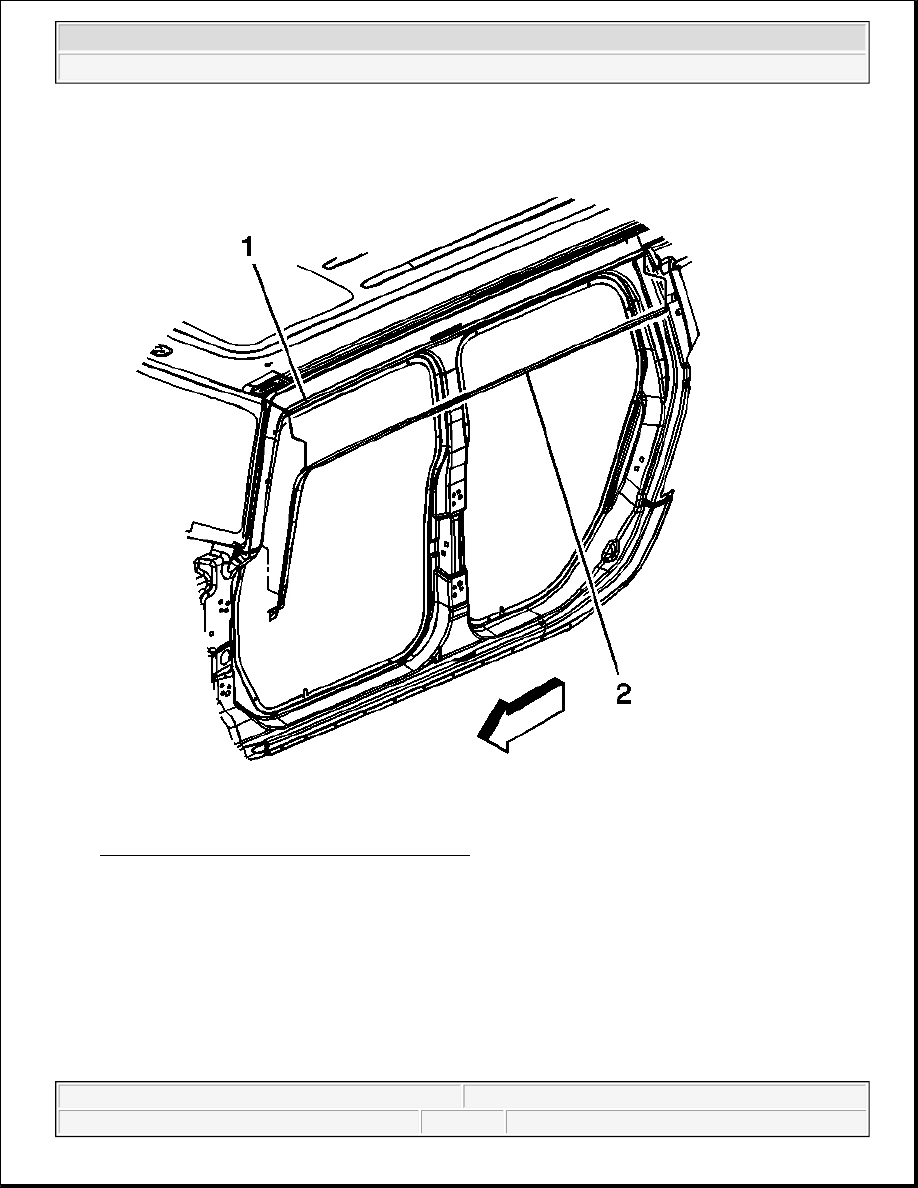

Fig. 127: Upper Door Weatherstrip (Front Door)
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Remove the weatherstrip (2) by pulling the weatherstrip off of the pinch-weld flange (1).

Installation Procedure

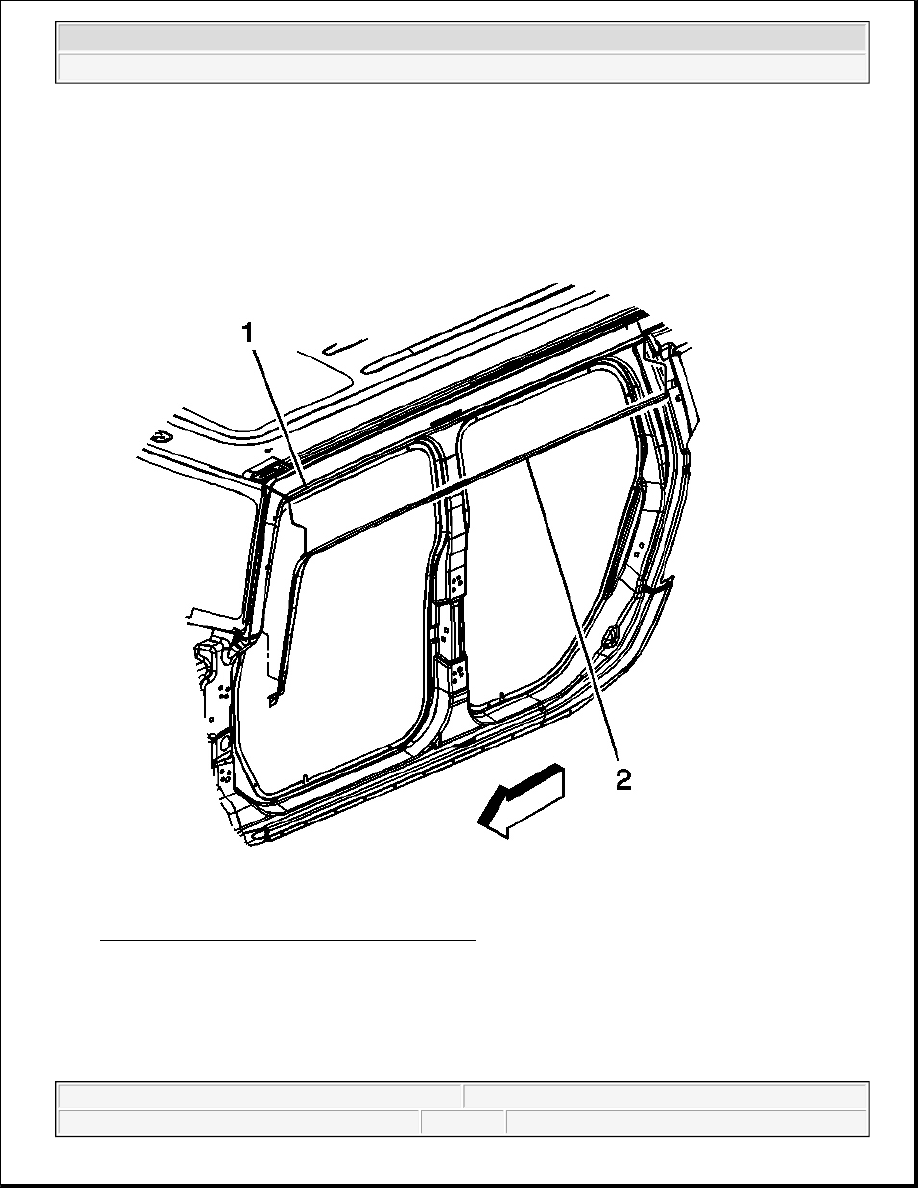

Fig. 128: Upper Door Weatherstrip (Front Door)
Courtesy of GENERAL MOTORS CORP.

1. Starting at the center of the door openings, install the weatherstrip (2) to the pinch-weld flange (1) and

work across the right and left sides towards the ends of the weatherstrip, being careful not to stretch the
weatherstrip during installation.

2. Close the door.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



WEATHERSTRIP REPLACEMENT - REAR DOOR UPPER AUXILIARY

Removal Procedure

1. Open both front and rear side doors.

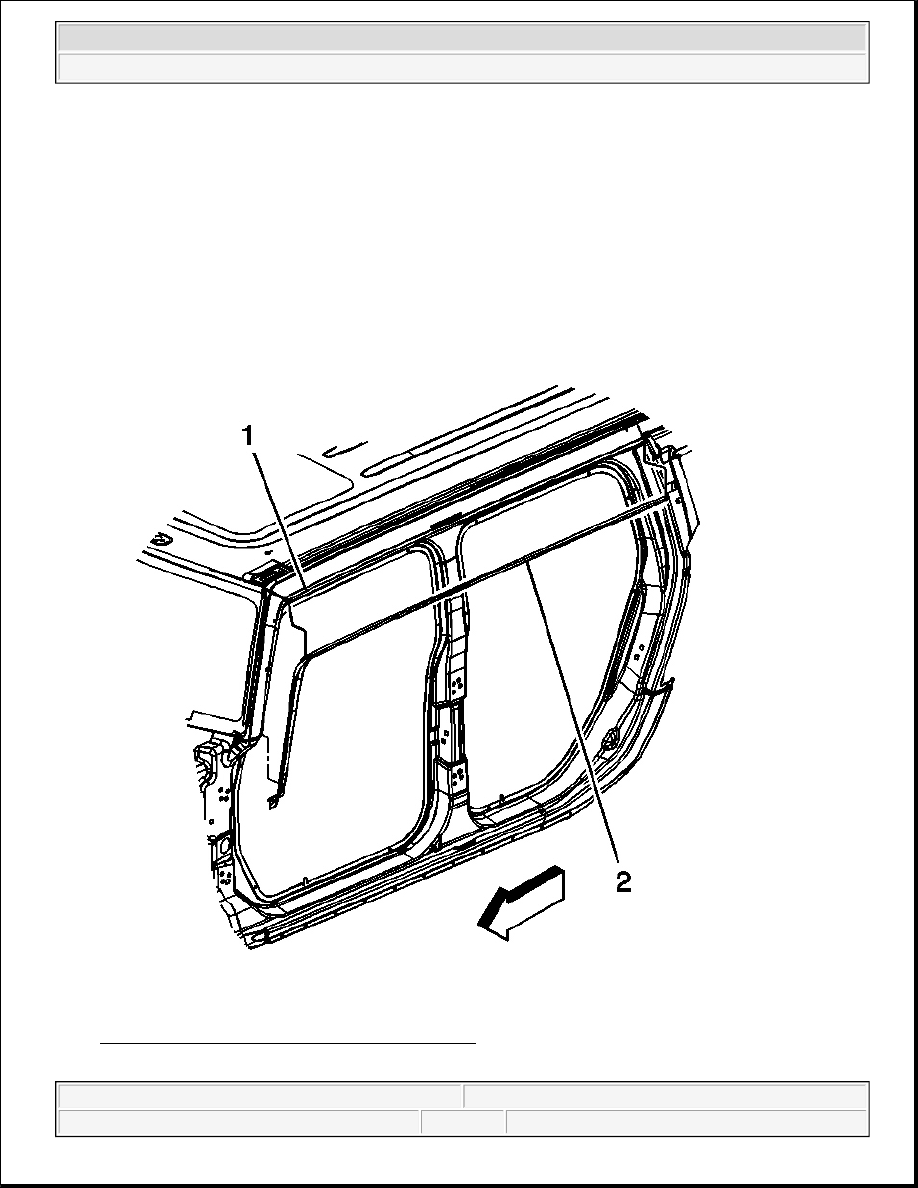

Fig. 129: Upper Door Weatherstrip (Rear Door)
Courtesy of GENERAL MOTORS CORP.

2. Remove the weatherstrip (2) by pulling the weatherstrip off of the pinch-weld flange (1).

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

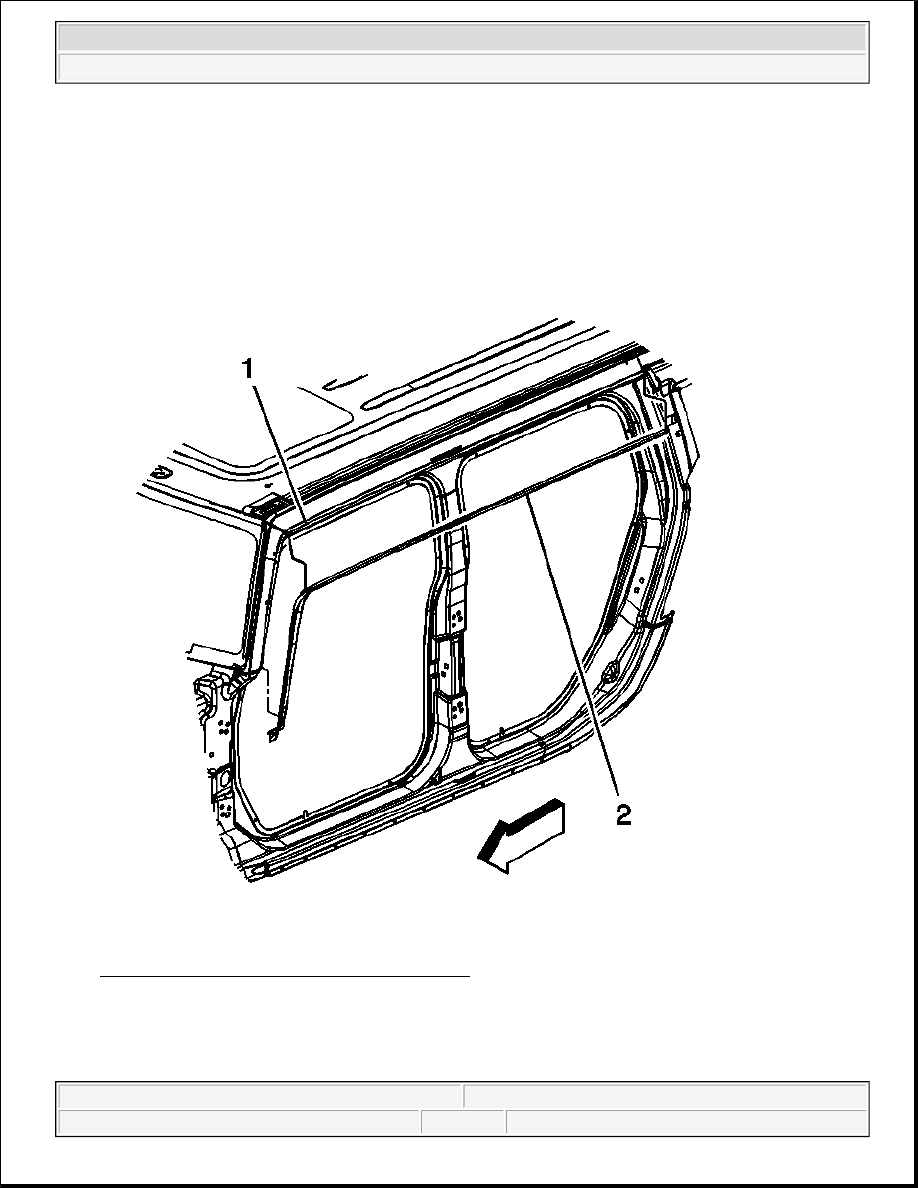

Fig. 130: Upper Door Weatherstrip (Rear Door)
Courtesy of GENERAL MOTORS CORP.

1. Starting at the center of the door openings, install the weatherstrip (2) to the pinch-weld flange (1) and

work across the right and left sides towards the ends of the weatherstrip, being careful not to stretch the
weatherstrip during installation.

2. Close the doors.

WEATHERSTRIP REPLACEMENT - FRONT DOOR AUXILIARY

Removal Procedure
