Hummer H2. Manual - part 480

Fig. 123: Front Door Window Weatherstrip
Courtesy of GENERAL MOTORS CORP.

4. Starting at one side, remove the weatherstrip by pulling the weatherstrip off the flange in the door

window frame (1).

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

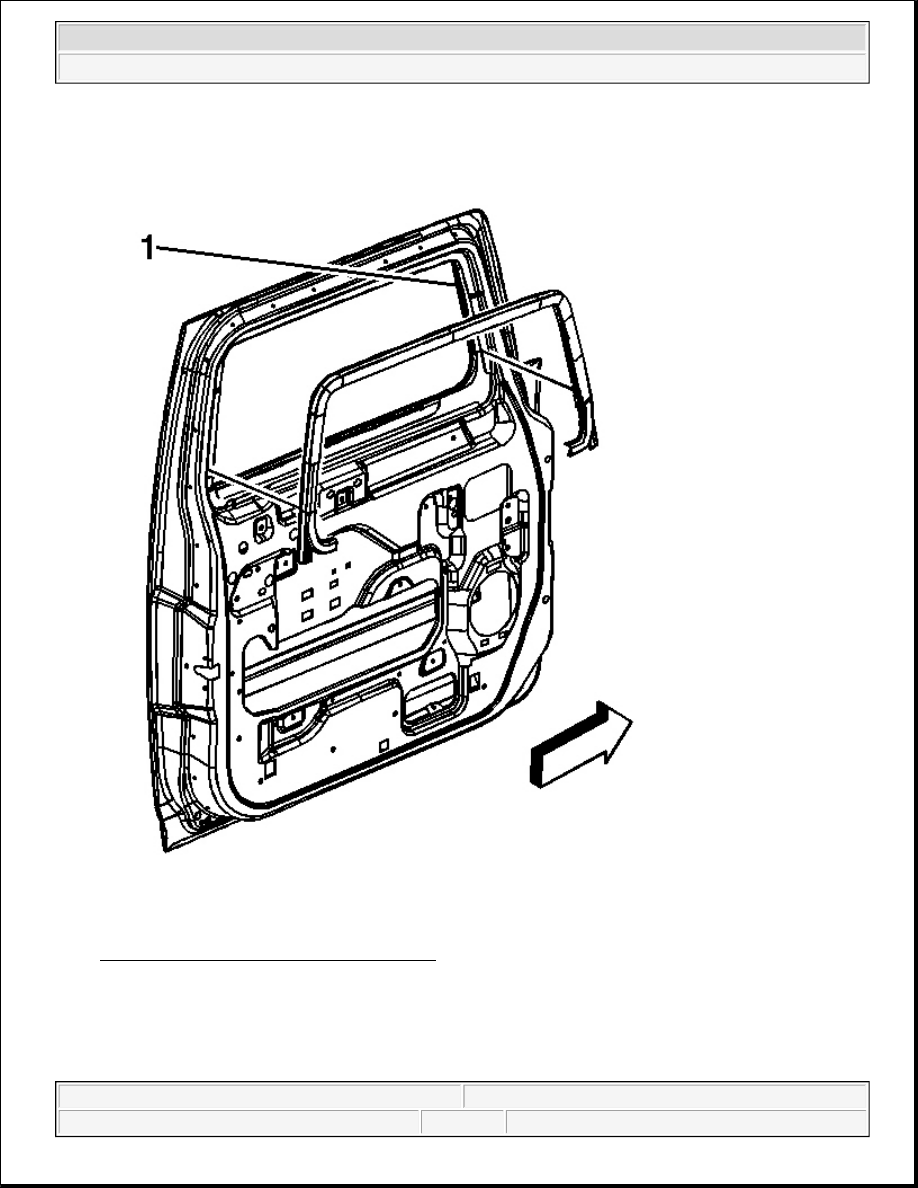

Fig. 124: Front Door Window Weatherstrip
Courtesy of GENERAL MOTORS CORP.

1. Install weatherstrip down onto the flange in the door frame (1), ensuring that it is fully seated.

2. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

3. Raise the window and inspect for proper fit.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



WEATHERSTRIP REPLACEMENT - REAR DOOR WINDOW

Removal Procedure

1. Position the window in the full down position.

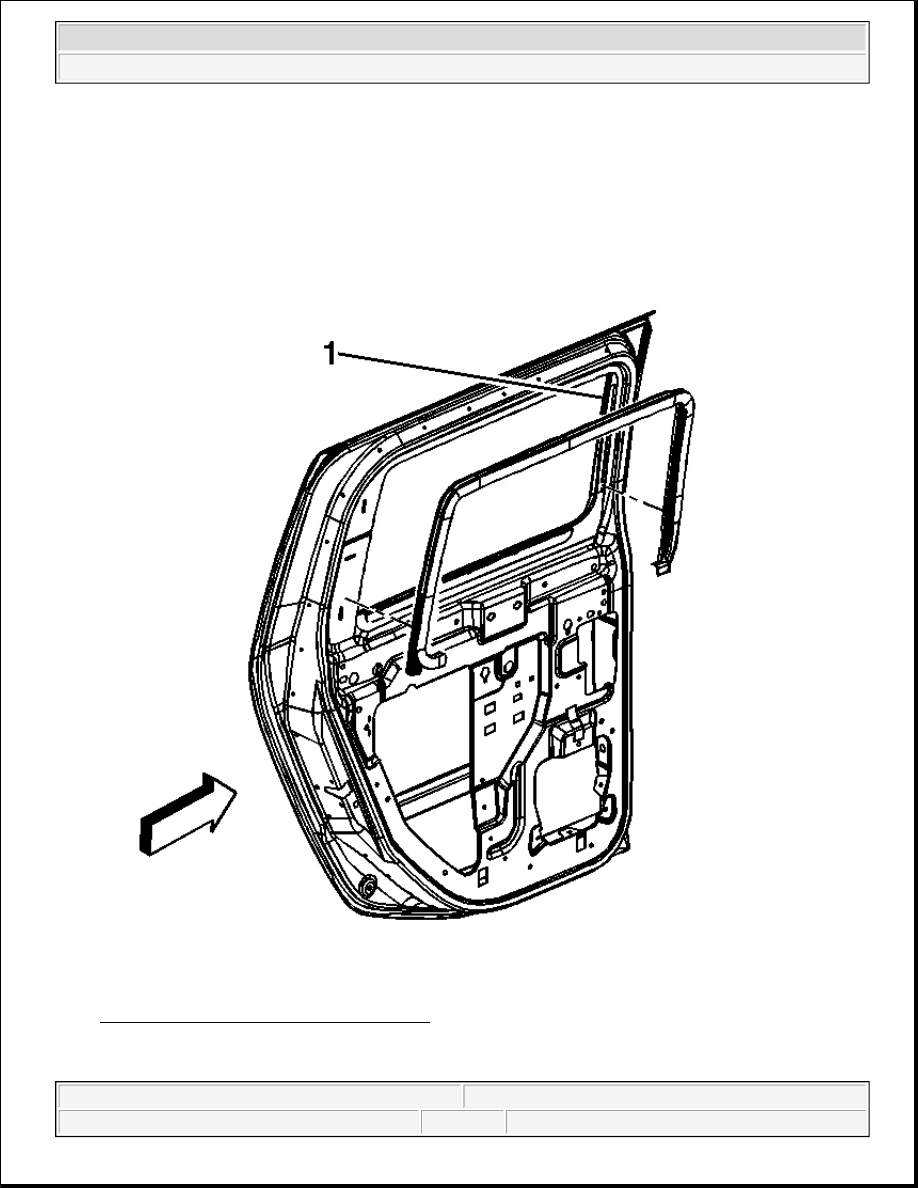

Fig. 125: Rear Door Window Weatherstrip
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Starting at one side, remove the weatherstrip by pulling the weatherstrip off of the flange in the door

window frame (1).

Installation Procedure

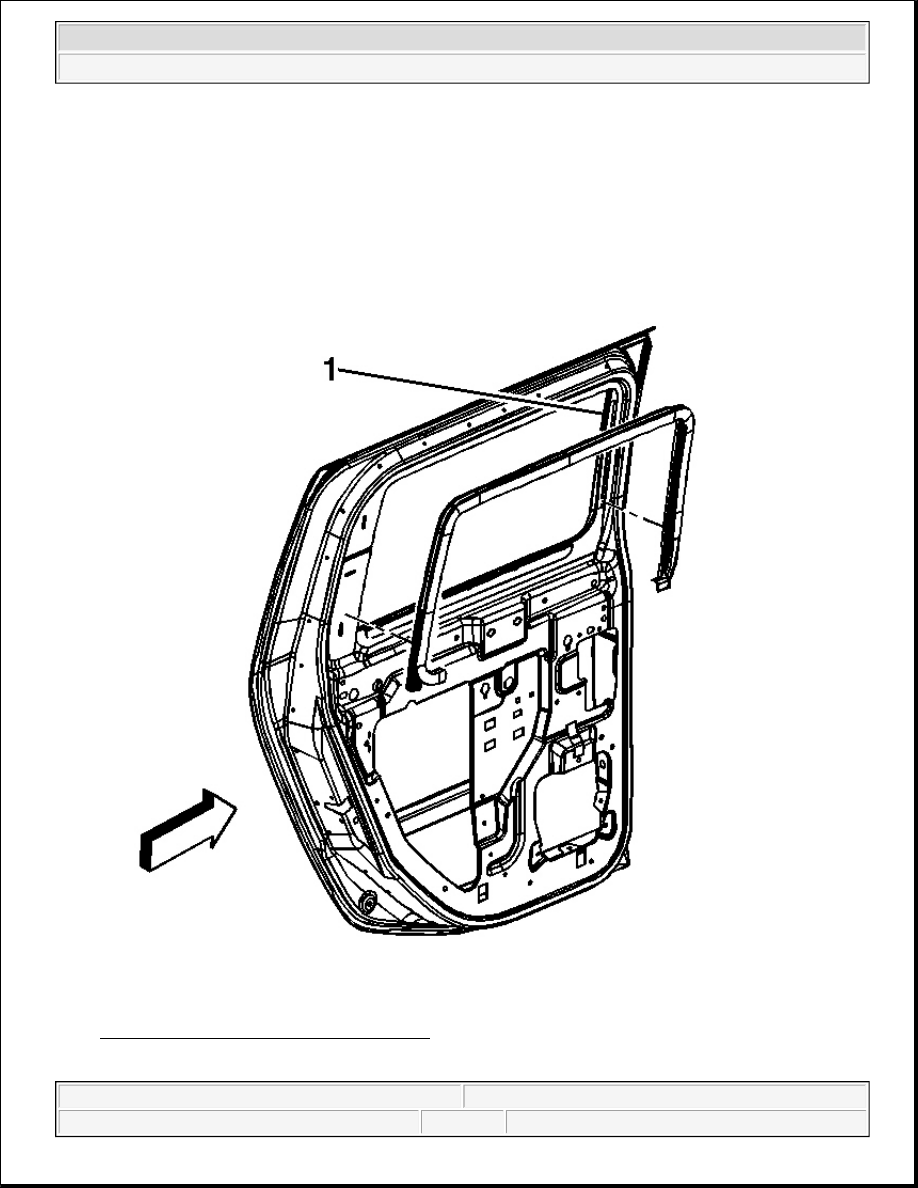

Fig. 126: Rear Door Window Weatherstrip
Courtesy of GENERAL MOTORS CORP.

1. Position the window in the full down position.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
