1. Open the door.

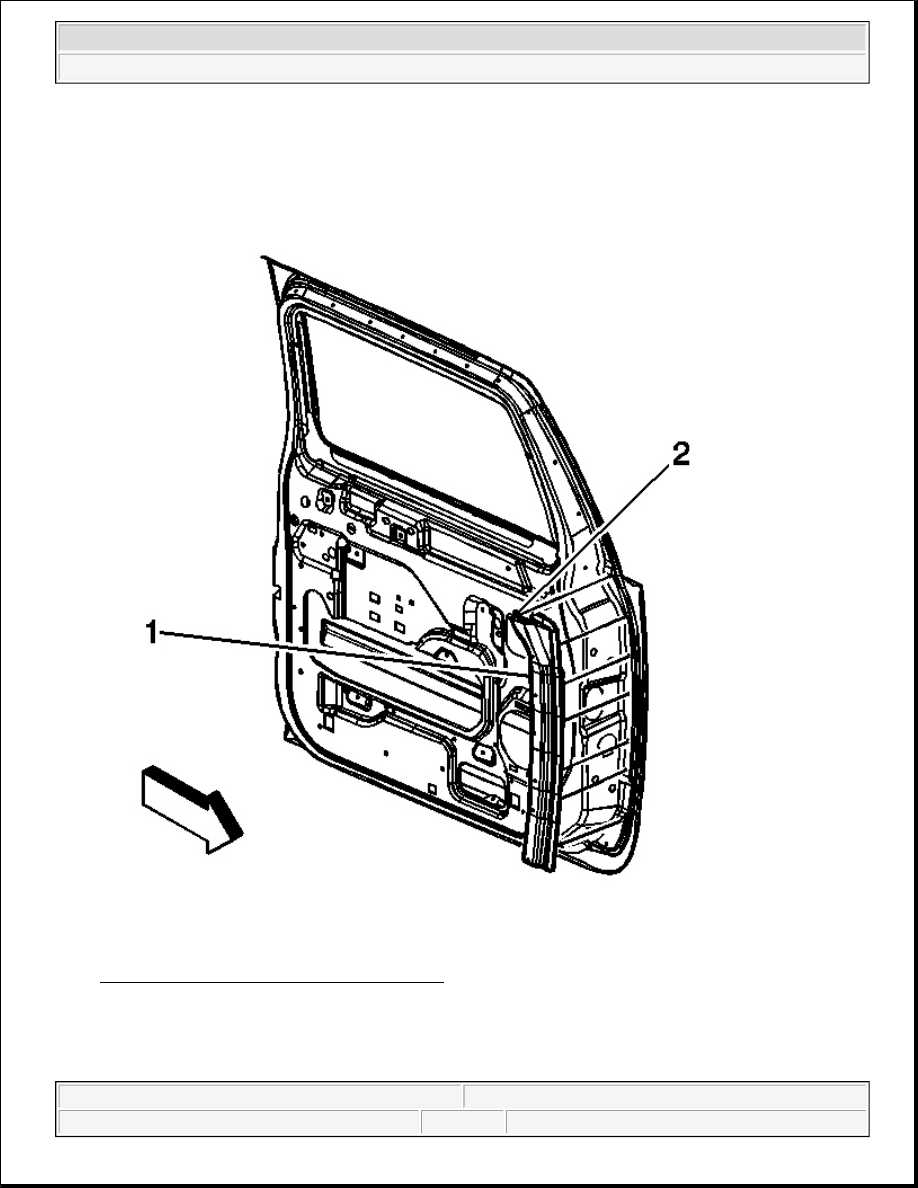

Fig. 131: Front Auxiliary Door Weatherstrip
Courtesy of GENERAL MOTORS CORP.

2. Using a flat-bladed tool, release the 7 retainers (2) securing the weatherstrip (1) to the door.

3. Remove the weatherstrip from the door.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Installation Procedure

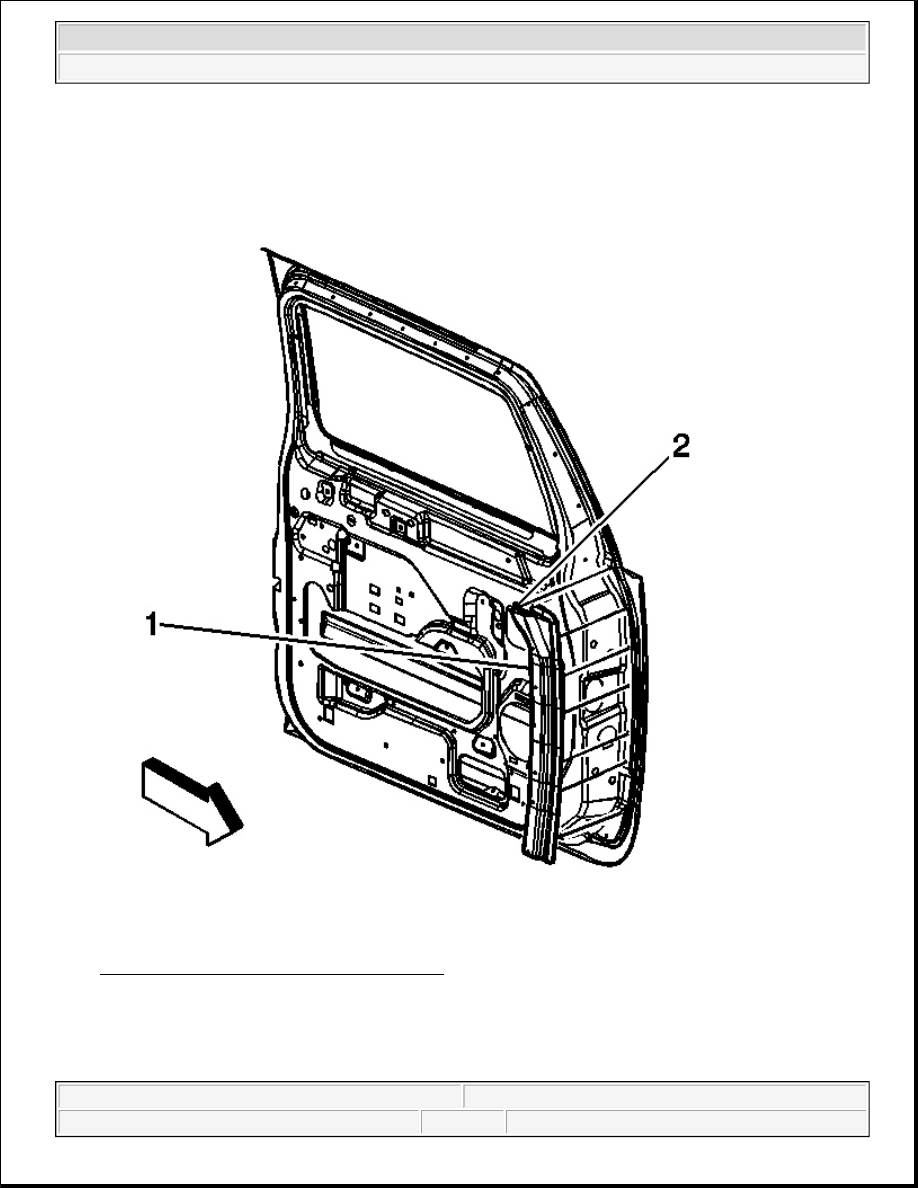

Fig. 132: Front Auxiliary Door Weatherstrip
Courtesy of GENERAL MOTORS CORP.

1. Attach the weatherstrip (1) to the door by installing the 7 retainers (2) that secure it to the door.

2. Close the door.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



WEATHERSTRIP REPLACEMENT - REAR DOOR AUXILIARY

Removal Procedure

1. Open the doors.

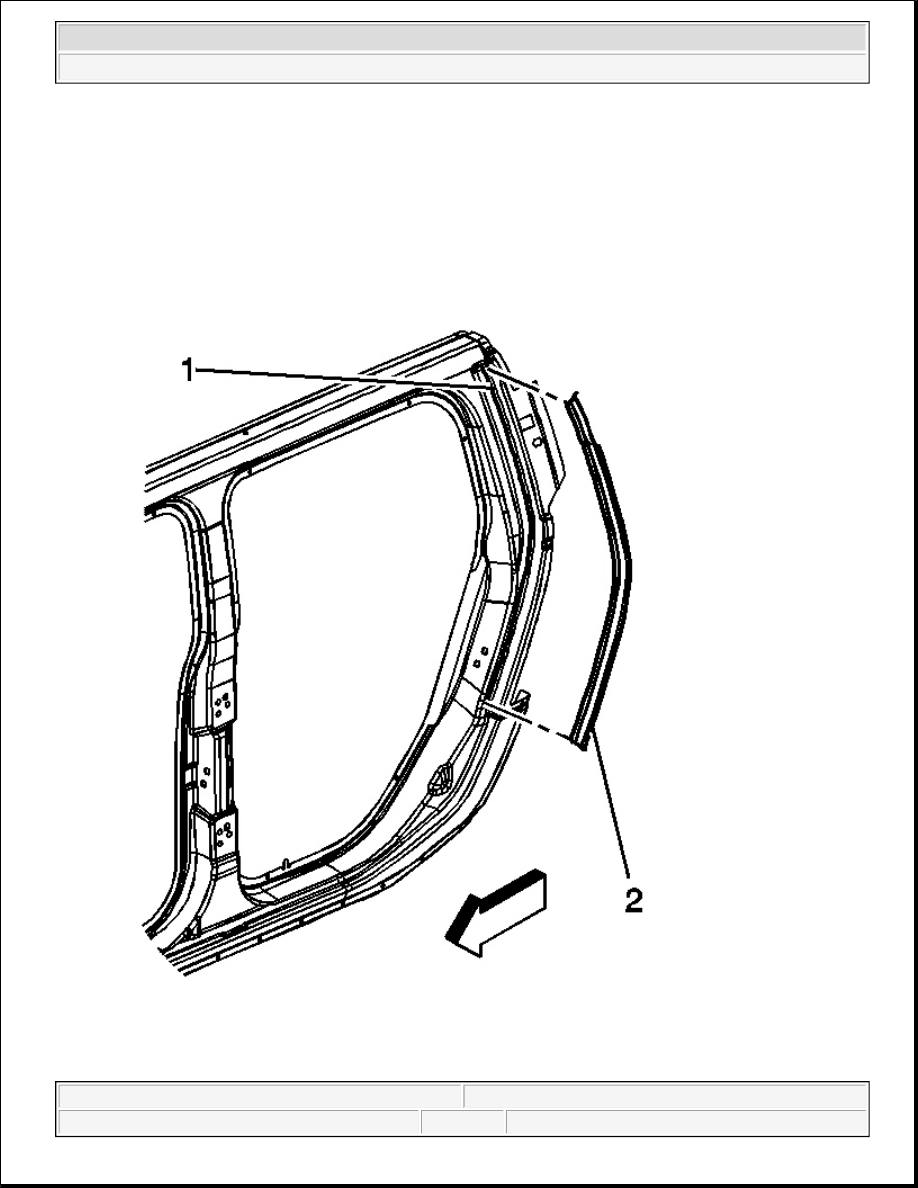

Fig. 133: Rear Auxiliary Door Weatherstrip



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Courtesy of GENERAL MOTORS CORP.

2. Remove the weatherstrip (2) by pulling the weatherstrip off of the pinch-weld flange (1).

Installation Procedure

Fig. 134: Rear Auxiliary Door Weatherstrip



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
