Hummer H2. Manual - part 463

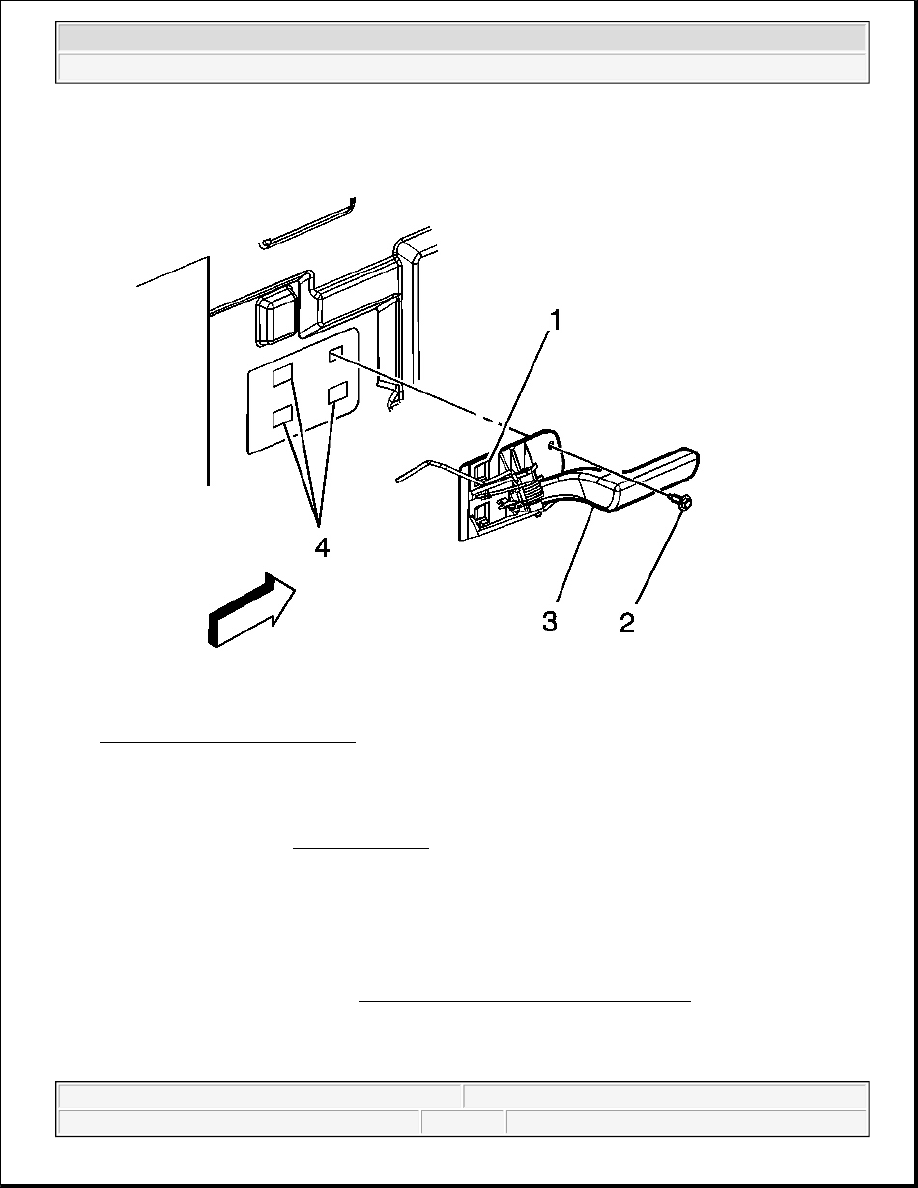

Fig. 72: Rear Inside Door Handle
Courtesy of GENERAL MOTORS CORP.

1. Position the door handle in the retention slots (4).

2. Install the fastener (2) retaining the door handle to the door.

Tighten: Tighten the fasteners to 9 N.m (7 lb ft).

3. Attach the inside door handle rod retention clip (1).

4. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

5. Close the door.

LOCK CYLINDER REPLACEMENT - DOOR

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Removal Procedure

1. Remove the outside door handle. Refer to Door Handle Replacement - Front Outside .

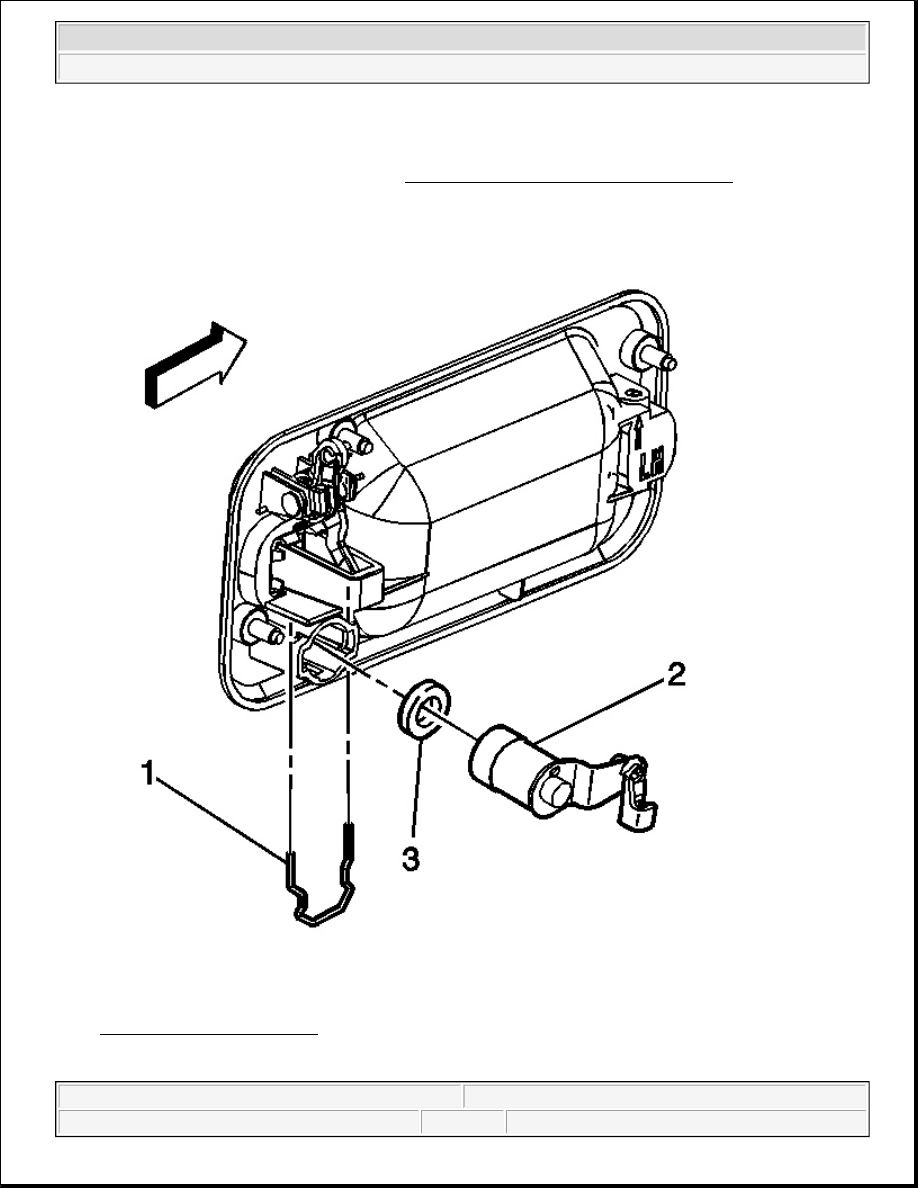

Fig. 73: Door Lock Cylinder
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Remove the lock cylinder retainer (1).

3. Remove the lock cylinder (2).

Installation Procedure

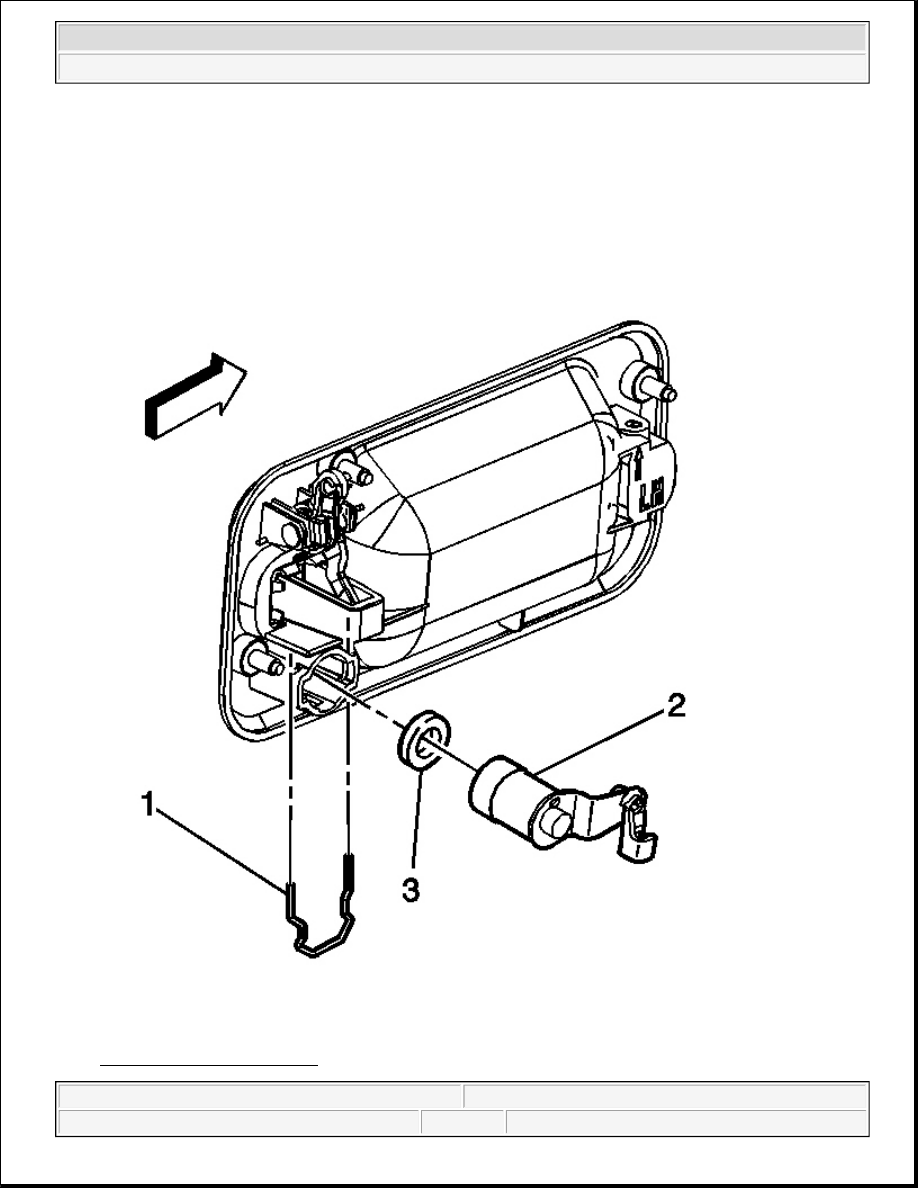

Fig. 74: Door Lock Cylinder



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Courtesy of GENERAL MOTORS CORP.

1. Ensure that the lock cylinder gasket (3) is in place before lock cylinder installation.

2. Install the lock cylinder (2) into the door handle.

3. Install the lock cylinder retainer (2), ensuring that the retainer is fully seated.

4. Install the outside door handle. Refer to Door Handle Replacement - Front Outside .

BINDING LOCK CYLINDERS

In many cases, applying the proper lubrication can correct the following conditions:

z

Binding or sticking door lock cylinders

z

Difficulty in inserting and removing the keys

For lubricating the above components, use lubricant GM P/N 12346241 or equivalent

Do not use penetrating lubricants such as GM P/N 1052949 or WD-40(R). Penetrating lubricants wash out the
original lubrication. Penetrating lubricants eventually evaporate, leaving little or no lubricating material.
However, when using penetrating lubricants in order to thaw or in order to loosen the lock cylinder components,
refer to steps 2-4 in the procedure below for the proper methods of lubrication.

Repair lock cylinders frozen in cold weather by using the following procedure:

1. While carefully avoiding damage to the painted surfaces, apply heat to the cylinder with a heat gun.

2. Using a paper clip or a similar item, hold the door shutter open.

Force air into the cylinders using compressed air through a blow gun attachment.

3. While holding the shutter door open, inject small amounts of a recommended lubricant into the cylinder.

4. Work the key into the cylinder repeatedly.

Wipe away any excess lubrication from the key.

LATCH REPLACEMENT - FRONT DOOR

Removal Procedure

1. Open the door.

2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .

4. Remove the window run channel. Refer to Window Run Channel Replacement - Front Door .

5. Disconnect the lock actuator electrical connector.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
