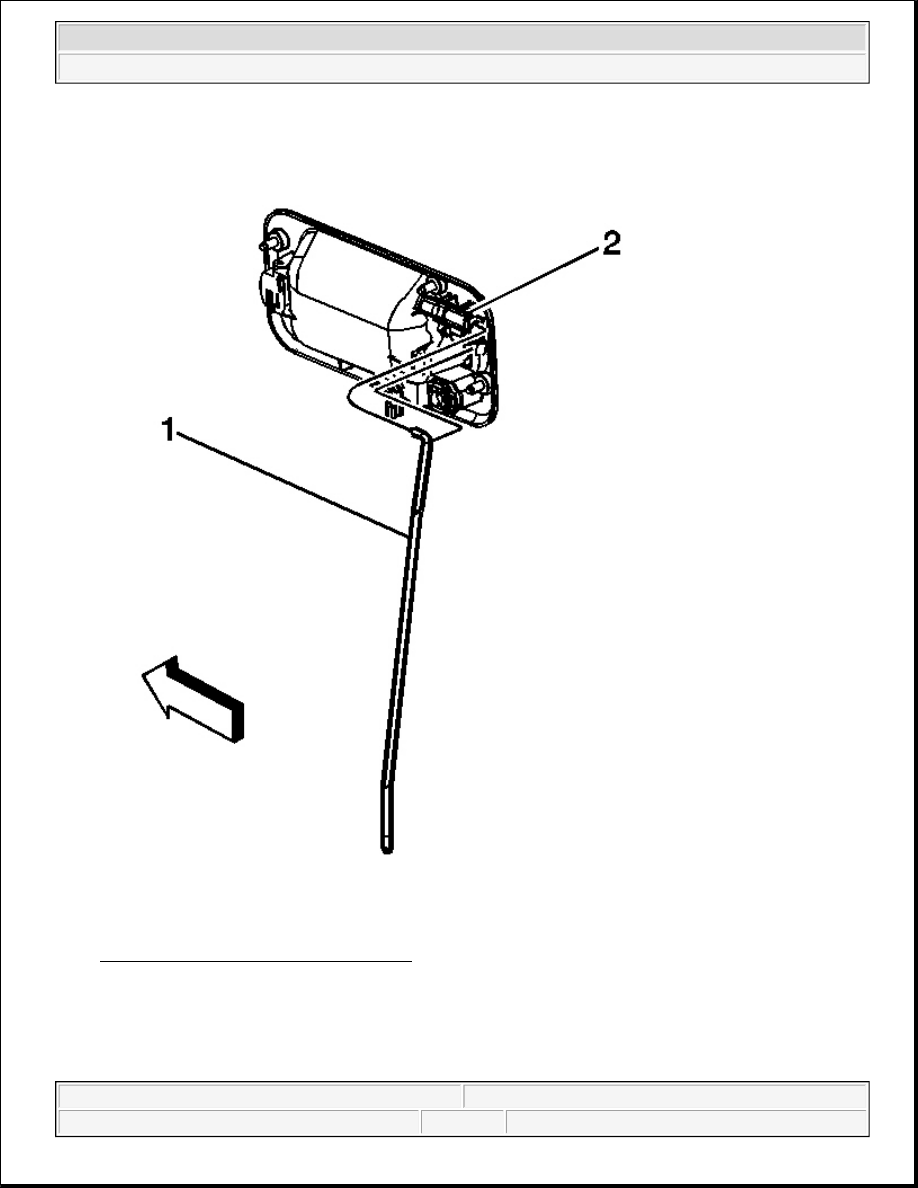

Fig. 75: Front Outside Door Handle Rod
Courtesy of GENERAL MOTORS CORP.

6. Disconnect the outside door handle rod (1) by releasing the retaining clip on the door latch.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



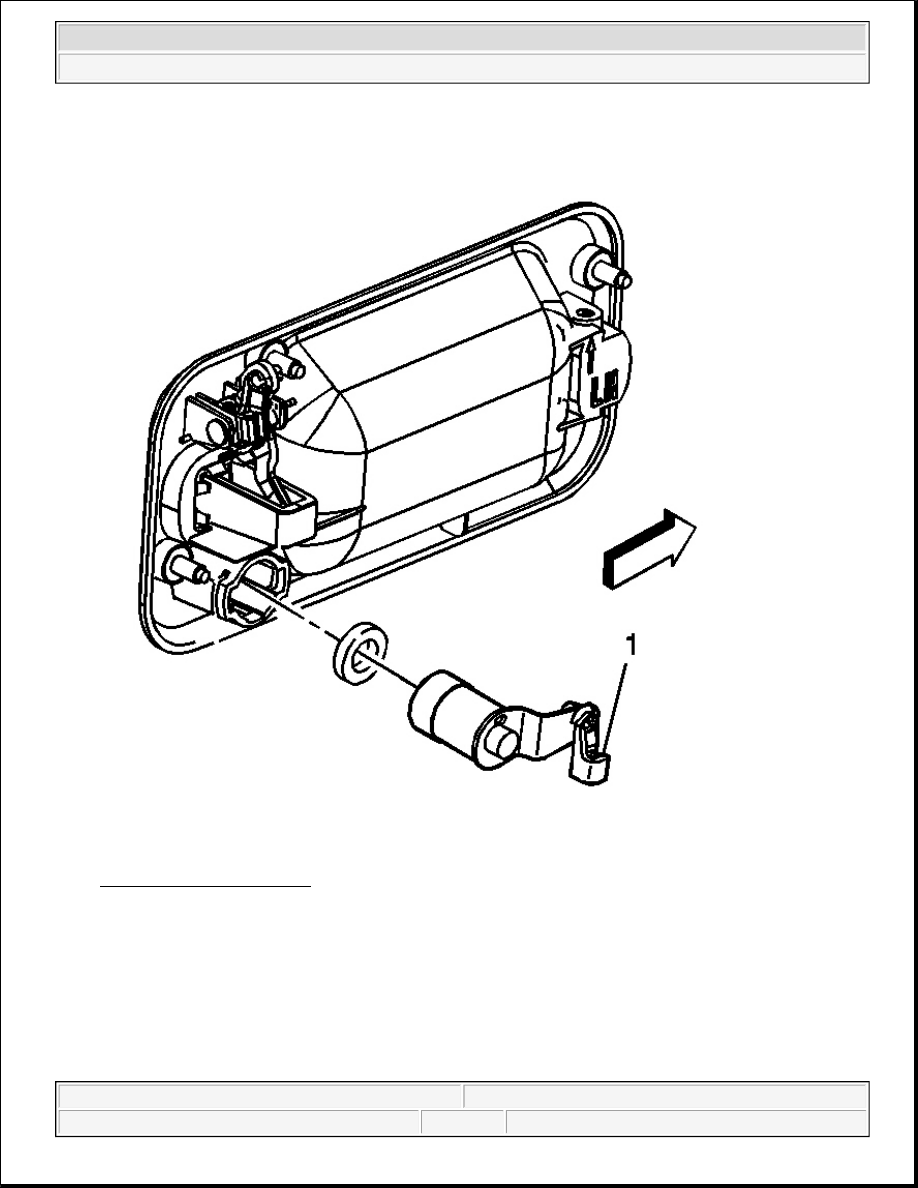

Fig. 76: Lock Cylinder Rod
Courtesy of GENERAL MOTORS CORP.

7. Disconnect the lock cylinder rod by releasing the retaining clip (1).

8. Remove the manual locking rod from the door by releasing the rod from the retainers.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



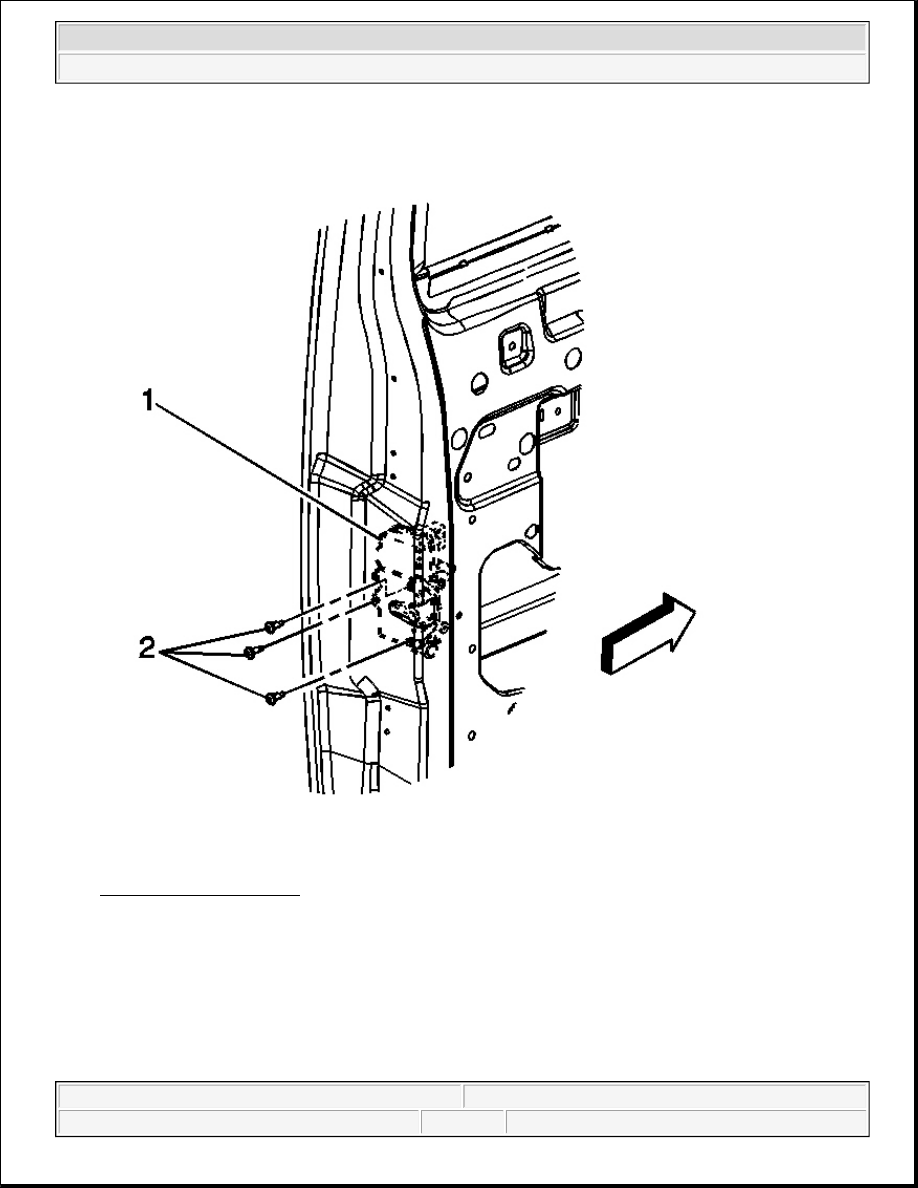

Fig. 77: Front Door Latch
Courtesy of GENERAL MOTORS CORP.

9. Remove the fasteners (2) retaining the door latch (1) to the door.

10. Remove the door latch (1).

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



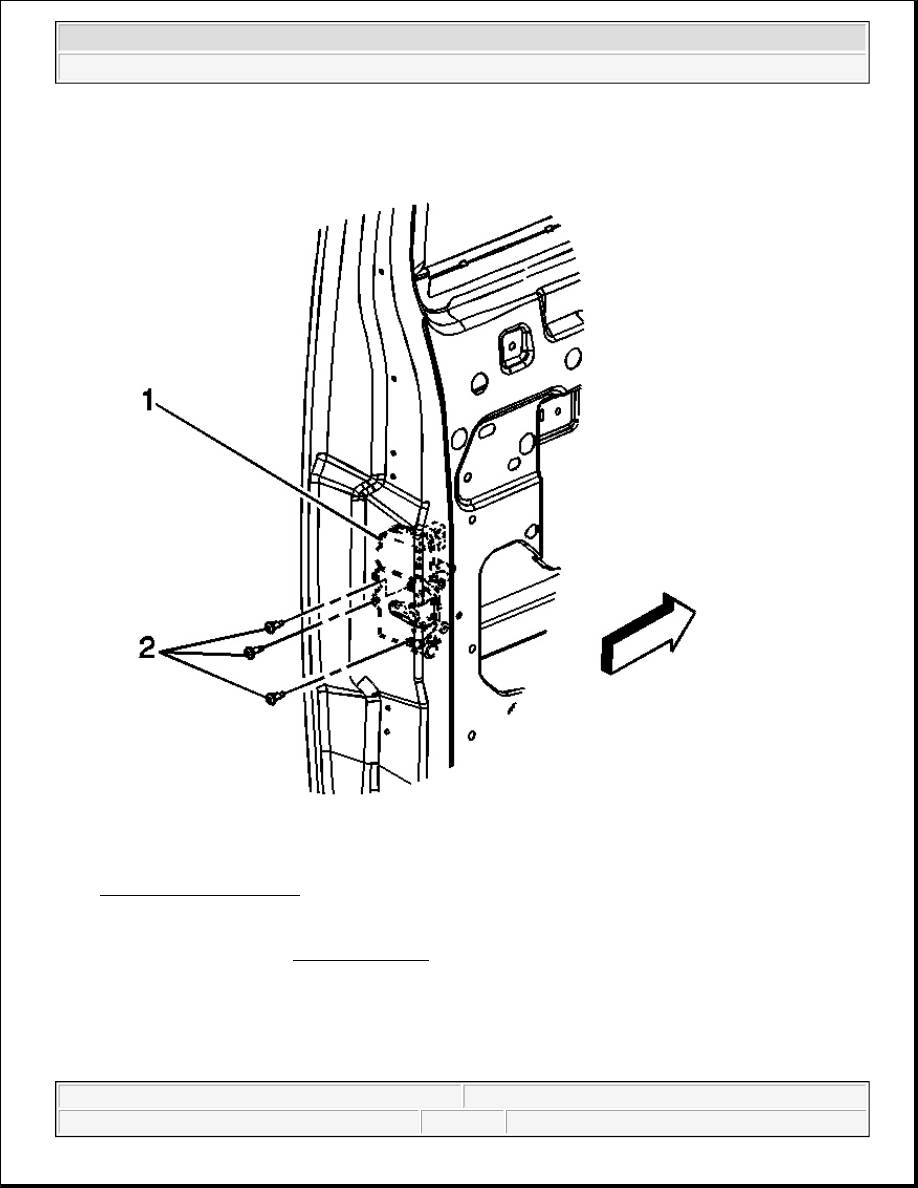

Fig. 78: Front Door Latch
Courtesy of GENERAL MOTORS CORP.

1. Place the latch (1) into position in the door, and install the 3 fasteners (2) that retain the latch to the door.

Tighten: Tighten the fasteners to 9 N.m (7 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.
