Hummer H2. Manual - part 462

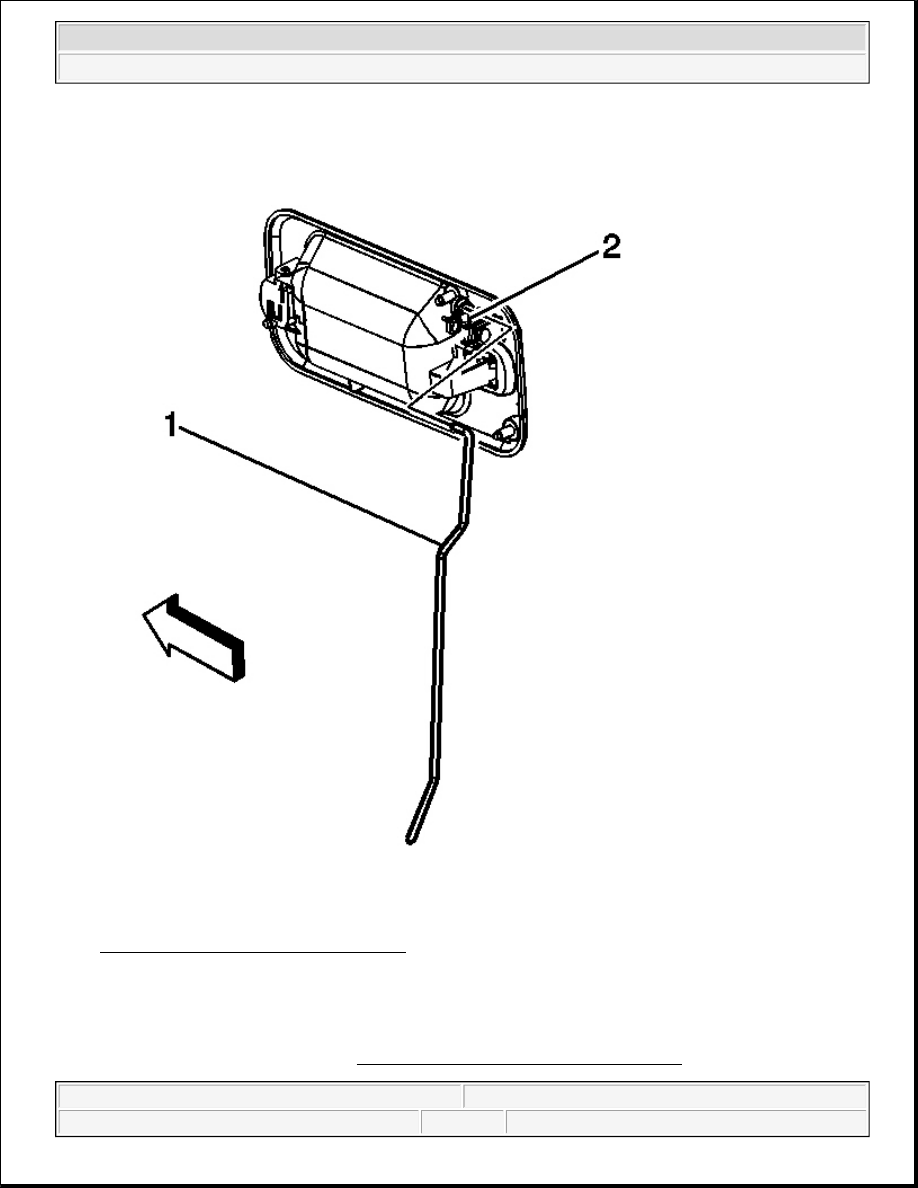

Fig. 68: Rear Outside Door Handle Rod
Courtesy of GENERAL MOTORS CORP.

4. Connect the outside door handle rod (1) by securing the retention clip (2).

5. Operate the door handle to ensure proper operation.

6. Install the water deflector. Refer to Water Deflector Replacement - Rear Door .

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

7. Install the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

DOOR HANDLE REPLACEMENT - FRONT INSIDE

Removal Procedure

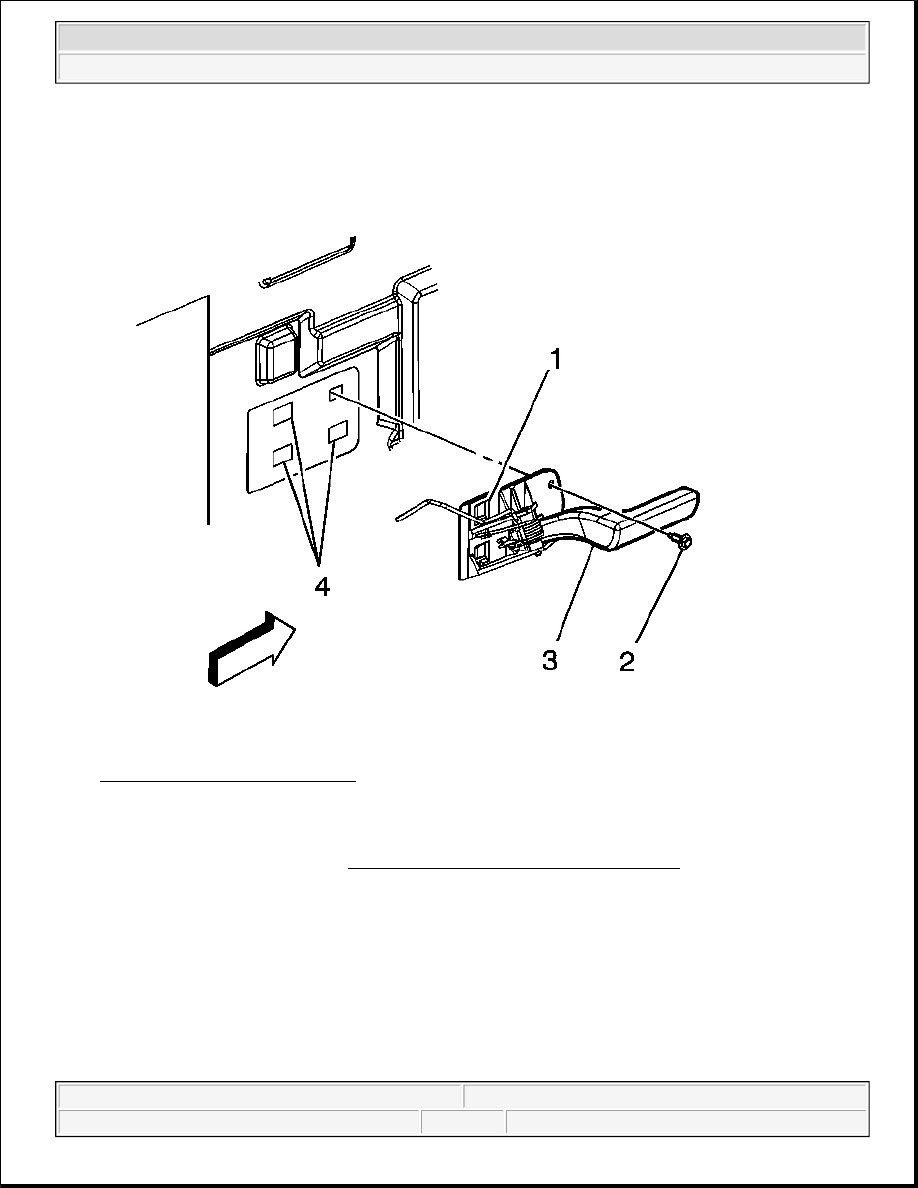

Fig. 69: Front Inside Door Handle
Courtesy of GENERAL MOTORS CORP.

1. Open the door.

2. Remove door trim panel. Refer to Trim Panel Replacement - Side Front Door .

3. Release the inside door handle rod retention clip (1).

4. Remove the fastener (2) retaining the door handle (3) to the door.

5. Remove the door handle by sliding the handle out of the retaining slots (4).

Installation Procedure

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

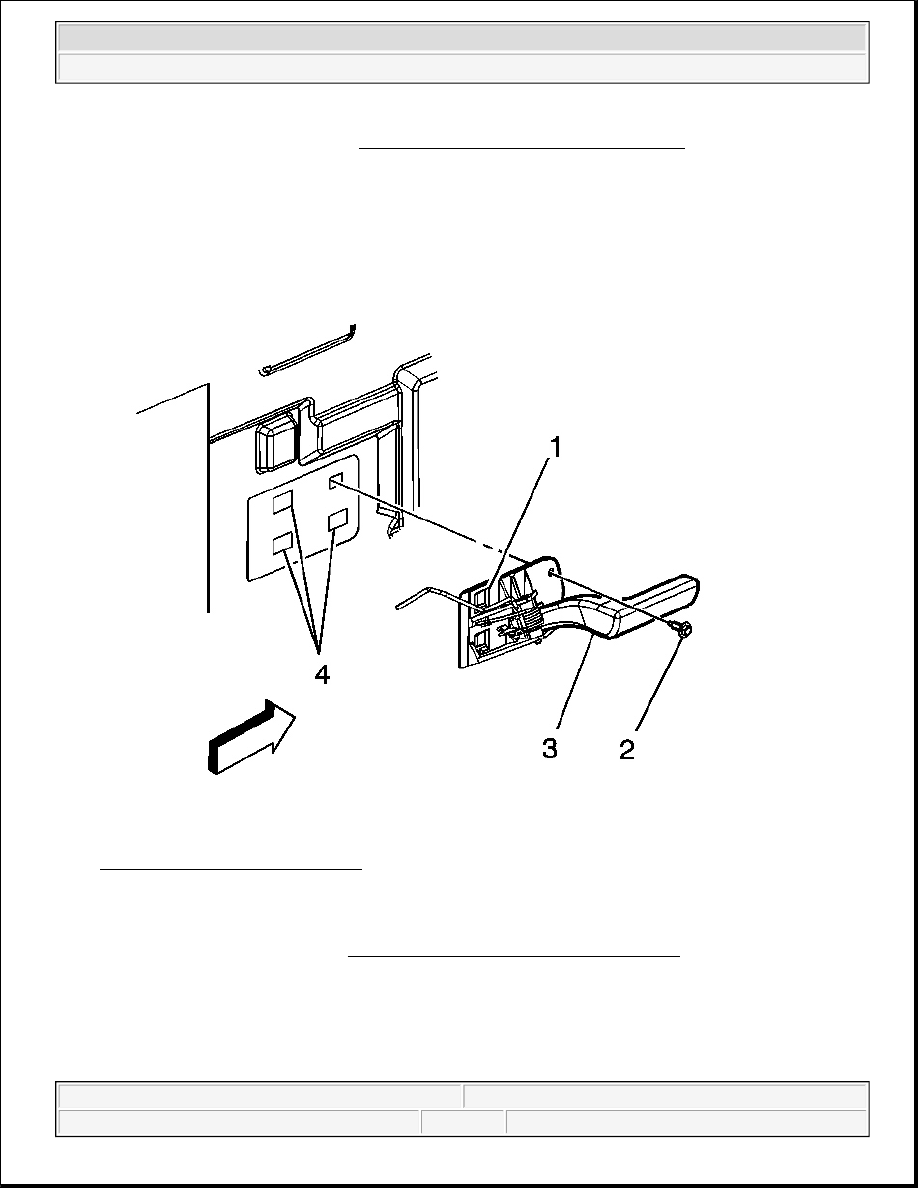

Fig. 70: Front Inside Door Handle
Courtesy of GENERAL MOTORS CORP.

1. Position the door handle in the retention slots.

2. Install the fastener (2) retaining the door handle to the door.

Tighten: Tighten the fastener to 9 N.m (7 lb ft).

3. Attach the inside door handle rod retention clip (1).

4. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

5. Close the door.

DOOR HANDLE REPLACEMENT - REAR INSIDE

NOTE:

Refer to Fastener Notice in Cautions and Notices.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

Removal Procedure

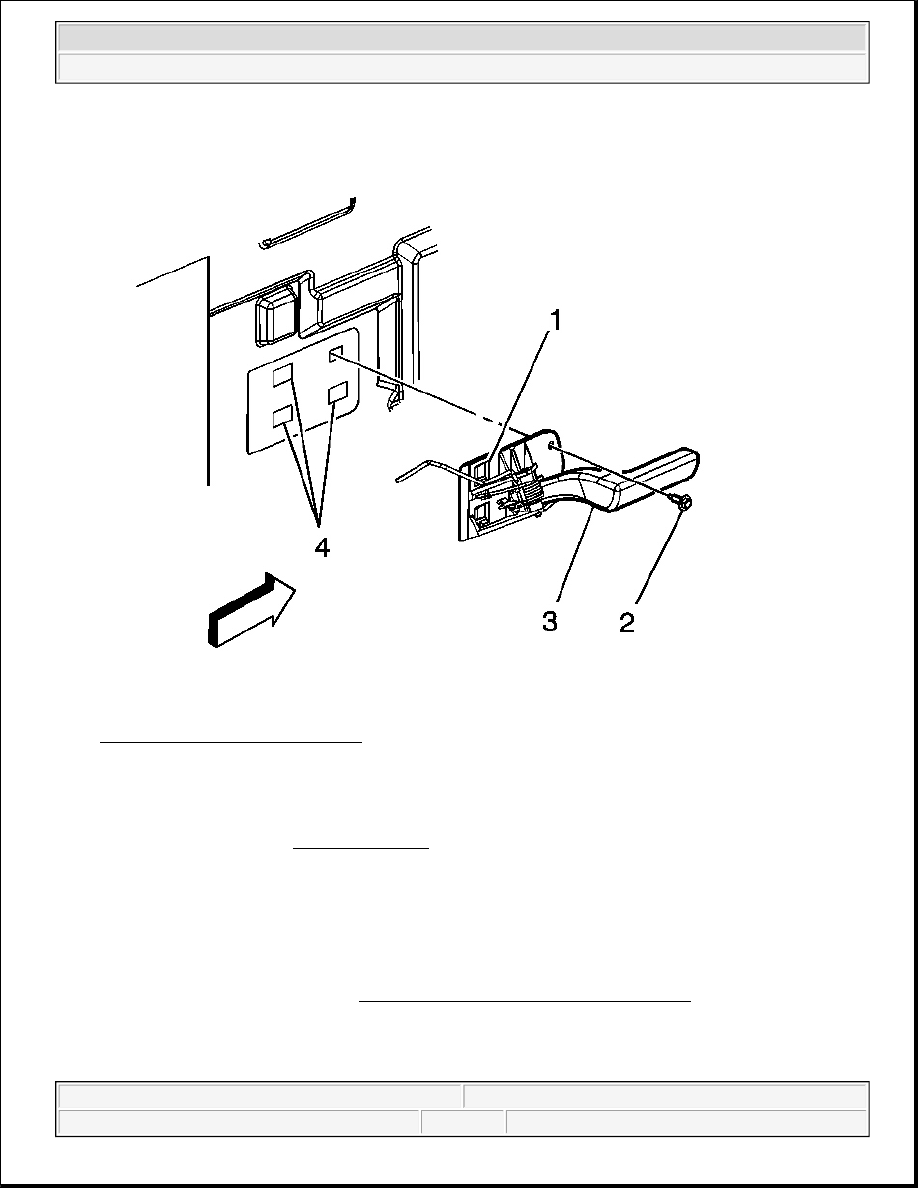

Fig. 71: Rear Inside Door Handle
Courtesy of GENERAL MOTORS CORP.

1. Open the door.

2. Remove door trim panel. Refer to Trim Panel Replacement - Side Front Door .

3. Release the inside door handle rod retention clip (1).

4. Remove the fastener (2) retaining the door handle (3) to the door.

5. Remove the door handle by sliding the handle out of the retention slots (4).

Installation Procedure

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
