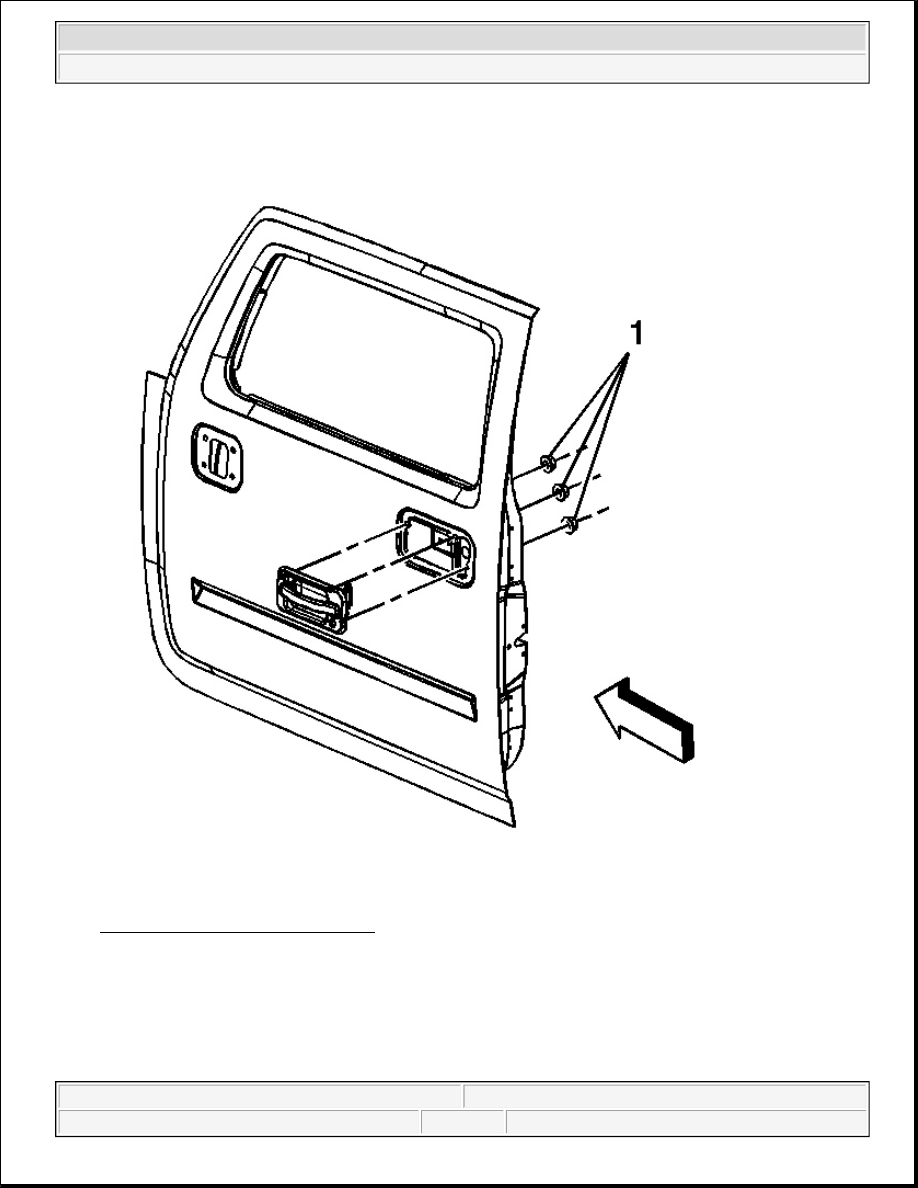

Fig. 61: Front Outside Door Handle
Courtesy of GENERAL MOTORS CORP.

7. Remove the 3 nuts (1) retaining the door handle.

8. Remove the door handle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



1. Position the door handle in place on the door.

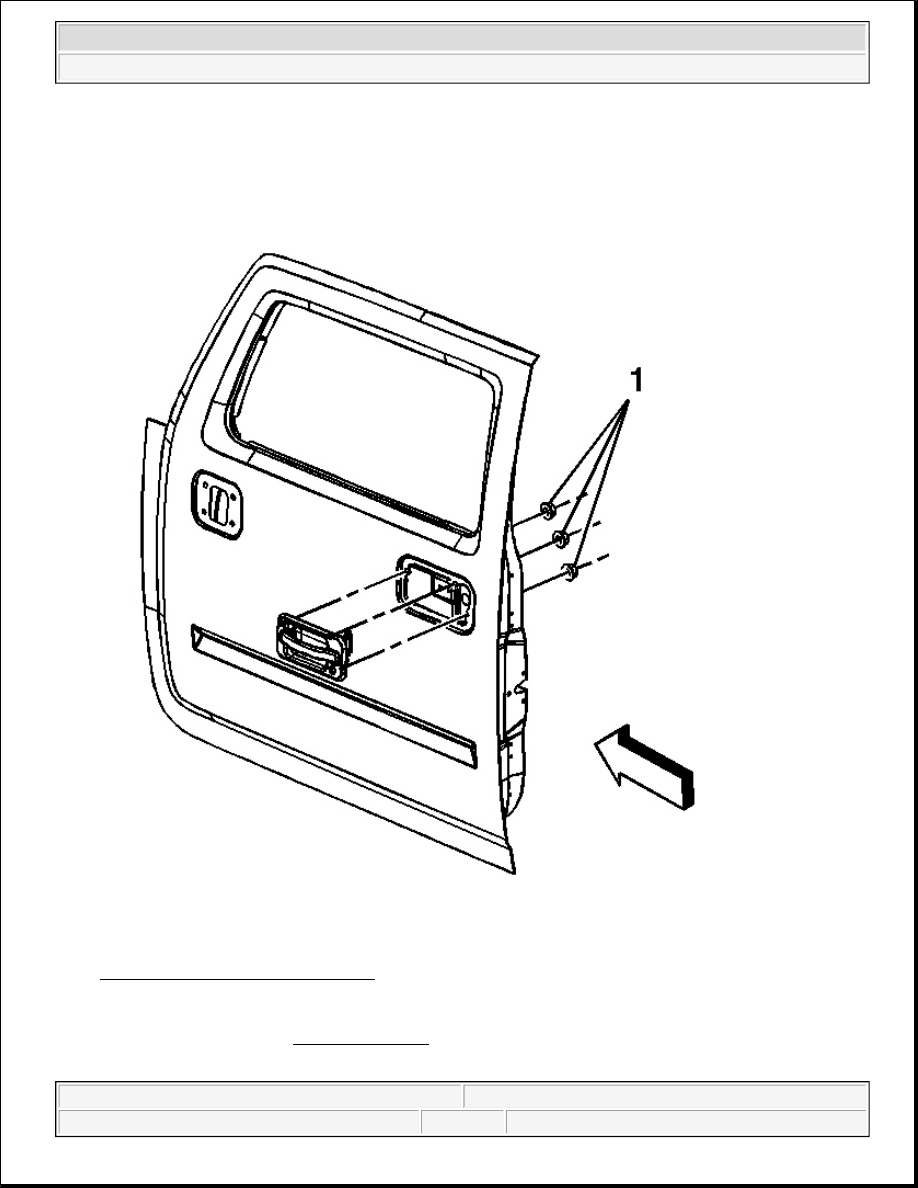

Fig. 62: Front Outside Door Handle
Courtesy of GENERAL MOTORS CORP.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Install the 3 nuts (1) that retain the door handle to the door.

Tighten: Tighten the nuts to 9 N.m (7 lb ft).

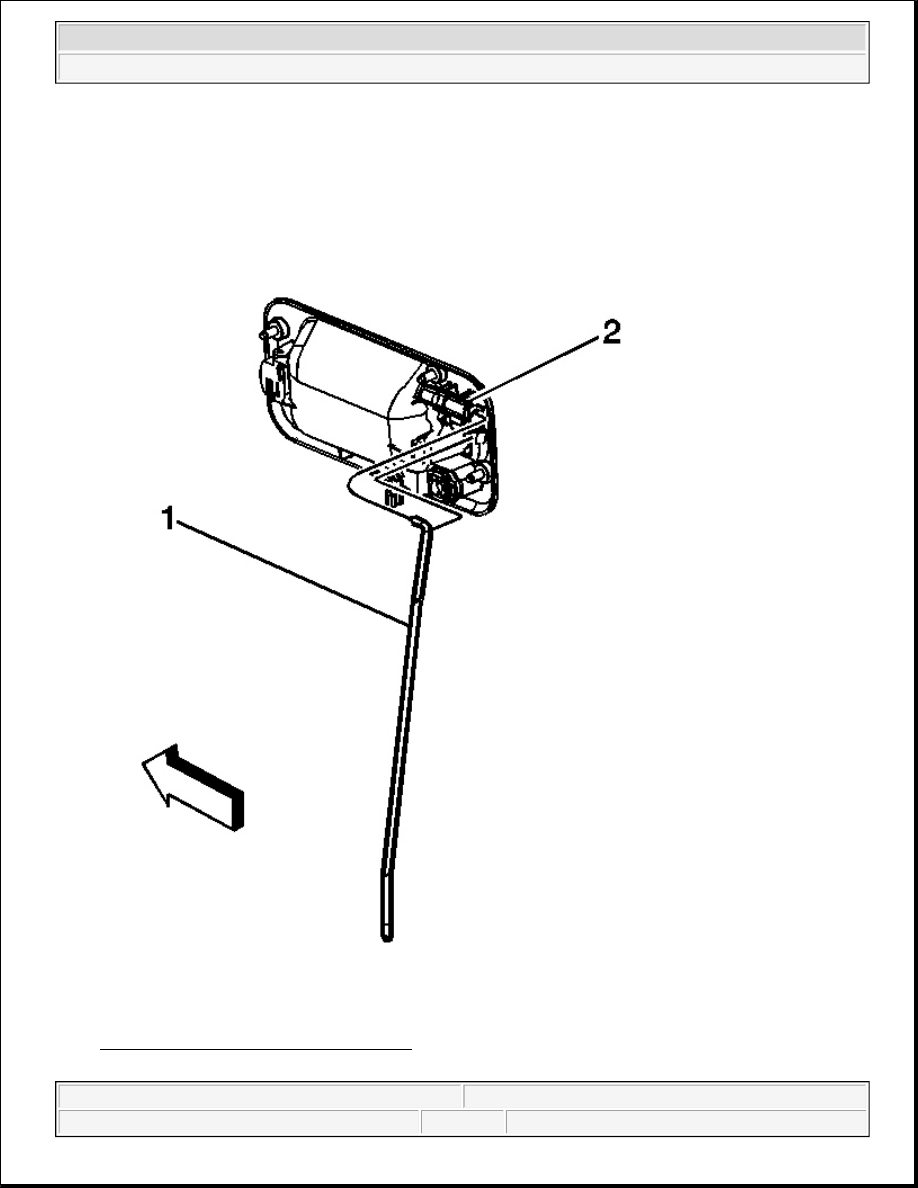

Fig. 63: Front Outside Door Handle Rod
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



3. Connect the outside door handle rod (1) by securing the retention clip (2).

Fig. 64: Lock Cylinder Rod
Courtesy of GENERAL MOTORS CORP.

4. Connect the lock cylinder rod by securing the retainer clip (1).

5. Install the window. Refer to Window Replacement - Front Door .

6. Install the water deflector. Refer to Water Deflector Replacement - Front Door .

7. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
