3. Replace the rubber grommet in the door check link opening (1).

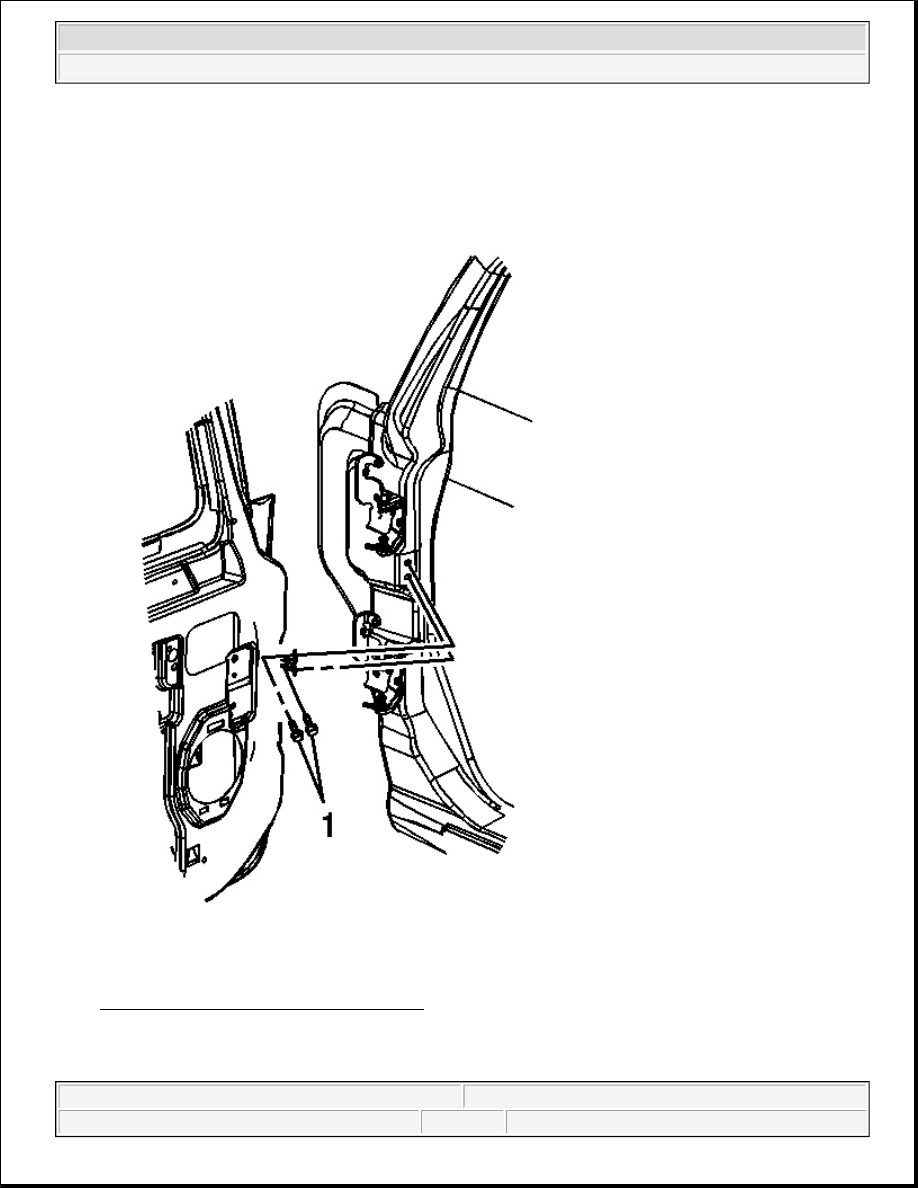

Fig. 58: Front Door Check Link Fasteners
Courtesy of GENERAL MOTORS CORP.

4. Install the fasteners (1) that retain the check link to the vehicle.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Tighten: Tighten the fasteners to 9 N.m (7 lb ft).

5. Install the water deflector. Refer to Water Deflector Replacement - Front Door or Water Deflector

Replacement - Rear Door .

6. Install door trim panel. Refer to Trim Panel Replacement - Side Front Door or Trim Panel

Replacement - Side Rear Door .

DOOR HANDLE REPLACEMENT - FRONT OUTSIDE

Removal Procedure

1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

2. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .

3. Remove the window. Refer to Window Replacement - Front Door .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

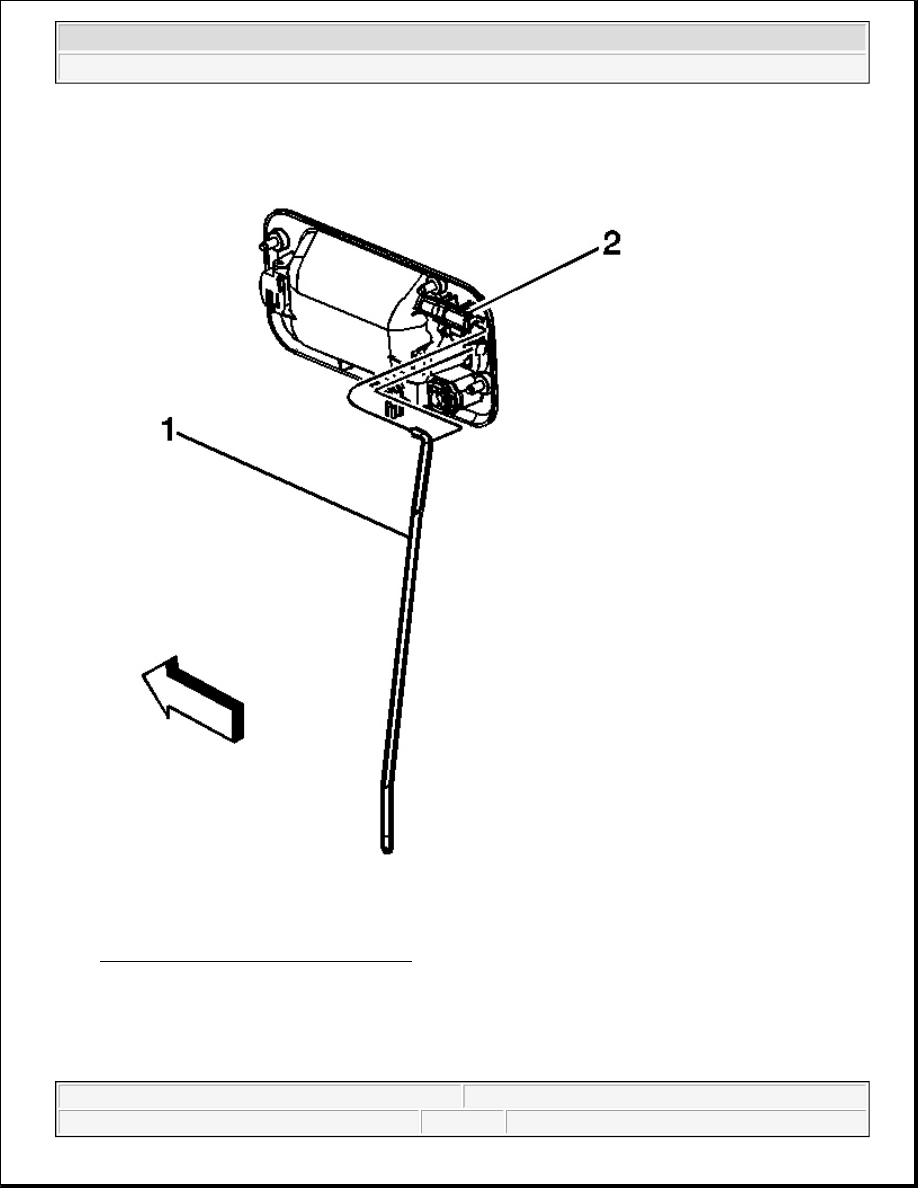

Fig. 59: Front Outside Door Handle Rod
Courtesy of GENERAL MOTORS CORP.

4. Disconnect the outside door handle rod (1) by releasing the retaining clip (2).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

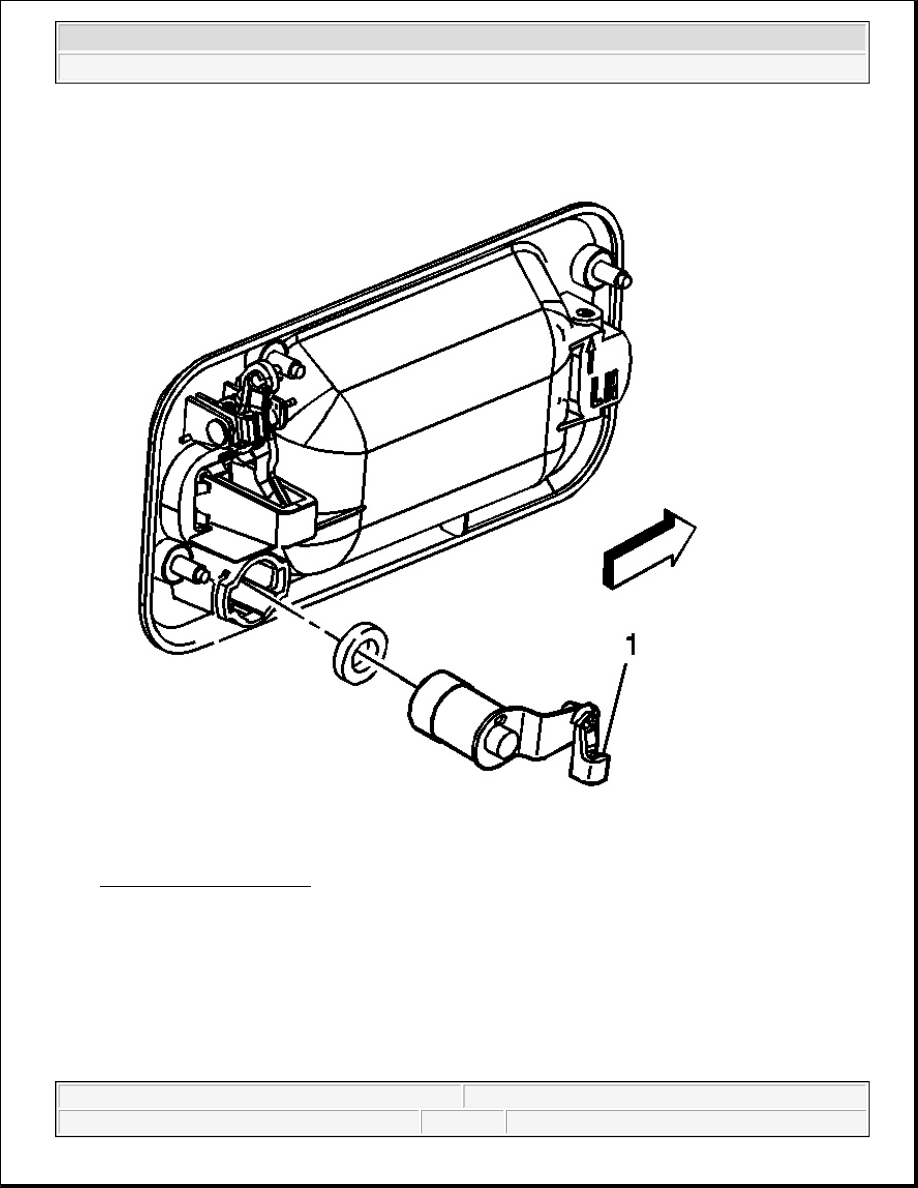

Fig. 60: Lock Cylinder Rod
Courtesy of GENERAL MOTORS CORP.

5. Disconnect the lock cylinder rod (1) by releasing the retainer clip.

6. Apply a piece of masking tape across the door handle, on the outside of the door, to secure the handle

while removing the fasteners.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
