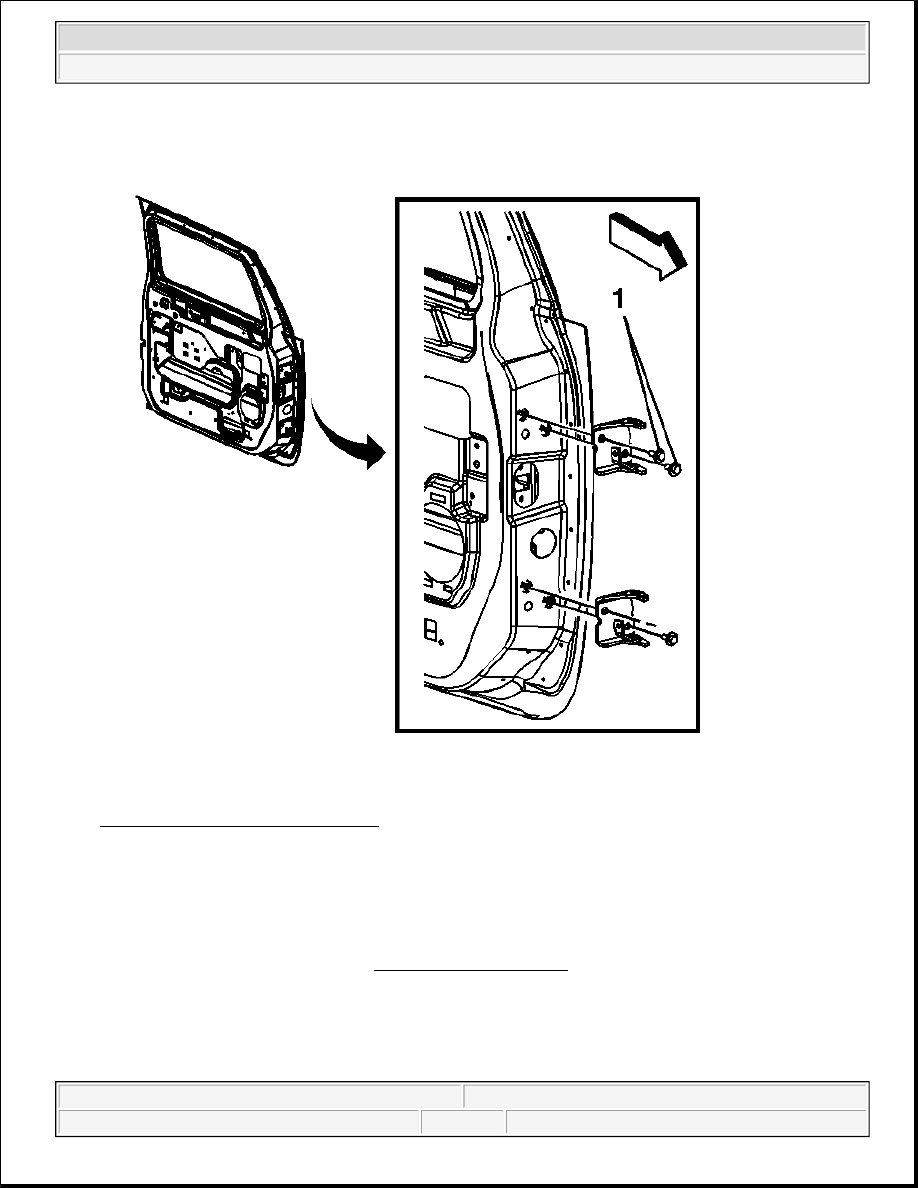

Fig. 50: Front Door Hinge Fasteners
Courtesy of GENERAL MOTORS CORP.

3. Install the fasteners (1) retaining the hinge to the door.

Tighten: Tighten the fasteners to 25 N.m (18 lb ft).

4. Adjust the door if necessary. Refer to Door Adjustment - Front .

HINGE REPLACEMENT - REAR DOOR

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



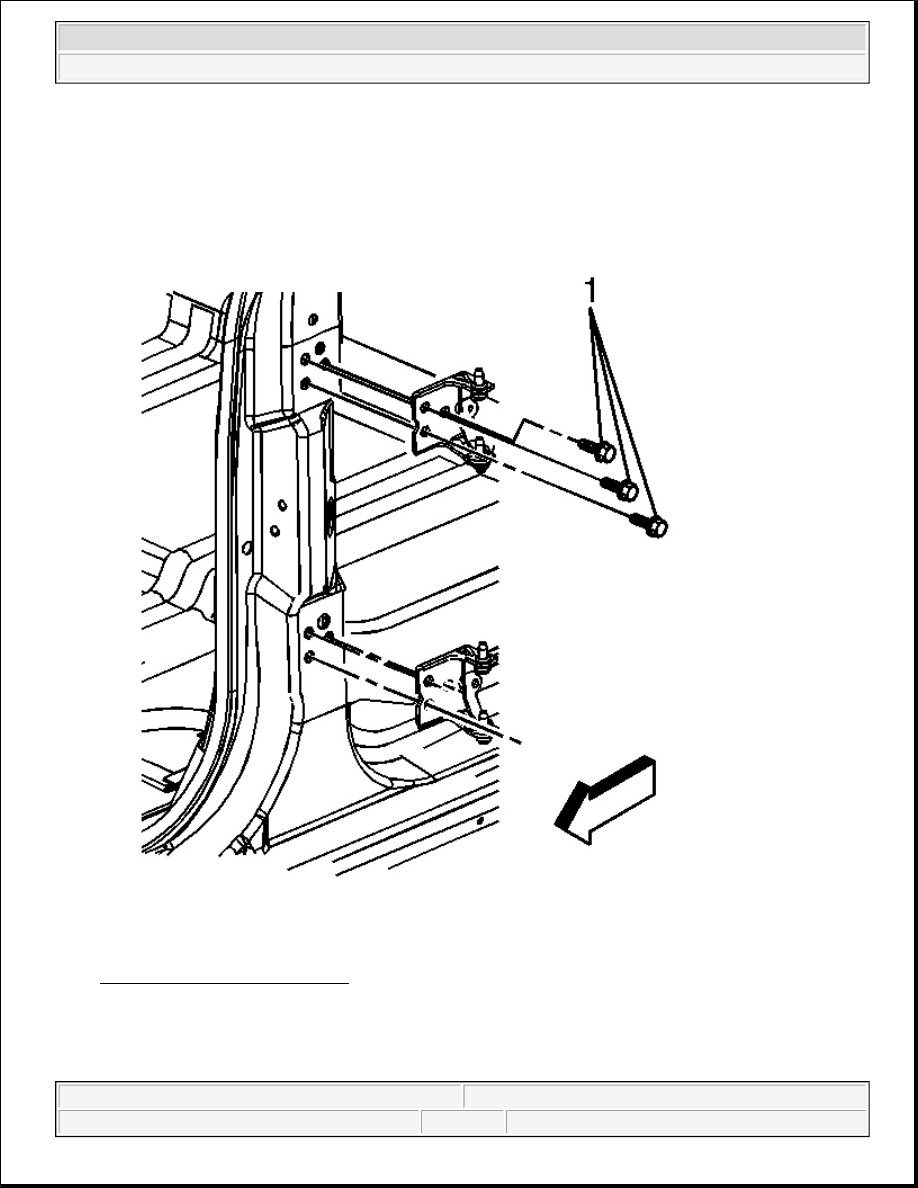

Fig. 51: Vehicle Hinge Fasteners
Courtesy of GENERAL MOTORS CORP.

1. Open the door.

2. Mark the hinge location with a grease pencil prior to removal.

IMPORTANT: To retain proper alignment, properly support the door and replace the hinges

one at a time if possible.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



3. Remove the 3 fasteners (1) retaining the hinge to the vehicle.

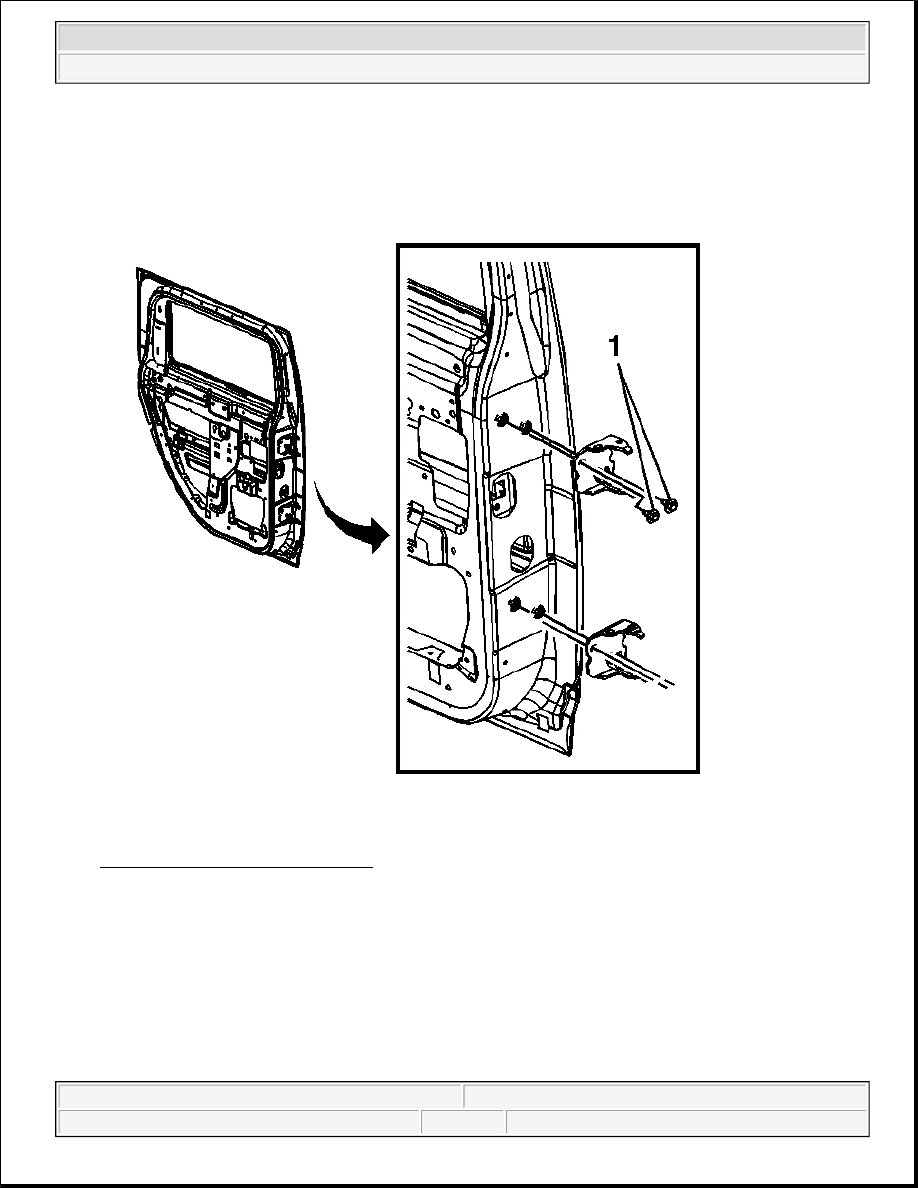

Fig. 52: Rear Door Hinge Fasteners
Courtesy of GENERAL MOTORS CORP.

4. Remove the 2 fasteners (1) retaining the hinge to the door.

5. Remove the hinge.

Installation Procedure

1. With an assistant, align the hinge to the alignment marks made with the grease pencil.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

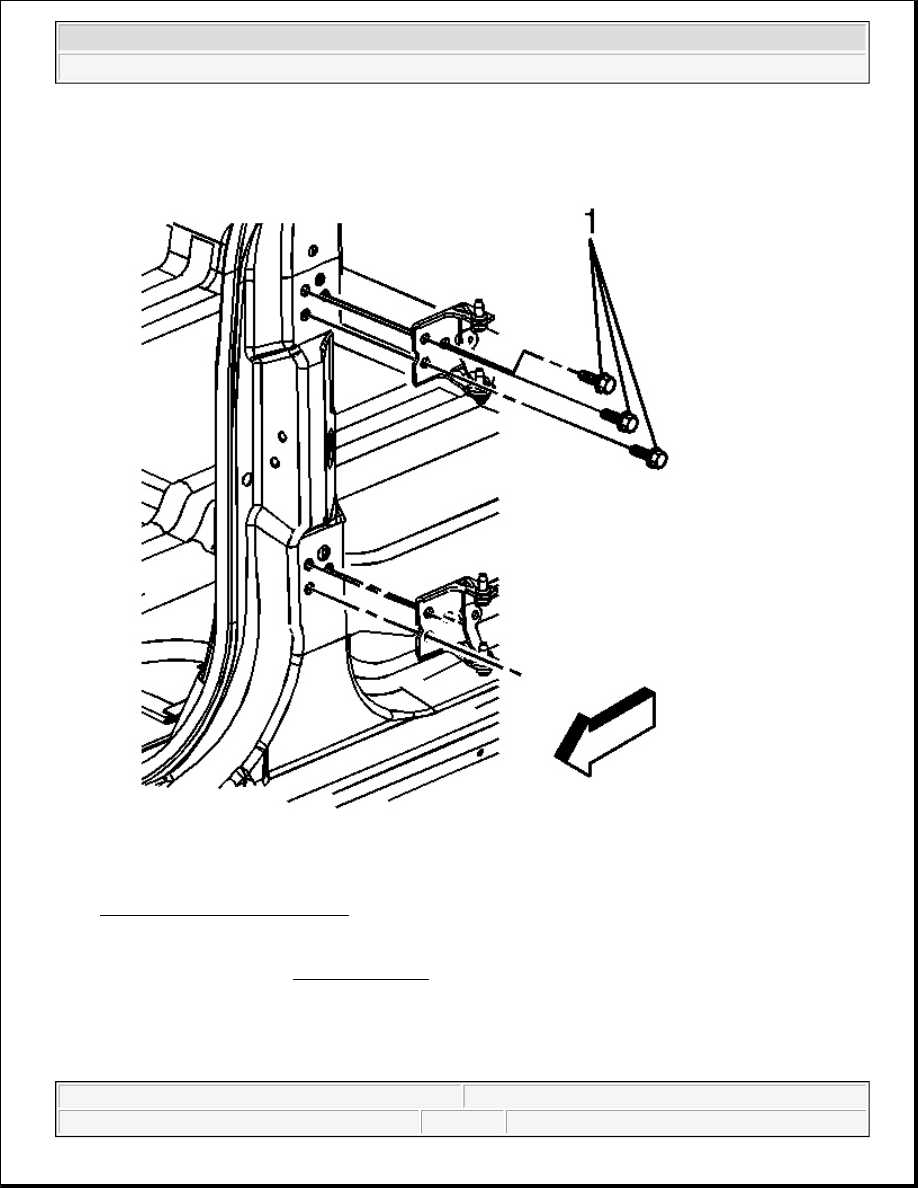

Fig. 53: Vehicle Hinge Fasteners
Courtesy of GENERAL MOTORS CORP.

2. Install the fasteners (1) retaining the hinge to the vehicle.

NOTE:

Refer to Fastener Notice in Cautions and Notices.
