5. Install the water deflector. Refer to Water Deflector Replacement - Front Door .

6. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

DOOR ADJUSTMENT - REAR

1. Loosen the door hinge bolts and adjust the door by moving the door:

Upward or downward

Forward or rearward

Inward or outward

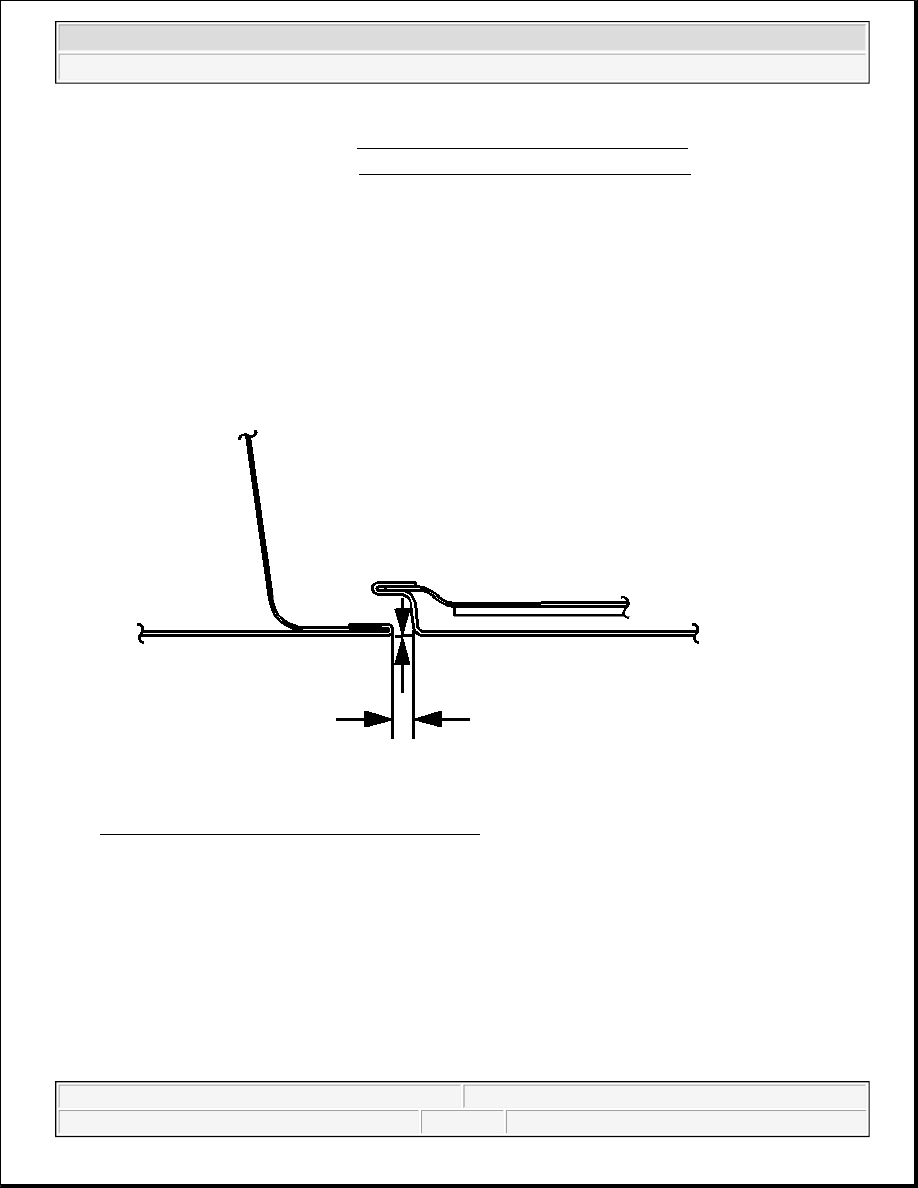

Fig. 42: Adjusting Rear Door To Front Door Gap
Courtesy of GENERAL MOTORS CORP.

2. Adjust the rear door to front door gap to 5 mm (0.2 in).

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

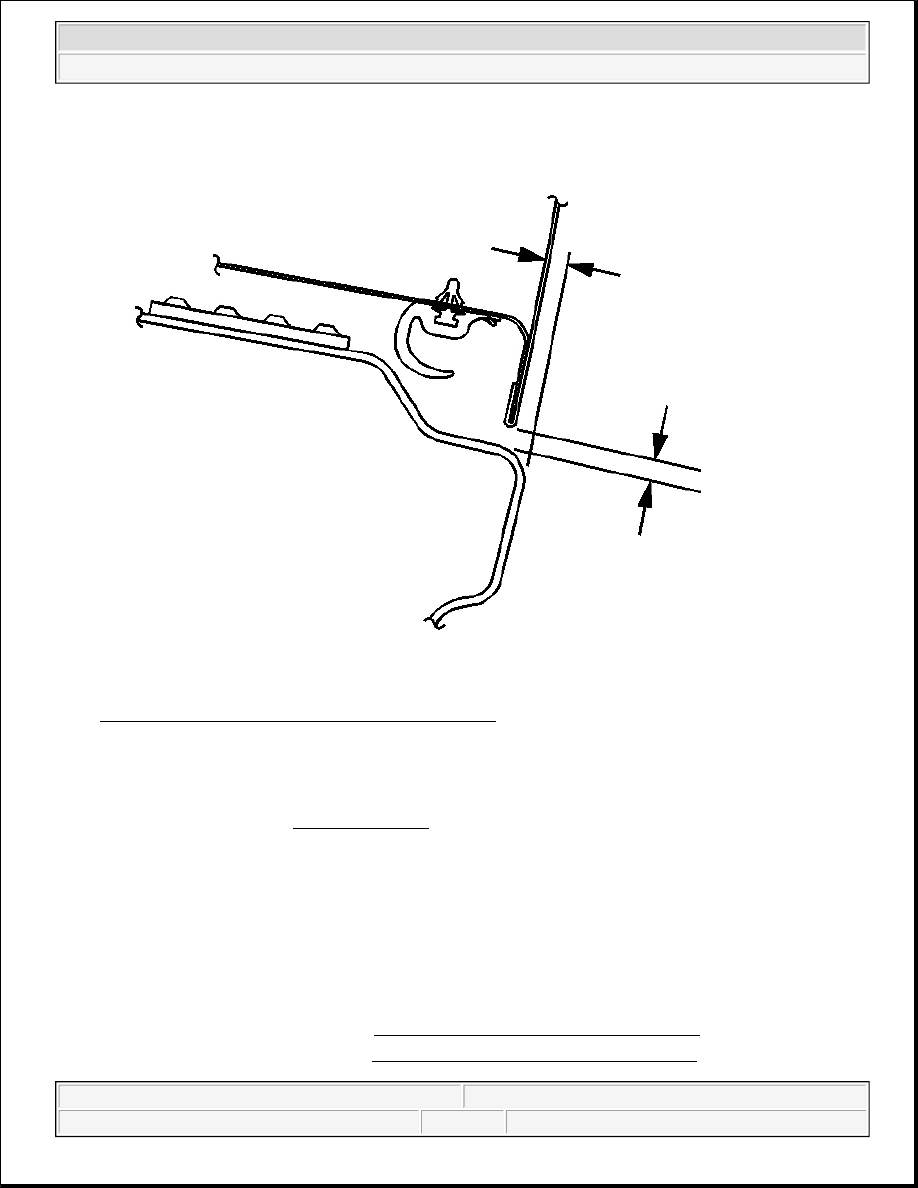

Fig. 43: Adjusting Rear Door To Body Side Panel
Courtesy of GENERAL MOTORS CORP.

3. Adjust the rear door to body side panel 5 mm (0.2 in).

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

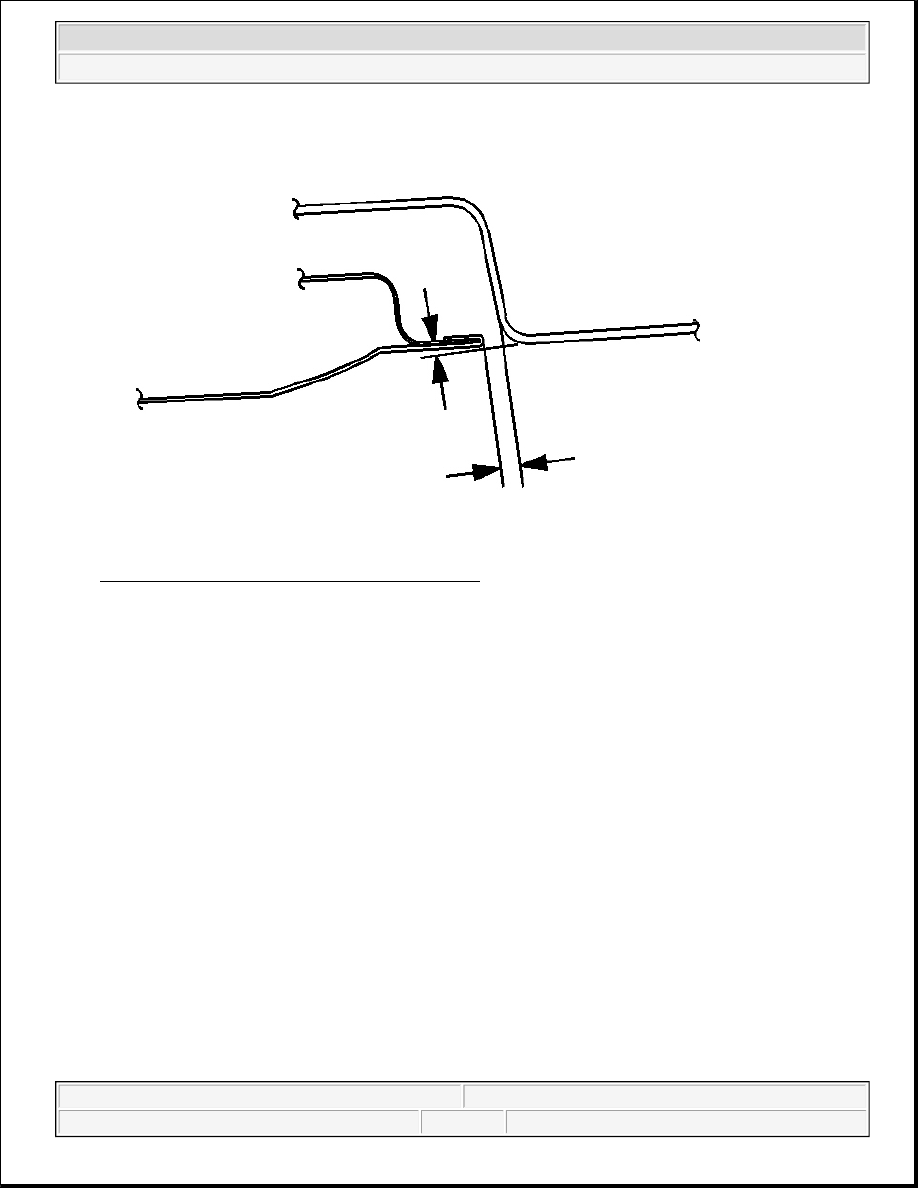

Fig. 44: Adjusting Rear Door To Rocker Panel Gap
Courtesy of GENERAL MOTORS CORP.

4. Adjust the rear door to rocker panel gap to 5 mm (0.2 in).

5. When proper adjustment specifications are set,

Tighten: Tighten the hinge bolts to 25 N.m (18 lb ft).

DOOR REPLACEMENT - REAR

Removal Procedure

1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

2. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .

NOTE:

Refer to Fastener Notice in Cautions and Notices.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

3. Remove the wiring harness. Refer to Wiring Harness Replacement - Rear Door .

4. Remove the fasteners retaining the door check link to the body. Refer to Door Check Link

Replacement .

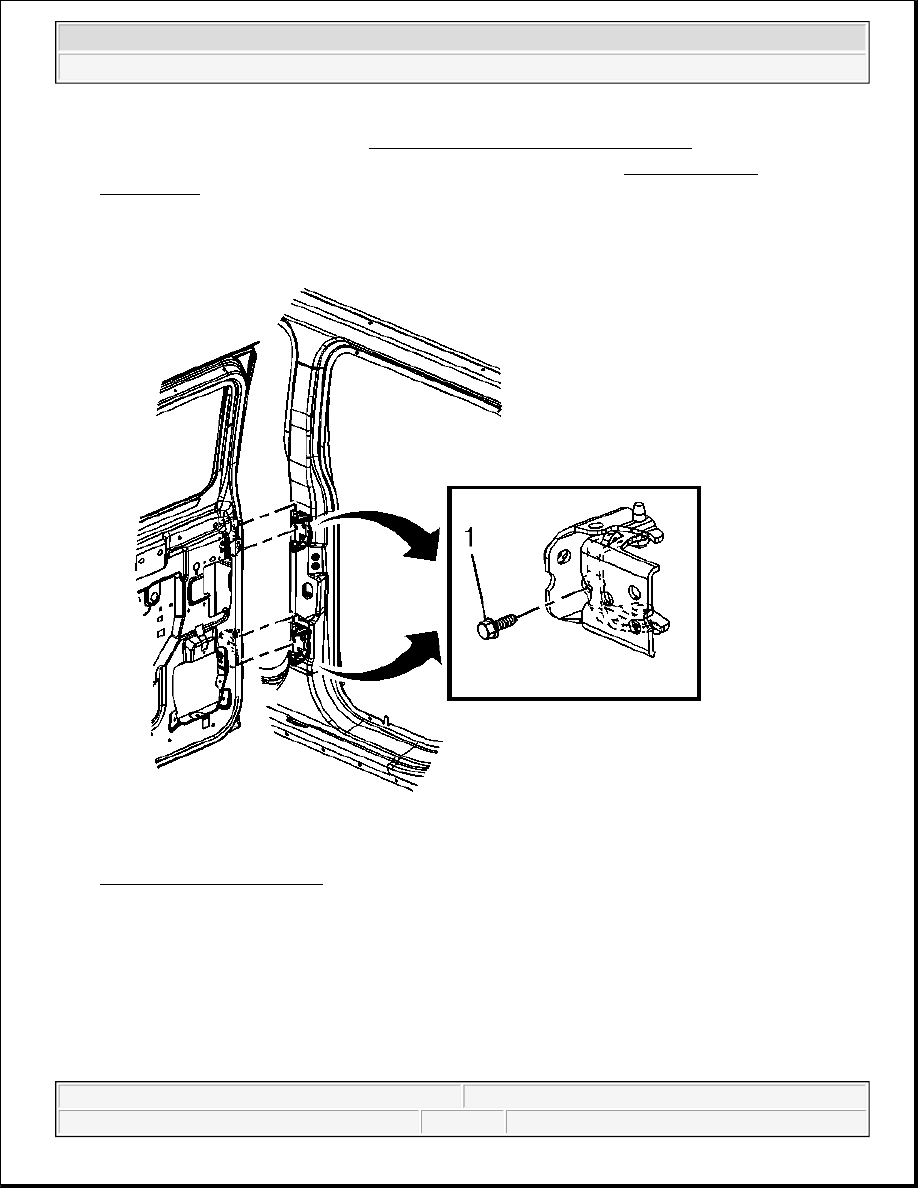

Fig. 45: Rear Door Fasteners
Courtesy of GENERAL MOTORS CORP.

5. Remove the fasteners (1) retaining the door hinge halves together.

6. With an assistant, lift up on the door and remove the door from the vehicle.

Installation Procedure
