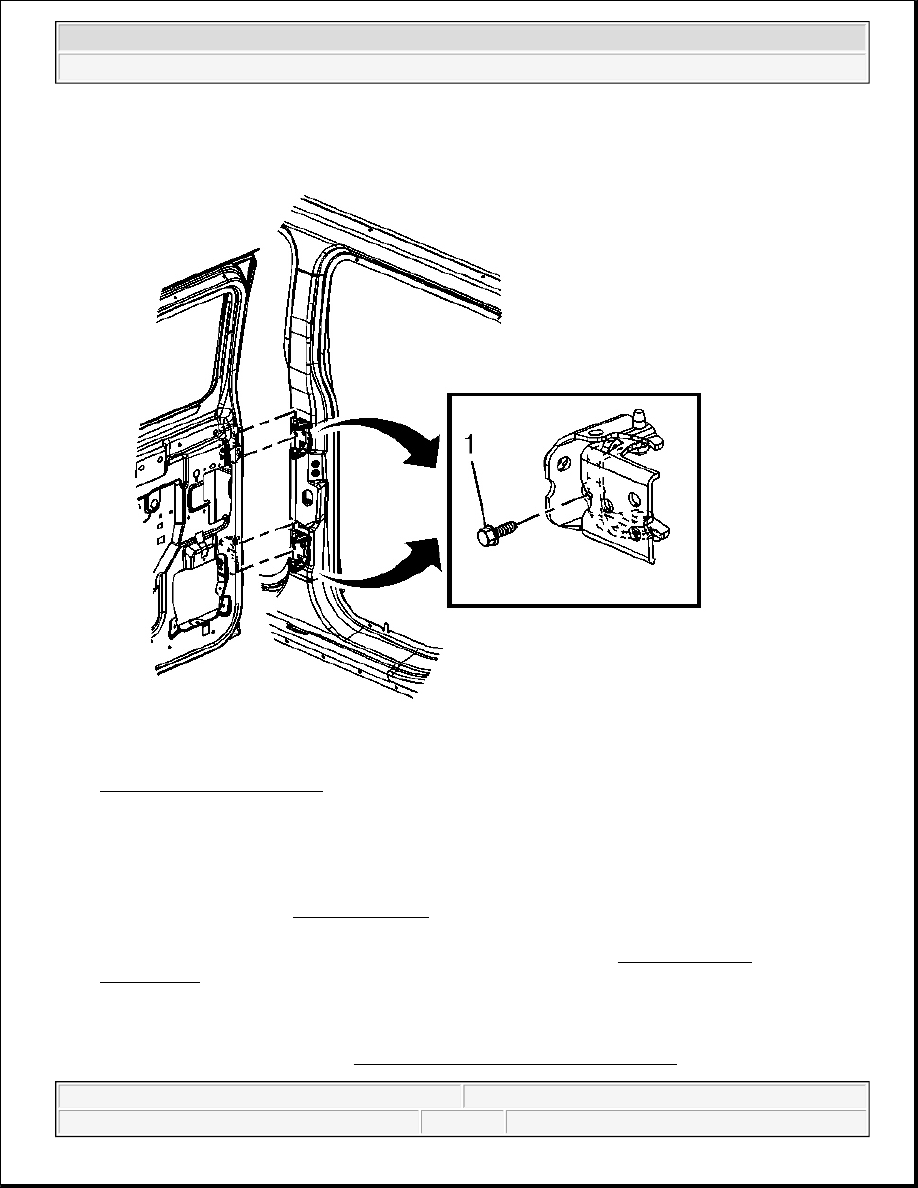

Fig. 46: Rear Door Fasteners
Courtesy of GENERAL MOTORS CORP.

1. With an assistant, align the door to the vehicle and install the fasteners (1) that retain the door hinge

halves together.

2. Install the fasteners that retain the door check link to the body. Refer to Door Check Link

Replacement .

Tighten: Tighten the fasteners to 9 N.m (7 lb ft)

3. Install the wiring harness. Refer to Wiring Harness Replacement - Rear Door .

NOTE:

Refer to Fastener Notice in Cautions and Notices



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



4. Transfer components as necessary.

5. Install the water deflector. Refer to Water Deflector Replacement - Rear Door .

6. Install the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

HINGE REPLACEMENT - FRONT DOOR

Removal Procedure

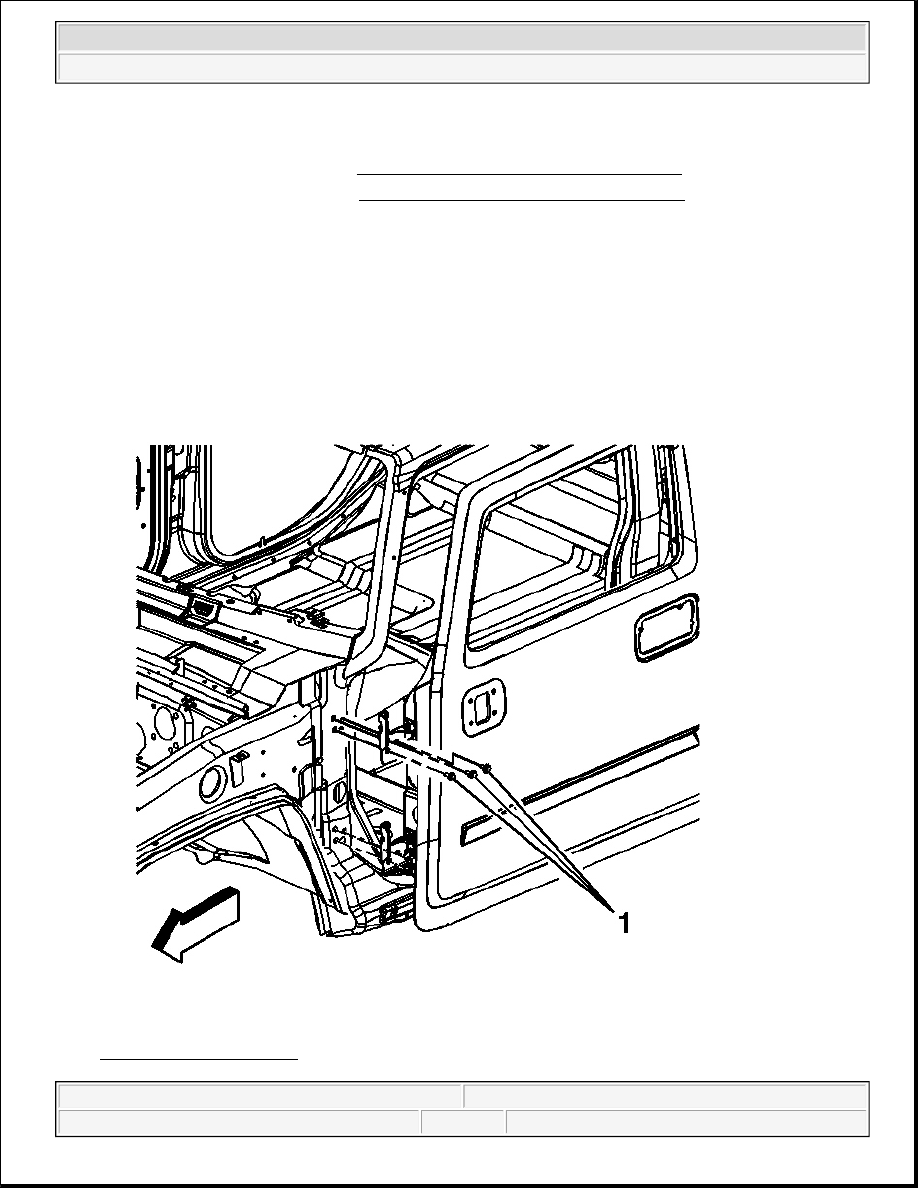

Fig. 47: Vehicle Fasteners
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: To retain proper alignment, properly support the door and replace the hinges

one at a time if possible.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



1. Open the door.

2. Mark the hinge location with a grease pencil prior to removal.

3. Remove the 3 fasteners (1) retaining the hinge to the vehicle.

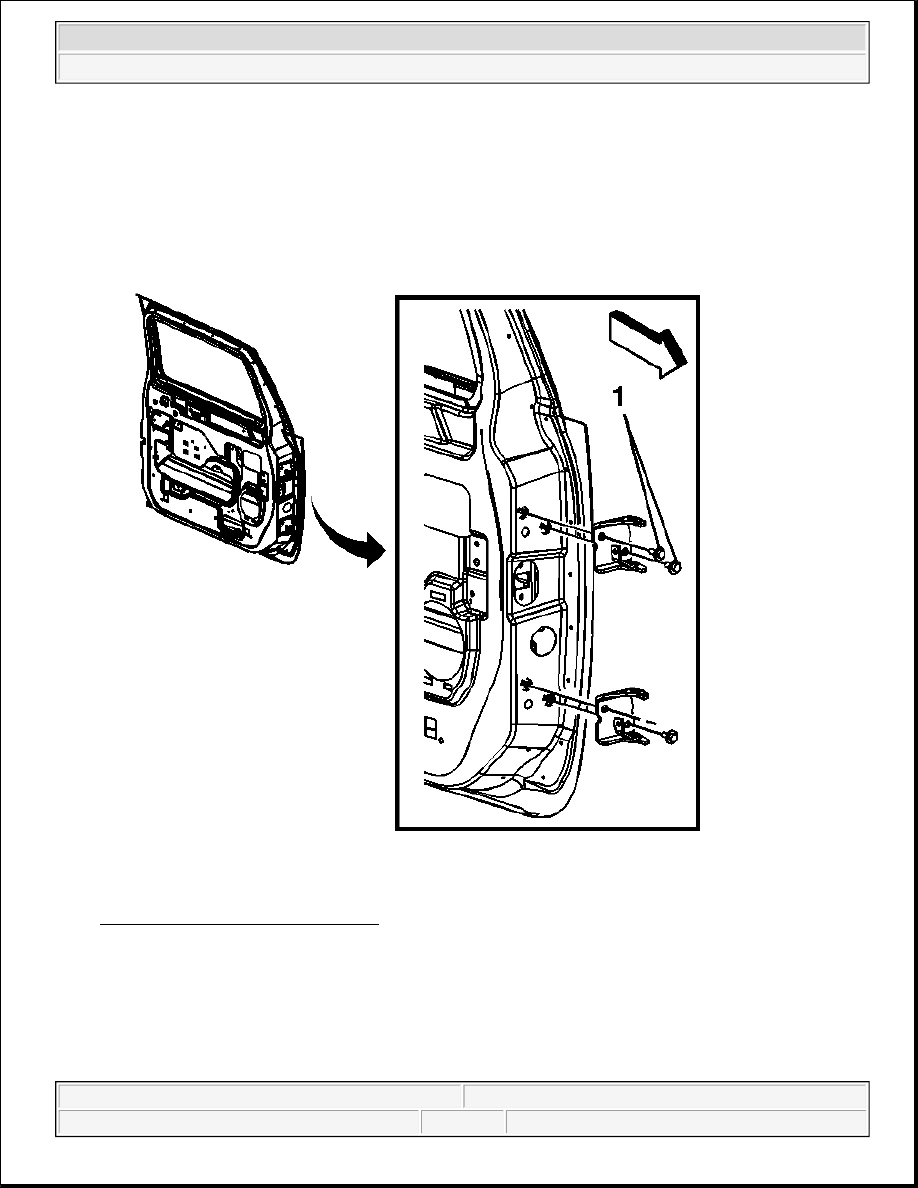

Fig. 48: Front Door Hinge Fasteners
Courtesy of GENERAL MOTORS CORP.

4. Remove the 2 fasteners (1) retaining the hinge to the door.

5. Remove the hinge.

Installation Procedures



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



1. With an assistant, align the hinge to the alignment marks made with the grease pencil.

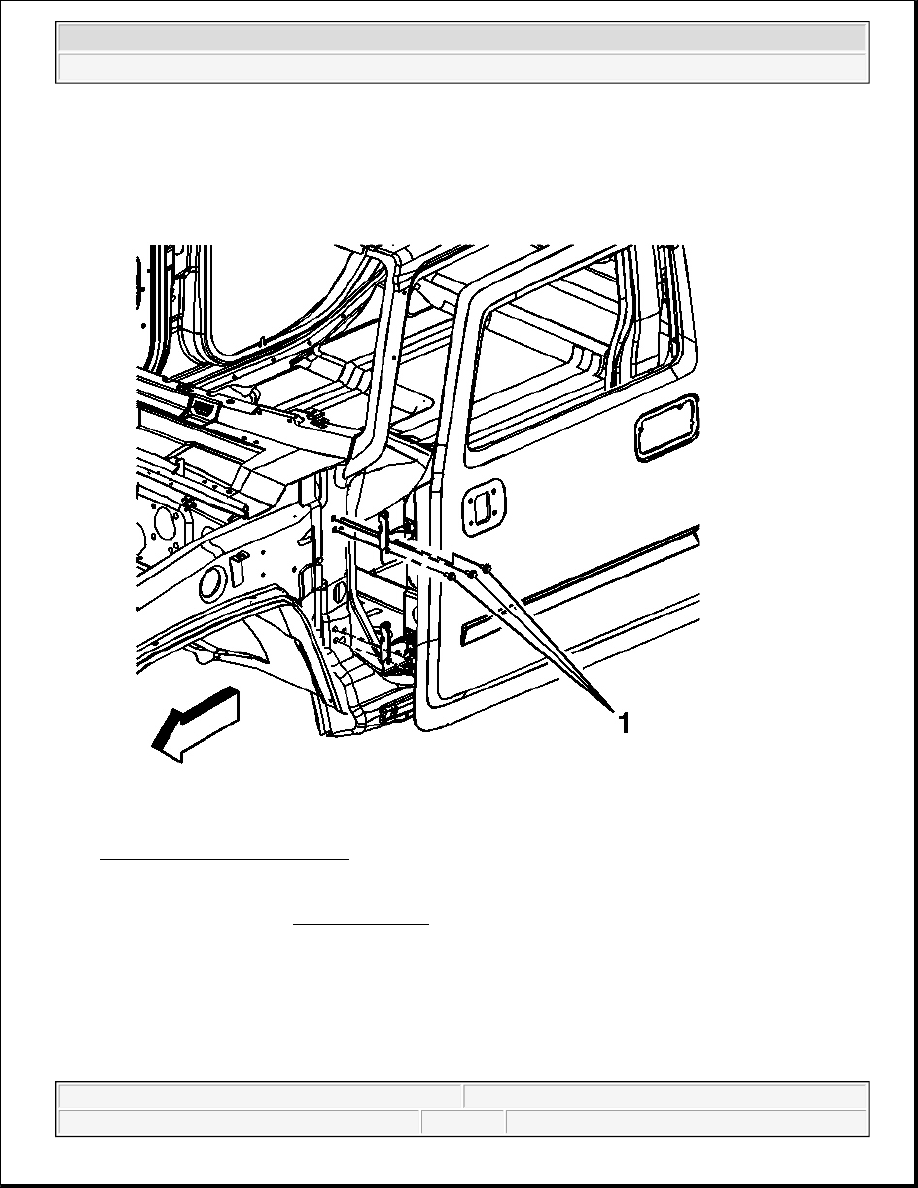

Fig. 49: Vehicle Hinge Fasteners
Courtesy of GENERAL MOTORS CORP.

2. Install the fasteners (1) retaining the hinge to the vehicle.

Tighten: Tighten the fasteners to 25 N.m (18 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.
