8. Operate the door handle to check for proper operation.

DOOR HANDLE REPLACEMENT - REAR OUTSIDE

Removal Procedure

1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

2. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .

3. Apply a piece of masking tape across the door handle, on the outside of the door, to secure the door

handle while removing the fasteners.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

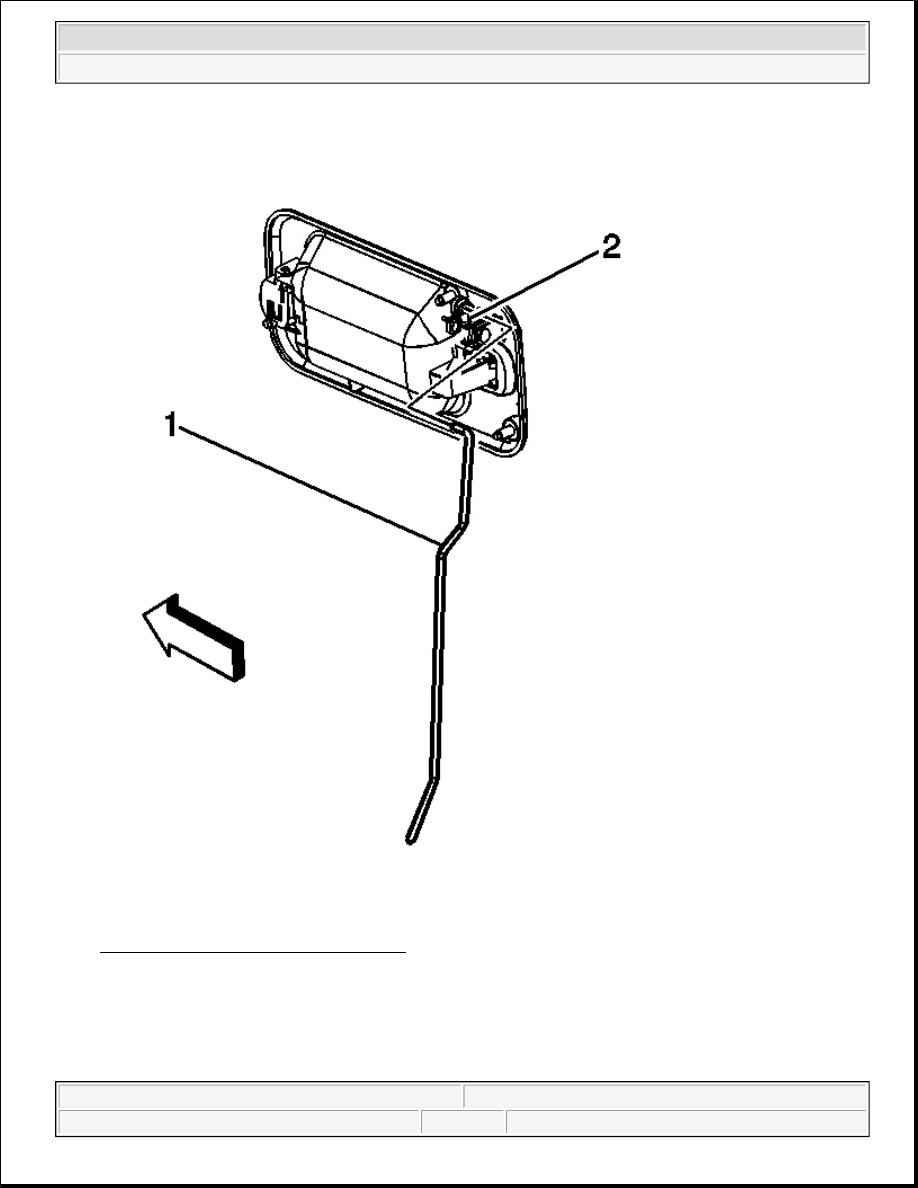

Fig. 65: Rear Outside Door Handle Rod
Courtesy of GENERAL MOTORS CORP.

4. Disconnect the outside door handle rod (1) by releasing the retaining clips (2).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 66: Rear Outside Door Handle
Courtesy of GENERAL MOTORS CORP.

5. Remove the 3 nuts (1) retaining the door handle to the door.

6. Remove the door handle.

Installation Procedure

1. Position the door handle in place on the door.

2. Apply a piece of masking tape across the door handle on the outside of the door to secure the door handle

while installing the fasteners.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

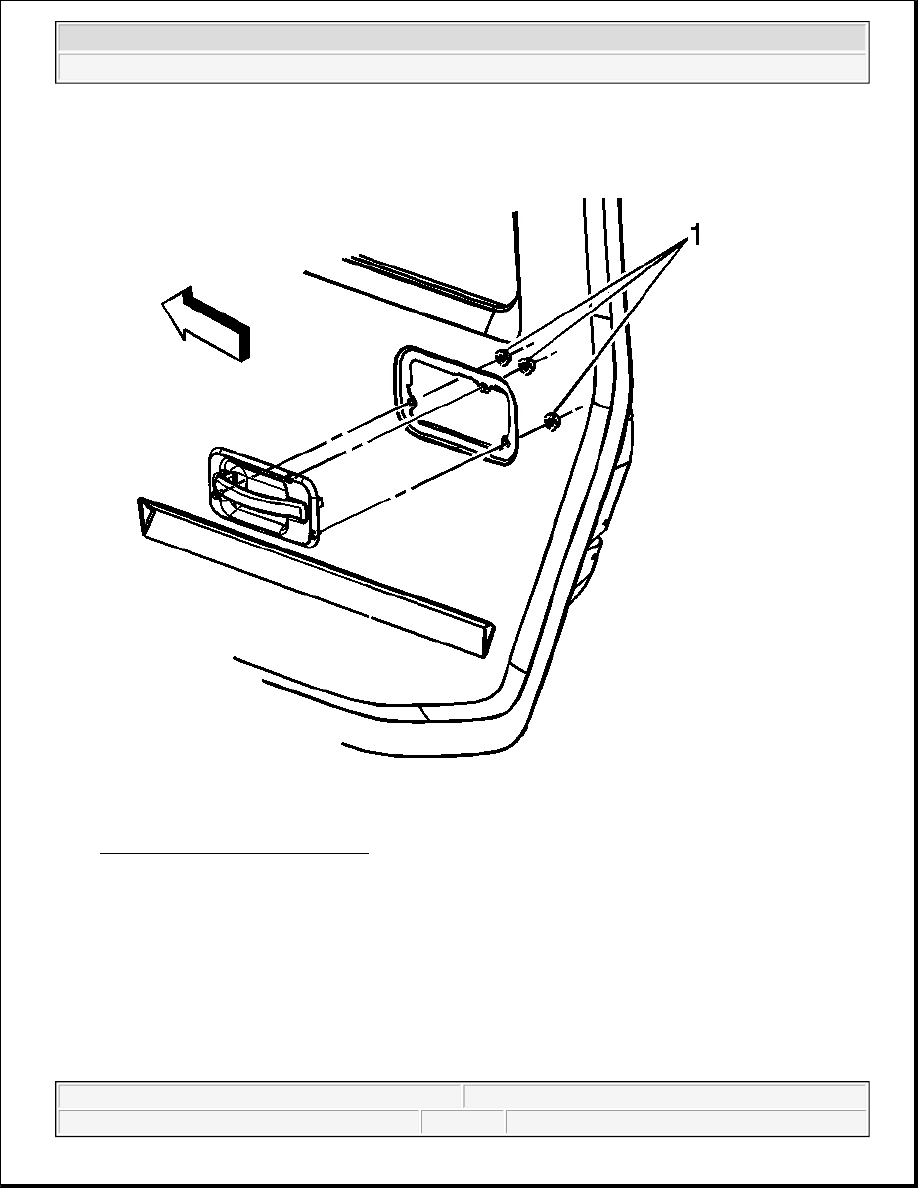

Fig. 67: Rear Outside Door Handle
Courtesy of GENERAL MOTORS CORP.

3. Install the 3 nuts (1) that retain the door handle to the door.

Tighten: Tighten the nuts to 9 N.m (7 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.
