Hummer H2. Manual - part 403

Fig. 116: I/P Center Console
Courtesy of GENERAL MOTORS CORP.

4. Remove the center console.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



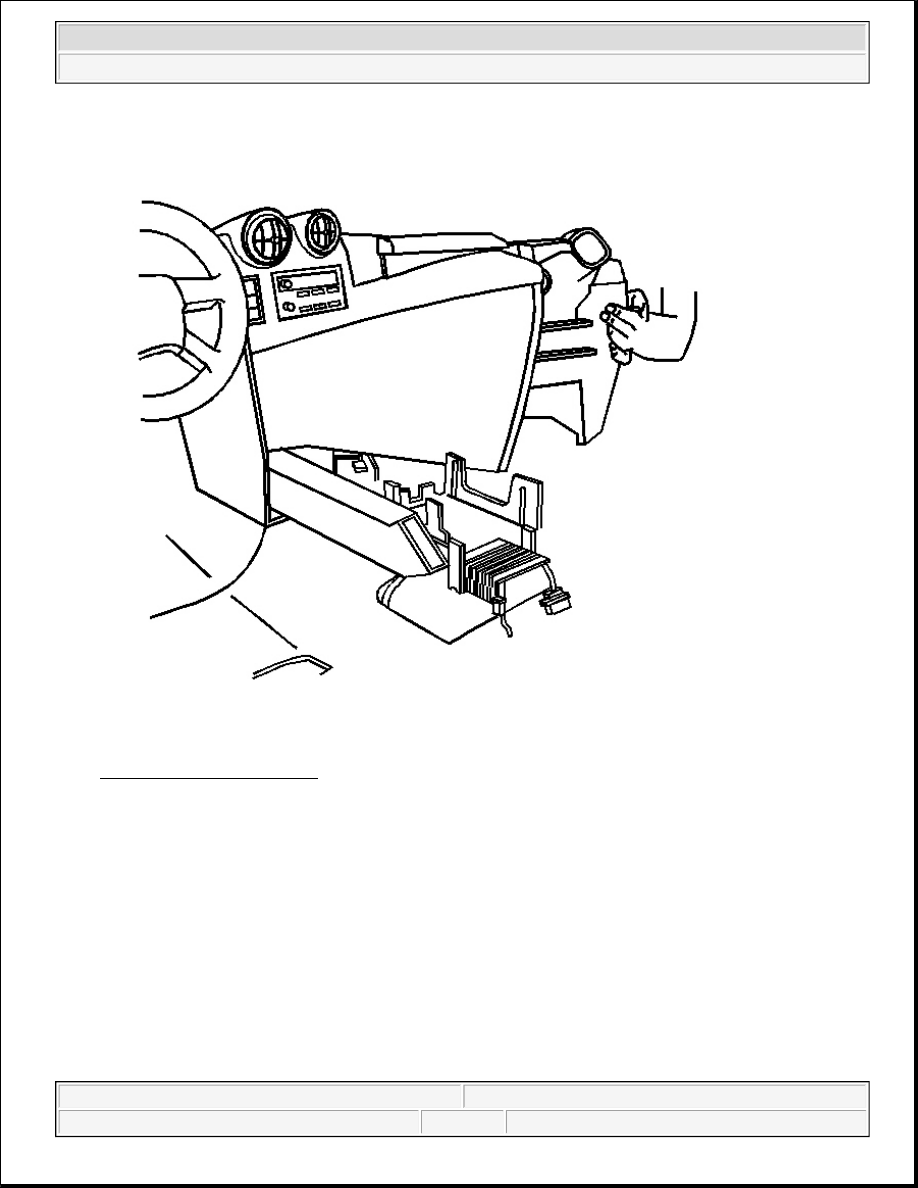

Fig. 117: I/P Center Console
Courtesy of GENERAL MOTORS CORP.

1. Align center console to center console bracket and route the electrical wiring through console.

2. Connect the console electrical connector.

IMPORTANT: Make sure HVAC duct is aligned with center console.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2

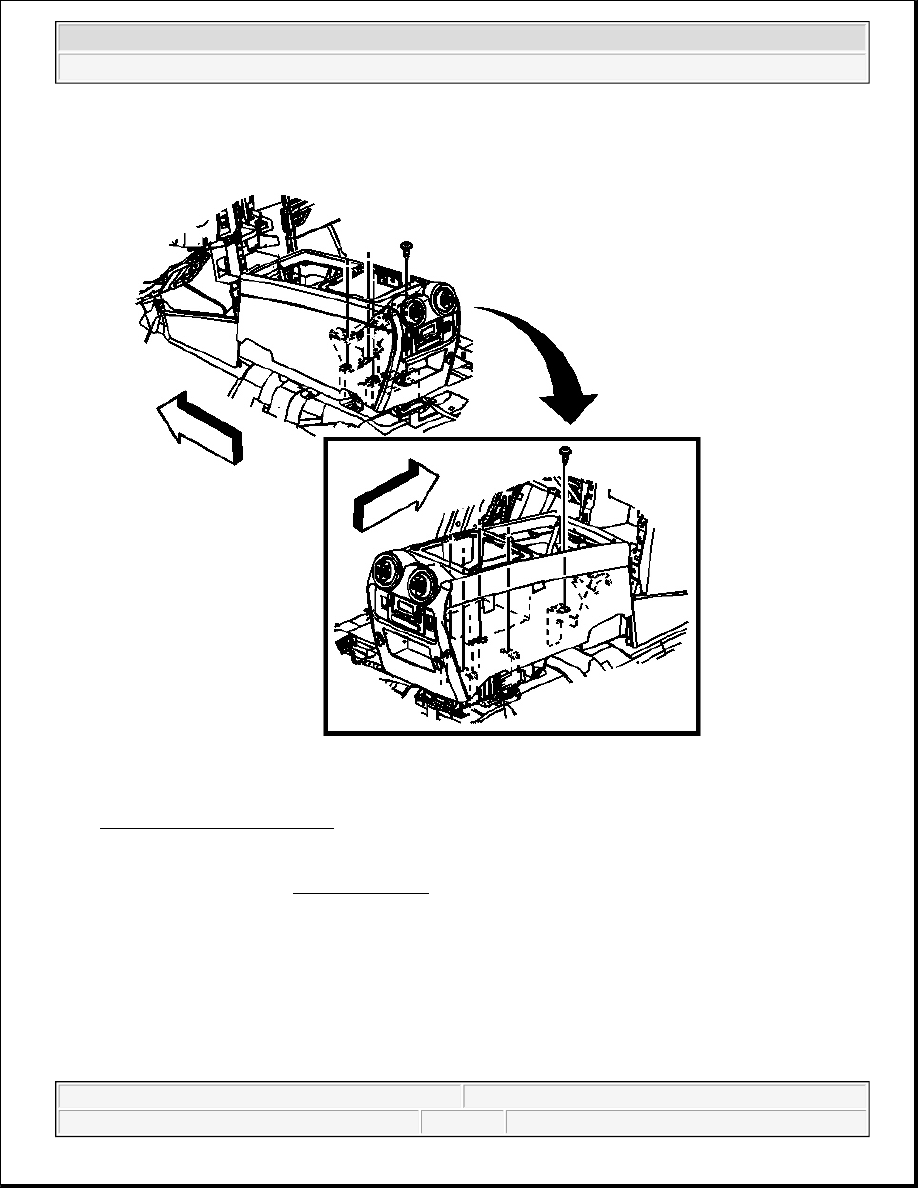

Fig. 118: Center Console Bolts
Courtesy of GENERAL MOTORS CORP.

3. Install the center console to center console bracket.

4. Install the center console bolts.

Tighten: Tighten the bolts to 9 N.m (80 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2

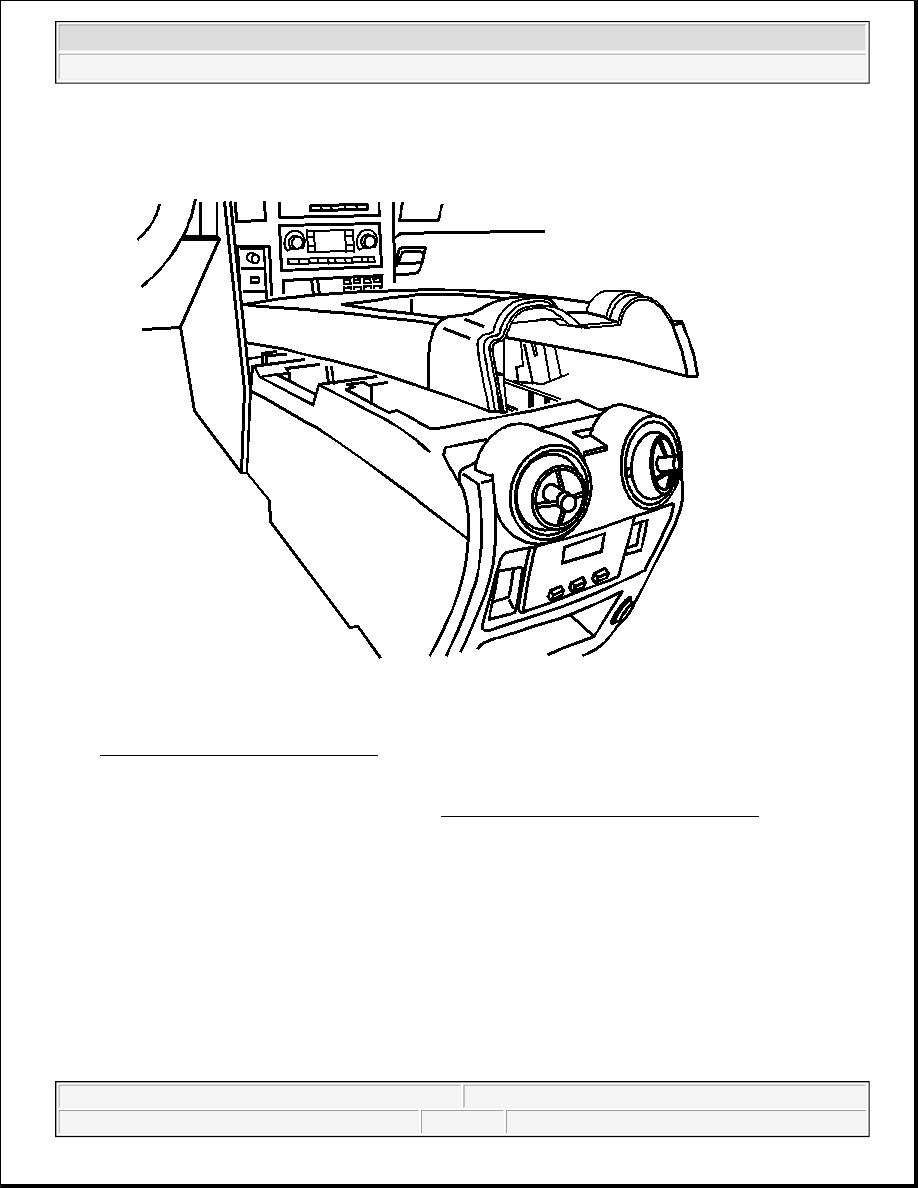

Fig. 119: Console Upper Trim Panel
Courtesy of GENERAL MOTORS CORP.

5. Install the top panel to center console. Refer to Trim Plate Replacement - Console Upper

CENTER CONSOLE END PANEL REPLACEMENT

Removal Procedure

1. Remove screws that hold end panel to center console.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2
