Hummer H2. Manual - part 401

2. Install the latch screws.

Tighten: Tighten the latch screws to 1.6 N.m (14 lb in).

3. Install the inside panel.

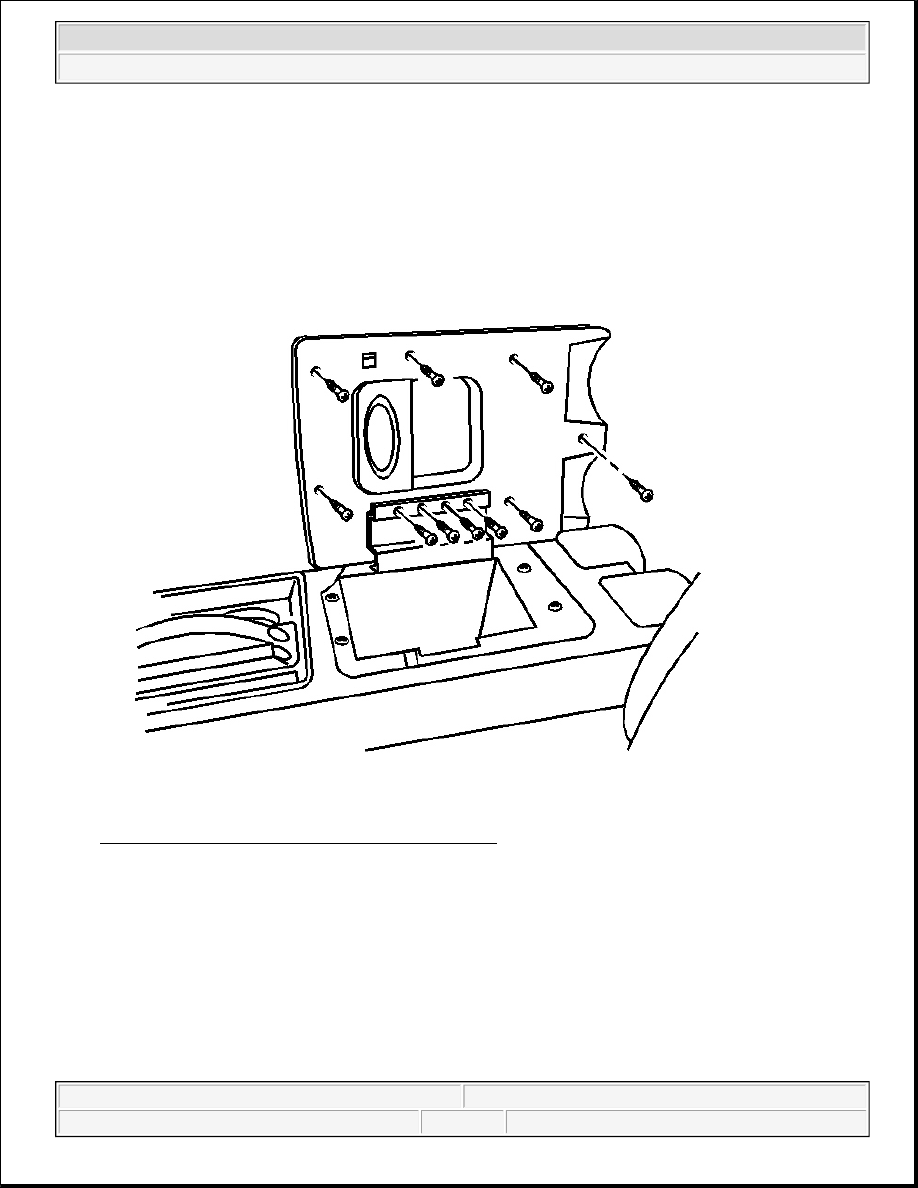

Fig. 108: Console Compartment Center Door Latch
Courtesy of GENERAL MOTORS CORP.

4. Install the console door inner screws.

Tighten: Tighten the screws to 1.6 N.m (14 lb in).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2

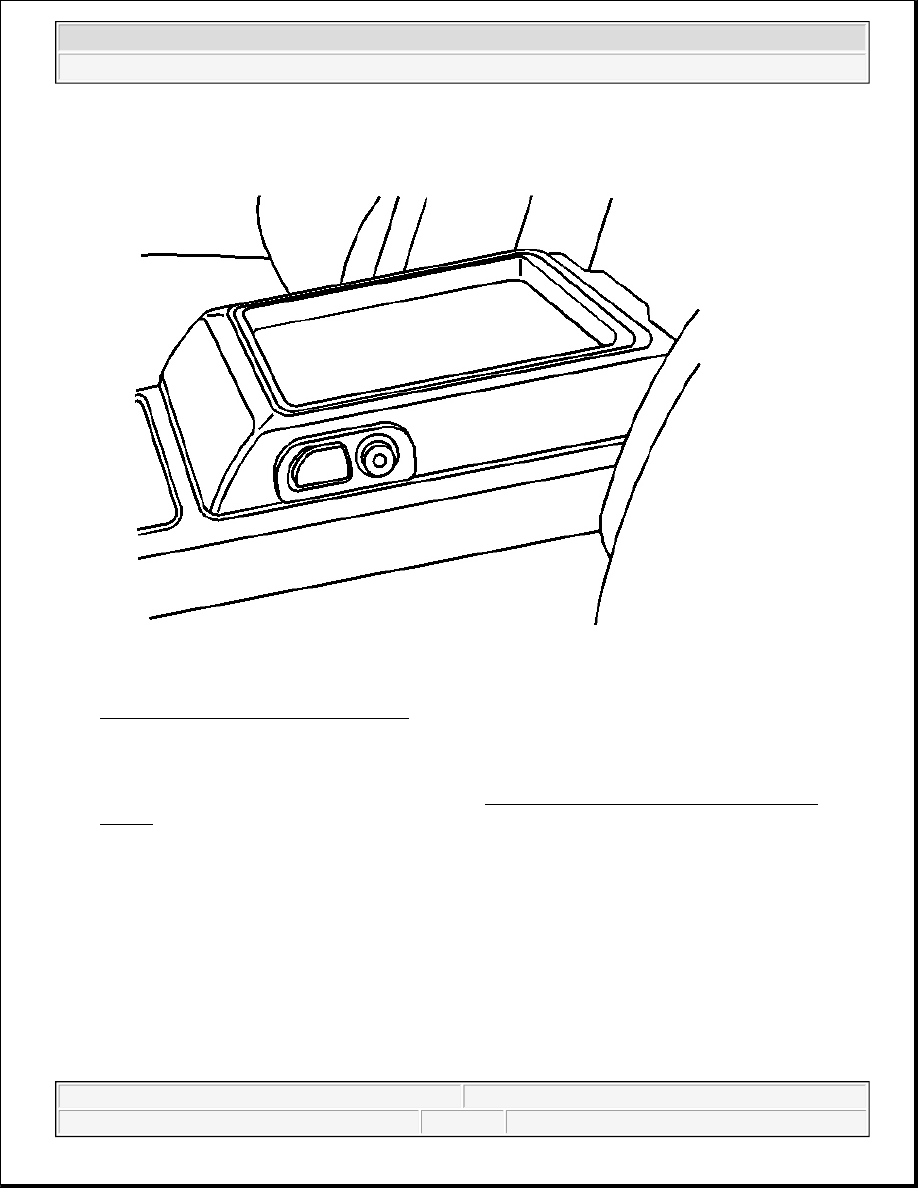

Fig. 109: Compartment Door & Console
Courtesy of GENERAL MOTORS CORP.

5. Inspect the top compartment door operation.

6. Install the compartment door to the console. Refer to Door Replacement - Console Compartment

Center .

CONSOLE STORAGE BIN REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2

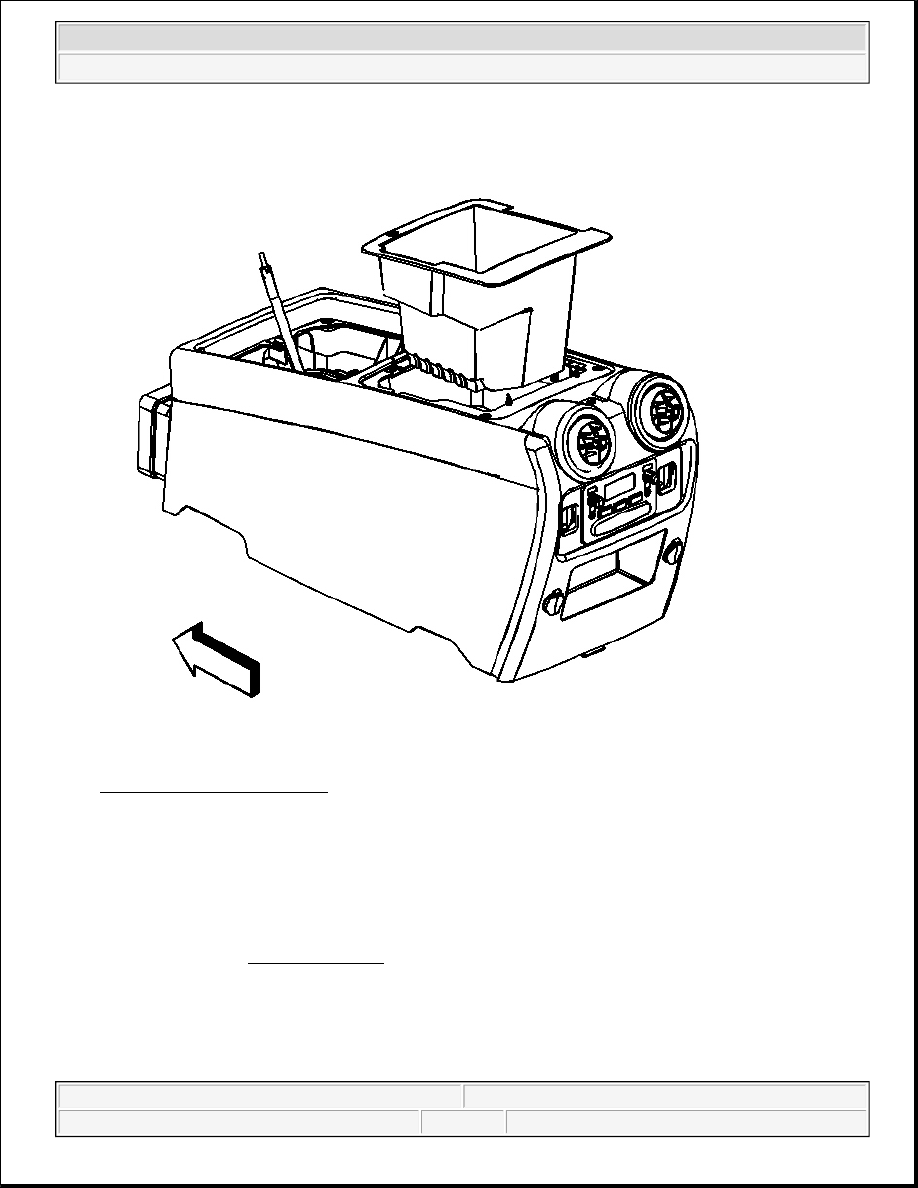

Fig. 110: Console Storage Bin
Courtesy of GENERAL MOTORS CORP.

1. Remove the screws that hold storage bin in place.

2. Remove the storage bin from the center console.

Installation Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 111: Console Storage Bin
Courtesy of GENERAL MOTORS CORP.

1. Install the storage bin.

2. Install the storage bin screws.

Tighten: Tighten the screws to 2 N.m (18 lb in).

TRIM PLATE REPLACEMENT - CONSOLE UPPER

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2
