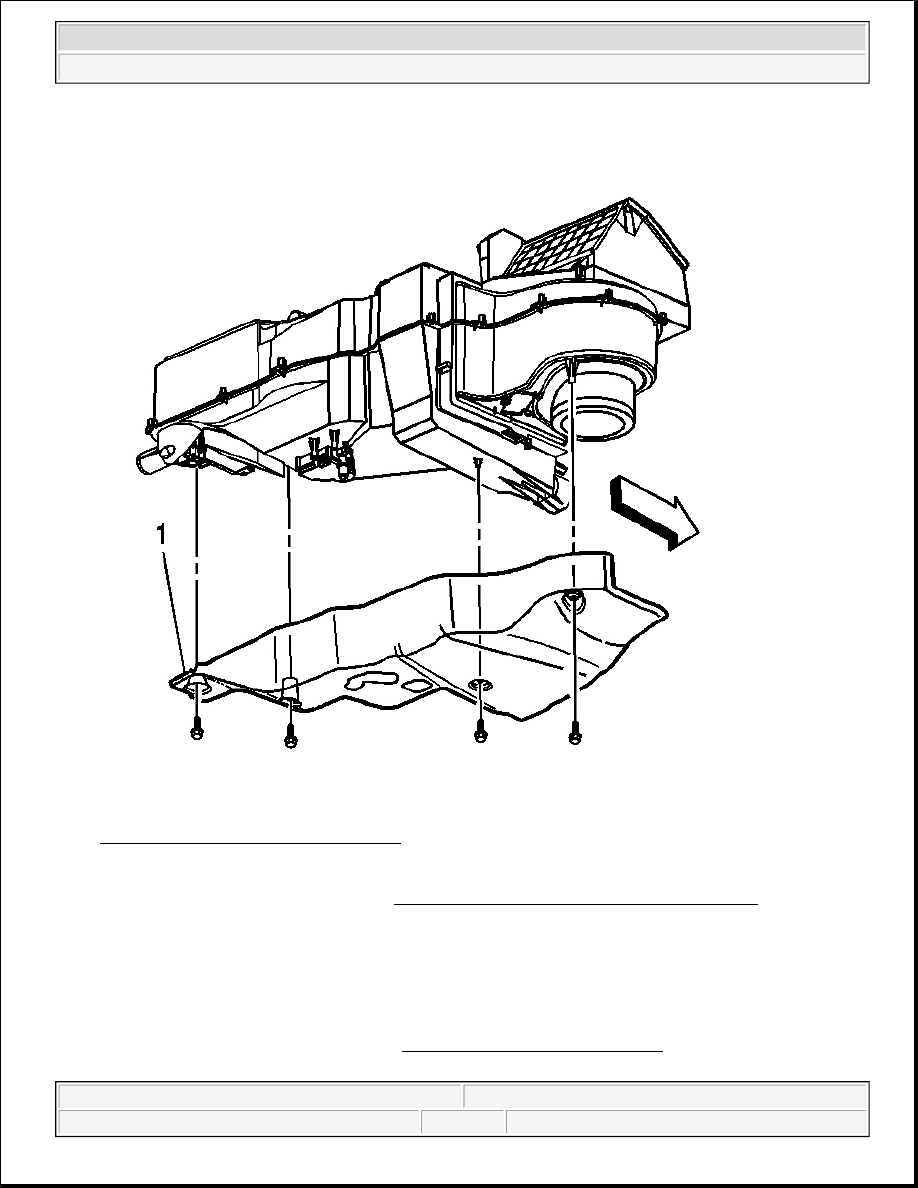

Fig. 104: Insulator & Instrument Panel
Courtesy of GENERAL MOTORS CORP.

29. Install the passengers insulator. Refer to Insulator Replacement - Instrument Panel (I/P) .

DOOR REPLACEMENT - CONSOLE COMPARTMENT CENTER

Removal Procedure

1. Lift compartment door.

2. Remove the console storage bin. Refer to Console Storage Bin Replacement .

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2

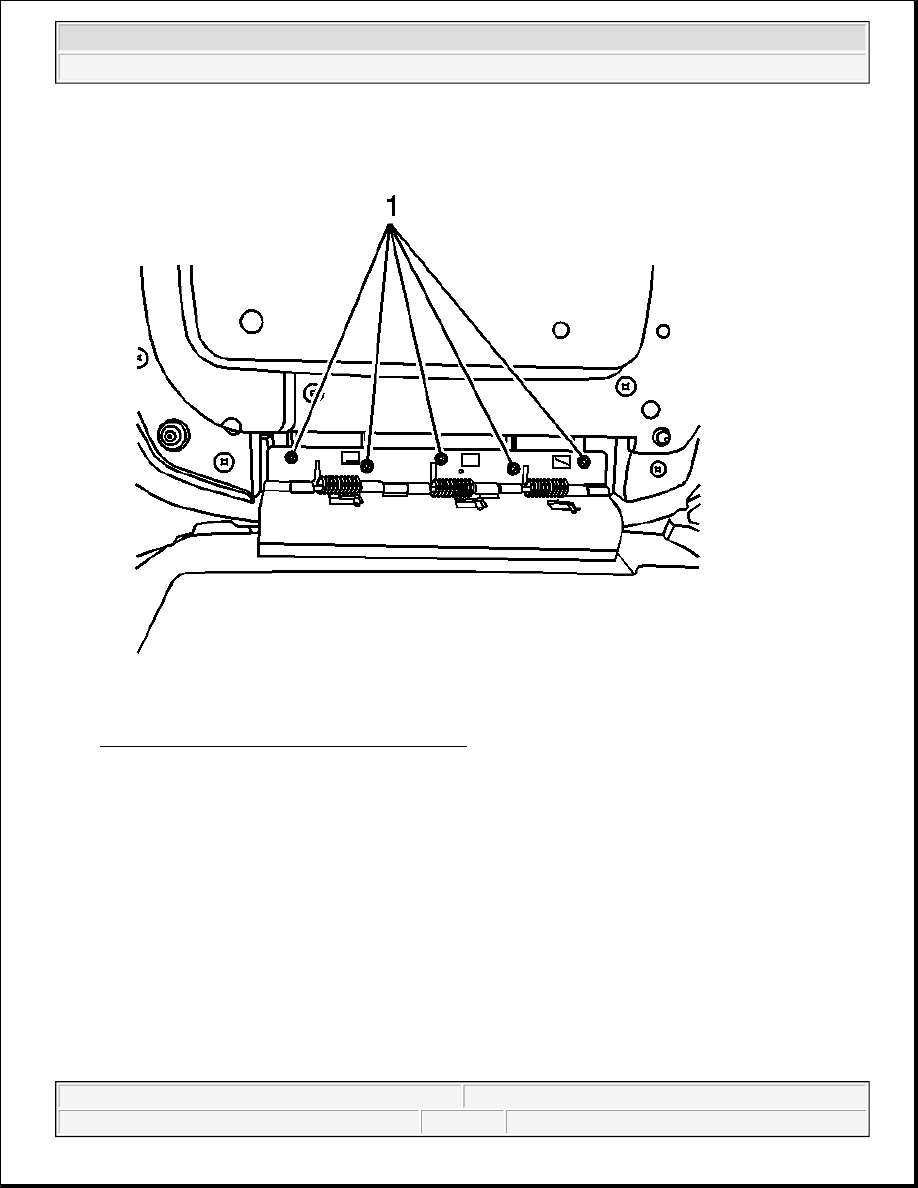

Fig. 105: Compartment Door & Center Console
Courtesy of GENERAL MOTORS CORP.

3. Remove the screws (1) holding compartment door to center console.

Installation Procedure

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2

Fig. 106: Compartment Door & Center Console
Courtesy of GENERAL MOTORS CORP.

1. Align compartment door to center console.

2. Install the compartment door hinge screws (1).

Tighten: Tighten the screws to 2 N.m (18 lb in).

3. Install the storage bin. Refer to Console Storage Bin Replacement .

4. Close compartment door and check alignment for latch assembly.

LATCH REPLACEMENT - CONSOLE COMPARTMENT DOOR

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2

1. Remove the console compartment door from the center console. Refer to Door Replacement - Console

Compartment Center .

2. Place the compartment door on a work bench.

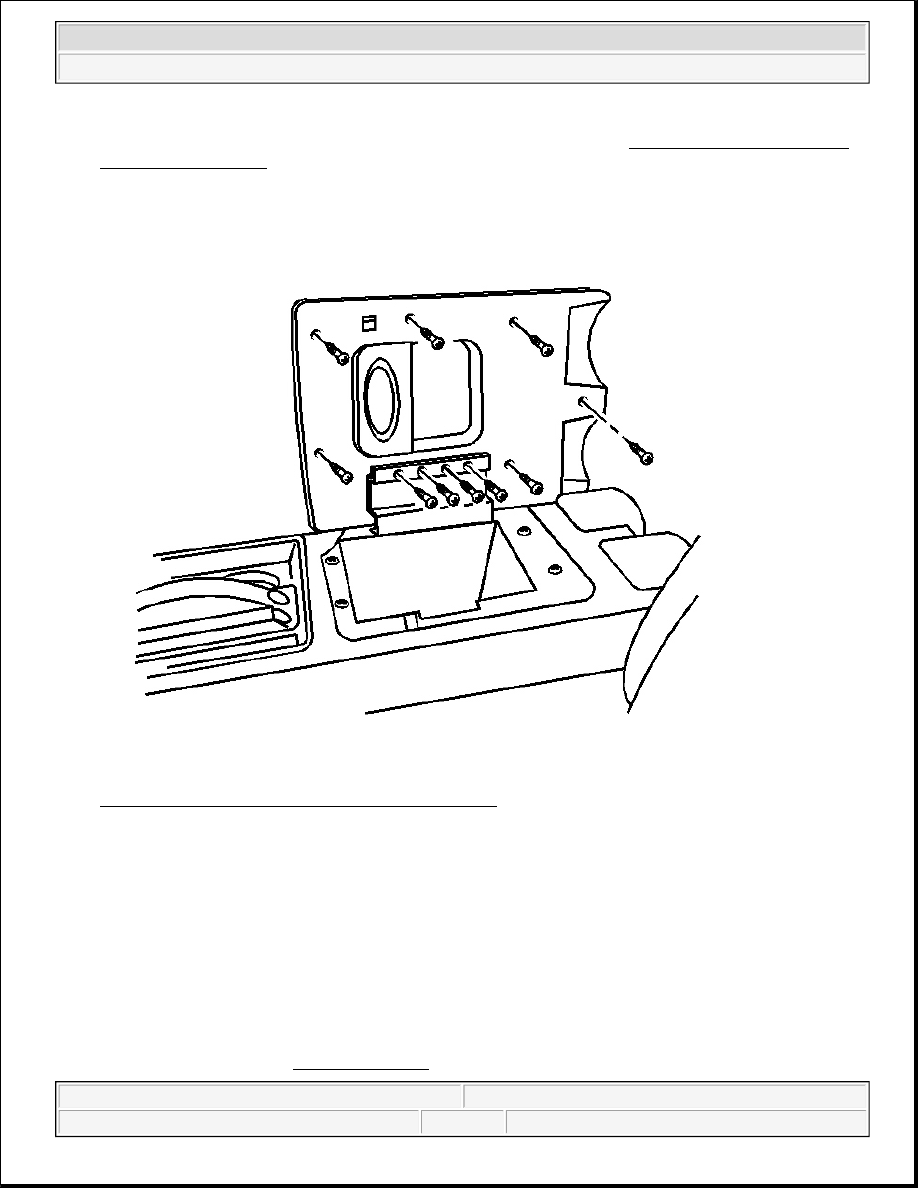

Fig. 107: Console Compartment Center Door Latch
Courtesy of GENERAL MOTORS CORP.

3. Remove the screws from the door inside panel.

4. Remove the inside panel to gain access to the latch compartment.

5. Remove the screws retaining the latch to the console compartment door.

6. Remove the latch assembly.

Installation Procedure

1. Install the latch by pressing inwards until it is seated.

NOTE:

Refer to Fastener Notice in Cautions and Notices.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2
