Fig. 100: I/P Assist Handle
Courtesy of GENERAL MOTORS CORP.

25. Install the assist handle. Refer to Instrument Panel (I/P) Assist Handle Replacement .

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2

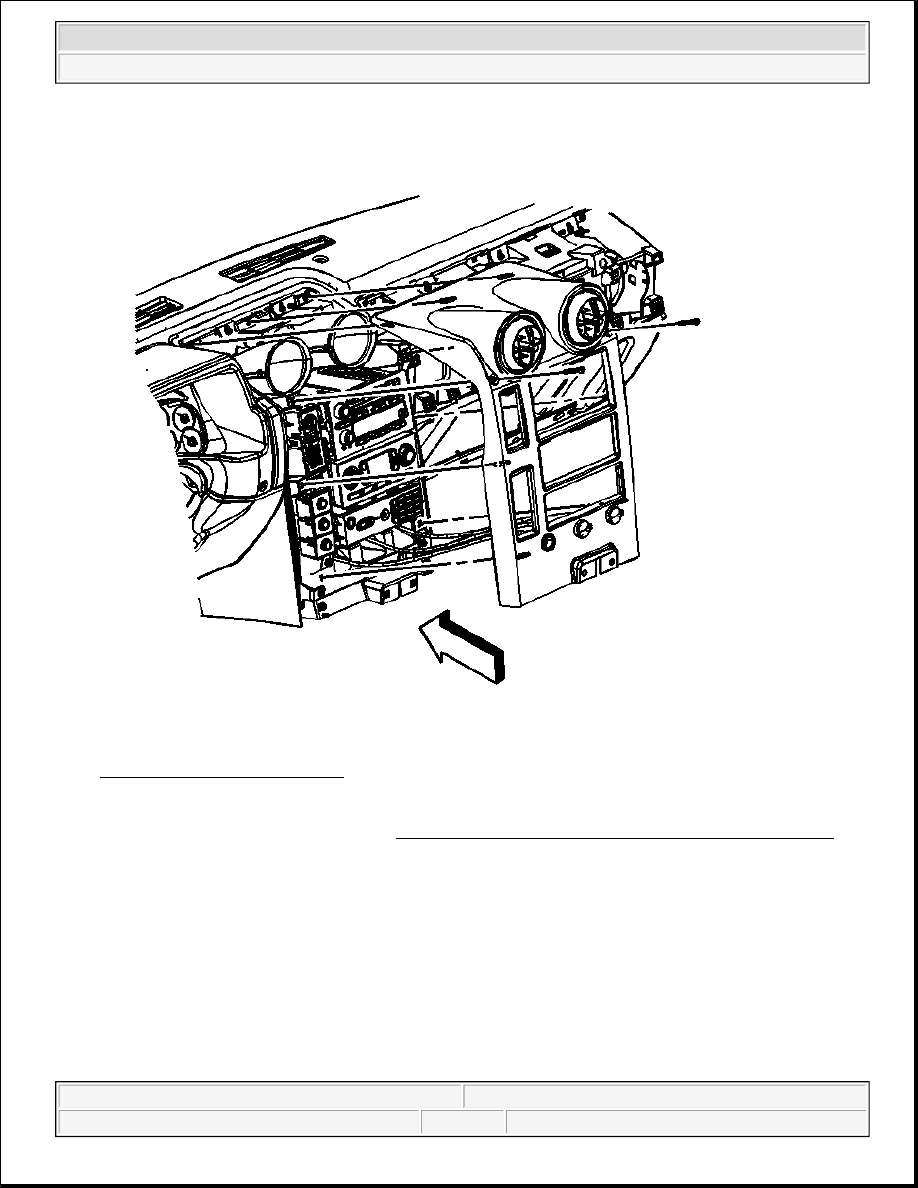

Fig. 101: I/P Center Trim Panel
Courtesy of GENERAL MOTORS CORP.

26. Install the I/P center trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center .

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2

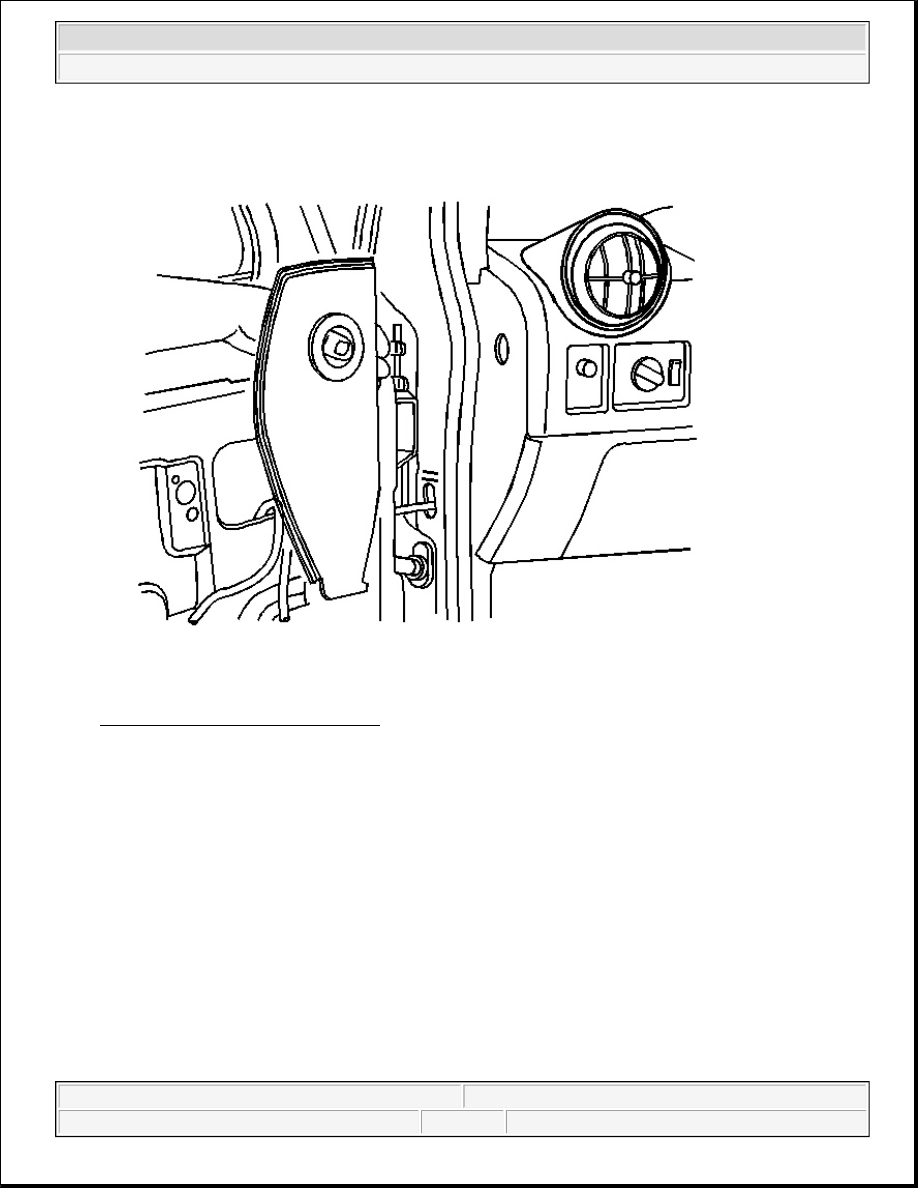

Fig. 102: Left & Right I/P Side Trim
Courtesy of GENERAL MOTORS CORP.

27. Align the drivers and passenger side I/P side trim panel and snap into place.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2

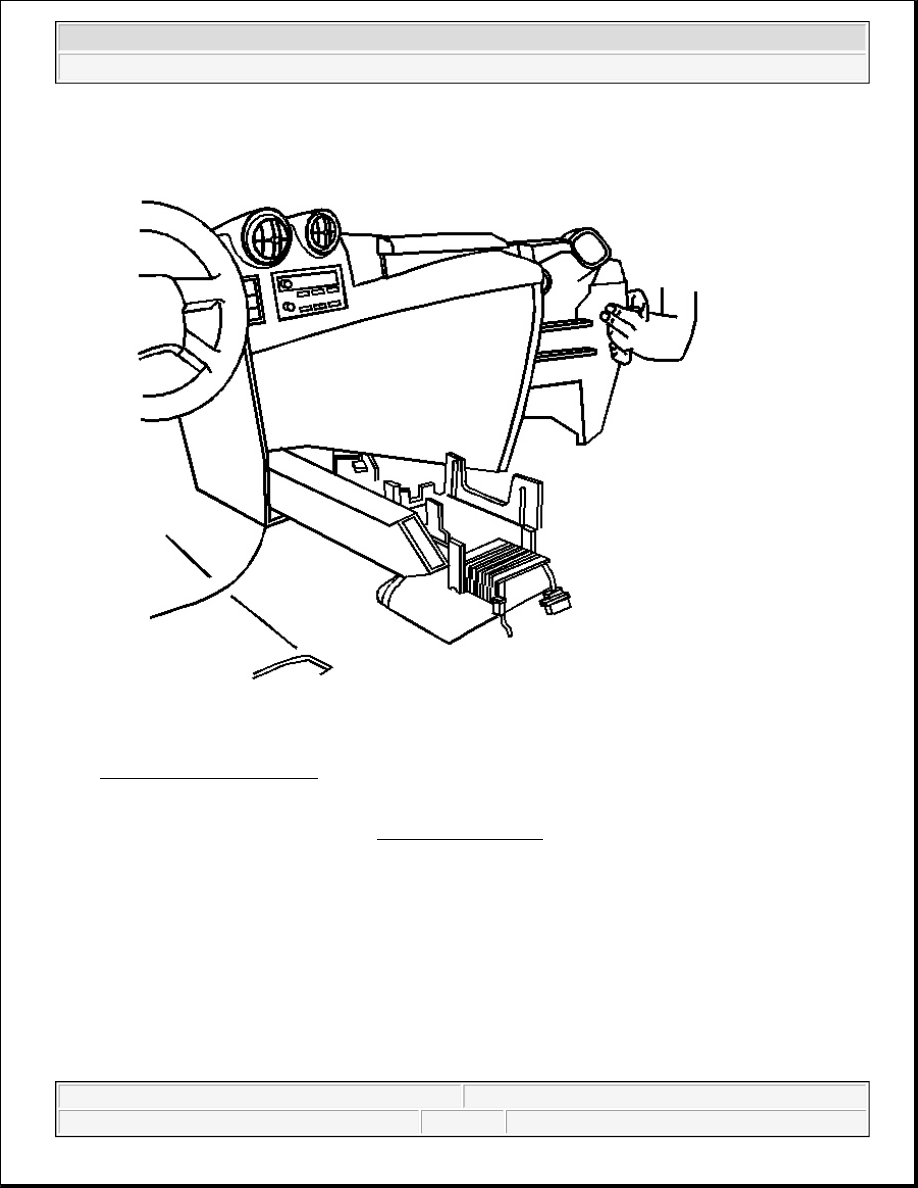

Fig. 103: I/P Center Console
Courtesy of GENERAL MOTORS CORP.

28. Install the I/P center console. Refer to Console Replacement .
