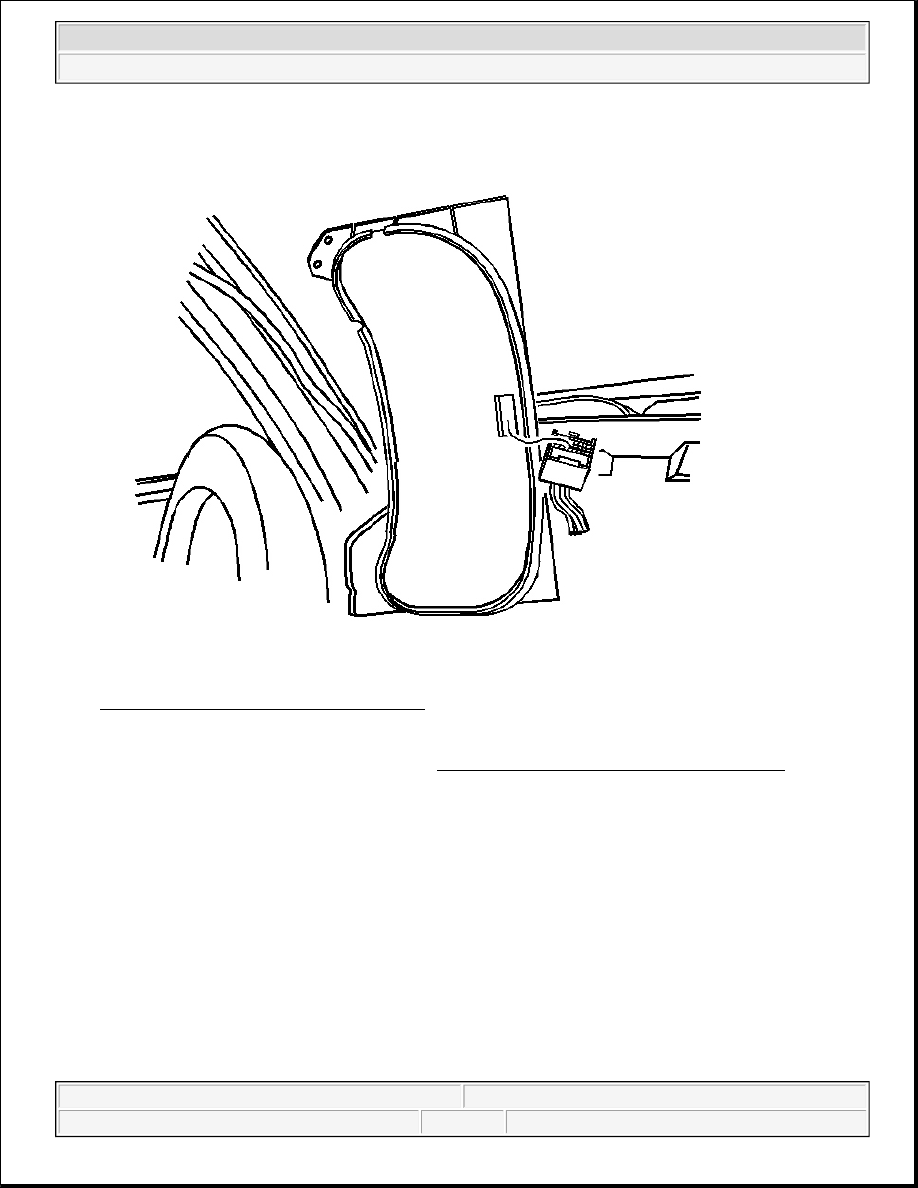

Fig. 96: I/P Cluster Electrical Connections
Courtesy of GENERAL MOTORS CORP.

19. Install the IPC cluster and trim panel. Refer to Instrument Panel Cluster (IPC) Replacement .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



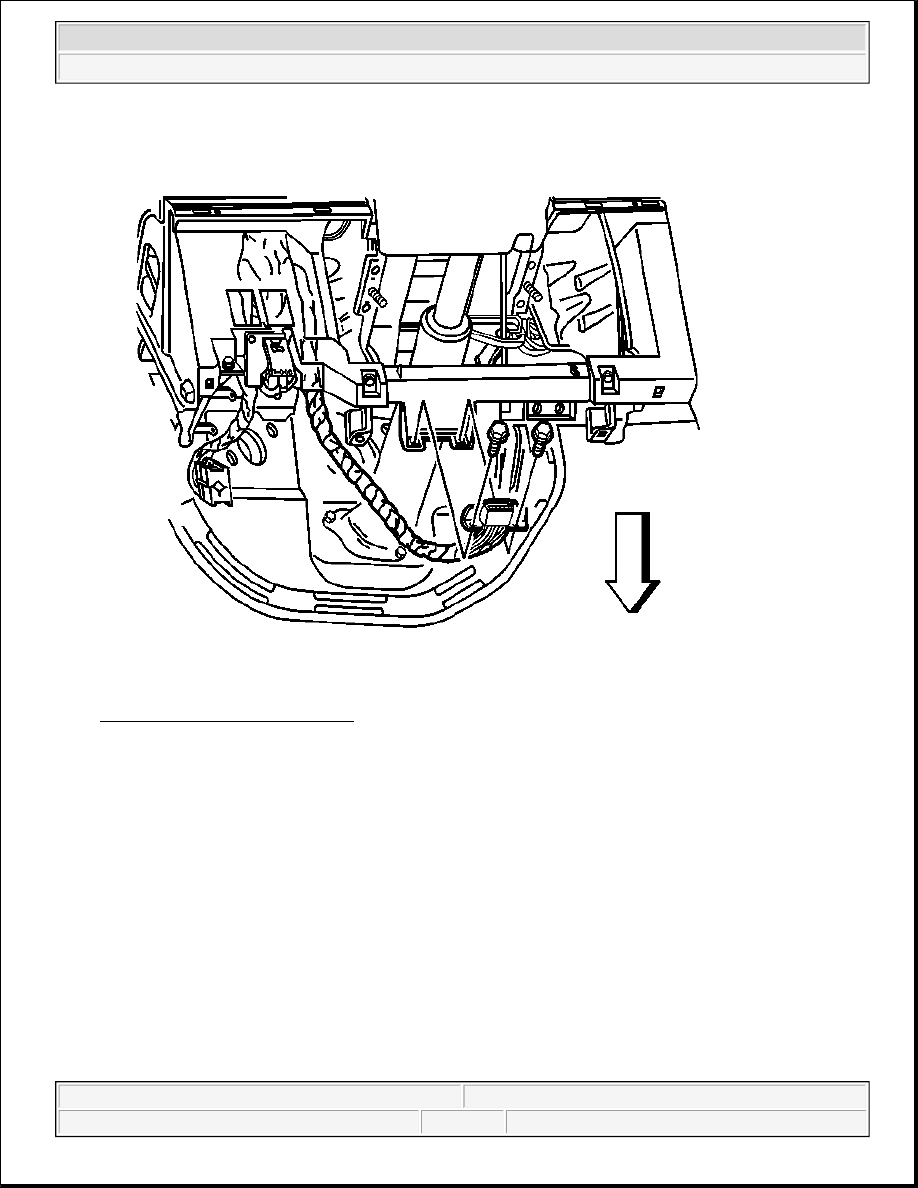

Fig. 97: I/P Data Link Connector
Courtesy of GENERAL MOTORS CORP.

20. Install the diagnostic connector to the I/P.

21. Tighten the data link connector screws.

Tighten: Tighten the screws to 2 N.m (18 lb in).

22. Connect brake release lever to I/P.

Tighten: Tighten the screws to 2 N.m (18 lb in).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



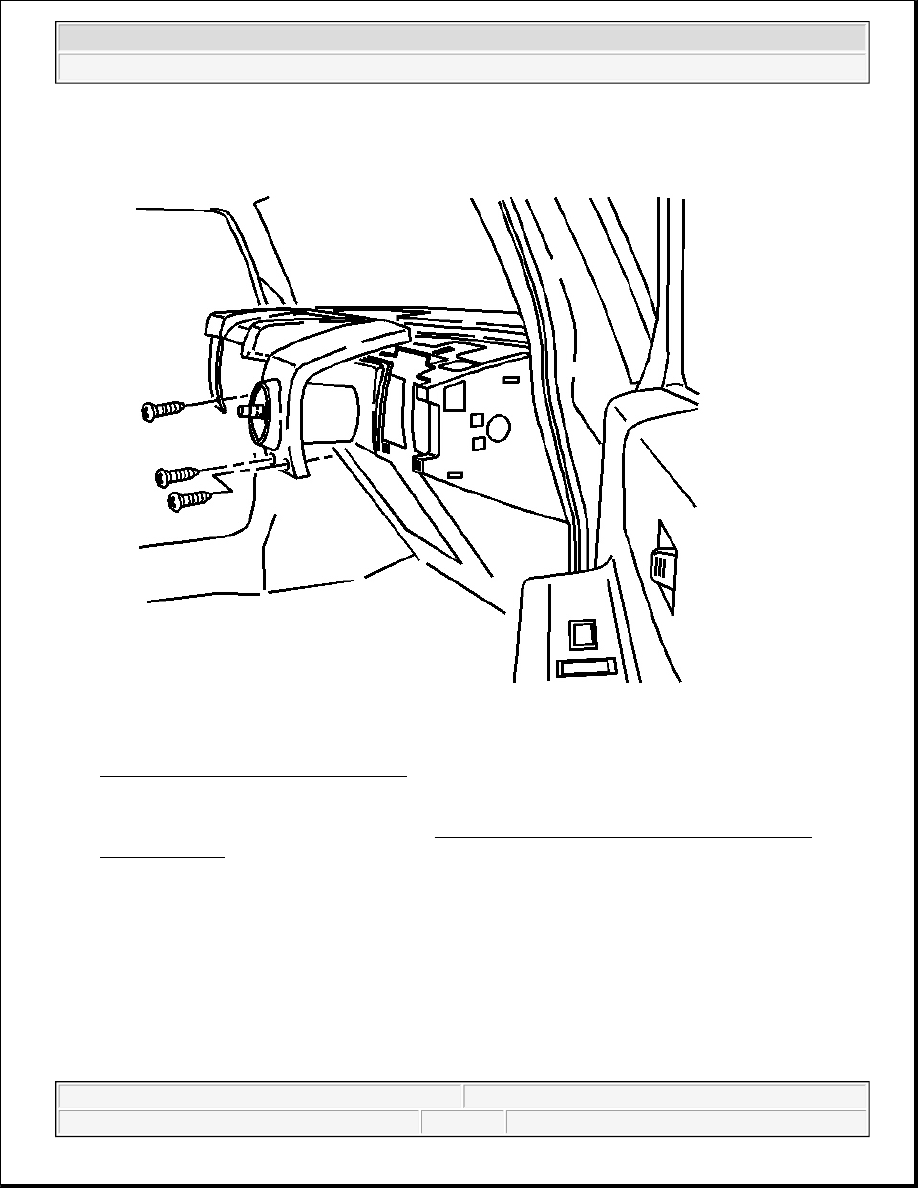

Fig. 98: I/P Accessory Left Trim Panel
Courtesy of GENERAL MOTORS CORP.

23. Install the left accessory trim panel. Refer to Trim Plate Replacement - Instrument Panel (I/P)

Accessory Left .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



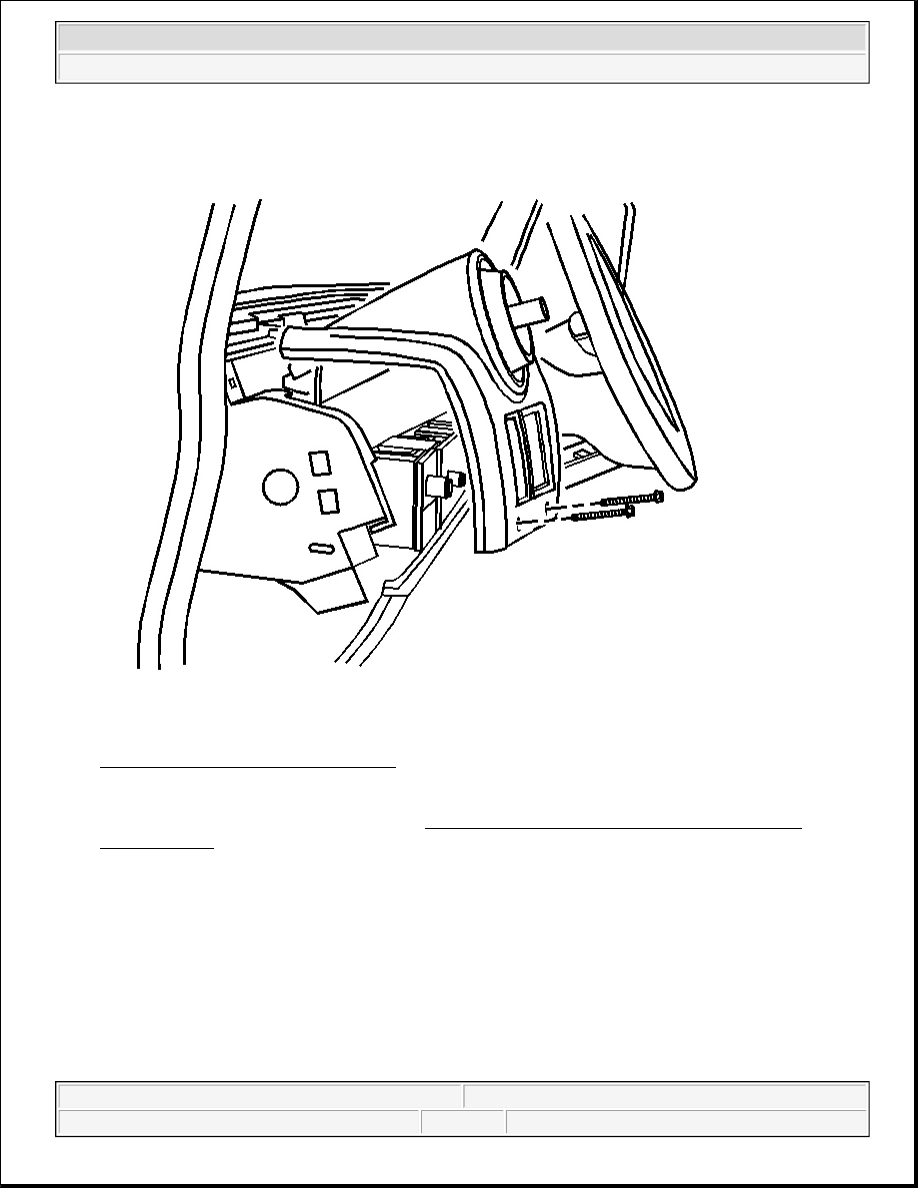

Fig. 99: I/P Right Accessory Trim Panel
Courtesy of GENERAL MOTORS CORP.

24. Install the right accessory trim panel. Refer to Trim Plate Replacement - Instrument Panel (I/P)

Accessory Right .
