Hummer H2. Manual - part 396

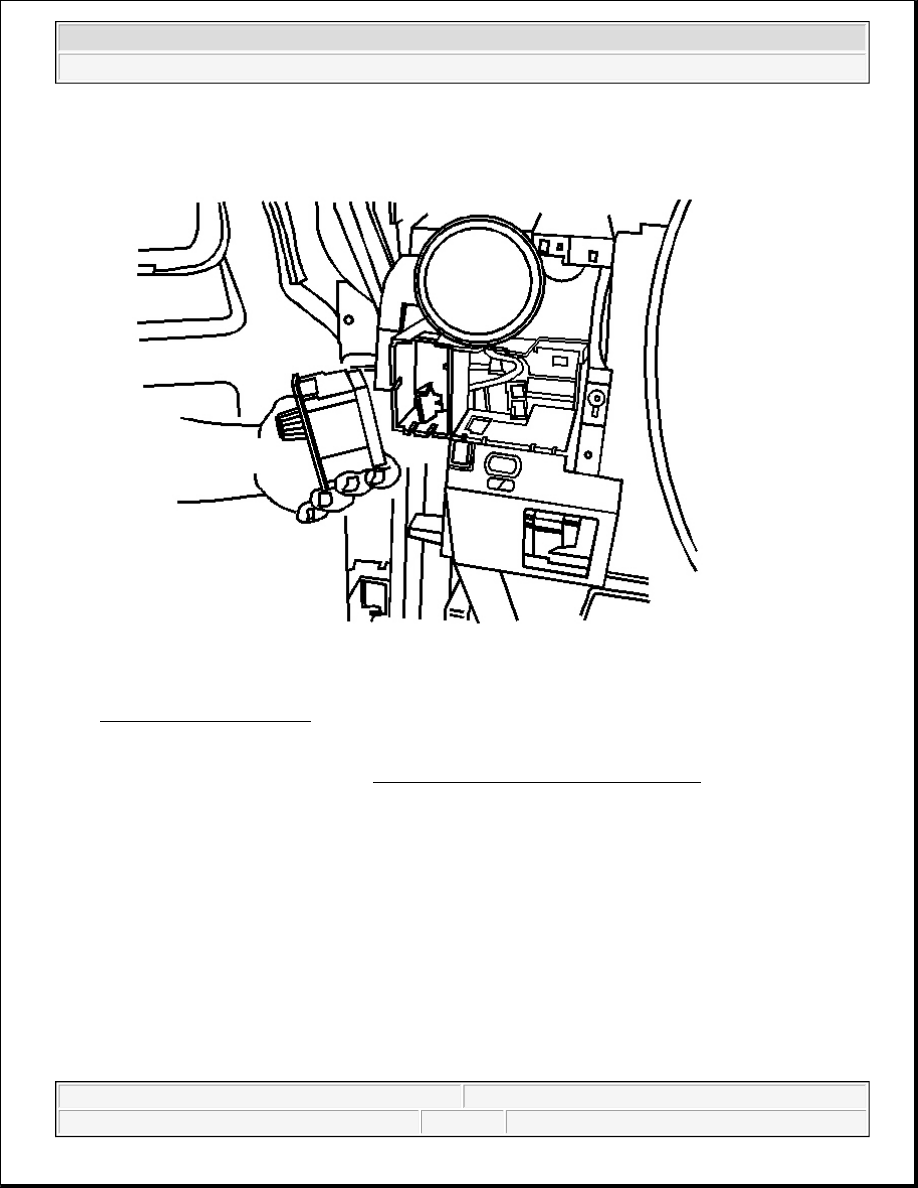

Fig. 88: Headlamp Switch
Courtesy of GENERAL MOTORS CORP.

11. Install the headlamp switch. Refer to Headlamp Switch Replacement in Lighting Systems.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 89: Rear Wiper Switch
Courtesy of GENERAL MOTORS CORP.

12. Install the rear wiper switch. Refer to Wiper/Washer Switch Replacement - Rear in Wipers/Washer

Systems.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 90: Transfer Case Control Switch Module
Courtesy of GENERAL MOTORS CORP.

13. Install the transfer case control switch module. Refer to Transfer Case Shift Control Module

Replacement in Transfer Case - BW 4484.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



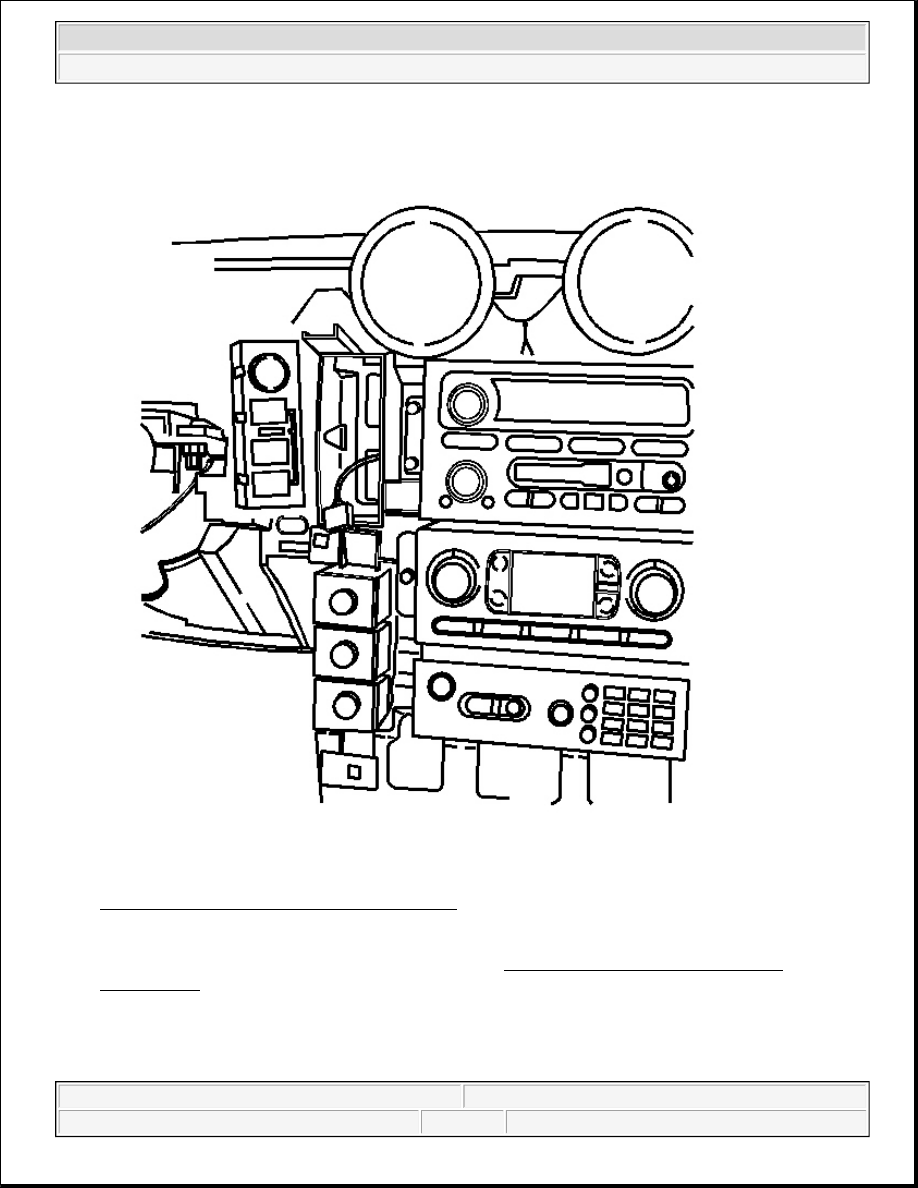

Fig. 91: Traction Control & Air Ride Module Assembly
Courtesy of GENERAL MOTORS CORP.

14. Install the traction control, air ride module to center stack and make electrical connections.

Tighten: Tighten the screws to 2 N.m (18 lb in).
