Fig. 80: I/P Carrier Center Support Bracket Nut
Courtesy of GENERAL MOTORS CORP.

28. Remove the nut from the I/P carrier center support.

29. Remove the upper I/P carrier bolts.

30. Remove the drivers and passenger side I/P carrier bolts.

31. Disconnect the electrical connections from the body control module (BCM) to the body harness.

32. Remove the wiring harnesses through the openings in the I/P retainer.

33. Remove the I/P assembly from the vehicle.

Installation Procedure

IMPORTANT: Make sure the ambient light sensor is routed to the top of the I/P.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



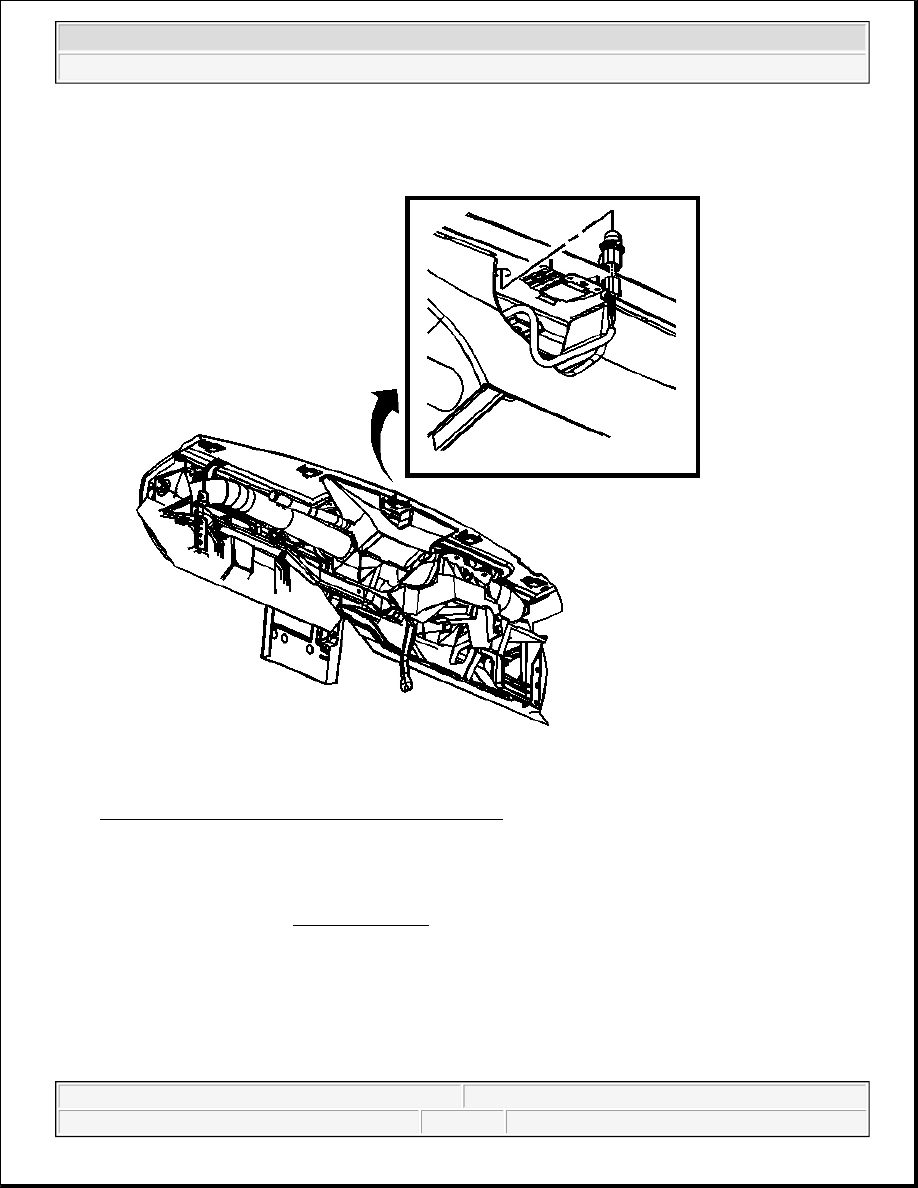

Fig. 81: Aligning I/P & Routing Electrical Harnesses
Courtesy of GENERAL MOTORS CORP.

1. Align the I/P in the vehicle and route all electrical harnesses through the I/P retainer.

2. Install the upper and side I/P carrier bolts.

Tighten: Tighten the bolts to 50 N.m (37 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 82: I/P Carrier Center Support Bracket Nut
Courtesy of GENERAL MOTORS CORP.

3. Install the I/P carrier center support nut.

Tighten: Tighten the nut to 9 N.m (80 lb in).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



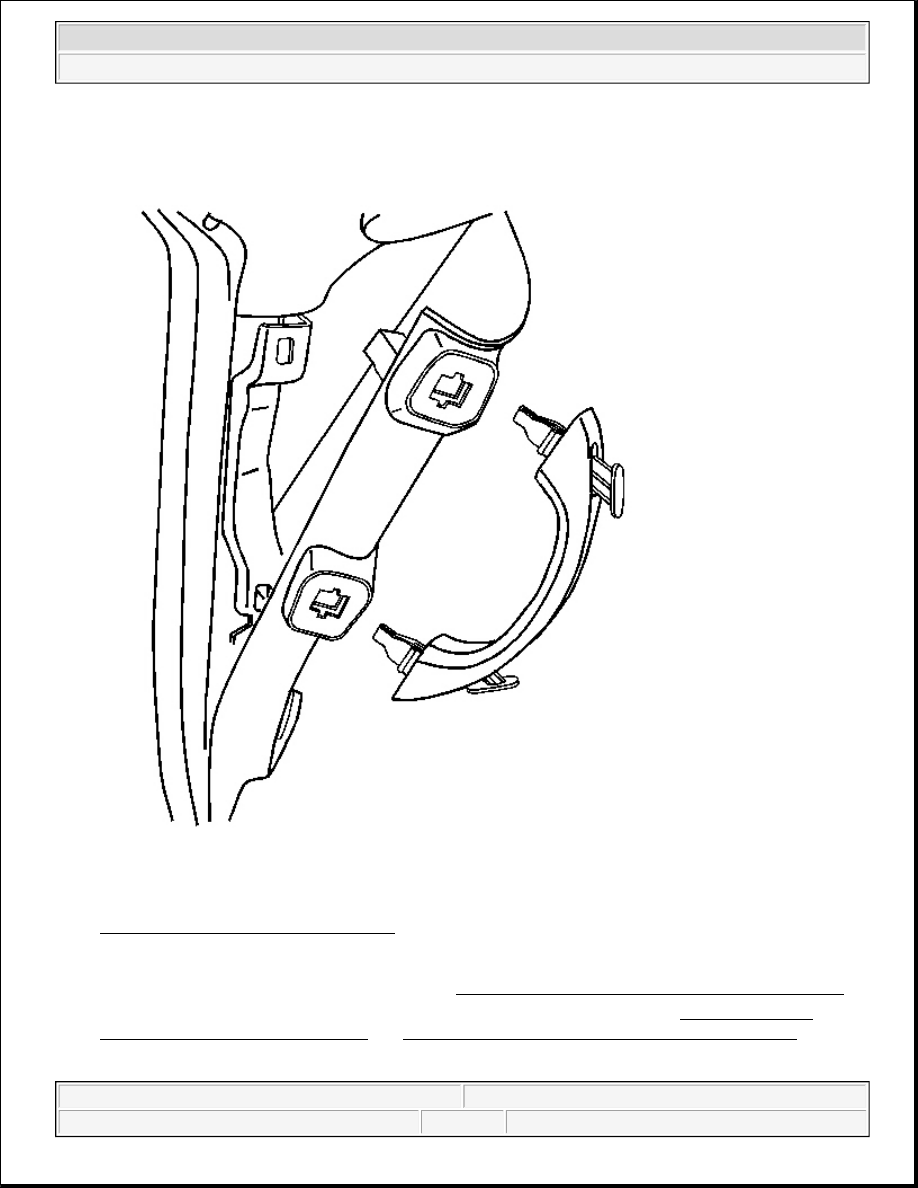

Fig. 83: Windshield Garnish Moldings
Courtesy of GENERAL MOTORS CORP.

4. Install the windshield garnish moldings. Refer to Garnish Molding Replacement - Windshield Pillar .

5. Install the upper HVAC air temperature sensors from the HVAC ducts. Refer to Air Temperature

Sensor Replacement - Upper Right and Air Temperature Sensor Replacement - Upper Left in
HVAC Systems - Automatic.
